Contents

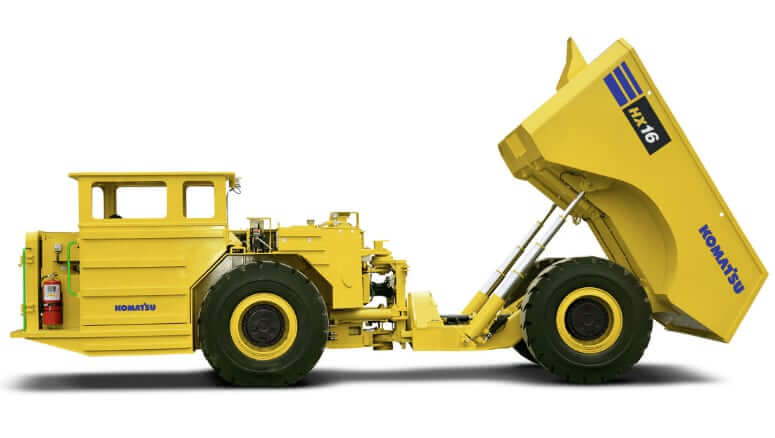

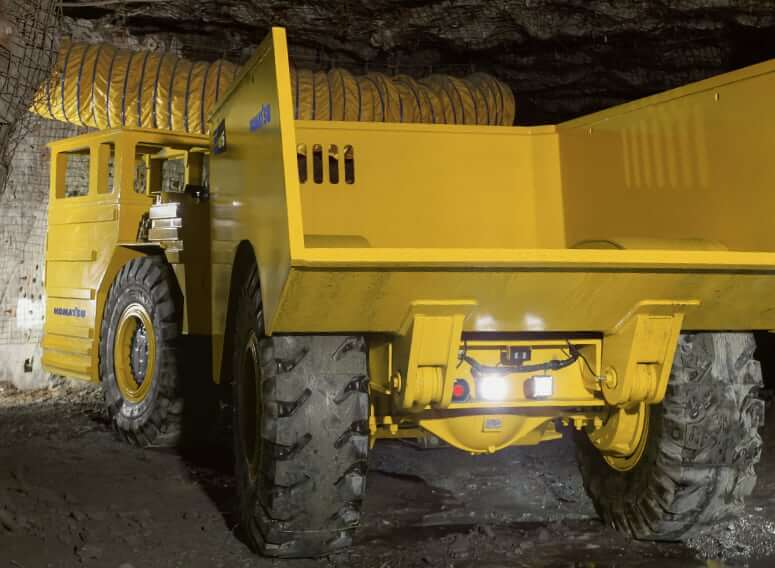

Dump System
| Nominal Payload Capacity | 35300 lb (16000 kg) |
| Body Capacity 1 | 9.5 yd3 (7.3 m3) |
| Body Capacity 2 (Standard) | 10.7 yd3 (8.0 m3) |
| Body Capacity 3 | 11.8 yd3 (9.0 m3) |
| Body Hoist Raise Time | 12 sec |
| Body Hoist Lower Time | 10 sec |
| Dump Angle | 60° |
| Front and Rear Frames | Welded steel box construction |
| Material | ASTM A572 GR50 |
Dimensions
| A. Height to Top of Canopy | 93 in (2352 mm) |
| B. Tramming Length | 304 in (7728 mm) |
| C. Height to Top of Dump Box | 83 in (2114 mm) |
| D. Height to Dump Box Up | 156 in (3957 mm) |
| E. Front Axle to Center Hinge | 57 in (1436 mm) |
| F. Rear Axle to Center Hinge | 87 in (2216 mm) |
| G. Ground Clearance | 13 in (336 mm) |
| H. Dump Clearance Length | 29 in (728 mm) |
| J. Dump Clearance Height | 18 in (447 mm) |
| K. Width Over Max Frame | 91 in (2318 mm) |
| L. Width Over Dump Box | 91 in (2318 mm) |
| M. Turning Angle | 45° |
| N. Outside Radius | 237 in (6022 mm) |
| P. Inside Radius | 112 in (3087 mm) |
| R. Dump Angle | 60° |
Weights
| Komatsu HX16 | Empty | Loaded |
|---|---|---|
| Operating Weight | 39380 lb (17900 kg) | 74580 lb (33900 kg) |
| Front Axle Load | 29920 lb (13600 kg) | 42240 lb (19200 kg) |
| Rear Axle Load | 9460 lb (4300 kg) | 32340 lb (14700 kg) |

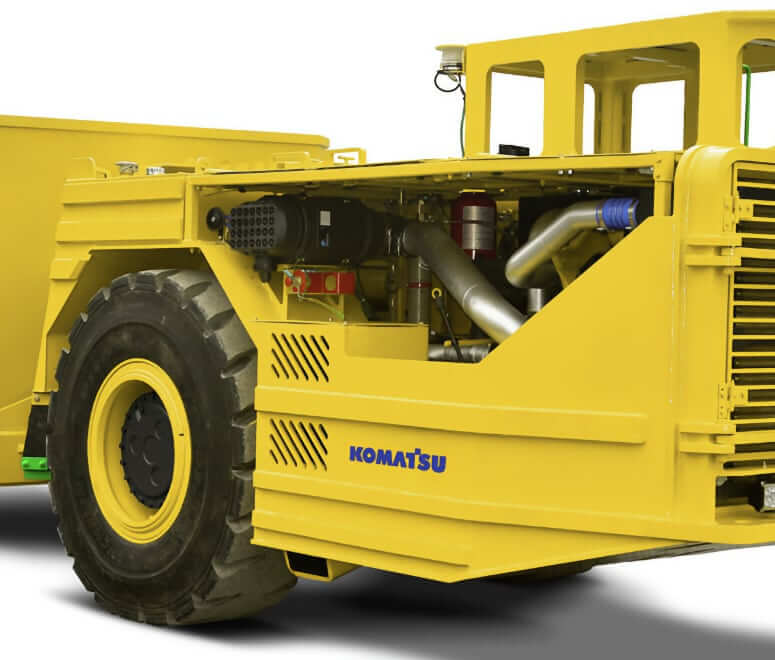

Engine Details
| Engine Model | Cummins QSB 6.7 | Mercedes-Benz OM906LA |
|---|---|---|
| Number of Cylinders | 6 | 6 |
| Displacement | 408 cu in (6.7 L) | 389 cu in (6.4 L) |
| Bore | 4.21 in (107 mm) | 4.02 in (102 mm) |
| Stroke | 4.88 in (124 mm) | 5.12 in (130 mm) |
| Gross Horsepower | 220 hp (164 kw) | 228 hp (174 kw) |
| Power Measured @ | 2200 rpm | 2200 rpm |
| Peak Torque | 730 lb ft (990 Nm) | 848 lb ft (1150 Nm) |
| Torque Measured @ | 1500 rpm | 1600 rpm |
| Air Cleaner | Dry air filter (Donaldson) | Dry air filter |
| Fuel System | High Pressure Common Rail | Direct injection |
| Exhaust System | Diesel oxidation catalyzer | Selective Catalytic Reduction (SCR) |
| Aspiration | Turbocharged charge air cooled | Twin-scroll turbocharger, intercooler |
| Emission Standards | US EPA Tier 3 + EU Stage IIIA | US EPA Tier 3 + EU Stage IIIA |
Operational Specs
| Max Operating Weight | 74580 lb (33900 kg) |
| Nominal Payload Capacity | 35300 lb (16000 kg) |
| Operating Voltage | 24 V |
| Alternator | 100 amps |
| Battery | 2x 12 V, Heavy duty |
| Working Lights | 4x LED front working lights + 2x LED rear working lights |
Transmission

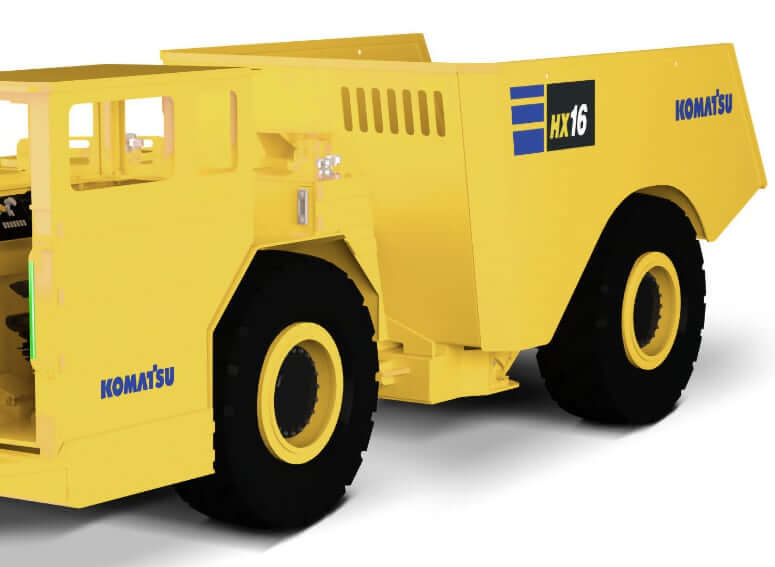

| Type | Dana 32000 series Powershift transmission |
| Shifting | Powershift c/w modulation |
| Number of Gears | 4F / 4R |
| Max Speed (Loaded) | 20.6 mph (33.1 km/h) |
| Torque Converter | Dana CL320 series with lock-up |
| Torque Converter Diameter | 12,13 in (300 mm) |
Axles and Brakes
| Front Axle | Dana 16D2149 with open differentials |
| Rear Axle | Dana 16D2149 with open differentials |
| Oscillation Angle | ±10° |
| Turning Angle | 45° |
| Gradeability | 15% |
| Tire Size | 17.50 R 25 Radial lugged |
| Service Brakes | Service brakes are enclosed spring-applied, hydraulically released, liquid cooled multi-disc on all four wheel ends |
| Parking Brake | The service brakes also function as emergency and park brakes |
Cab
| Cab (Standard) | FOPS/ROPS open cabin |
| Cab (Optional) | FOPS/ROPS enclosed cabin with AC and heat |
| Operator Seat | Side seated operator |
| Steering Control | Single proportional joystick with gear selector |
| Joystick | Joystick steering and dump box control |
Hydraulic System
| Type | Load sensing closed center circuit |
| Pump Type | Variable displacement piston pump with load sensing. Electric transfer pump for tank filling |
| Box Hoist Cylinder | Two, double acting, four stage |
| Steering Cylinders | Two, double acting, single stage |
Service Refill Capacities
| Engine Model | Cummins QSB 6.7 | Mercedes OM906LA |
|---|---|---|
| Fuel Tank Capacity | 84 gal (317 L) | 84 gal (317 L) |
| Engine Oil Capacity | 6.3 gal (24 L) | 7.7 gal (29 L) |
| Cooling System Capacity (w/o radiator) | 2.6 gal (10 L) | 3.3 gal (12.5 L) |
| Hydraulic Tank Capacity | 43.5 gal (165 L) | 43.5 gal (165 L) |
