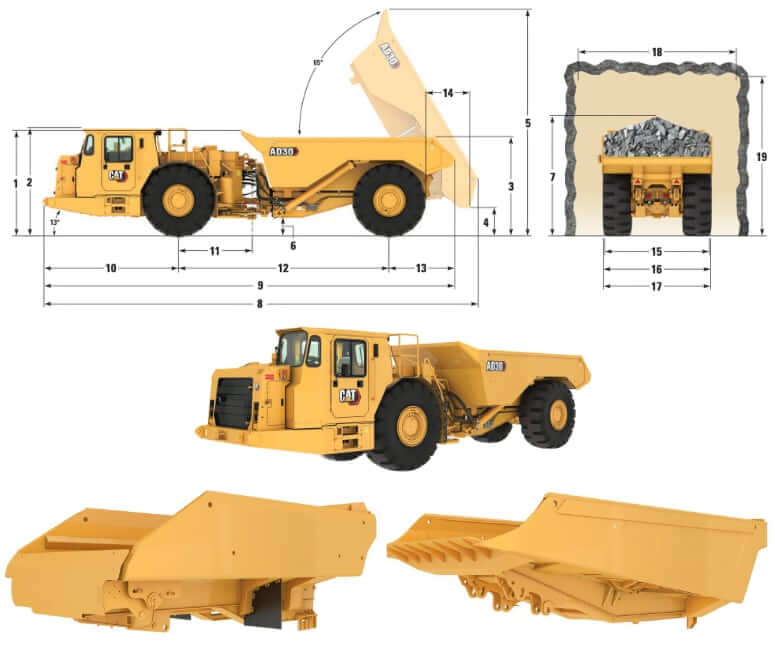

Dimensions
| CAT AD30 Body | 246-0805 | 258-1580 (Wide) | 436-9671 (Ejector) |
|---|---|---|---|
| 1. Overall Height (Body Empty) | 100.3 in (2547 mm) | 100.3 in (2547 mm) | 115.5 in (2934 mm) |
| 2. Height to Top of ROPS | 102.4 in (2600 mm) | 102.4 in (2600 mm) | 102.4 in (2600 mm) |
| 3. Front Axle to Front Bumper | 131.7 in (3345 mm) | 131.7 in (3345 mm) | 131.7 in (3345 mm) |
| 4. Centerline of Front Axle to Centerline of Hitch | 70.9 in (1800 mm) | 70.9 in (1800 mm) | 70.9 in (1800 mm) |
| 5. Overall Length | 398.3 in (10 118 mm) | 411.6 in (10 455 mm) | 409.2 in (10 393 mm) |
| 6. Maximum Overall Length | 421.1 in (10 697 mm) | 426.4 in (10 830 mm) | 409.2 in (10 393 mm) |
| 7. Wheelbase | 204.7 in (5200 mm) | 204.7 in (5200 mm) | 204.7 in (5200 mm) |
| 8. Ground Clearance | 15.7 in (400 mm) | 15.7 in (400 mm) | 15.7 in (400 mm) |
| 9. Rear Axle to Tail | 61.9 in (1573 mm) | 75.2 in (1910 mm) | 72.8 in (1848 mm) |
| 10. Rear Wheel to Body Raised | 42.3 in (1075 mm) | 46.5 in (1180 mm) | 72.8 in (1848 mm) |
| 11. Dump Clearance | 23.4 in (594 mm) | 10.6 in (270 mm) | 27.7 in (703 mm) |
| 12. Loading Height | 90.0 in (2285 mm) | 90.4 in (2295 mm) | 109.9 in (2791 mm) |
| 13. Overall Height (Body Raised) | 220.8 in (5608 mm) | 216 in (5485 mm) | — |
| 14. Tunnel Clearance Width | 157.5 in (4000 mm) | 157.5 in (4000 mm) | 157.5 in (4000 mm) |
| 15. Tunnel Clearance Height | 157.5 in (4000 mm) | 157.5 in (4000 mm) | 157.5 in (4000 mm) |
| 16. Overall Tire Width | 104.3 in (2650 mm) | 118.1 in (3000 mm) | 104.3 in (2650 mm) |
| 17. Overall Width Including Body | 105.9 in (2690 mm) | 119.7 in (3040 mm) | 114.1 in (2898 mm) |
| 18. Overall Width Excluding Body | 105.9 in (2690 mm) | 105.9 in (2690 mm) | 105.9 in (2690 mm) |
| 19. Height to Top of Load (SAE 2:1) | 116.3 in (2953 mm) | 119.7 in (3040 mm) | 136.2 in (3459 mm) |
Turning Dimensions
| Outside Clearance Radiuы | 337.4 in (8571 mm) |
| Inner Clearance Radius | 198 in (5030 mm) |
| Axle Oscillation | 10° |
| Articulation Angle | 42.5° |

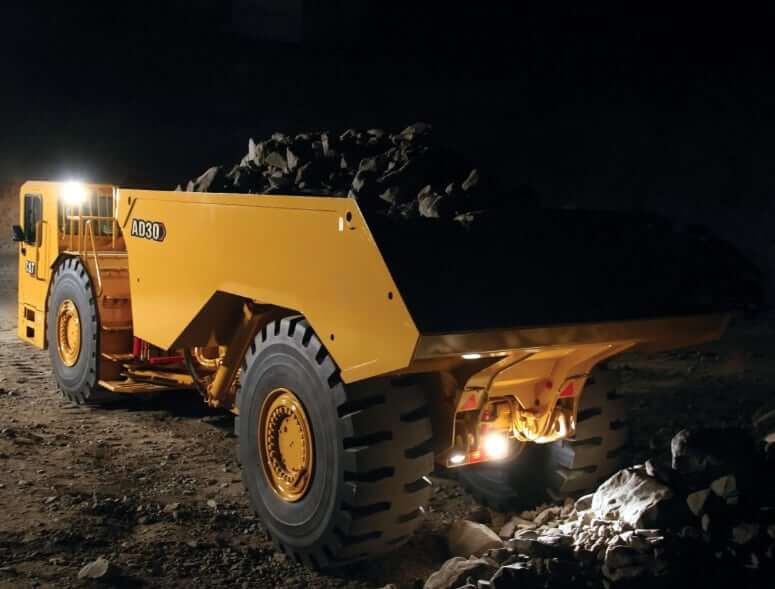

Weights
| CAT AD30 | Empty | Loaded |
|---|---|---|
| Operating Weight | 63647 lb (28870 kg) | 132277 lb (60000 kg) |
| Front Axle Load | 42944 lb (19479 kg) | 58451 lb (26513 kg) |
| Rear Axle Load | 20704 lb (9391 kg) | 73826 lb (33487 kg) |
| Front Axle Weight Distribution | 67.5% | 44.2% |
| Rear Axle Weight Distribution | 32.5% | 55.8% |
Dump System
| Rated Payload Capacity | 66139 lb (30000 kg) |
| Body Capacity, Heaped (Cat 246-0805) | 14.8 yd3 (11.3 m3) |
| Body Capacity, Heaped (Cat 258-1580 Wide) | 21.9 yd3 (16.8 m3) |
| Body Capacity, Heaped (Cat 436-9671 Ejector) | 21.9 yd3 (16.8 m3) |

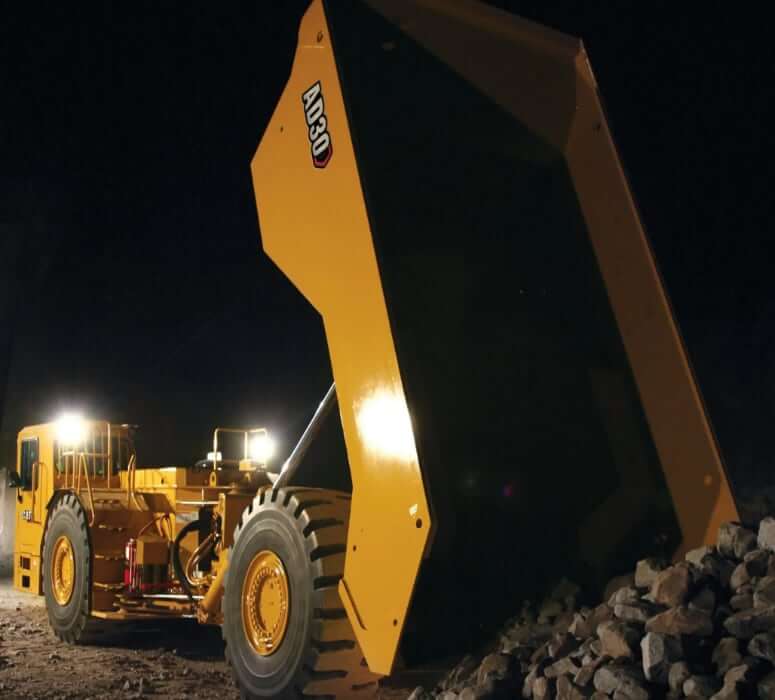

| Dump Angle | 65° |
| Body Hoist Raise Time | 10.5 sec |
| Body Hoist Lower Time | 11.2 sec |
| Body Hoist Total Cycle Time | 21.7 sec |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | Caterpillar |
| Engine Model | CAT C15 ACERT |
| Displacement | 927.6 cu in (15.2 L) |
| Bore | 5.4 in (137 mm) |
| Stroke | 6.8 in (172 mm) |
| Gross Power | 401 hp (299 kw) |
| Power Measured @ | 1800 rpm |
| Peak Torque | 2004 lb ft (2717 Nm) |
| Torque Measured @ | 1400 rpm |
| Ventilation Reduction Package | Optional |
| Aspiration | Turbocharged Aftercooled (ATAAC) |
| Emission Standards | US EPA Tier 3 + EU Stage IIIA + China Nonroad III |
Operational Specs
| Gross Machine Mass | 132300 lb (60000 kg) |
| Payload Capacity | 66139 lb (30000 kg) |
| Operating Voltage | 24 V |
| Alternator | 95 amps |
| Battery | 2x 12 V, 200 Ah, CCA 1400, RC: 425 min, Size group 4D |
| Cab (Standard) | ROPS/FOPS |
| Cab (Optional) | Enclosed cab with sound suppression |
| Lighting | Headlights with dimmer switch, halogen + Rear work light (cab mounted), halogen + Reversing lights, halogen + Brake and tail light, LED |
Transmission
| Type | Auto shift transmission |
| Number of Gears | 4F + 1R |
| Max Forward Speed | 22.8 mph (36.7 km/h) |
| Max Reverse Speed | 4.4 mph (7.1 km/h) |
| Front Tire Size | 265 x R25 Radials |
| Rear Tire Size | 265 x R25 Radials |
| Service Brakes | Four-wheel, forced oil-cooled, multiple disc service brakes (SAFR) |
| Retarder Control | Automatic electronically controls retarding on grade |
| Parking Brake | The integrated system combines the service, secondary, parking brake and retarding functions in the same robust system |
Service Refill Capacities
| Fuel Tank Capacity | 132 gal (500 L) |
| Engine Oil Capacity | 9 gal (34 L) |
| Cooling System Capacity | 20 gal (74 L) |
| Transmission Oil Capacity | 18 gal (67 L) |
| Hydraulic Tank Capacity | 38 gal (145 L) |
| Hydraulic System Capacity | 87 gal (330 L) |
| Front Differentials and Final Drives | 15 gal (56 L) |
| Rear Differentials and Final Drives | 15 gal (56 L) |

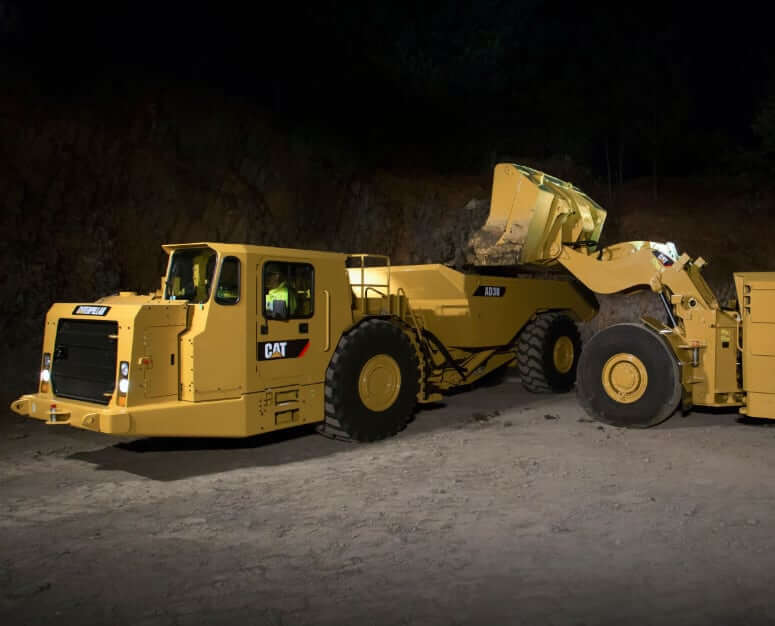

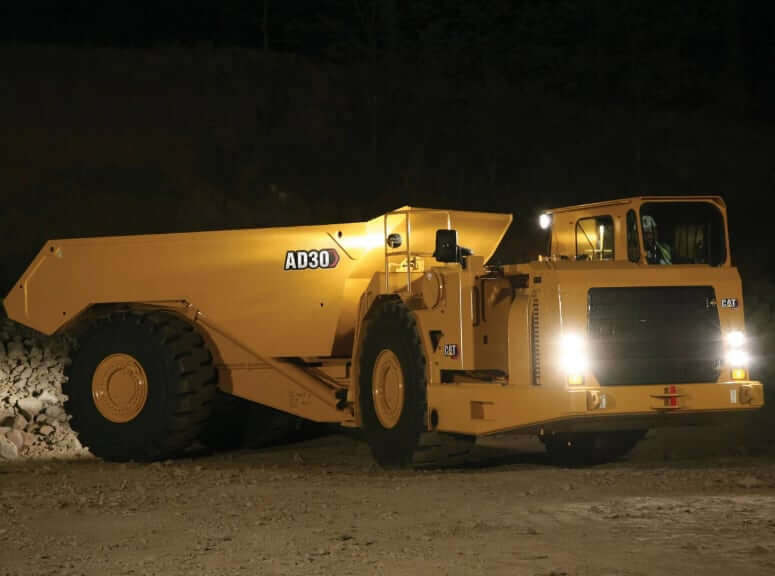

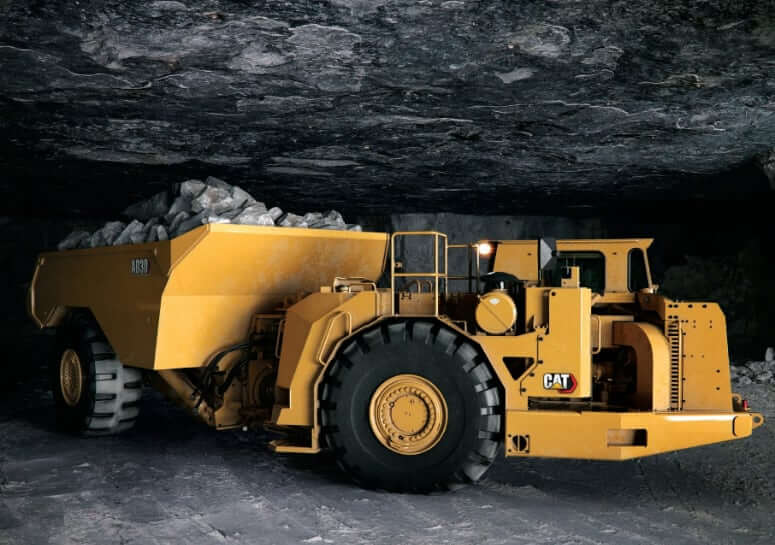

The Cat® AD30 Underground Mining Truck is a rugged, mid-sized articulated hauler designed specifically for underground hard-rock mining. Built to operate in confined spaces (typically 4×4 m tunnels), it pairs the powerful Cat® C15 engine with a durable four-speed planetary power-shift transmission to deliver high performance and fast cycle times.
With a 30 000 kg (66 139 lb) nominal payload and a gross machine mass of 60 000 kg (132 300 lb), the AD30 offers cost-effective hauling in smaller mining operations. It features a variety of body configurations – ranging from 14.8 to 22.9 yd3 (11.3 to 17.5 m3) and is equipped with full-floating axles, oil-cooled disc brakes, and advanced electronics like the VIMS monitoring system. Designed with serviceability and operator comfort in mind, the AD30 offers easy-access service points, a ROPS/FOPS-certified cab, climate control, and ergonomic controls to enhance productivity and uptime
