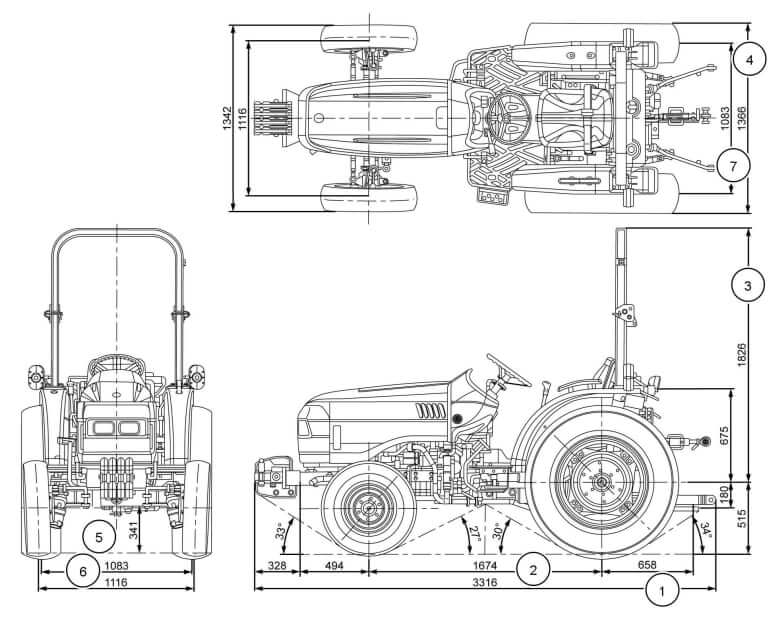

Dimensions
| 1. Overall Length w/ 3 Point Hitch | 131 in (3316 mm) |
| Length w/o 3 Point Hitch | 117.2 in (2976 mm) |
| 2. Wheelbase | 66 in (1674 mm) |
| 3. Height to Top of ROPS | 92 in (2341 mm) |
| Height to Top of ROPS (folded) | 68.2 in (1732 mm) |
| 4. Overall Width (43×16-20 rear tires) | 54 in (1366 mm) |
| 5. Ground Clearance | 13 in (341 mm) |
| 6. Front Wheel Tread | 44 in (1116 mm) |
| 7. Rear Wheel Tread | 43 in (1083 mm) |
| Departure Angle | 34° |
| Approach Angle | 33° |

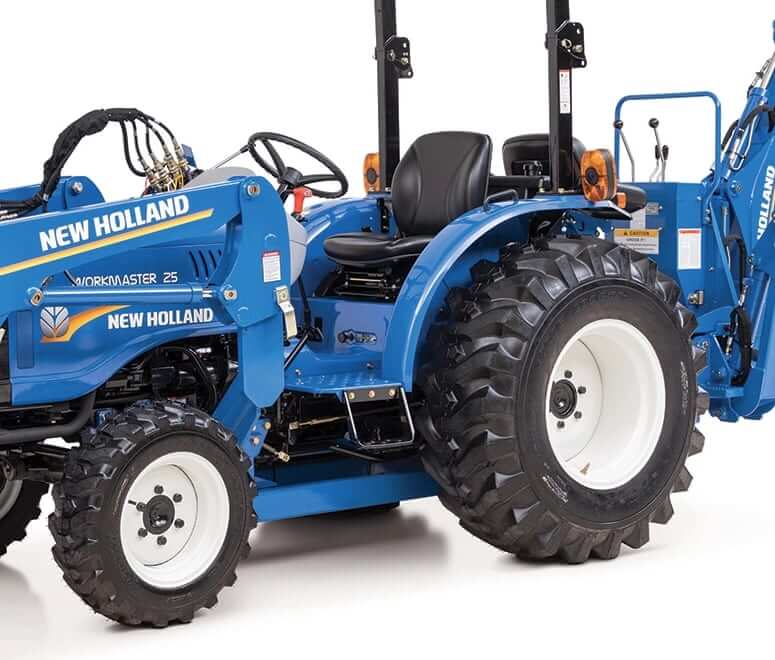

Tires
| Workmaster 25 | Front Tire Size | RearTire Size |
|---|---|---|
| Agricultural | 7-14, 6PR, R1 | 11.2-24, 4PR, R1 |
| Turf | 25 x 8.50-14, 4PR, R4 | 41 x 14.00-20, 4PR, R3 |
| Industrial | 25 x 8.50-14, 6PR, R4 | 43 x 16-20, 4PR, R4 |
Engine Details
| Number of Cylinders | 3 |
| Engine Make | Mitsubishi |
| Engine Model | Mitsubishi S3L2 W461GT |
| Displacement | 80.4 cu in (1.318 L) |
| Bore | 3.07 in (78 mm |
| Stroke | 3.62 in (92 mm) |
| Gross Horsepower | 24.4 hp (18.2 kw) |
| PTO Horsepower, Gear | 19.2 hp (14.3 kw) |
| PTO Horsepower, HST | 17.1 hp (12.8 kw) |
| Power Measured @ | 2500 rpm |
| Peak Torque | 56.3 lb ft (76.3 Nm) |
| Low Idle | 970 rpm |
| High Idle | 2700 rpm |
| Fuel System | Indirect injection, swirl chamber type |
| Cooling System | Pressurized liquid with recirculating bypass. Centrifugal water pump |
| Compression | 22.0:1 |
| Aspiration | Naturally aspirated |
| Emission Standards | US EPA Tier 4 Final + EU Stage V |
Operational Specs

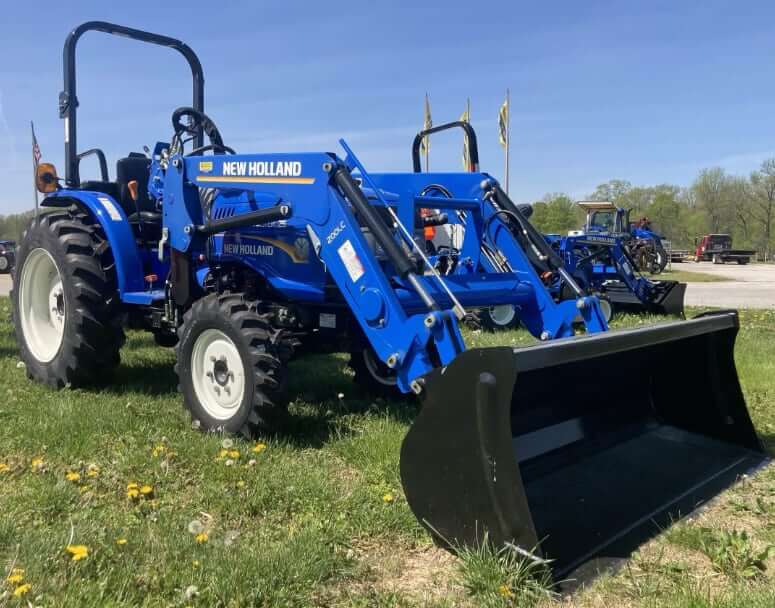

| Operating Weight (Mechanical) | 2434 lb (1104 kg) |
| Operating Weight (Hydrostatic) | 2469 lb (1120 kg) |
| Operating Voltage | 12 V |
| Alternator | 50 amps |
| Battery | 12 V, CCA 660, BCI Group 34 |
| Operator Station | Open operator station with two-post folding ROPS |
| Steering System | Power steering |
| Turns Lock-to-Lock | 3.92 L to R / 3.30 R to L |
| Turning Radius w/o Brakes (Left turn) | 120 in (3047 mm) |
| Turning Radius w/o Brakes (Right turn) | 129.8 in (3297 mm) |

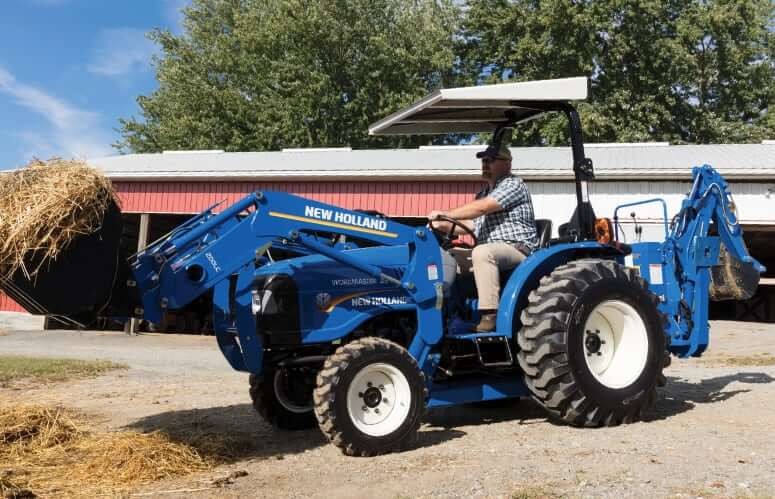

Transmission
| Workmaster 25 | Mechanical Transmission | Hydrostatic Transmission |
|---|---|---|
| Number of Gears | 12F / 12R | 2-Range Hydrostatic |
| Max Forward Speed | 13.8 mph (22.2 km/h) | 15.3 mph (24.7 km/h) |
| Max Reverse Speed | 13.1 mph (21.1 km/h) | 10.8 mph (17.4 km/h) |
| Drive | 4WD | 4WD |
| Cruise Control | N/A | Standard |
| Rear Differential Lock | Mechanical | Mechanical |
| Service Brakes | Wet multi-disc brakes | Wet multi-disc brakes |

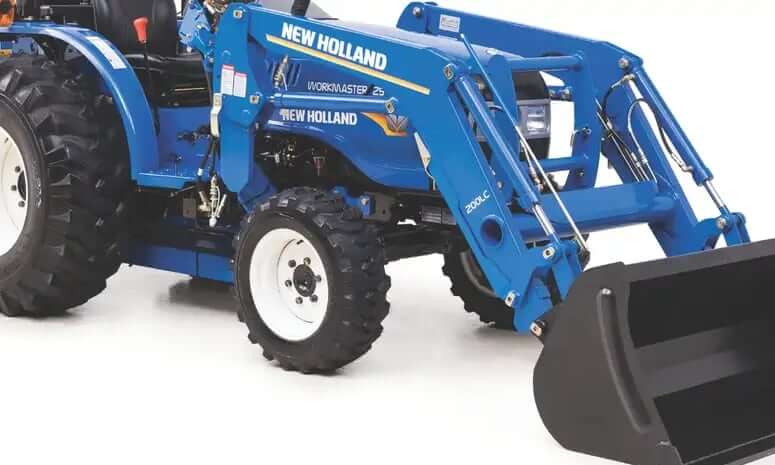

Hydraulic System
| Type | Open center |
| Pump Type | Gear pump |
| Implement Pump Flow | 7.9 gal/min (30 L/min) |
| Steering Pump Flow | 4.6 gal/min (17.5 L/min) |
| Total Flow Capacity | 12.5 gal/min (47.5 L/min) |
| System Relief Valve Setting | 2418 psi (16671 kPa) |
| Number of Remote Valves | 1 or 2 |
3-Point Hitch
| 3 Point Hitch Type | Category I (Telescopic Stabilizer / Fixed Link Ends) |
| 3 Point Hitch Lift Capacity @ 24″ | 1433 lb (650 kg) |
| 3 Point Hitch Lift Capacity @ ball ends | 1808 lb (820 kg) |
| Control | Position control |
PTO (Power Take-Off)
| Rear PTO Type | Independent electro-hydraulic engagement |
| Rear PTO Shaft Size | 1.4 in (35 mm) |
| Rear PTO Speed | 540 |
| PTO / Engine RPM | 540 @ 2510 rpm |
| Mid PTO Type | Independent (Standard on HST / Optional on Gear) |
| Mid PTO Shaft Size | 1.0 in (25.4 mm) |
| Mid PTO Speed | 2000 |
| Mid PTO / Engine RPM | 2000 @ 2545 rpm |
NH Workmaster 25 Filters
| Type | Part Number |
|---|---|
| Oil Filter | MT40056451 |
| Fuel Filter | MT40223960 |
| Primary Engine Air Filter | 48145946 |
| Hydraulic Oil Filter (Mechanical) | MT40347273 |
| Hydraulic Oil Filter (Hydrostatic) | MT40007563 |
Service Refill Capacities
| Fuel Tank Capacity | 7.4 gal (28 L) |
| Engine Oil Capacity (w/ filter) | 1.1 gal (4.2 L) |
| Cooling System Capacity | 1.3 gal (4.9 L) |
| Hydraulic / Transmission Oil Capacity (Gear) | 8.5 gal (32 L) |
| Hydraulic / Transmission Oil Capacity (HST) | 8.5 gal (32 L) |
| Front Axle Fluid Capacity | 1.7 gal (6.5 L) |

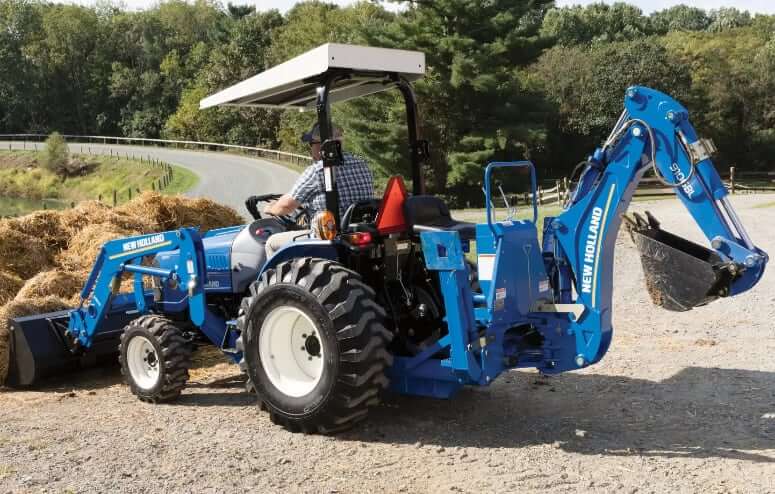

NH Workmaster 25 Attachments
The New Holland WorkMaster 25 comes ready to handle a wide variety of jobs when fitted with the right attachments. With the front‐loader option (for example the 200LC loader) the tractor becomes a powerhouse for material handling – moving soil, gravel, pallets or mulch with efficiency and precision.

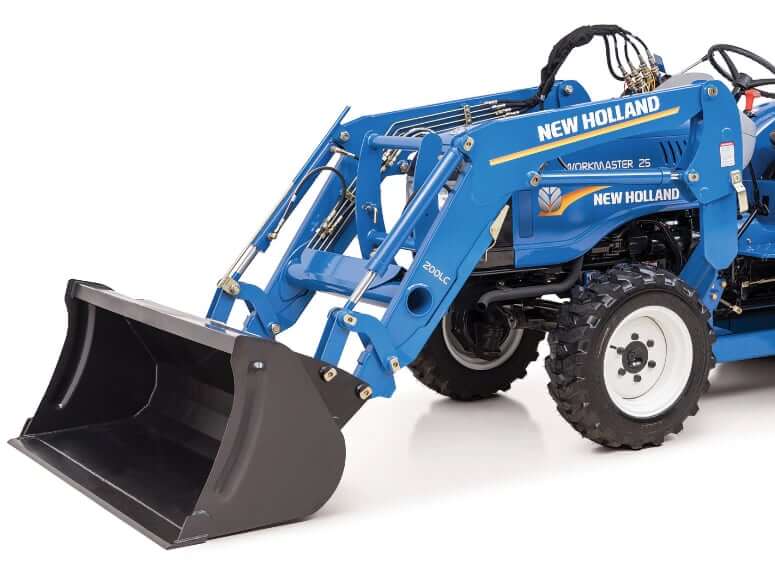

New Holland 200LC Loader
| Max Lift Height (to bucket pivot pin) | 94.3 in (2395 mm) |
| Lift Capacity (500 mm, max height) | 1214 lb (551 kg) |
| Lift Capacity (bucket pivot pin, max height) | 1600 lb (726 kg) |
| Max Dump Angle | 51° |
| Rollback Angle | 41° |
| Breakout Force (500 mm forward) (Ibs. (kg)) | 1926 lbf (8.57 kN) |
| Breakout Force (bucket pivot pin) (Ibs. (kg)) | 2637 lbf (11.73 kN) |
When the seasons turn, the front‐mounted snow-blower attachments (such as the New Holland 63CS, 63CSH, 72CSH or 74CSHA) equip the machine to clear driveways, lots and paths rapidly, leveraging the tractor’s PTO and loader frame strength for heavy snow tasks.

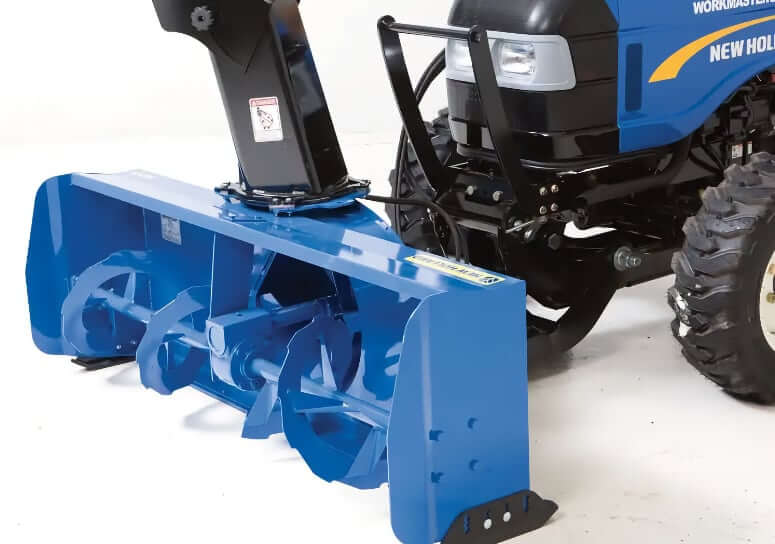

Snowblowers for Workmaster 25
| Model | 63CS | 72CSH | 74CSHA |
|---|---|---|---|
| Cutting Width | 63 in (1600 mm) | 72 in (1829 mm) | 74 in (1880 mm) |
| Cutting Height | 22 in (559 mm) | 26 in (660 mm) | 26 in (660 mm) |
| Fan Blades / Fan Diameter | 4 / 18 in (457 mm) | 24 in (610 mm) | 24 in (610 mm) |
| Auger Diameter | 14 in (356 mm) | 15 in (381 mm) | 15 in (381 mm) |
| Fan Drive | #50 HD Chain | #60 HD Chain | Gear Reduction |
| Auger Drive | – | Gear Reduction | #60 HD Chain |
| Standard Chute Rotation | Manual | Manual | Hydraulic |
| Optional Chute Rotation | Hydraulic, Electric | Hydraulic | Manual, Electric |
| Weight | 488 lb (221 kg) | 807 lb (366 kg) | 1005 lb (456 kg) |

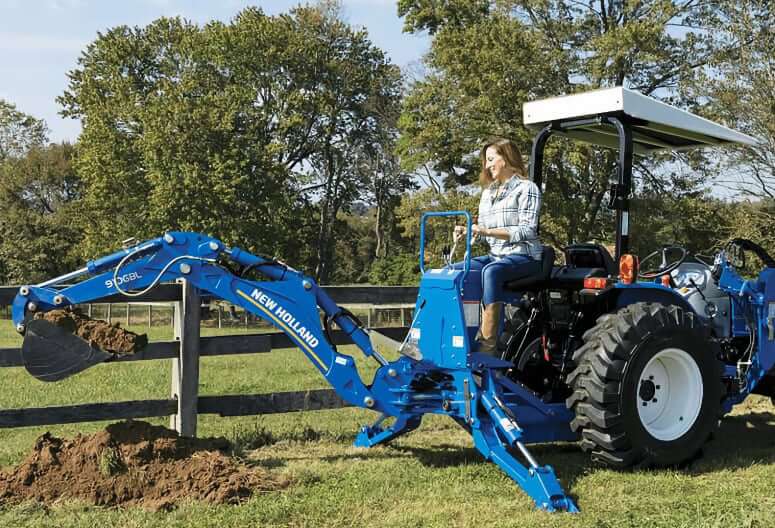

Behind the machine the NH 910GBL backhoe lets you dig trenches, remove stumps or perform light excavation duties, turning the tractor into a full site-work tool.
New Holland 910GBL Backhoe
| Max Digging Depth | 76.4 in (1940 mm) |
| Load Height | 63.6 in (1915 mm) |
| Bucket Rotation | 180° |
| Stabilizer Spread (Working) | 68.7 in (1745 mm) |
| Stabilizer Spread (Transport) | 46.5 in (1181 mm) |
| Bucket Digging Force | 2187 lbf (9.73 kN) |
| Dipper Digging Force | 1748 lbf (7.78 kN) |
| Reach from Swing Pivot | 113.2 in (2875 mm) |
| Swing Arc | 180° |
| Transport Height | 77.4 in (1966 mm) |
| Weight | 1092 lb (495 kg) |
What I especially like as a mechanic is how the machine is built for versatility – hydraulics sized to lift the loader correctly, front and rear quick-attach readiness for implements, and a design that doesn’t compromise durability even when switching between loader work, snow clearing and backhoe operation. Overall, if you invest in the right attachments and maintain them properly (checking mounts, hydraulic flows, hitch pins and wear points) you’ve got a compact tractor that can quite literally do the heavy-lift, snow-plow and dig-out work of machines far larger.
