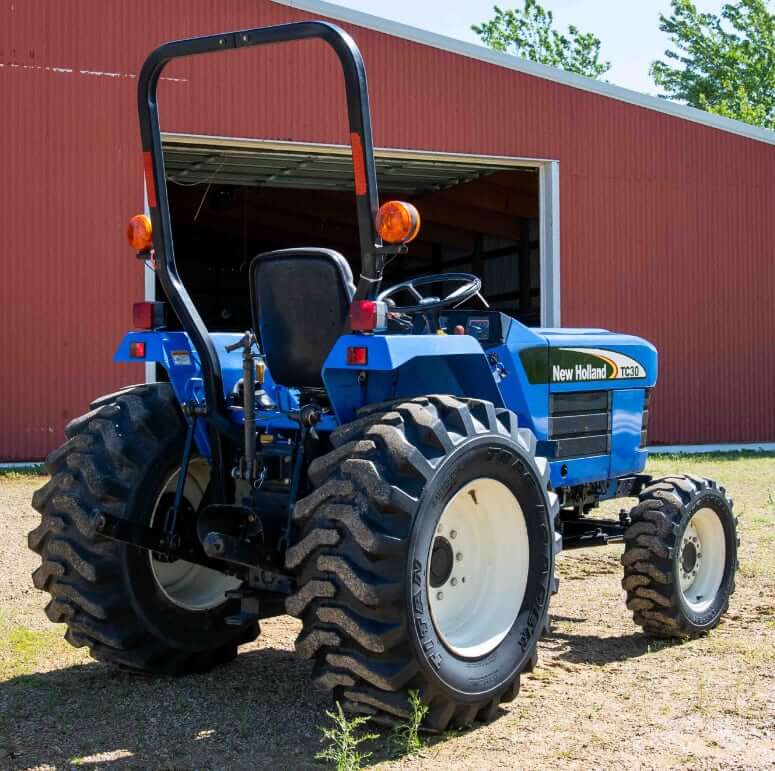

Dimensions
| Overall Length w/ Hitch | 111.4 in (2830 mm) |
| Overall Width | 62 in (1575 mm) |
| Wheelbase | 63 in (1600 mm) |
| Ground Clearance (approx.) | 11 in (279 mm) |
| Height to Top of Hood (R4 Tires) | 82.3 in (2090 mm) |
Tires
| New Holland TC30 | Tire Size |
|---|---|
| Front Tire Size (Ag) | 7.4 x 14, R1 |
| Rear Tire Size (Ag) | 11.2 x 24, R1 |
| Front Tire Size (Turf) | 24 x 8.50-14, R3 |
| Rear Tire Size (Turf) | 13.6 x 16, R3 |
| Front Tire Size (Industrial) | 25 x 8.50-14, R4 |
| Rear Tire Size (Industrial) | 15 x 19, R4 |
Engine Details
| Number of Cylinders | 3 |
| Engine Make | IHI Shibaura |
| Engine Model | IHI Shibaura N843 |
| Displacement | 91.3 cu in (1.496 L) |
| Bore | 3.3 in (84 mm) |
| Stroke | 3.5 in (90 mm) |
| Gross Horsepower | 30.0 hp (22.4 kw) |
| PTO Horsepower, Gear | 25.5 hp (19.0 kw) |
| PTO Horsepower, Hydro | 24.0 hp (17.9 kw) |
| Power Measured @ | 2600 rpm |
| Compression Ratio | 22.5:1 |
| Lubrication System | Pressurized circulation by trochoid pump |
| Fuel System | Bosch, PFR type injection pump |
| Air Cleaner | Dry type air filter |
| Aspiration | Naturally aspirated |
Operational Specs
| Shipping Weight | 2385 lb (1082 kg) |
| Operating Voltage | 12 V |
| Alternator | 40 amps |
| Battery | 12 V, CCA 420 |
| Operator Station | Open operator station with two-post fixed ROPS |

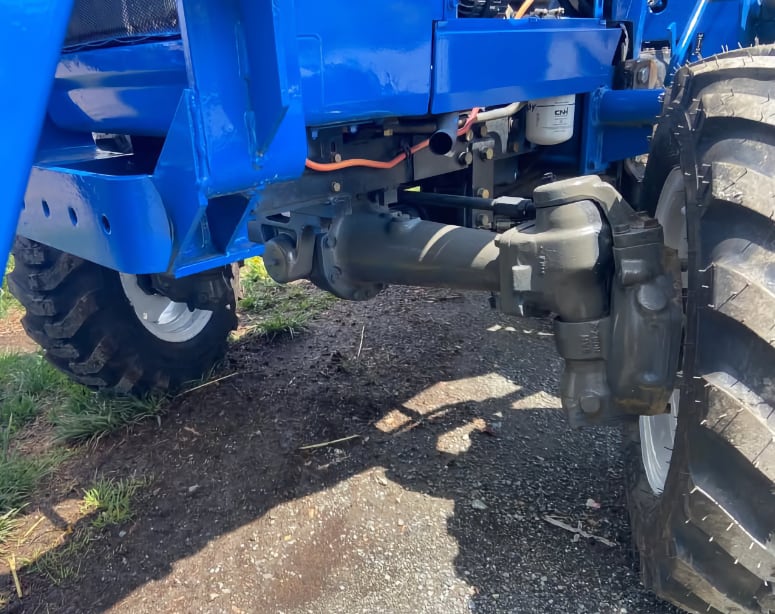

| Steering System | Power steering |
Transmission
| New Holland TC30 | Gear Transmission | Hydrostatic Transmission |
|---|---|---|
| Number of Gears | 9F / 3R | Infinite forward and reverse (3 ranges) |
| Max Forward Speed | 12.1 mph (19.5 km/h) | 13.6 mph (21.9 km/h) |
| Min Forward Speed | 0.71 mph (1.1 km/h) | – |
| Drive | 2WD or 4WD | 2WD or 4WD |
| Final Drive | Spur gear | Spur gear |
| Service Brakes | Wet disc brakes | Wet disc brakes |
Hydraulic System
| Type | Open center |
| Pump Type | Gear |
| Implement Pump Flow | 6.2 gal/min (23.2 L/min) |
| Steering Pump Flow | 3.8 gal/min (14.2 L/min) |
| Total Flow Capacity | 10 gal/min (37.4 L/min) |

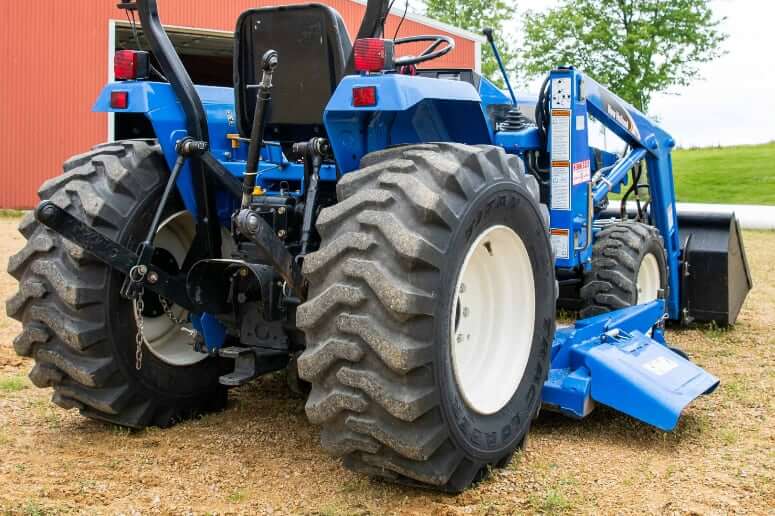

3-Point Hitch
| 3 Point Hitch Type | Category I |
| 3 Point Hitch Lift Capacity @ 24″ | 1635 lb (743 kg) |

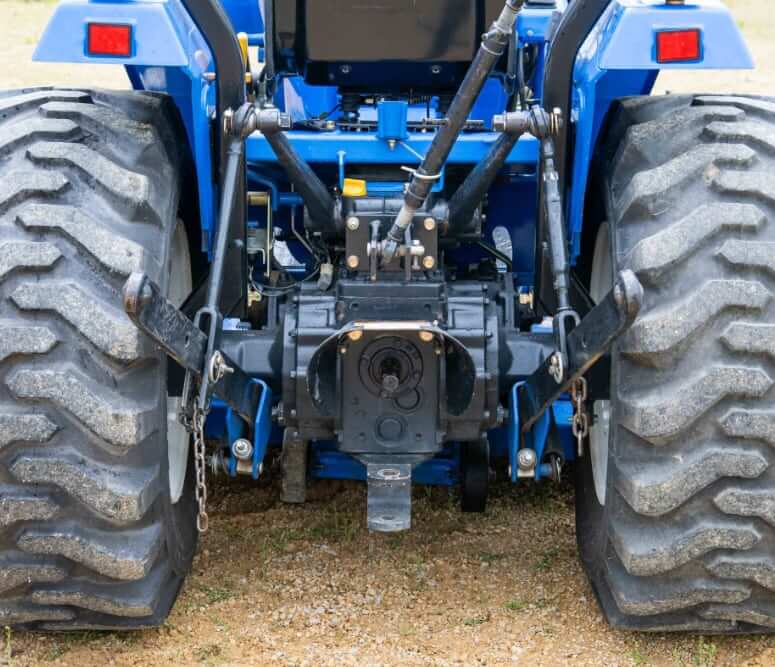

PTO (Power Take-Off)
| Rear PTO Type (Gear, 2WD) | 540 rpm / Transmission-driven |
| Rear PTO Type (Gear, 4WD) | 540 rpm / Live |
| Rear PTO Type (HST, 4WD) | 540 rpm / Live |
| Mid PTO Type (Gear, 2WD) – Optional | 2000 rpm / Transmission-driven with overrunning clutch |
| Mid PTO Type (Gear, 4WD) – Optional | 2000 rpm / Live |
| Mid PTO Type (HST, 4WD) – Optional | 2000 rpm / Live |

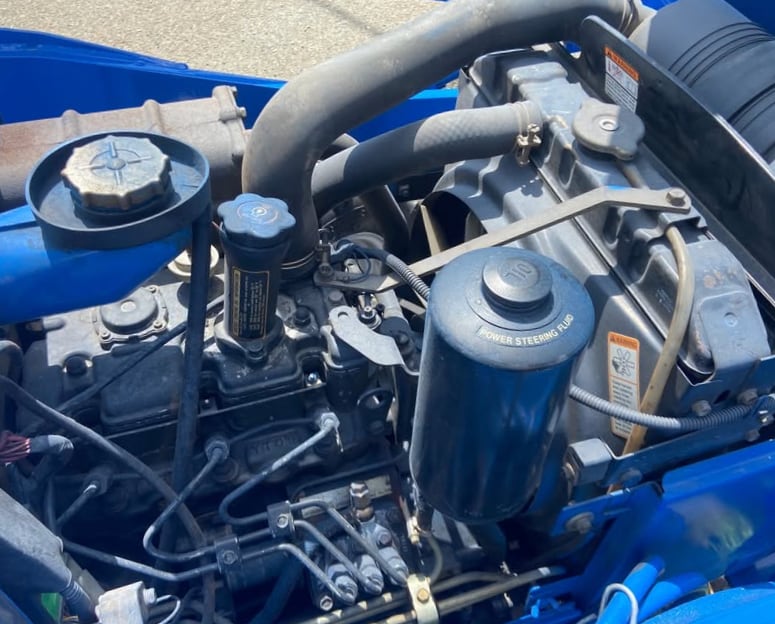

New Holland TC30 Filters
| Type | Part Number |
|---|---|
| Oil Filter | 84475542 |
| Fuel Filter | 87300039 |
| Engine Air Filter (Outer) | 87682998 |
| Engine Air Filter (Inner) | 84539215 |
| Hydraulic Oil Filter | 84475483 |
| Hydraulic Oil Filter | SBA340500990 |
Service Refill Capacities
| Fuel Tank Capacity | 7.1 gal (27 L) |
| Engine Oil Capacity | 1.6 gal (6 L) |
| Cooling System Capacity | 2.5 gal (9.3 L) |
| Hydraulic / Transmission Oil Capacity (Gear) | 8.6 gal (32.6 L) |
| Hydraulic / Transmission Oil Capacity (HST) | 8.8 gal (33.3 L) |
| Steering System Fluid Capacity | 0.4 gal (1.6 L) |

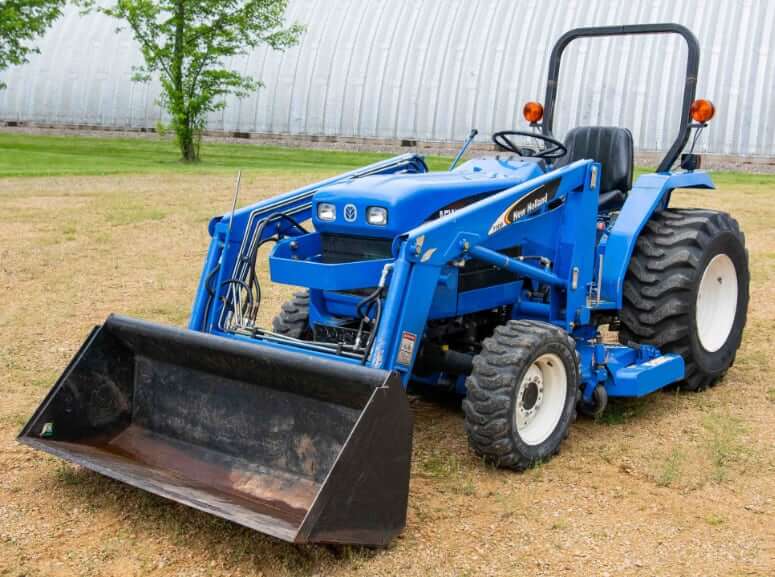

New Holland TC30 Attachments
The New Holland TC30 Compact Utility Tractor is a versatile and reliable machine designed to handle a wide range of property maintenance, landscaping, and light construction tasks. Its compact frame, efficient diesel engine, and strong 3-point hitch system make it highly adaptable to multiple attachments for front, mid, and rear-mounted operations.

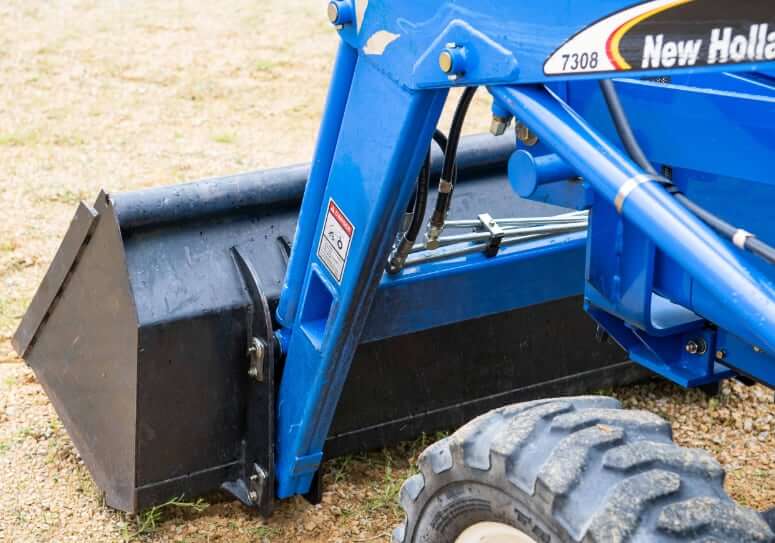

New Holland 7308 Loader
| Max Lift Height | 100.8 in (2558 mm) |
| Clearance, Full Height w/ Bucket Dumped | 83.3 in (2114 mm) |
| Max Dump Angle | 39° |
| Reach, Full Height w/ Bucket Dumped | 23.5 in (596 mm) |
| Rollback Angle | 20° |
| Digging Depth | 4 in (102 mm) |
| Lift Capacity | 875 lb (396 kg) |
| Breakout Force | 2344 lbf (10.43 kN) |
| Loader Control | Single lever |
| Loader Weight | 839 lb (381 kg) |
For front-end work, the TC30 can be equipped with the New Holland 7308 front loader, quick-attach rotary broom, dozer blades (60CBH and 72CB), or front-mounted snow blowers – ideal for clearing and material handling.
Snow Blowers for TC30
| New Holland | 51CS | 63CS |
|---|---|---|
| Type | Front-mount | Front-mount |
| Working Width | 51 in | 63 in |
| Stage | Two-stage | Two-stage |
| Clear Height | 22 in | 22 in |
| Lift Type | Hydraulic lift | Hydraulic lift |
| Weight | 415 lb (188 kg) | 440 lb (199 kg) |

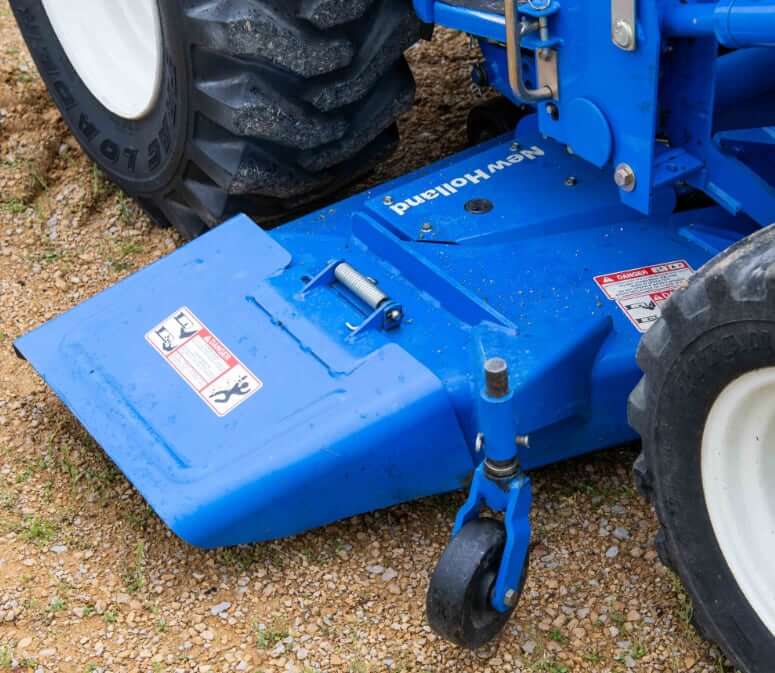

Mid-mount options include 914A-series mower decks (60” or 72”) for precise lawn and turf management.

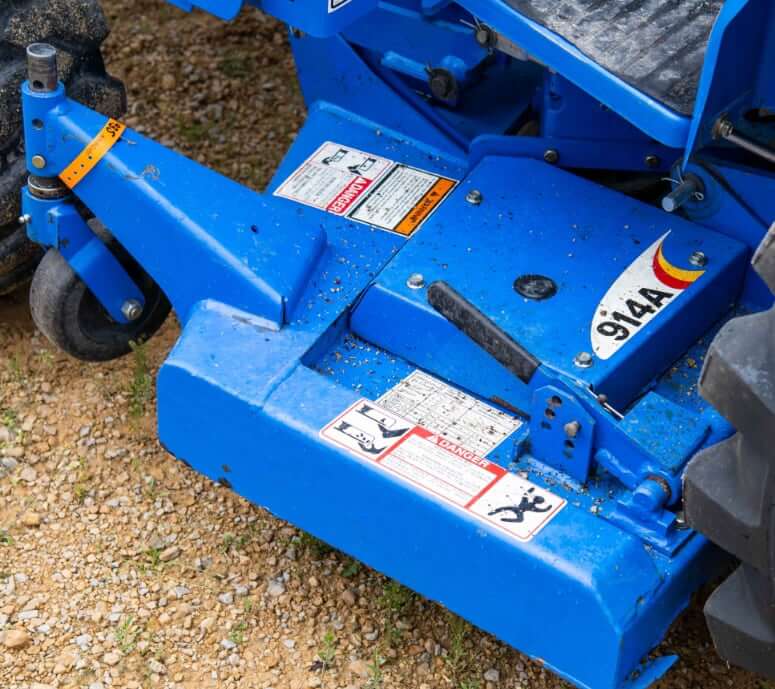

New Holland 914A Deck Mowers
| New Holland | 914A, 60 inches | 914A, 72 inches |
|---|---|---|
| Type | Mid-mount | Mid-mount |
| Working Width | 60 in (1524 mm) | 72 in (1829 mm) |
| Total Width | 76.5 in (1943 mm) | 85.5 in (2172) |
| Number of Blades | 3-blade | 3-blade |
| Lift Type | Hydraulic lift | Hydraulic lift |
| Discharge | Right-discharge | Right-discharge |
| Cut Height | 1 to 4 in (25 – 102 mm) | 1 to 4 in (25 – 102 mm) |
| Weight | 515 lb (233 kg) | 530 lb (240 kg) |
At the rear, the TC30 supports a variety of implements such as finishing mowers, flail mowers, rotary tillers, and utility backhoes (756C, 757C, 758C) for digging and soil work.

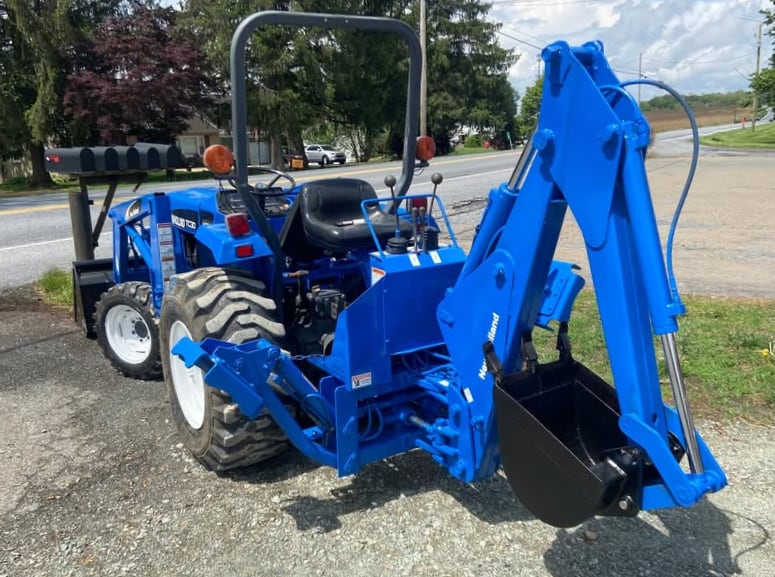

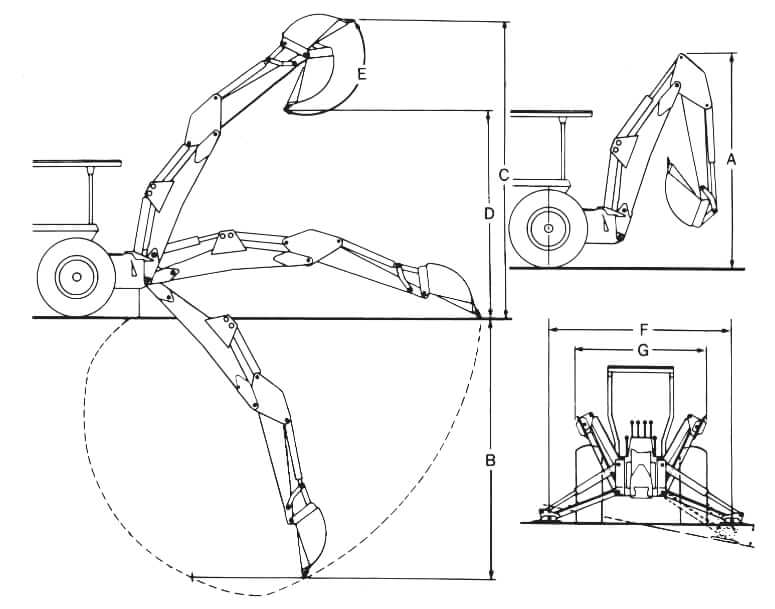

New Holland Backhoes 756C / 757C / 758C
| New Holland | 756C | 757C | 758C |
|---|---|---|---|
| Reach from Swing Pivot | 107 in (2718 mm) | 119 in (3023 mm) | 132 in (3353 mm) |
| Swing Arc | 180° | 180° | 180° |
| A. Transport Height | 68.5 in (1740 mm) | 75 in (1905 mm) | 81 in (2057 mm) |
| Digging Depth | 72 in (1829 mm) | 90 in (2286 mm) | 102 in (2591 mm) |
| B. 2-Foot Flat Bottom | 72 in (1829 mm) | 90 in (2286 mm) | 102 in (2591 mm) |
| C. Operating Height (Fully Raised) | 107 in (2718 mm) | 118 in (2997 mm) | 127.7 in (3244 mm) |
| D. Load Height | 57 in (1448 mm) | 66 in (1676 mm) | 76 in (1930 mm) |
| E. Bucket Rotation | 171° | 170° | 170° |
| F. Stabilizer Spread (Working) | 78 in (1981 mm) | 78 in (1981 mm) | 78 in (1981 mm) |
| G. Stabilizer Spread (Transport) | 41 in (1041 mm) | 50 in (1270 mm) | 50 in (1270 mm) |
| Bucket Digging Force | 2875 lbf (12.8 kN) | 2675 lbf (11.9 kN) | 3550 lbf (15.8 kN) |
| Dipper Digging Force | 1744 lbf (7.8 kN) | 2105 lbf (9.4 kN) | 2225 lbf (9.9 kN) |
| Operating Pressure | 2150 psi (14800 kPa) | 2000 psi (13800 kPa) | 2150 psi (14800 kPa) |
| Ground Clearance | 11 in (279 mm) | 12 in (305 mm) | 12 in (305 mm) |
| Swing Mechanism | Swg, boom | Swg, boom | Swg, boom, stab |
| Transport Locks | Swg, boom | Swg, boom | Dbl. cyl. |
| Weight | 700 lb (318 kg) | 872 lb (396 kg) | 900 lb (408 kg) |
| Backhoe Buckets | 9, 12, 16, 18 in (229, 305, 406, 457 mm) | 9, 12, 16, 18 in (229, 305, 406, 457 mm) | 12, 16, 18, 24 in (305, 406, 457, 610 mm) |
Additional attachments like rear snow blowers (51CS, 63CS), post hole diggers, and ballast boxes expand its capability even further – making the TC30 a dependable all-around performer for homeowners, landscapers, and small-acreage farmers alike.
