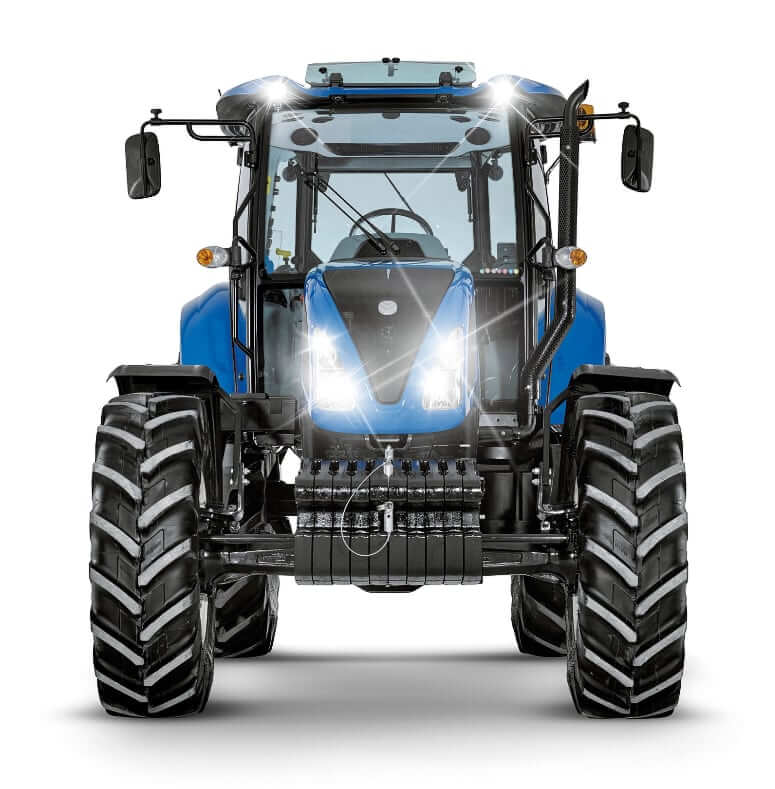

Dimensions
| Overall Length | 163.8 in (4161 mm) |
| Wheelbase | 93.7 in (2380 mm) |
| Minimum Width | 75.3 in (1913 mm) |
| Minimum Track Width | 56.3 in (1431 mm) |
| Maximum Track Width | 84.6 in (2150 mm) |
| Overall Height (non-suspended cab) | 104.5 in (2655 mm) |
| Overall Height (suspended cab) | 106.1 in (2695 mm) |
| Height at Centre of Rear Axle to Top of Cab (non-suspended cab) | 73.4 in (1940 mm) |
| Height at Centre of Rear Axle to Top of Cab (suspended cab) | 77.9 in (1980 mm) |
| Ground Clearance | 17.7 in (450 mm) |
Operating Weight
| Minimum Unballasted Weight | 9590 lb (4350 kg) |
| Max Operating Weight | 16314 lb (7400 kg) |
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | New Holland FPT |
| Engine Model | FPT F34 (F5 Series) |
| Displacement | 207.5 cu in (3.4 L) |
| Max Power | 107 hp (79 kw) |
| Power Measured @ | 2300 rpm |
| Peak Torque | 327 lb ft (444 Nm) |
| Torque Measured @ | 1500 rpm |
| Torque Rise | 35% |
| Aspiration | Turbocharged |
| Emissions | Cooled Exhaust Gas Recirculation (CEGR) + DPF |
| Emission Standards | Tier 4A |
Transmission
| Type | Electro Command 16×16 / Electro Command + Creeper 32×32 |
| Max Travel Speed | 25 mph (40 km/h) |
| Front Axle | 4WD front axle |
| Steering Angle | 60° |
| 4WD | Electro hydraulic 4WD engagement |
| Differential Lock | Electro hydraulic differential lock engagement (optional) |
Operating Specs
| Operating Voltage | 12 V |
| Alternator | 120 amps (150 amps) |
| Battery | 12 V, 132 Ah, CCA 960 |
| Rear Tire Size | 600/65R34, 540/65R38, 540/65R34, 520/70R34, 480/70R38, 480/70R34, 460/85R34, 420/85R38, 420/85R34, 380/80R38, 340/85R38, 18.4 R34, 16.9 R38, 16.9 R34, 16.9 R30, 14.9R38, 13.6R38 |
| Turning Radius | 159 in (4040 mm) |
Hydraulic
| Type | Open center gear pumps. Fixed displacement |
| Main Pump Flow (Standard / Optional) | 21.2 gpm (80 L/min) / 16.2 gpm (61 L/min) |
| Steering And Services (Standard / Optional) | 11.4 gpm (43 L/min) / 10.1 gpm (38 L/min) |
| Rear Remote Valves (Base / Optional) | 2 / 3 |
| Mid Remote Valves (Base / Optional) | 2 |
| Control | Electronic Draft Control (EDC) |
Power Take-off (PTO)
| Type | Electro hydraulic PTO engagement |
| PTO Power | 91 hp (67.9 kw) |
| Engine speed at: 540 / 1000 | 1938 rpm / 1926 rpm |
| Engine speed at: 540 / 540E / 1000 | 1938 rpm / 1535 rpm / 1926 rpm |
3-Point Hitch
| Rear Linkage Category | 2 |
| Max Lift Capacity at Ball Ends | 11950 lb (5420 kg) |
| Rear Hitch Lift Capacity @ 24” | 6394 lb (2900 kg) |
| Front Hitch Lift Capacity At 24” | 4078 lb (1850 kg) |
Service Refill Capacities
| Fuel Tank Capacity | 42 gal (160 L) |
| Engine Oil Capacity | 2.5 gal (9.5 L) |
| Cooling System Capacity | 2.1 gal (8 L) |
