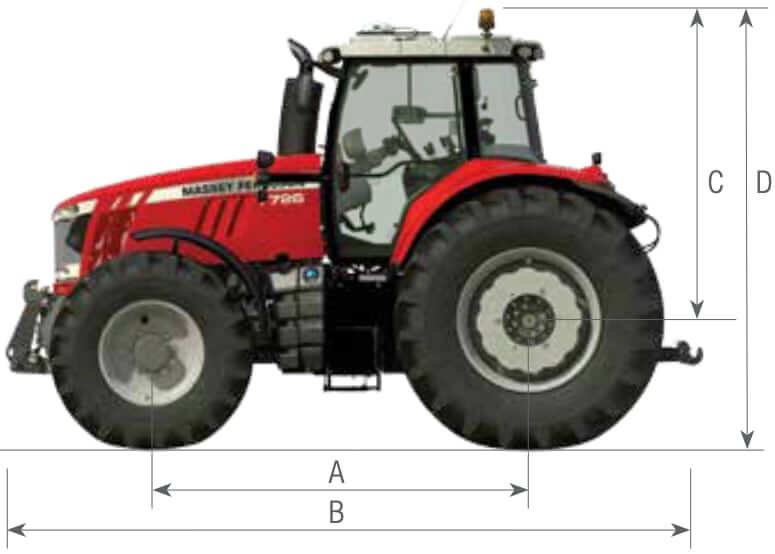

Dimensions
| A. Wheelbase | 2880 mm |
| B. Overall Length (from front linkage to rear linkage arms) | 5604 mm |
| B. Overall Length (from front weight frame to rear linkage arms) | 4928 mm |
| C. Height (at centre of rear axle to top of cab, Dyna 6) | 2110 mm |
| C. Height (at centre of rear axle to top of cab, Dyna-VT) | 2144 mm |
| D. Overall Height, Dyna 6 | 2895 mm |
| D. Overall Height, Dyna-VT | 3019 mm |
| Front Tire Size | 480/70R28 |
| Rear Tire Size | 580/70R38 |
Axles and Brakes
| FWD Clutch Engagement | Electro-hydraulic |
| Differential Lock | Full-locking, electro-hydraulic |
| Bar Rear Axle | 3.23 by 80 in (82 by 2032 mm) |
| Bar Rear Axle (optional) | 3.74 by 90 in (94 by 2286 mm) |
| Steering Angle | 55° |
| Steering Type | Power steering |
| Service Brakes | Wet disc brakes |
Operational Specs
| Shipping Weight | 13889 lb (6300 kg) |
| Max Operating Weight | 27558 lb (12500 kg) |
| Operating Voltage | 24 V |
| Alternator | 175 amps / 2x 120 amps (optional) |
| Battery | 2x 12 V, CCA 600 |
| Cab | Two types of cab suspension |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | AGCO Power |
| Engine Model | AGCO Power 66 AWF |
| Displacement | 402.8 cu in (6.6 L) |
| Bore | 4.25 in (108 mm) |
| Stroke | 4.72 in (120 mm) |
| Gross Power | 175 hp (129 kw) |
| PTO Power | 155 hp (114 kw) |
| Power Measured @ | 2100 rpm |
| Peak Torque | 619.5 lb ft (840 Nm) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbocharged and air to air intercooler |
| Emission Standards | US EPA Tier 4 Final + EU Stage IV |
PTO (Power Take-Off)
| PTO Type | Independent |
| Rear PTO Speed | 540/1000 or 540/540 Eco/1000/1000 Eco (for Dyna-VT) |
| Shaft Diameter | 1.375 in 6 & 21 splines |
| PTO Power | 155 hp (114 kw) |
| Front PTO | 1000 rpm (Optional) |
Transmission
| Model | Dyna-6 | Dyna-VT |
|---|---|---|
| Type | Semi-powershift transmission | Continuously variable transmission (CVT) |
| Control | Power Control Lever with three functions on one lever – Forward/Reverse shuttle, declutch, upshift and downshift | Dynamic Tractor Management (DTM) maintains the set travel speed by automatically adjusting the power (engine speed) according to load |
| Number of Gears | 24F / 24R | Stepless |
| Min Field Speed | 0.64 mph (1.03 km/h) | 0.02 mph (0.03 km/h) |
| Max Road Speed | 24.9 mph (40 km/h) | 31.0 mph (50 km/h) |
Hydraulic System
| Type | Closed center load sensing (CCLS) |
| Pump Flow Capacity (Dyna-6) | 29.1 gal/min (110 L/min) |
| Pump Flow Capacity (Dyna-VT) | 50.2 gal/min (190 L/min) |
| System Pressure | 2900 psi (20000 kPa) |
| Number Of Remote Control Valves | 4 or 5 |
| 3 Point Hitch Type | Cat 3 |
| 3 Point Hitch Lift Capacity @ 24″ | 17857 lb (8100 kg) |
| 3 Point Hitch Lift Capacity @ Ends | 21164 lb (9600 kg) |
| Number Of Remote Control Valves (Front) | 2 |
| Front Linkage Lift Capacity @ 24″ | 7055 lb (3200 kg) |
| Front Linkage Lift Capacity @ Ends | 8818 lb (4000 kg) |
Service Refill Capacities
| Fuel Tank Capacity | 82 gal (310 L) |
| DEF Tank Capacity | 8 gal (30 L) |
| Engine Oil Capacity | 5.3 gal (20 L) |
| Cooling System Capacity | 6 gal (23 L) |
| Transmission Oil Capacity (Dyna-6) | 27 gal (101 L) |
| Transmission Oil Capacity (Dyna-VT) | 16.9 gal (64 L) |
| Aux Hydraulic System Capacity (Dyna-VT) | 26.4 gal (100 L) |
| PTO Oil Capacity | 0.92 gal (3.5 L) |
| Front Differential Capacity (Dana 740) | 1.85 gal (7 L) |
| Front Differential Capacity (Dana 750) | 2.38 gal (9 L) |
