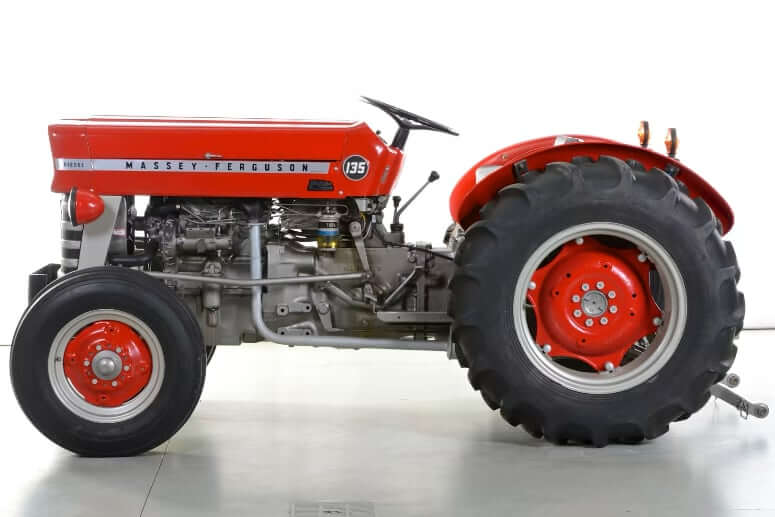

Dimensions
| Overall Length | 120.6 in (3063 mm) |
| Wheelbase | 72.4 in (1838 mm) |
| Overall Height | 54 in (1372 mm) |
| Minimum Width (Deluxe, Special, Orchard Tractors) | 68.4 in (1738 mm) |
| Minimum Width (Vineyard Tractor) | 51.9 in (1318 mm) |
| Ground Clearance (Minimum) | 12.6 in (321 mm) |
| Ground Clearance (Front Axle) | 20.5 in (521 mm) |
| Turning Radius (w/ brakes) | 108 in (2743 mm) |
Front Wheel Tread
| Type | Wheel Tread | Increments |
|---|---|---|
| Deluxe Tractor | 48 – 72 in (1219 – 1829 mm) | 4 in (102 mm) |
| Vineyard Tractor | 41.7 – 53.7 in (1059 – 1364 mm) | 4 in (102 mm) |
| Special Tractor | 48 – 72 in (1219 – 1829 mm) | 4 in (102 mm) |
| Orchard Special Tractor | 48 in (1219 mm) | Fixed |
Rear Wheel Tread
| Tire Size | Wheel Tread | Increments |
|---|---|---|
| 12.4-28 | 48 – 76 in (1219 – 1930 mm) | 4 in (102 mm) |
| 13.6-28 | 48 – 76 in (1219 – 1930 mm) | 4 in (102 mm) |
| 14.9-24 | 52 – 72 in (1321 – 1829 mm) | 4 in (102 mm) |
| 12.4-24 (Vineyard) | 40 – 48 in (1016 – 1219 mm) | 4 in (102 mm) |
| 18.4-161 (Orchard Tractor) | 58.2 in (1478 mm) | Fixed |
Tire Sizes
| MF 135 | Tire Size | Pressure |
|---|---|---|
| Front Tire (Standard) | 6.00-16 – 4 Ply | 32 psi (221 kPa) |
| Front Tire (Optional) | 5.50-16 – 4 Ply | 36 psi (248 kPa) |
| Front Tire (Optional) | 6.50-16 – 4 Ply | 32 psi (221 kPa) |
| Front Tire (Optional) | 7.50-10 – 6 Ply | 40 psi (276 kPa) |
| Front Tire (Optional) | 9.00-10 – 4 Ply | 16 psi (110 kPa) |
| Front Tire (Optional) | 9.5L-10 – 4 Ply | 24 psi (165 kPa) |
| Rear Tire (Standard) | 13.6-28 – 4 Ply | 14 psi (96 kPa) |
| Rear Tire (Optional) | 12.4-24 – 4 Ply | 16 psi (110 kPa) |
| Rear Tire (Optional) | 12.4-28 – 4 Ply | 16 psi (110 kPa) |
| Rear Tire (Optional) | 14.9-24 – 4 Ply | 12 psi (83 kPa) |
| Rear Tire (Optional) | 18.4-16.1 – 6 Ply | 16 psi (110 kPa) |
| Rear Tire (Optional) | 21.5L-16.1 – 6 Ply | 12 psi (83 kPa) |
| Rear Tire (Optional) | 16.9-24 – 6 Ply | 18 psi (124 kPa) |

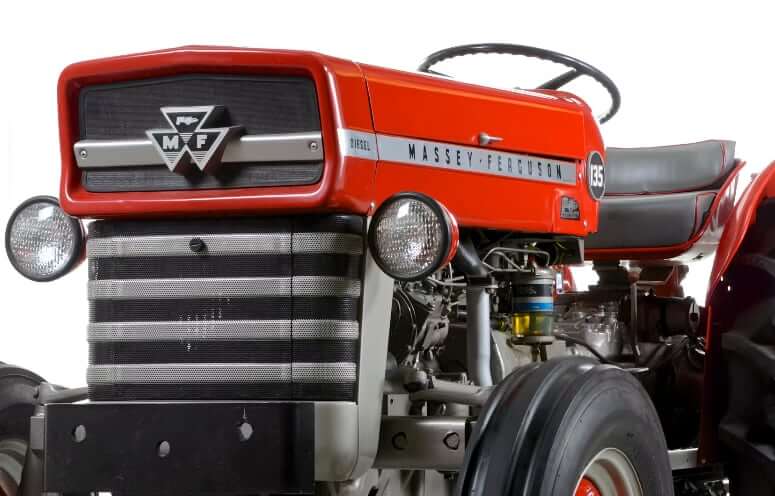

Weights
| Massey Ferguson 135 | With Ballast | Whitout Ballast |
|---|---|---|
| Operating Weight (Perkins AD3.152 Diesel)* | 5715 lb (2592 kg) | 3645 lb (1653 kg) |
| Operating Weight (Perkins AG3.152 Gasoline)** | 5685 lb (2579 kg) | 3810 lb (1728 kg) |
| Operating Weight (Continental Z145 Gasoline)*** | 5425 lb (2461 kg) | 3565 lb (1617 kg) |
* Front Tire 6.00-16; 4; 32 (w/ 178 lb cast iron, each) / Rear Tire 14.9-24; 4; 12 (w/ 458 lb liquid + 400 lb cast iron, each)
** Front Tire 6.00-16; 4; 24 (w/ 85 lb liquid, each) / Rear Tire 13.6-28; 4; 14 (w/ 491 lb liquid + 362 lb cast iron, each)
*** Front Tire 6.00-16; 4; 28 (w/ 140 lb cast iron, each) / Rear Tire 13.6-28; 4; 14 (w/ 440 lb liquid + 350 lb cast iron, each)

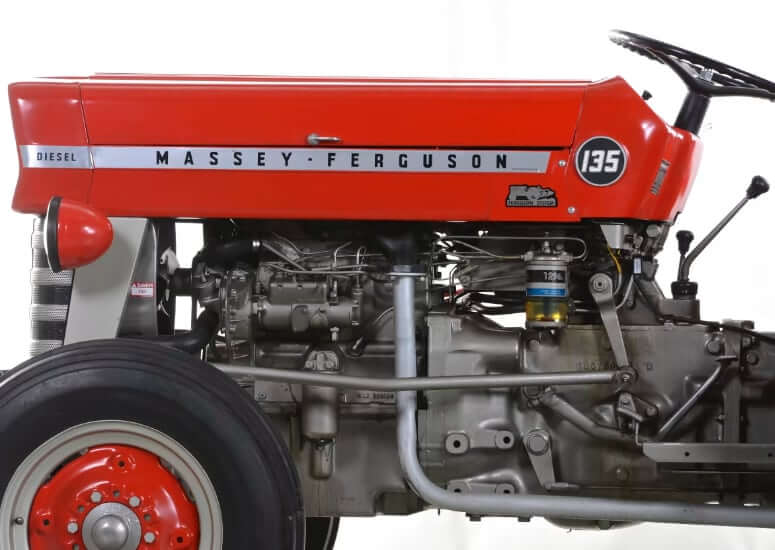

Engine Details
| Engine Model | Perkins AD3.152 | Perkins AG3.152 | Continental Z145 |
|---|---|---|---|
| Fuel Type | Diesel | Gasoline | Gasoline |
| Number of Cylinders | 3 | 3 | 4 |
| Displ. | 152 cu in (2.5 L) | 152 cu in (2.5 L) | 145 cu in (2.4 L) |
| Bore | 3.6 in (91.4 mm) | 3.6 in (91.4 mm) | 3.375 in (86 mm) |
| Stroke | 5.0 in (127 mm) | 5.0 in (127 mm) | 4.06 in (103 mm) |
| Power | 37.8 hp (27.8 kw) | 45.5 hp (33.9 kw) | 35.4 hp (26.0 kw) |
| Max Drawbar Power | 33.06 hp (24.7 kw) | 32.0 hp (23.9 kw) | 30.45 hp (22.7 kw) |
| Power Measured @ | 2000 rpm | 2000 rpm | 2000 rpm |
| Fuel Use | 2.2 gal/h (8.3 L/h) | 3.4 gal/h (12.9 L/h) | 3.4 gal/h (12.9 L/h) |
| Slow Idle Speed | 700 rpm | 750 rpm | 475 rpm |
| Fast Idle Speed | 2160 rpm | 2250 rpm | 2225 rpm |
| Compr. Ratio | 17.4:1 | 7.5:1 | 7.1:1 |
| Battery | 12 V, 95 Ah | 12 V, 60 Ah | 12 V, 40 Ah |
| Alternator | 12 V, 25 amps | 12 V, 25 amps | 12 V, 25 amps |
| Fuel System | Diesel fuel pump | Up draft dustproof type carburetor | Up draft dustproof type carburetor |
| Spark Plug Gap | – | 0.025 in (0.635 mm) | 0.025 in (0.635 mm) |
| Cooling System | Pump with a by-pass system | Pump with a by-pass system | Pump with a by-pass system |
| Air Cleaner | Dry type with pleated paper element | Dry type with paper element and auto dust unloader | Dry type with pleated paper element |
| Aspiration | Naturally aspirated | Naturally aspirated | Naturally aspirated |

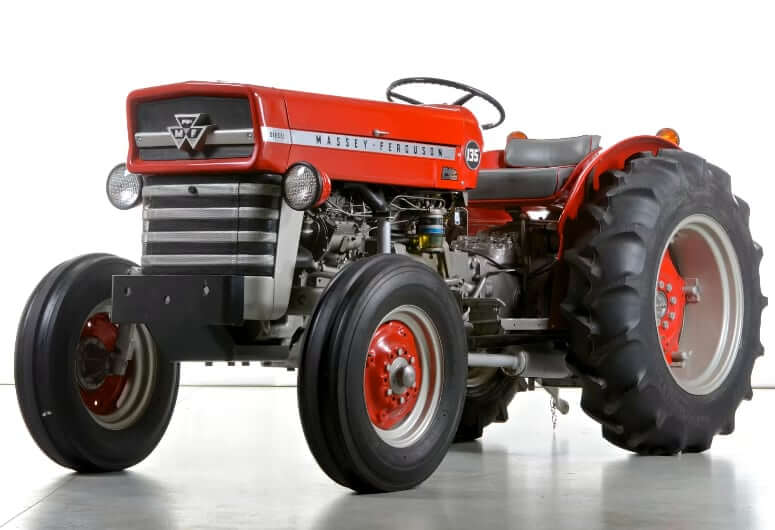

Operational Specs
| Operating Weight | 3565-3810 lb (1617-1728 kg) |
| Operating Voltage | 12 V |
| Operator Station | Open Operator Station |
| Operator Seat | 2 spring suspension high-back seat. Slide rail adjustment |
| Steering | Manual / Power (optional) |
| Differential Lock | Optional |
| Drive | 2WD |

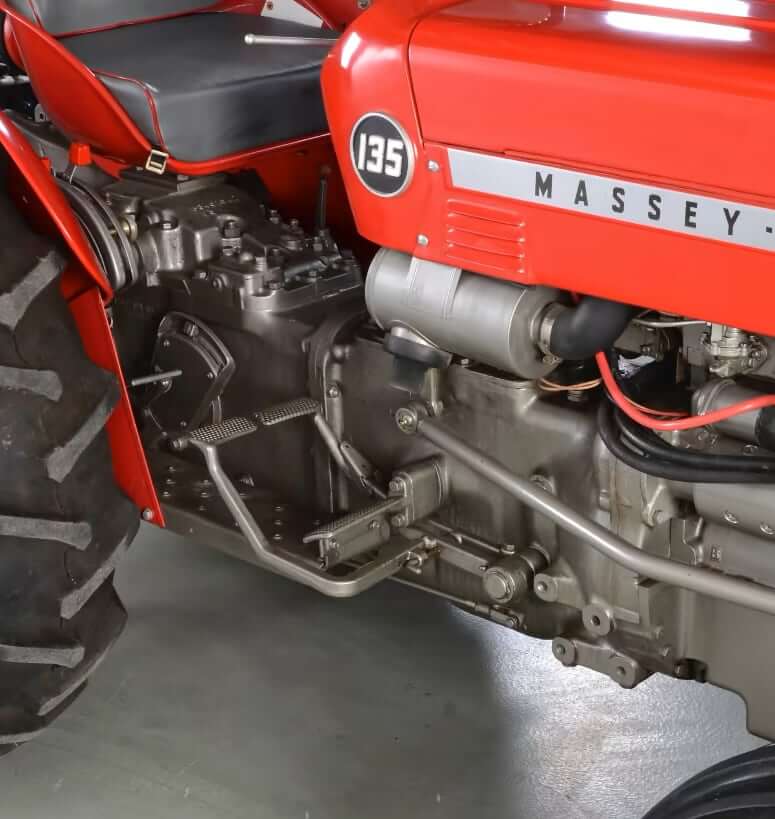

Transmission
| Type | 6-Speed | 8-Speed | Multi-Power |
|---|---|---|---|
| Number of Gears | 6F / 2R | 8F / 2R | 12F / 4R |
| Forward Speed Range | 1.4 mph (2.2 km/h) – 15.1 mph (24.3 km/h) | 1.3 mph (2.1 km/h) – 14.5 mph (23.3 km/h) | 1.4 mph (2.2 km/h) – 19.8 mph (31.9 km/h) |
| Reverse Speed Range | 1.8 mph (2.9 km/h) – 7.3 mph (11.8 km/h) | 1.9 mph (3.0 km/h) – 7.5 mph (12.1 km/h) | 1.9 mph (3.0 km/h) – 9.8 mph (15.8 km/h) |
| Clutch | Mechanical dry disc | ||
| Service Brakes | Mechanical, double expanding shoe, self-energizing | ||
Hydraulic System
| Type | Hydraulics with Draft Control, Position Control, Pressure Control (optional) and Response Control |
| Main Pump Type | Constant running, scotch yoke, piston-type pump |
| Main Pump Flow | 4.8 gal/mim (18.2 L/min) |
| Working Pressure | 1500 psi (10342 kPa) |
| Max Pressure | 2800 psi (19305 kPa) |
| Auxiliary Hydraulic Flow | 4.8 gal/mim (18.2 L/min) |
| Hydraulic Oil | MF-1129 |
| Control | Oscillating control valve on inlet side of pump |

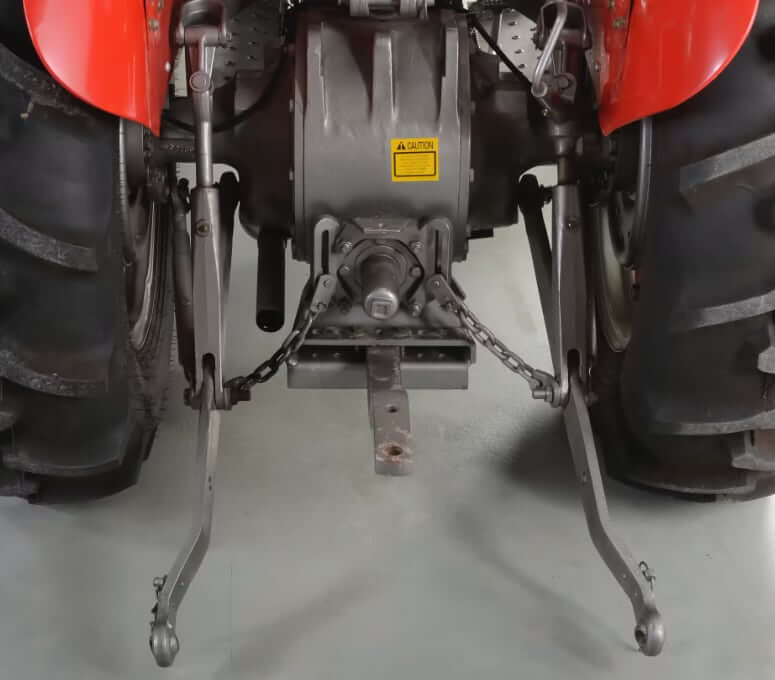

3-Point Hitch (Optional)
| 3 Point Hitch Type | Category 1 |
| 3 Point Hitch Lift Capacity @ 24 in | 2300 lb (1043 kg) |
| 3 Point Hitch Lift Capacity @ ends | 2850 lb (1292 kg) |
| Draft Control | Mechanical, lower-link sensing (Ferguson System) |
PTO (Power Take-Off)
| Rear PTO Type | Live / Independent / Transmission |
| Shaft | Splined, 1.375 in (35 mm) diameter ASAE standard |
| Control, Live PTO | 3-position shift lever (Engine / Neutral / Ground) |
| Control, Independent PTO | 2-position shift lever (On / Off) |
| Control, Transmission PTO | 2-position shift lever (Neutral / Engine) |
| PTO Speed, Live | 540 @ 1700 engine rpm |
| PTO Speed, Independent | 540 @ 1700 engine rpm |
| PTO Speed, Transmission | 540 @ 1500 engine rpm |
Service Refill Capacities
| Engine Model | Perkins AD3.152 Diesel | Perkins AG3.152 Gasoline | Continental Z145 Gasoline |
|---|---|---|---|
| Fuel Tank Capacity | 10.2 gal (38.6 L) | 13.7 gal (51.9 L) | 13.7 gal (51.9 L) |
| Engine Oil Capacity (w/ filter) | 1.6 gal (6.2 L) | 1.6 gal (6.2 L) | 1.5 gal (5.7 L) |
| Cooling System Capacity | 2.5 gal (9.5 L) | 2.5 gal (9.5 L) | 2.6 gal (9.9 L) |
| Hydraulic / Transmission Oil Capacity | 8 gal (30.3 L) | 8 gal (30.3 L) | 8 gal (30.3 L) |
| Steering Tank Capacity | 0.25 gal (0.95 L) | 0.25 gal (0.95 L) | 0.17 gal (0.63 L) |
| Steering Gear Housing Capacity | 0.25 gal (0.95 L) | 0.25 gal (0.95 L) | 0.25 gal (0.95 L) |

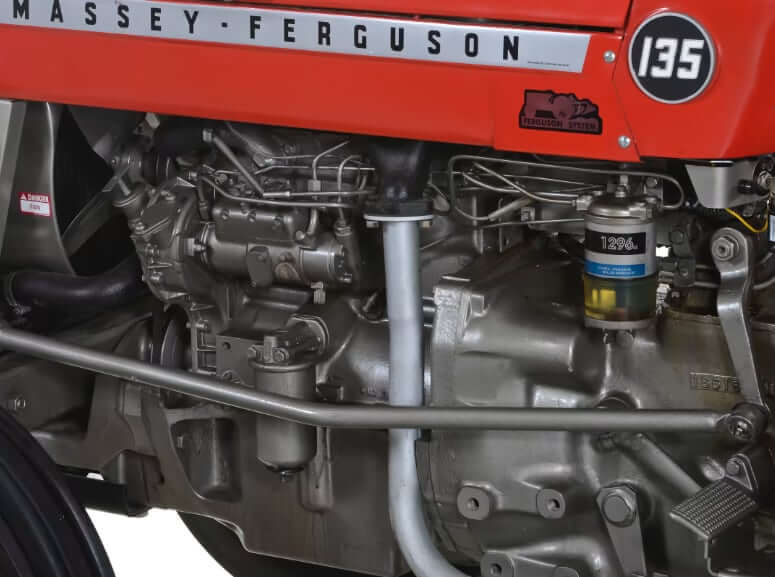

Massey Ferguson 135 Filters
| Engine Air Filter Cartridge (Outer) | 1886637M91 (1807255M1 / 3824032M1) |
| Engine Air Filter Cartridge (Inner) | 1886638M91 (3824033M1) |
| Oil Bath Air Cleaner Assembly | 001210U91 |
| Fuel Filter Spin On | 3405418M2 |
| Fuel Filter Element | ACP0870160 (ACP1115170) |
| Engine Oil Filter Spin On | 1447031M2 (1447082M2) |
| Engine Oil Filter Cartridge | 1883258M92 |
| Transaxle / Hydraulic Filter Cartridge | 1810539M92 (1871933M91 / 1882916M91) |
| Steering Hydraulic Filter Cartridge | 1886135M1 (1052097M1 / 191855M4) |
| Hydraulic Filter Strainer | 1687042M91 (521451M1) |

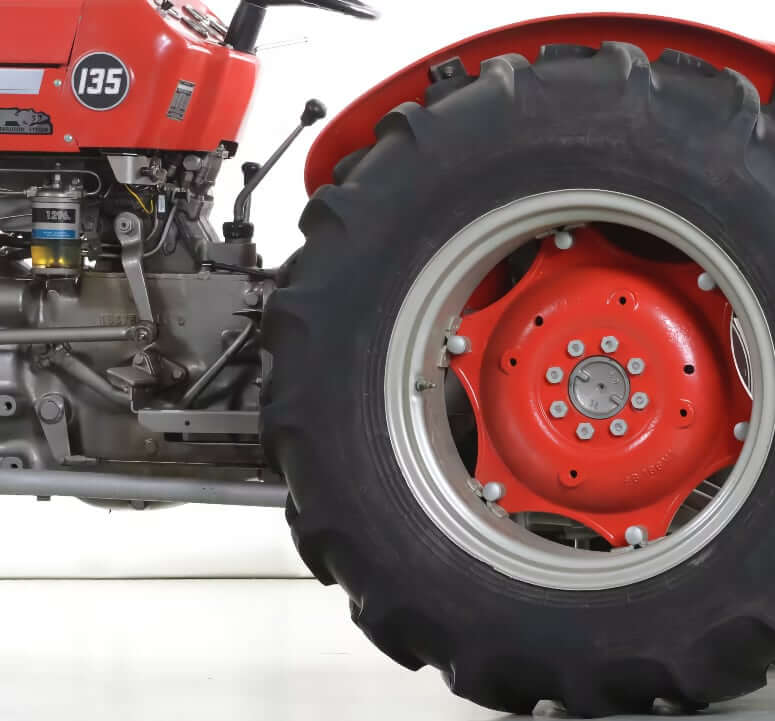

Serial Numbers & PIN Location
The serial number of the Massey Ferguson 135 tractor is located under the steering column on the left. The serial number of the MF135 can also be found on the right side of the engine, under the battery compartment.
| Year | Serial Number | Year | Serial Number |
|---|---|---|---|
| 1964 | 641000001 | 1970 | 9A87325 |
| 1965 | 641001909 | 1971 | 9A107519 |
| 1966 | 641014871 | 1972 | 9A128141 |
| 1967 | 9A10001 | 1973 | 9A152025 |
| 1968 | 9A39836 | 1974 | 9A182761 |
| 1969 | 9A63158 | 1975 | 9A207681 |
MF 135 Wiring Diagram

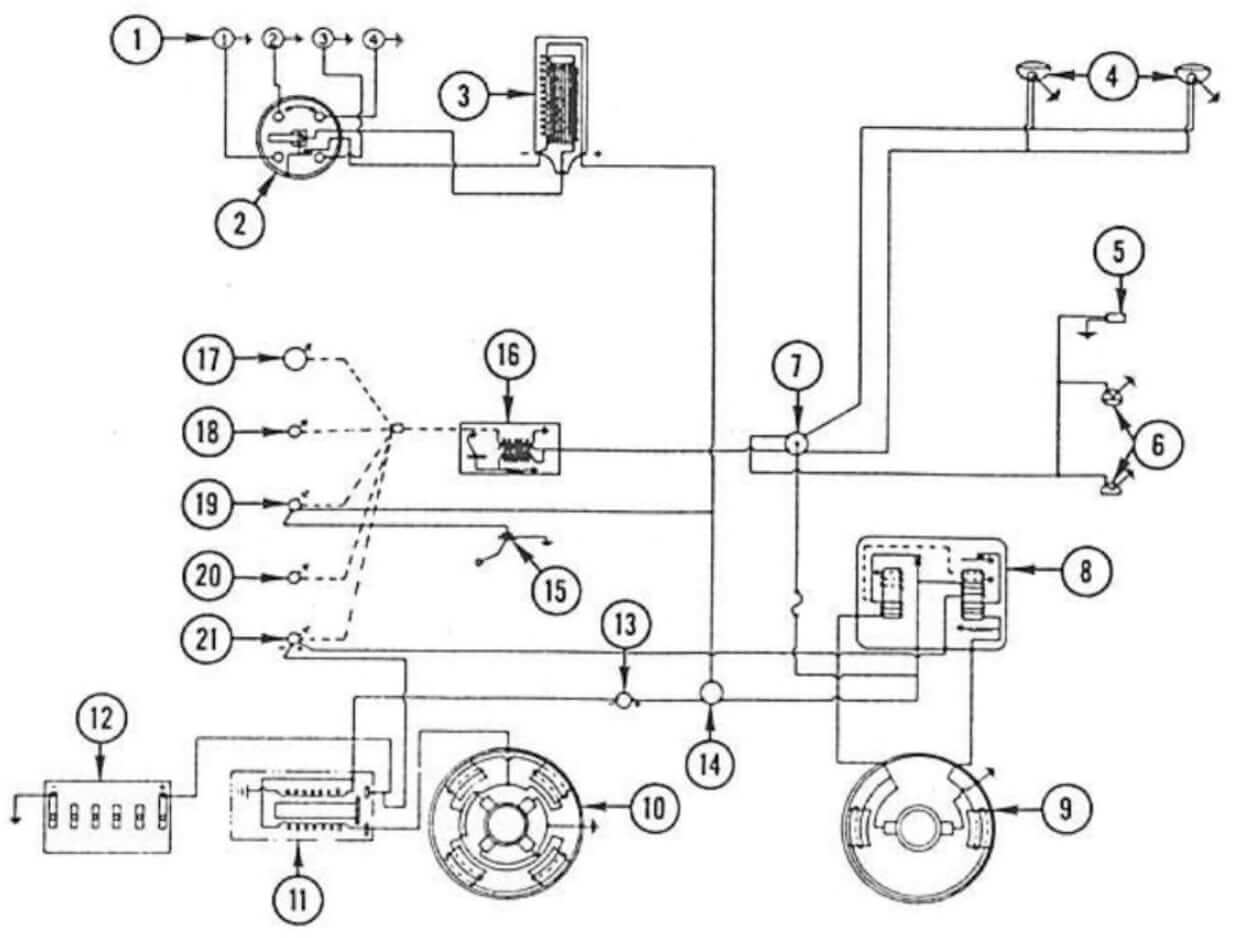

Wiring diagram typical of that used on early MF 135 gasoline models
- Spark plugs
- Distributor
- Ignition coll
- Headlights
- Auxiliary light connector
- Work & warning light
- Light switch
- Voltage regulator
- Generator
- Starter
- Starter solenoid
- Battery
- Starter safety switch
- Ignition switch
- Fuel gage sending unit
- Power supply
- Tachometer
- Oil pressure gage
- Fuel gage
- Temperature gage
- Ammeter

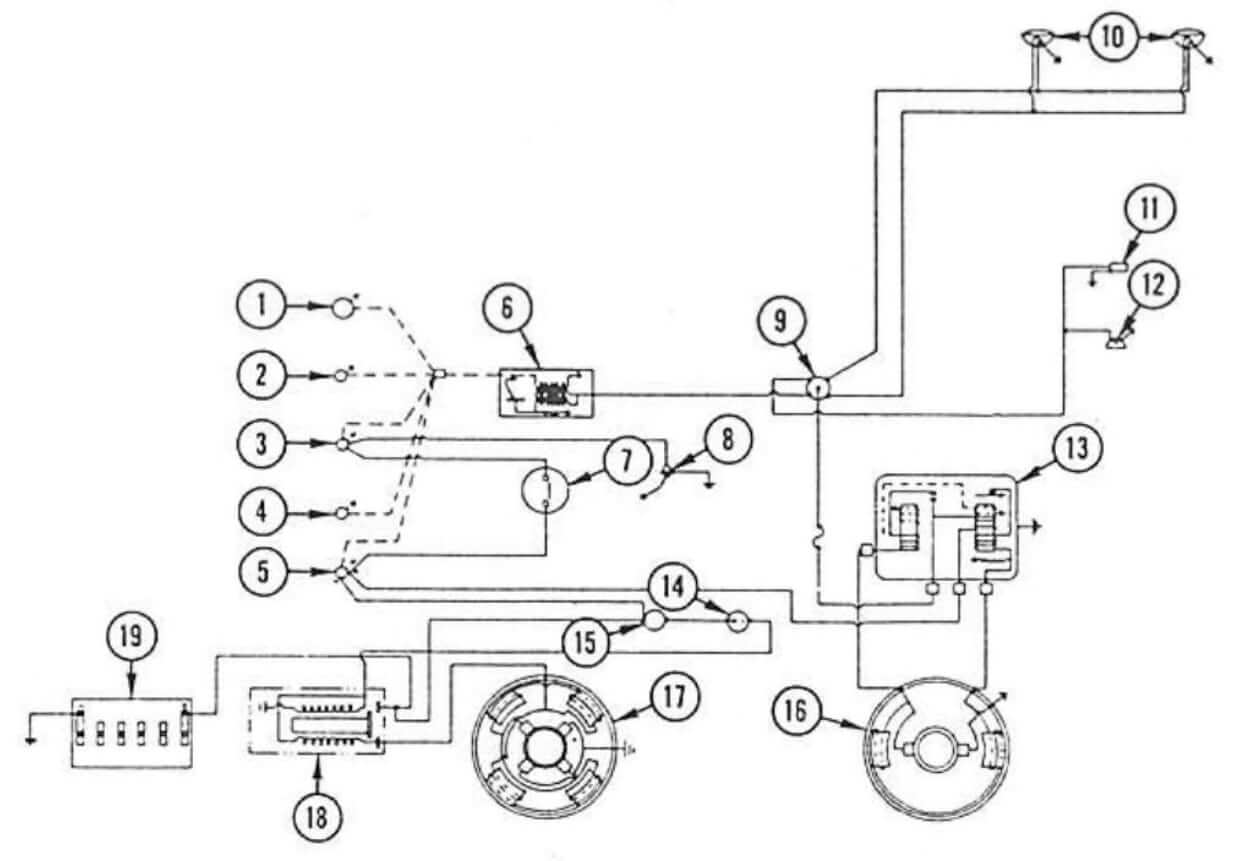

Wiring diagram typical of that used on early MF 135 diesel models
- Tachometer
- Oil pressure gage
- Fuel gage
- Temperature gage
- Ammeter
- Power supply
- Oil pressure sending unit
- Fuel gage sending unit
- Light switch
- Headlights
- Auxiliary light connector
- Work & warning light
- Voltage regulator
- Starter safety switch
- Starter switch
- Generator
- Starter
- Starter solenoid
- Battery

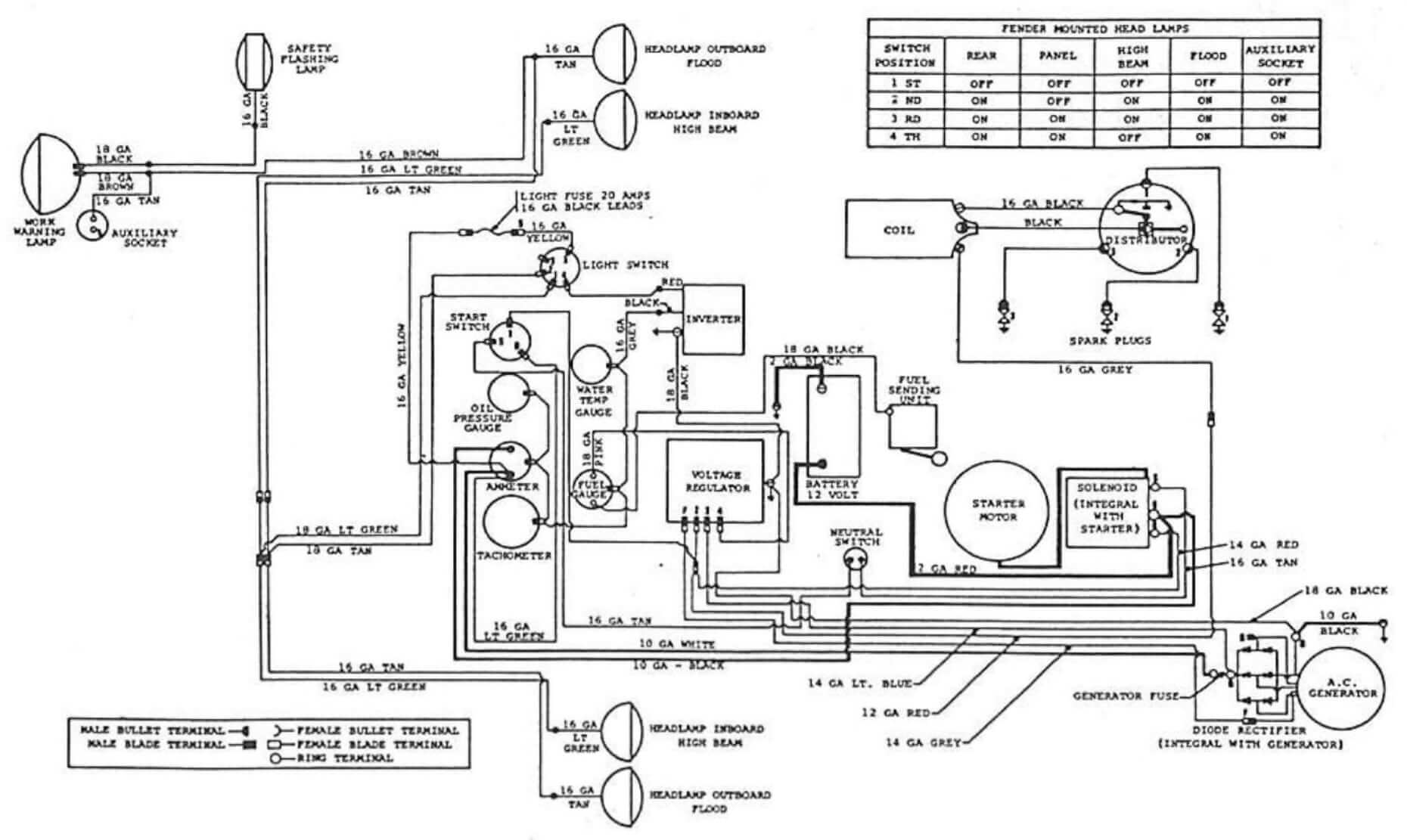

Wiring diagram for MF135 with Perkins gasoline engine. Other late models are similar

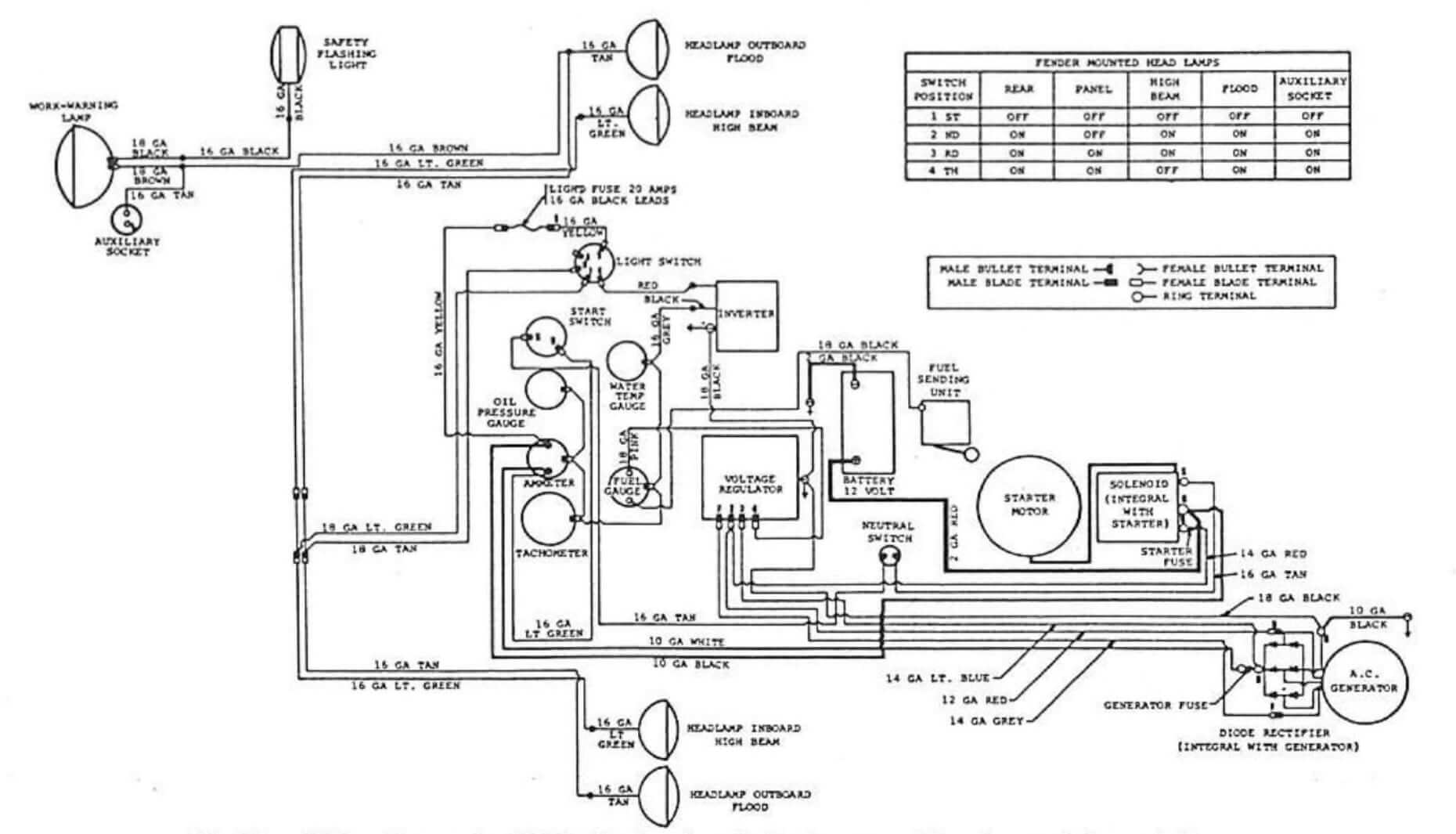

Wiring diagram for MF135 diesel equipped with alternator. Other late models are similar

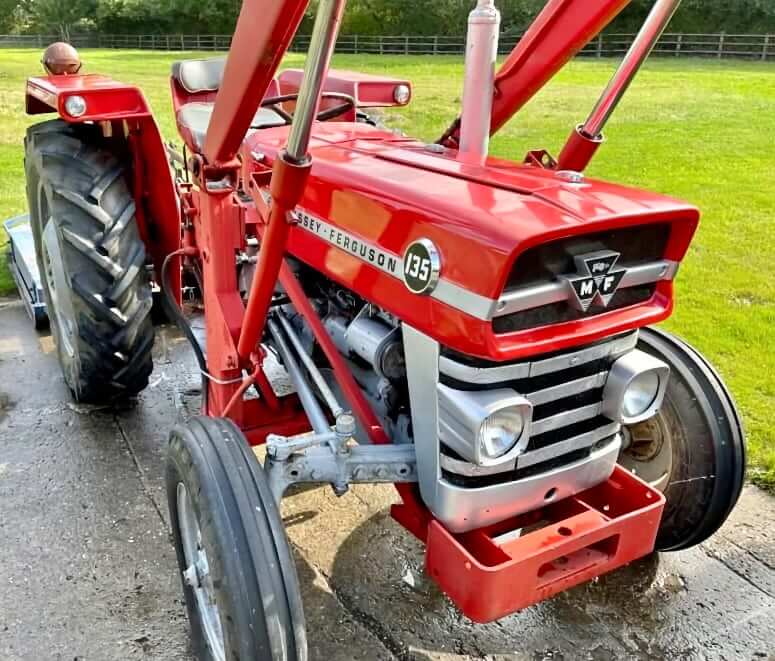

Massey Ferguson 135 Attachments
The Massey Ferguson 135 Utility Tractor (1964–1975) is one of the most iconic models in the MF 100 series, well-regarded for its reliability, simple maintenance, and versatility on the farm. With its Category I three-point hitch, Ferguson draft control system, and strong hydraulic performance, the MF 135 could be paired with a wide range of attachments to handle everyday agricultural and utility tasks. Operators commonly equipped it with rotary cutters, plows, cultivators, and harrows for field preparation, as well as loaders, blades, and scoops for material handling.
MF 225 Front Loader
| Maximum Lift Height at Pin | 120 in (3048 mm) |
| Maximum Clearance (Bucket Dumped) | 100 in (2540 mm) |
| Reach at Maximum Height (Bucket Dumped) | 45 in (1143 mm) |
| Reach with Bucket on Ground | 85 in (2159 mm) |
| Maximum Dump Angle | 52° |
| Lift Capacity to Full Height at Pivot Pin | 1500 lb (680 kg) |
| Breakout Force (Bucket cylinders) | 2500 lbf (11.12 kN) |
| Loader Bucket Width (Standard) | 40 in (1016 mm) |
MF 235 Front Loader
| Maximum Lift Height at Pin | 130 in (3302 mm) |
| Maximum Clearance (Bucket Dumped) | 105 in (2667 mm) |
| Reach at Maximum Height (Bucket Dumped) | 30 in (762 mm) |
| Reach with Bucket on Ground | 89 in (2261 mm) |
| Maximum Dump Angle | 40° |
| Lift Capacity to Full Height at Pivot Pin | 2500 lb (1134 kg) |
| Breakout Force (Bucket cylinders) | 3250 lbf (14.46 kN) |
| Loader Bucket Width (Standard) | 48 in (1219 mm) |
| Loader Bucket Width (Optional) | 60 in (1524 mm) |
| Loader Bucket Width (Optional) | 72 in (1829 mm) |
| Loader Bucket Width (Optional) | 84 in (2134 mm) |
It also supported tillers, post hole diggers, and sprayers for specialty applications, plus snow removal implements like blades and blowers for year-round usability. Thanks to this adaptability, the Massey Ferguson 135 became a go-to machine for small to mid-sized farms, landscaping crews, and property owners who needed a tractor capable of switching quickly between implements and staying productive in any season.
