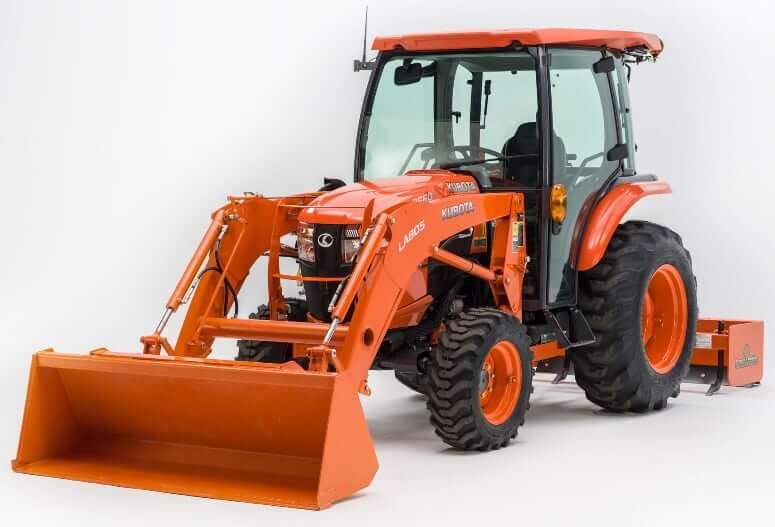

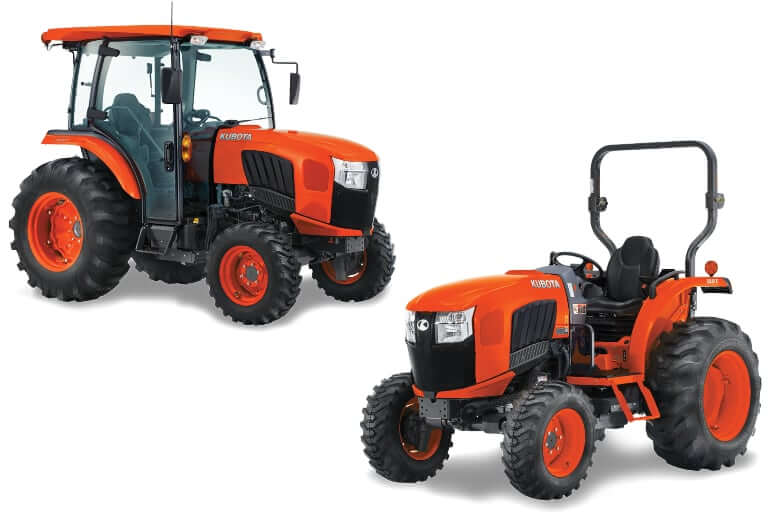

Dimensions
| Overall Length | 115 in (2920 mm) |
| Wheelbase | 71.7 in (1805 mm) |
| Overall Width | 59.8 in (1520 mm) |
| Overall Height with ROPS | 97.2 in (2470 mm) |
| Overall Height with Cab | 90.6 in (2300 mm) |
| Ground Clearance | 13.5 in (342 mm) |
| Min Turning Radius (w/ brake) | 106.3 in (2700 mm) |
| Front Tire Size (Standard) | 7.2-16, 4PR |
| Rear Tire Size (Standard) | 12.4-24, 4PR |
| Front Tire Size (Optional) | 8.3-16 9.5-16 27×8.50-15 29×12.50-15 |
| Rear Tire Size (Optional) | 14.9-24 14.9-26 355/80-D20 Turf 44×18-20 Turf |
| Front Tread | 45.5 in (1155 mm) |
| Rear Tread | 47.2 in (1200 mm) 51.2 in (1300 mm) 54.5 in (1385 mm) 58.3 in (1480 mm) |
Weight
| Operating Weight (DT) | 3351 lb (1520 kg) |
| Operating Weight (GST) | 3395 lb (1540 kg) |
| Operating Weight (HST) | 3494 lb (1585 kg) |
| Operating Weight (HSTC) | 3847 lb (1745 kg) |
| Front Weight (each) | 55 lb (25 kg) |
| Max Front Weight | 386 lb (175 kg) |
| Rear Wheel Weight (each) | 61.7 lb (28 kg) |
| Max Rear Wheel Weight (per wheel) | 185 lb (84 kg) |
Engine Details
| Number Of Cylinders | 3 |
| Engine Make | Kubota |
| Engine Model | Kubota D1803-CR-E4 |
| Displacement | 111.4 cu in (1.826 L) |
| Bore | 3.4 in (87 mm) |
| Stroke | 4.0 in (102.4 mm) |
| Engine Type | 4 cycle multi valve diesel engine |
| Net Horsepower | 35.0 hp (26.1 kw) |
| Gross Horsepower | 37.0 hp (27.6 kw) |
| PTO Power | 29.5 hp (22.0 kw) / 28.0 hp (20.9 kw) |
| Power Measured @ | 2700 rpm |
| Peak Torque | 84.2 lb ft (114.1 Nm) |
| Torque Measured @ | 1500 rpm |
| Air Cleaner | Dry Paper Single Element |
| Lubrication | Forced lubricaton by trochoidal pump |
| Governor | Electronic control |
| Injection pump | Electronic CRS (Common Rail System) |
| Fuel Filter | 1-Spin on type fuel filter with water separator with manual drain cock |
| Oil Filter | Sheet net and replaceable treated paper element, spin on oil filter |
| Fuel Shutoff | Electric activated engine stop mechanism |
| Throttle | Hand and foot operated throttle / Hand operated throttle |
| Aspiration | Naturally aspirated |
| Emission Standards | US CARB / EPA Tier 4 + EU Stage IIIA |
Operating Specs

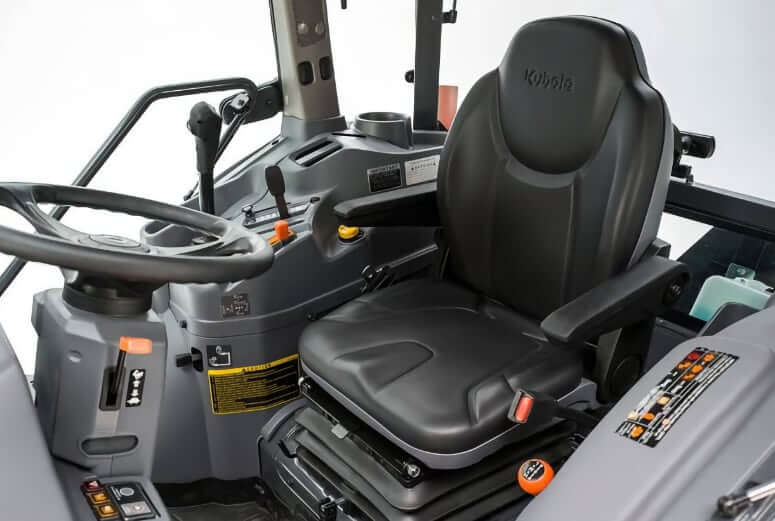

| Operating Weight (DT, ROPS) | 3351 lb (1520 kg) |
| Operating Weight (HSTC, Cab) | 3847 lb (1745 kg) |
| Operating Voltage | 12 V |
| Alternator | 40 amps (60 amps for Cab) |
| Battery | 12V, CCA 580, RC: 133 min |
| Ground | Negative |
| Starter | 12 V |
| Working Lights | Fender mounted 4-way flashers + 2 headlights + 2 tail lights with hazard flashers and turn signals |
| Safety Start Switches | PTO / Shuttle (F/DT)/HST Range (HST) Neutral Switches |
| Dashboard | Deluxe dash with analog tachometer, temperature gauge, fuel gauge and LCD hour and error message display |
| Parking Brake | Interlocking brake pedals, and depress pedal and latch with the parking brake lever |
| SMV sign | Slow moving vehicle sign |
| ROPS | Factory certified two post foldable ROPS with retractable seat belt |
| OPC | Operator presence control system, engine shutoff type |
Transmission
| Kubota L3560 | 8-Speed Manual | 12-speed Glide Shift | HST |
|---|---|---|---|
| Type | Fully synch main and shuttle | Glide shift | Hydrostatic |
| Clutch Type | Dry type single stage | Dry type single stage | N/A |
| Number Of Gears | 8F / 8R | 12F / 8R | Infinite (3-range) |
| Max Forward Speed | 16.5 mph (26.6 km/h) | 16.5 mph (26.6 km/h) | 16.4 mph (26.5 km/h) |
| Max Reverse Speed | 15.8 mph (25.4 km/h) | 15.8 mph (25.4 km/h) | 14.9 mph (23.9 km/h) |
| Steering | Hydrostatic power steering | Hydrostatic power steering | Hydrostatic power steering |
| Cruise Control | N/A | N/A | Infinite speed control |
| Service Brakes | Wet disk type | Wet disk type | Wet disk type |
Hydraulic System
| Kubota L3560 | DT / GST | HST / HSTC |
|---|---|---|
| Hydraulic Control System | Position control (draft control optional) | Position control (draft control optional) |
| Hydraulic Pump Output | 8.3 gal/min (31.5 L/min) | 8.1 gal/min (30.4 L/min) |
| Power Steering Pump Output | 4.9 gal/min (18.6 L/min) | 4.7 gal/min (17.9 L/min) |
| Total Pump Flow Capacity | 13.2 gal/min (50.1 L/min) | 12.8 gal/min (48.3 L/min) |
| System Pressure | 2567 psi (17700 kPa) | 2567 psi (17700 kPa) |
| Number of Remote Valves | Optional | 1st, 2nd Standard (3rd Optional) |
3-Point Hitch
| 3-Point Hitch Type | Category I |
| 3 Point Hitch Lift Capacity @ 24″ | 2650 lb (1200 kg) |
PTO (Power Take-Off)
| Kubota L3560 | DT / GST | HST / HSTC |
|---|---|---|
| Rear PTO Type | Independent | Independent |
| Rear PTO Speed | 540 rpm | 540 rpm |
| PTO / Engine RPM | 540 @ 2426 (DT) 540 @ 2550 (GST) |
540 @ 2550 |
| PTO Horsepower | 29.5 hp (22.0 kw) | 28.0 hp (20.9 kw) |
| Rear PTO Shaft | SAE 1-3/8, 6 splines | SAE 1-3/8, 6 splines |
| Mid PTO Speed | 2000 rpm (Optional) | 2000 rpm (Optional) |

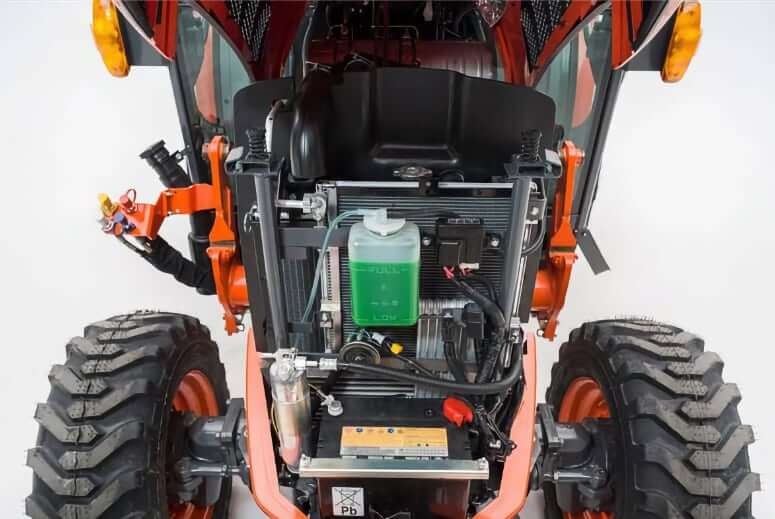

Service Refill Capacities
| Fuel Tank Capacity | 11.2 gal (51 L) |
| Engine Oil Capacity | 1.8 gal (6.7 L) |
| Cooling System Capacity | 2.0 gal (7.5 L) |
| Transmission Oil Capacity | 11.1 gal (42 L) |
| Front Axle (4WD Bevel Gear Cases) | 1.7 gal (6.5 L) |
Kubota L3560 Attachments
The Kubota L3560, part of the Grand L60 Series, is a premium compact utility tractor designed for versatility and performance. It supports a wide range of factory-approved attachments to handle everything from heavy-duty digging to precision snow removal and surface grooming.
Compatible front loaders like the Kubota LA555 and LA805 deliver excellent lifting capabilities, while the Kubota BH77 backhoe expands its utility for trenching and excavation tasks.

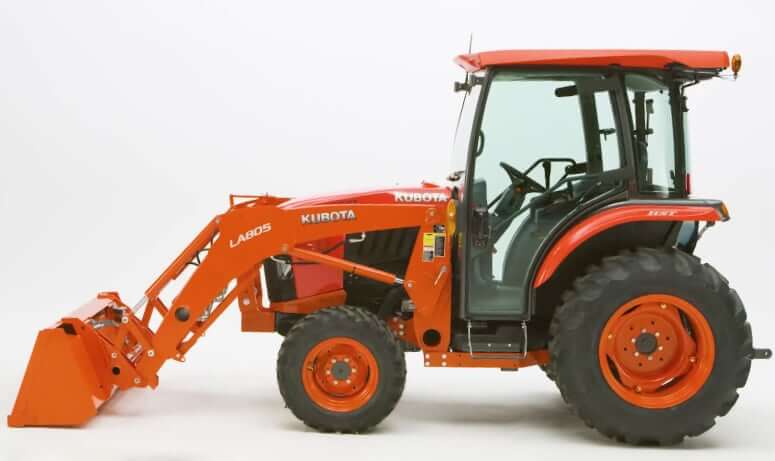

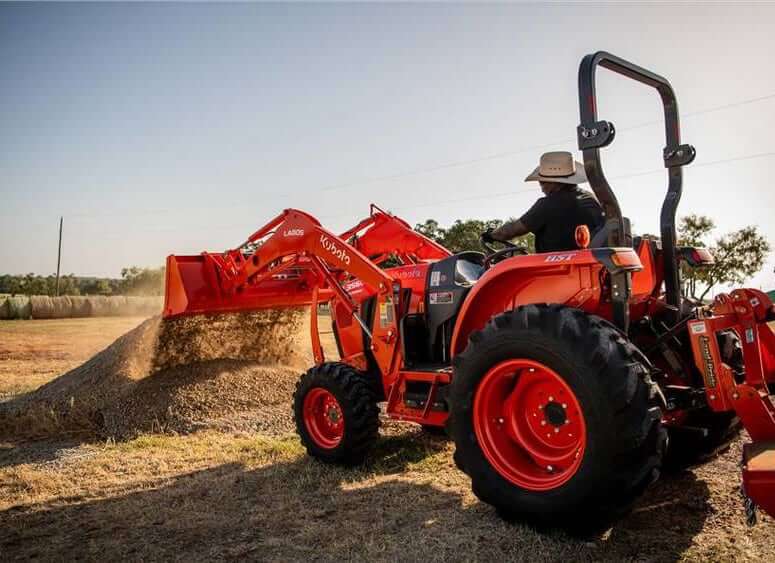

Kubota LA555 / LA805 Loaders
| Model | Kubota LA555 | Kubota LA805 |
|---|---|---|
| Maximum Lift Height (Pivot pin) | 96.4 in (2448 mm) | 104.7 in (2659 mm) |
| Clearance with Attachment Dump | 75.9 in (1928 mm) | 80.0 in (2033 mm) |
| Reach @ Maximum Height | 28.4 in (721 mm) | 23.3 in (591 mm) |
| Maximum Dump Angle | 40° | 42° |
| Reach with Attachment on Ground | 66.6 in (1691 mm) | 72.4 in (1840 mm) |
| Maximum Rollback Angle | 30° | 41° |
| Digging Depth (When Bucket is level) | 4.9 in (124 mm) | 4.7 in (120 mm) |
| Overall Height in Carry Position | 52.7 in (1338 mm) | 54.6 in (1386 mm) |
| Square Bucket Width / Struck Capacity | 66 in (1675 mm) / 0.3 yd3 (0.23 m3) | 72 in (1830 mm) / 0.4 yd3 (0.31 m3) |
| Lift Capacity (Pivot pin) | 1190 lb (540 kg) | 1715 lb (778 kg) |
| Lift Capacity (500 mm forward) | 899 lb (408 kg) | 1290 lb (585 kg) |
| Breakout Force (500 mm forward) | 2030 lbf (9.03 kN) | 2549 lbf (11.34 kN) |
| Raising Time to Full Height without Load | 2.7 sec | 3.2 sec |
| Lowering Time without Load (powerdown) | 2.2 sec | 2.0 sec |
| Attachment Rollback Time | 1.6 sec | 1.9 sec |
| Attachment Dumping Time | 1.3 sec | 1.3 sec |
| Rated Flow | 8.3 gal/min (31.5 L/min) | 9.8 gal/min (37.0 L/min) |
| Relief Valve | 2560 psi (17651 kPa) | 2630 psi (18133 kPa) |
| Implements | L2256 (66”) Square Back Bucket L2236 (72”) Light Material Bucket L2238 Pallet Fork Frame K9048 (36”) Pallet Fork L2237 Bale Spear |
L2235A (72”) Square Back Bucket L2296 (72”) Heavy Duty Round Back Bucket L2236 (72”) Light Material Bucket L2238 Pallet Fork Frame K9048 (36”) Pallet Fork L2237 Bale Spear |

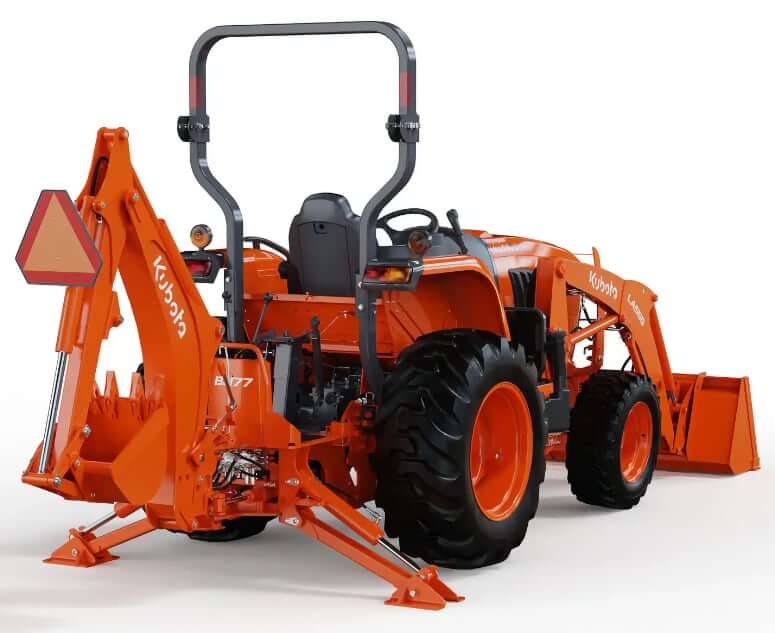

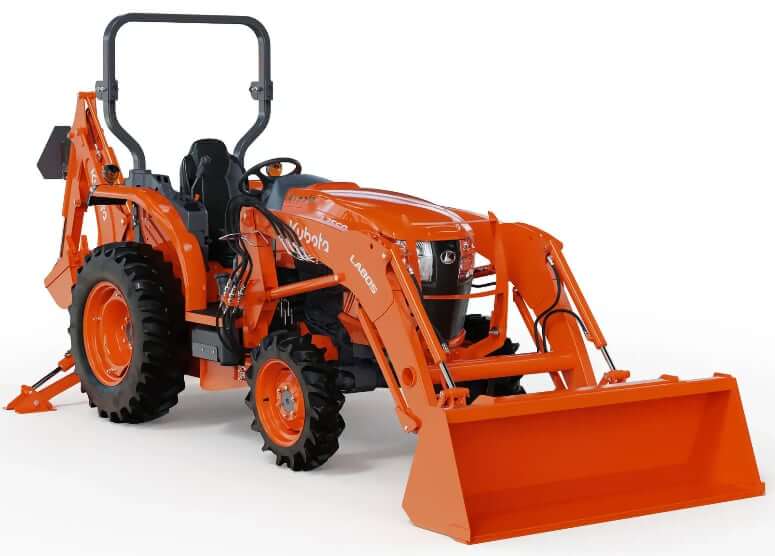

Kubota BH77 Backhoe
| A. Transport Height | 80.3 in (2040 mm) |
| B. Stabilizer Spread – Transport | 51.8 in (1315 mm) |
| C. Ground Clearance | 11.5 in (292 mm) |
| E. Overall Width | 54.9 in (1394 mm) |
| F. Maximum Digging Depth | 93.6 in (2378 mm) |
| G. Digging Depth, 2 ft. Flat Bottom | 89.8 in (2280 mm) |
| H. Digging Depth, 8 ft. Flat Bottom | 69.2 in (1758 mm) |
| J. Operating Height, Fully Raised | 119.3 in (3029 mm) |
| K. Loading Height | 65.7 in (1669 mm) |
| L. Loading Reach | 50.8 in (1290 mm) |
| M. Reach from Swing Pivot | 124.3 in (3156 mm) |
| N. Swing Pivot to Rear Axle Center Line | 37.6 in (954 mm) |
| P. Bucket Rotation | 180° |
| R. Stabilizer Spread – Operating | 69.0 in (1753 mm) |
| A3. Angle of Departure (per SAE J1234) | 17.3° |
| U. Leveling Angle | 10.2° |
| Swing Arc | 180° |
| Bucket Digging Force | 3421 lbf (15.22 kN) |
| Dipperstick Digging Force | 2190 lbf (97.38 kN) |
| Boom Cylinder, Extend | 3.5 sec |
| Boom Cylinder, Retract | 3.1 sec |
| Swing Cylinder, From 90° | 2.1 sec |
| Dipperstick Cylinder, Extend | 4.9 sec |
| Dipperstick Cylinder, Retract | 3.4 sec |
| Bucket Cylinder, Extend | 3.2 sec |
| Bucket Cylinder, Retract | 2.5 sec |
| Stabilizer Cylinder, Lower | 2.4 sec |
| Stabilizer Cylinder, Raise | 2.0 sec |
62″ Front-Mount Snow Blower
| Model | Kubota LA2194A |
|---|---|
| Mount Type | Front-Mount |
| Clearing Width | 62 in (1575 mm) |
| Intake Height | 21 in (533 mm) |
| Auger Diameter | 12 in (305 mm) |
| Impeller Diameter | 14 in (356 mm) |
| Auger Type | Open flight, serrated |
| Chute Rotation | Hydraulic or Electric (210°) |
| Deflector Control | Manual or Hydraulic |
| Drive System | Mid-PTO Driven via Front PTO Kit |
| Weight (Approx.) | 375 lb (170 kg) |
72″ / 84″ Front Blades
| Model | Kubota L2172A | Kubota L2184 |
|---|---|---|
| Blade Width | 72 in (1829 mm) | 84 in (2134 mm) |
| Blade Height | 22 in (559 mm) | 22 in (559 mm) |
| Cutting Edge | Reversible, bolt-on | Reversible, bolt-on |
| Blade Angle (Left/Right) | 30° | 30° |
| Lift Type | Hydraulic or Manual | Hydraulic or Manual |
| Angle Adjustment | Manual or Hydraulic | Manual or Hydraulic |
| Mounting | Front Quick-Hitch (Kubota sub-frame) | Front Quick-Hitch (Kubota sub-frame) |
| Approximate Weight | 340 lb (154 kg) | 360 lb (163 kg) |
For tillage, the Rotary Tillers FC1521C and BK60C provide reliable soil preparation. Land maintenance is simplified with tools like the L7565A 65″ box scraper, while snow removal is efficient with both the L2194A (62″) front snow blower and BL2664 (64″) rear snow blower. Additional implements such as the L2172A (72″) and L2184 (84″) front blades, and the L2162 (60″) front rotary sweeper round out the L3560’s all-season, all-purpose capabilities.
