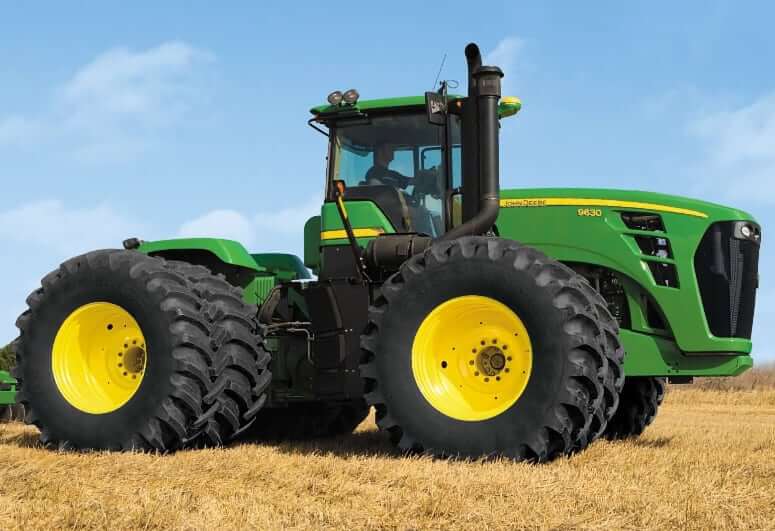

Dimensions
| Length | 270 in (6860 mm) |
| Length (w/ hitch + quick coupler) | 285 in (7240 mm) |
| Wheelbase | 137.8 in (3500 mm) |
| Width | 118.6 in (3012 mm) |
| Axle Length | 120 in (3048 mm) |
| Height to Top of Cab | 142 in (3593 mm) |
| Height to Top of Exhaust | 156 in (3960 mm) |
| Height to Top of Air Stack | 144 in (3668 mm) |
| Height to Top of Hood | 107 in (2724 mm) |
| Ground Clearance (Axle Housing) | 30.8 in (782 mm) |
| Ground Clearance (Hinge Pin) | 20.5 in (520 mm) |
| Ground Clearance (Drawbar) | 19 in (482 mm) |
| Ground Clearance (Drawbar Support) | 16 in (406 mm) |

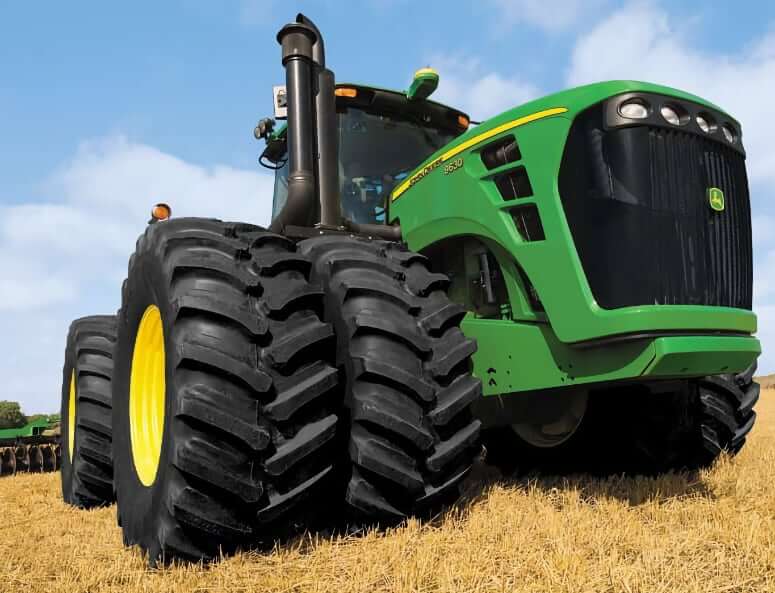

Tire Sizes
| Standard Tire Size | 800/70R38 |
| Tire Size (Single Tires) | 710/70R38 710/70R42 710/70R42 800/70R38 |
| Tire Size (Dual Tires, Group 47) | 18.4R46 480/80R46 20.8R42 520/85R42 620/70R42 710/70R38 |
| Tire Size (Dual Tires, Group 48) | 480/80R50 520/85R46 620/70R46 710/70R42 710/70R42 800/70R38 |
| Tire Size (Triple Tires) | 18.4R46 480/80R46 20.8R42 520/85R42 480/80R50 520/85R46 |

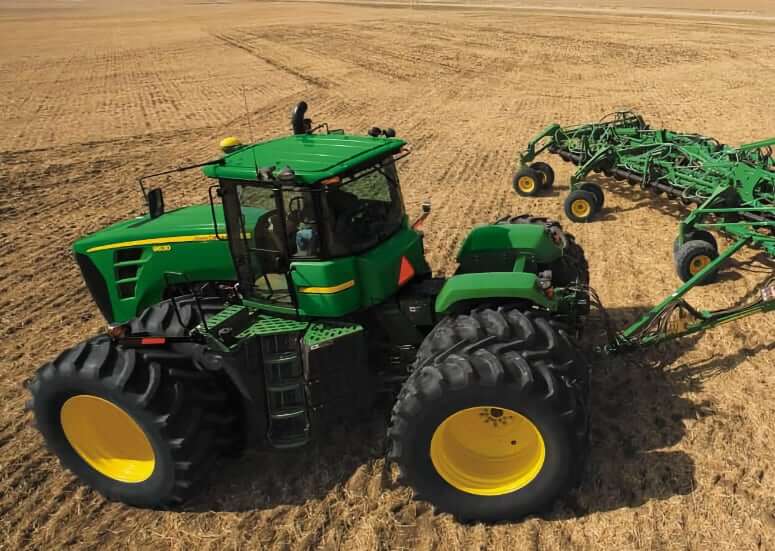

Steering System
| Type | Articulated Hydrostatic with Two Double Action Rams |
| Turns (Lock to Lock) | 4.3 |
| Articulation Steering Angle | 42° |
| Turning Radius (No Steering Stops) | 14.6 ft (4.45 m) |
| Turning Radius (With 3° Stops) | 15.6 ft (4.72 m) |
| Turning Radius (With 5° Stops) | 17.0 ft (5.18 m) |
| Turning Radius (With 10° Stops) | 19.5 ft (5.92 m) |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | John Deere |
| Engine Model | John Deere 6135H PowerTech Plus |
| Displacement | 824 cu in (13.5 L) |
| Bore | 5.2 in (132 mm) |
| Stroke | 6.5 in (165 mm) |
| Gross Power | 530 hp (395.3 kw) |
| Power Measured @ | 2100 rpm |
| Power Rise | 10 % |
| Torque Rise | 38 % |
| Compression Ratio | 16:1 |
| Slow Idle | 900 rpm |
| Fast Idle | 2200 rpm |
| Cooling System | Centrifugal Pump with Variable Ratio Belt Fan Drive |
| Lubrication System | Full Pressure FullFlow Filtration |
| Fuel System | Unit Electronic, Electronic Governor |
| Air Cleaner | DryType with Secondary Element |
| Aspiration | Turbocharged Variable Geometry and Air-to-Air Aftercooled |
| Emission Standards | US EPA Tier 3 + EU Stage IIIA |
Operational Specs

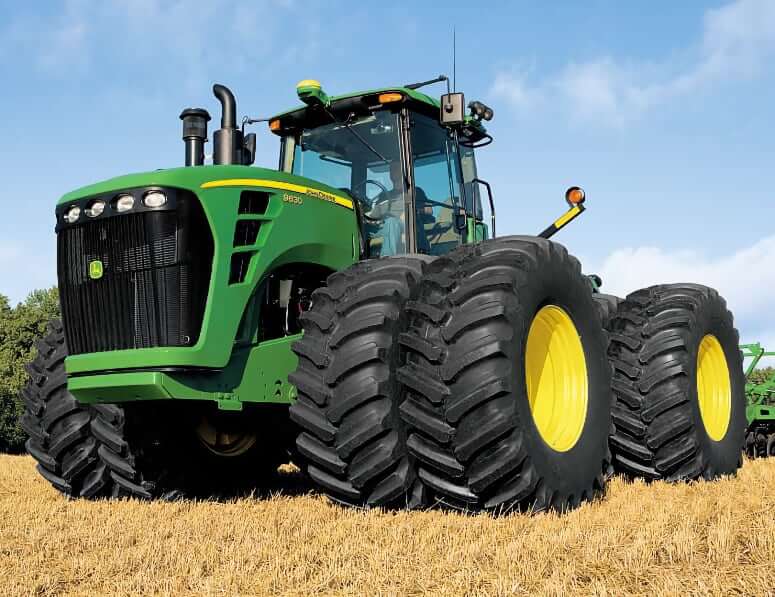

| Operating Weight | 39283 lb (17818 kg) |
| Shipping Weight | 37290 lb (16914 kg) |
| Max Ballasted Weight | 57000 lb (25855 kg) |
| Cast Iron Weights | 165 lb (75 kg) / 450 lb (205 kg) / 1400 lb (635 kg) |
| Operating Voltage | 12 V |
| Alternator | 200 amps |
| Battery | 3x 12 V, CCA 925 |

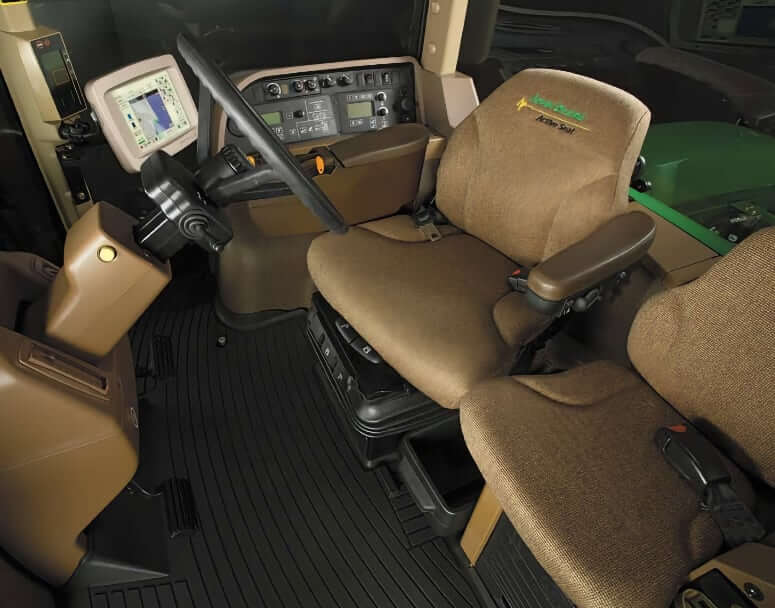

| Cab | Standard cab with air conditioning or ClimaTrak |
| Display | CommandCenter LCD display |
| Noise level | Max sound level at operator’s ear, measured in accordance with Directive 77/311 EEC, Annex II, with cab closed |
| Drive | 4WD |
| Hydraulic Differential Lock | Standard |

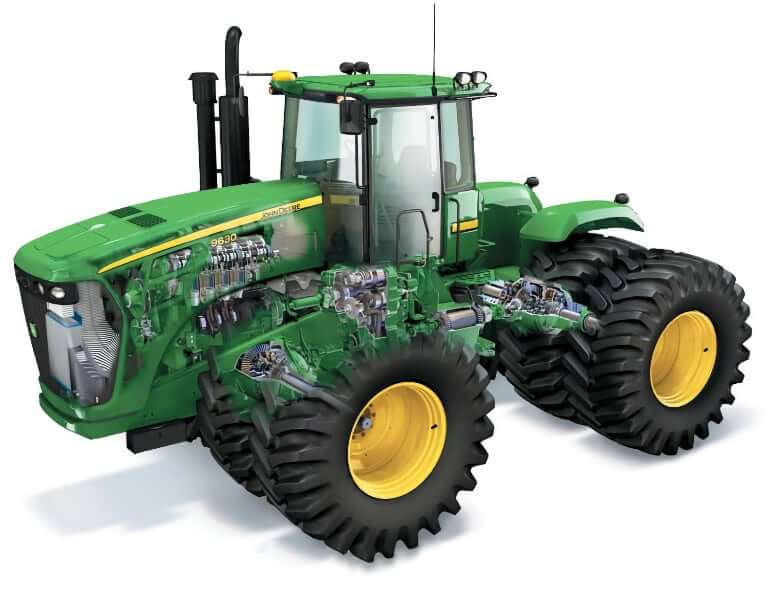

Transmission
| Type | 18-speed automatic John Deere powershift transmission |
| Number of Gears | 18F / 6R |
| Max Travel Speed | 24 mph (40 km/h) |
| Final Drives | Inboard planetary |
| Service Brakes | Hydraulic power, wet disk, self adjusting on front and rear axle, plus secondary brake |
| Hydraulic Trailer Brakes | Optional |
Hydraulic System
| Type | Closed Center Pressure/Flow Compensated |
| Pump Type | Axial Piston Pump |
| Pump Flow Capacity | 48 gal/min (186 L/min) |
| Relief Valve Pressure | 2900 psi (20000 kPa) |
| Number of Remote Control Valves | 4 (6) |
| Selective Control Valves (SCVs) | Electrohydraulic |
| SCV Flow Capacity | 30 gal/min (114 L/min) |
| Control | Position and draft control |
| 3 Point Hitch Type | Category 3 or Category 4/4N |
| 3-Point Hitch Lift Capacity @ 24″ | 15300 lb (6940 kg) |
Service Refill Capacities
| Fuel Tank Capacity | 350 gal (1325 L) |
| Engine Oil Capacity (w/ filter) | 15.8 gal (60 L) |
| Cooling System Capacity | 14 gal (53 L) |
| Transmission Oil Capacity (w/ 120 mm Heavy Duty Axle) | 45 gal (170.8 L) |
| Transmission Oil Capacity (w/ Double Reduction Axle) | 23 gal (87 L) |
| Hydraulic System Capacity (w/o hitch, standard flow) | 27 gal (103 L) |
| Hydraulic System Capacity (w/ hitch, standard flow) | 28 gal (106 L) |
| Hydraulic System Capacity (w/o hitch, high flow) | 30 gal (113.5 L) |
| Hydraulic System Capacity (w/ hitch, high flow) | 31 gal (117 L) |
