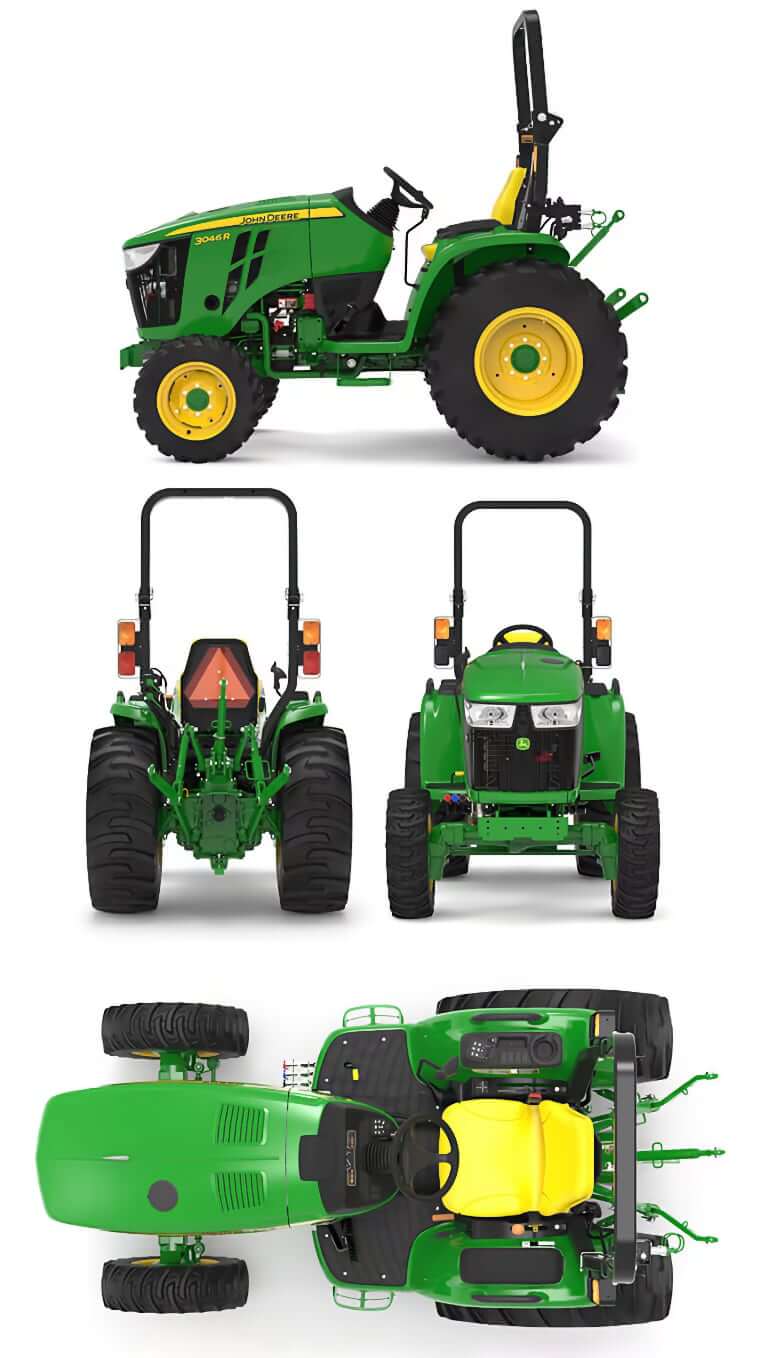

Dimensions
| Overall Length with 3-Point Hitch | 120.2 in (3053 mm) |
| Overall Width | 69.1 in (1756 mm) |
| Wheelbase | 68.0 in (1727 mm) |
| Height to Top of Hood | 57.0 in (1448 mm) |
| Height to Top of ROPS (Extended) | 93.3 in (2370 mm) |
| Height to Top of ROPS (Folded) | 72.0 in (1828 mm) |
| Height to Top of Cab | 85.0 in (2159 mm) |
| Ground Clearance (Front Axle, Minimum) | 6.7 in (171 mm) |
| Ground Clearance (Front Axle, Maximum) | 11.8 in (299 mm) |
| Turning Radius (w/ brakes) | 105.6 in (2682 mm) |
| Turning Radius (w/o brakes) | 110.4 in (2804 mm) |
NOTE: Tractor equipped with standard 11.2-24 4PR R4 rear tires and 7.00-14 6PR R1 front tires
Tires
| John Deere 3046R | Front | Rear |
|---|---|---|
| Standard Tire Size | 7.00-14 6PR R1 | 11.2 – 24 6PR R1 |
| Optional Tire Size | 25×8.50-14 6PR 27×8.50-15 6PR 27×8.50-15 6PR R4 25×10.5LL-15 6PR Turf 25×8.50-14 R4 Industrial |
15.00-19.5 6PR R4 Industrial 41×14.00-20 4PR R3 43×16.00-20 4PR R4 Industrial 41x18LL-16.1 6PR Turf |
| Tread Width | 44 in (1117 mm) | 40.6 in (1031 mm) |

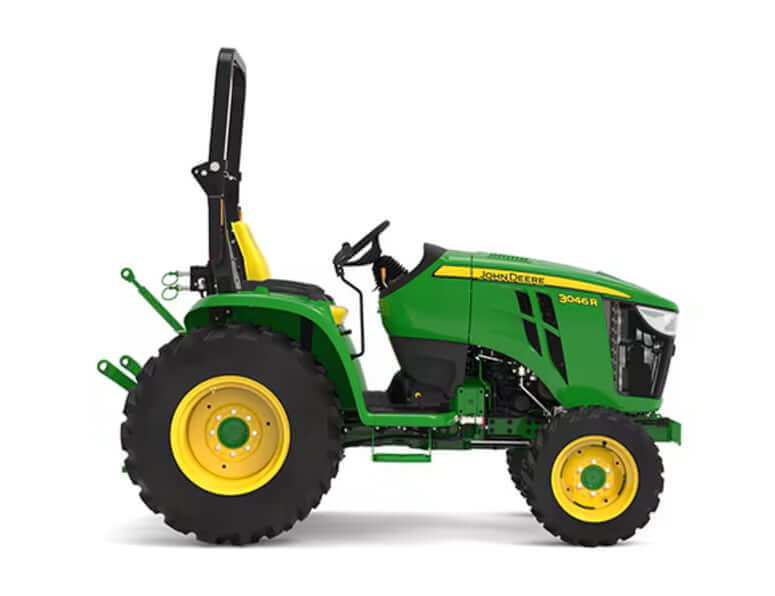

Weight
| Operating Weight (OOS)* | 3066 lb (1391 kg) |
| Operating Weight (Cab)* | 4008 lb (1818 kg) |
| Rear Axle Capacity (Continuous) | 4079 lb (1850 kg) |
| Front Axle Capacity (Continuous) | 3197 lb (1450 kg) |
| Front Weights (Option #1) | 72 lb (32 kg) |
| Front Weights (Option #2) | 42 lb (20 kg) |
*Tractor equipped with a ROPS, 3-point hitch, standard tires and all fluids
Engine Details
| Number of Cylinders | 3 |
| Engine Make | Yanmar |
| Engine Model | Yanmar 3TNV86CHT-MJTV |
| Engine Family | EYDXL1.57HDA, FYDXL1.57HDA, GYDXL1.57HDA |
| Displacement | 95.7 cu in (1.57 L) |
| Bore | 3.40 in (86 mm) |
| Stroke | 3.54 in (90 mm) |
| Gross Power | 44.7 hp (33.3 kw) |
| PTO Horsepower | 33.9 hp (25.2 kw) / 36.6 hp (27.3 kw) |
| Power Measured @ | 2600 rpm |
| Peak Torque | 90 lb ft (112.3 Nm) |
| Torque Measured @ | 1690 rpm |
| Compression Ratio | 19.1:1 |
| Low Idle | 950 rpm |
| High Idle | 2750 rpm |
| Fuel System | High pressure common rail direct injection |
| Fuel Consumption | 2.8 gal/h (10.6 L/h) |
| Lubrication System | Pressurized, Single Element Oil Filter |
| Air Cleaner | Air Cleaner Dry Type with Safety Element |
| Aspiration | Turbocharged and Intercooled |
| Emission Standards | US EPA Tier 4 Final + EU Stage V |
Operational Specs
| Operating Weight (OOS) | 3066 lb (1391 kg) |
| Operating Weight (Cab) | 4008 lb (1818 kg) |
| Operating Voltage | 12 V |
| Alternator | 75 amps |
| Battery | 12 V, CCA 500 |
| Starter | 12 V, 1.9 hp (1.4 kw) |
| ROPS Type | Foldable |
| Platform | One-piece semi flat |
| Cab | Two-Door cab with heater and AC |
| Noise Level | 80 dBA |
Transmission
| Type | John Deere eHydro Hydrostatic Transmission |
| Number of Gears | Infinite forward and reverse (3-range) |
| Travel Speed, Forward / Reverse (Low) | 0 – 4.1 mph (0 – 6.6 km/h) |
| Travel Speed, Forward / Reverse (Medium) | 0 – 8.1 mph (0 13.1 km/h) |
| Travel Speed, Forward / Reverse (High) | 0 – 18.5 mph (0 – 29.8 km/h) |
| Gear Shift Location | Left Hand Side |
| Drive | 4WD (MFWD) |
| MFWD Capability | All Ranges |
| MFWD Engagement | On-the-Go |
| Final Drive Type | Spur Gear |
| Service Brakes | Multi-plate wet disc |
| Steering | Hydrostatic power steering |
| Cruise Control | Standard |

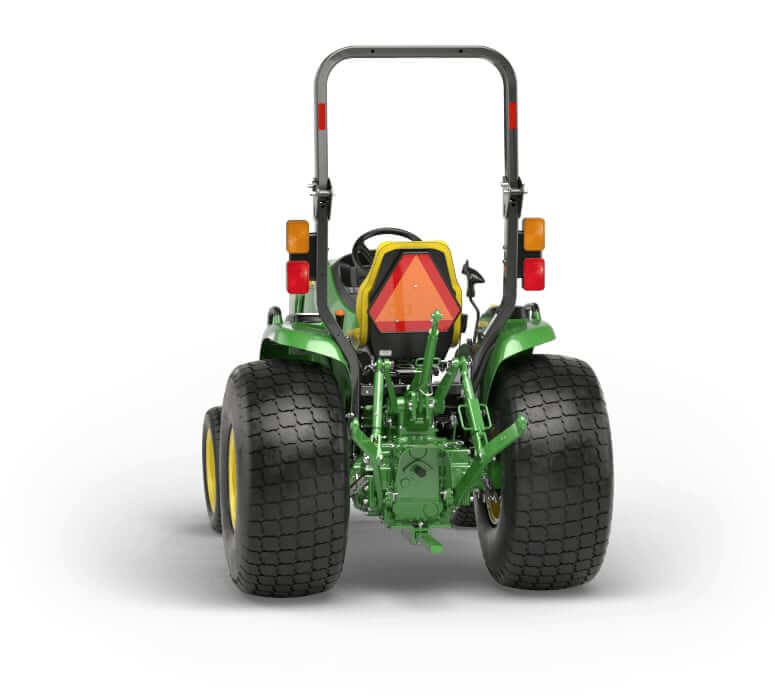

PTO (Power Take-Off)
| Rear PTO Type | Independent |
| Rear PTO Speed | 540 rpm |
| PTO Clutch | Multiple wet disc, electro-hydraulic |
| Control | Lever and switch |
| Brake (for Mid and Rear PTO) | Wet disc |
| Mid PTO Type (Optional) | Independent |
| Mid PTO Speed | 2100 rpm |
| Mid PTO Clutch | Multiple wet disc, electro-hydraulic |

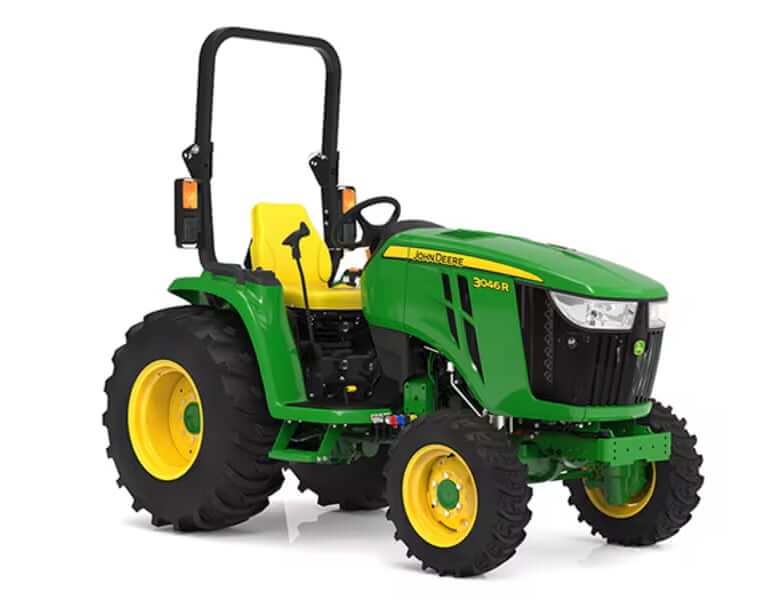

Hydraulic System
| Type | Open Center |
| Hydrostatic Pump Type | PV Axial Piston |
| Implement Pump Type | Dual gear pump |
| Implement Pump Flow | 9.1 gal/min (34.3 L/min) |
| Steering Pump Flow | 6.2 gal/min (23.5 L/min) |
| Total Pump Flow | 15.3 gal/min (57.8 L/min) |
| Operating Pressure | 2495 psi (17200 kPa) |
| Remote Control Valves | Up to 6 rear remotes |
3-Point Hitch
| 3-Point Hitch Category | Category 1 |
| Draft Control Sensing | Position control |
| 3-Point Hitch Lift Capacity @ 24″ | 2194 lb (995 kg) |
| Front 3-Point Hitch Category | Category 0 |
| Front 3-Point Hitch Lift Capacity @ 24″ | 815 lb (370 kg) |
| Front 3-Point Hitch Lift Capacity @ ends | 1300 lb (600 kg) |
Service Refill Capacities
| Fuel Tank Capacity (OOS) | 13.5 gal (51.1 L) |
| Fuel Tank Capacity (Cab) | 11.8 gal (44.5 L) |
| Engine Oil Capacity (w/ filter) | 1.5 gal (5.7 L) |
| Cooling System Capacity (OOS) | 1.4 gal (5.3 L) |
| Cooling System Capacity (Cab) | 1.9 gal (7.0 L) |
| Hydraulic / Transmission Oil Capacity | 6.8 gal (25.7 L) |
| Front Axle Fluid Capacity | 1.3 gal (4.8 L) |

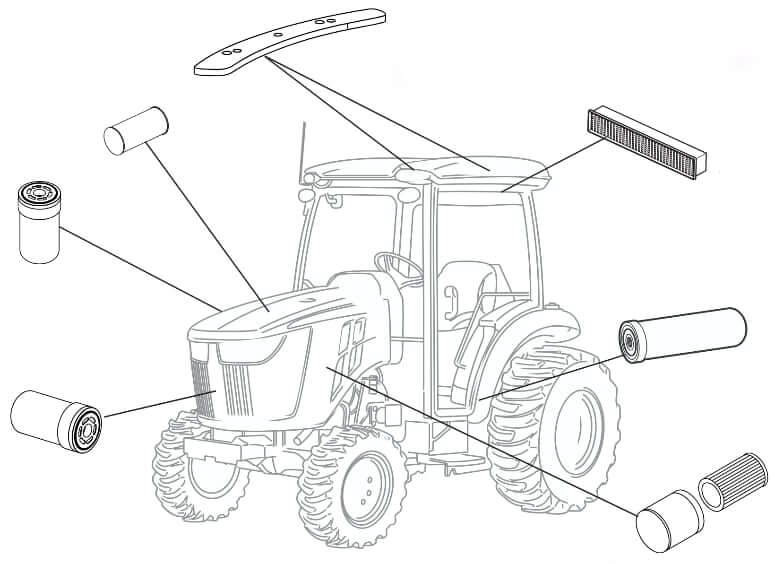

John Deere 3046R Filters
| Engine Oil Filter | M806419 |
| Diesel Particulate Filter | MIU803232 |
| Hydraulic / Transmission Oil Filter | LVA13065 |
| Primary Fuel Filter | MIU802421 |
| Final Fuel Filter | MIU803127 |
| Engine Air Filter (Primary) | RE68048 |
| Engine Air Filter (Secondary) | RE68049 |
| Cab Recirculation Air Filter (2x) | MIU10011 |
| Cab Fresh Filter | MIU10010 |
| JD 3046R Filter Pack | LVA21038 (M806419, LVA13065, MIU803127, RE68048, MIU802421) |

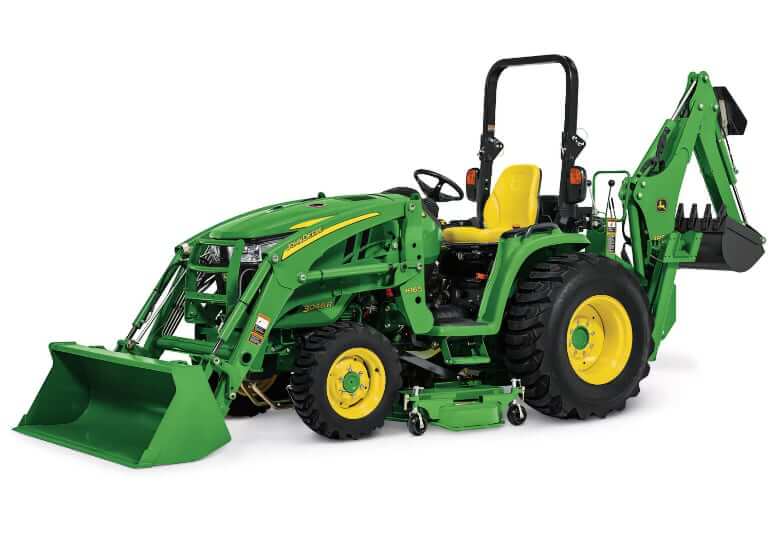

John Deere 3046R Attachments
The John Deere 3046R isn’t just a compact utility tractor with the right attachments it becomes a versatile workhorse that can handle everything from mowing and landscaping to digging and material moving. Add a front loader like the John Deere H160 or John Deere H165, and the 3046R gets a major upgrade: you’ll be able to move soil, gravel, mulch or large loads with ease, turning the tractor into a mini-loader for yards, driveways, or small sites.
Front Loaders for JD 3046R
| Model | John Deere H160 | John Deere H165 |
|---|---|---|
| Lift Capacity at Pivot Pin (Max Height) | 1360 lb (617 kg) | 1598 lb (725 kg) |
| Lift Capacity at 500 mm Ahead of Pivot Pin | 999 lb (453 kg) | 1122 lb (509 kg) |
| Lift Capacity to 59 in at Pivot Pin | 1700 lb (771 kg) | 2125 lb (964 kg) |
| Lift Capacity to 59 in at 500 mm Ahead | 1312 lb (595 kg) | 1649 lb (748 kg) |
| Max Lift Height at Pivot Pin | 86 in (2289 mm) | 102 in (2593 mm) |
| Reach at Max Height | 30.4 in (773 mm) | 22.1 in (562 mm) |
| Breakout Force at Pivot Pin | 2855 lb (1295 kg) | 3327 lb (1509 kg) |
| Breakout Force at 500 mm | 2032 lb (922 kg) | 2418 lb (1097 kg) |
| Dump Angle | 43° | 41.4° |
| Rollback Angle | 25° | 31° |
| Loader Raising / Lowering Time | 2.76 / 1.69 sec | 3.57 / 2.1 sec |
| Bucket Dump Time / Regen | 2.81 / 1.17 sec | 2.96 / 1.24 sec |
| Bucket Rollback Time | 1.78 sec | 1.75 sec |
When it’s time to maintain lawns or larger grounds, the mid-mount mower decks, such as John Deere 60D Mid‑Mount Mower or 72D Mid‑Mount Mower, transform the 3046R into a mowing machine capable of wide swaths and tidy finishes. This makes it well-suited for bigger properties, landscaping jobs, or grounds maintenance for estates and small farms.
Mid Mower Decks for JD 3046R
| Model | John Deere 60D | John Deere 72D |
|---|---|---|
| Cutting Width | 60.9 in (1540 mm) | 72.8 in (1840 mm) |
| Overall Width | 75.3 in (1910 mm) | 86.0 in (2180 mm) |
| Cutting Height | 1.5 to 5 in (30 to 120 mm) | 1.5 to 5 in (30 to 120 mm) |
| Blades | 3-blade | 3-blade |
| Weight | 324 lb (146 kg) | 345 lb (156 kg) |
For digging, trenching, or landscape work, you can outfit the tractor with either the John Deere 375A Backhoe or the heavier-duty John Deere 385A Backhoe. With these, the 3046R becomes a capable excavator for tasks like digging utility trenches, shaping gardens, removing stumps, or excavating around driveways and foundations – ideal for homeowners, contractors, or property managers.
Backhoe for JD 3046R
| Model | JD 375A Backhoe | JD 385A Backhoe |
|---|---|---|
| Digging Depth | 94 in (2380 mm) | 103 in (2610 mm) |
| Loading Height (Bucket at 60°) | 68 in (1720 mm) | 78 in (1980 mm) |
| Loading Reach (Bucket at 60°) | 44 in (1110 mm) | 51 in (1110 mm) |
| Reach From Center Line of Swing Pivot | 129 in (3270 mm) | 140 in (3550 mm) |
| Swing Arc | 170° | 170° |
| Bucket Rotation | 180° | 180° |
| Dipperstick Digging Force (SAE) | 2041 lbf (9.08 kN) | 2449 lbf (10.89 kN) |
| Bucket Digging Force (SAE) | 3063 lbf (13.62 kN) | 3752 lbf (16.69 kN) |
| Bucket Control Relief Valve Pressure | 2250 psi (17580 kPa) | 2250 psi (17580 kPa) |
| Boom Lift Capacity | 595 lb (270 kg) | 820 lb (372 kg) |
| Weight (Large Frame Adapter, 24″ Bucket) | 1250 lb (567 kg) | 1390 lb (630 kg) |
| Transport Height | 85 in (2160 mm) | 91 in (2310 mm) |
| Transport Overhang | 48 in (1220 mm) | 48 in (1290 mm) |
| Stabilizers Spread Width, Up | 66 in (1670 mm) | 62 in (1570 mm) |
| Stabilizers Spread Width, Down | 89 in (2260 mm) | 95 in (2410 mm) |
| Undercut | 17.5 in (440 mm) | 19 in (480 mm) |
| Bucket Width / Weight | 9 in (228 mm) – 70 lb (32 kg) 12 in (305 mm) – 82 lb (37 kg) 16 in (406 mm) – 92 lb (42 kg) 18 in (457 mm) – 106 lb (48 kg) HD 20 in (508 mm) – 106 lb (48 kg) 24 in (610 mm) – 120 lb (54 kg) |
9 in. (228 mm) – 70 lb (32 kg) 12 in. (305 mm) – 82 lb (37 kg) 16 in. (406 mm) – 92 lb (42 kg) 18 in (457 mm) – 106 lb (48 kg) HD 20 in. (508 mm) – 106 lb (48 kg) 24 in. (610 mm) – 120 lb (54 kg) |
Used properly and maintained carefully, the 3046R with this set of attachments becomes a multipurpose asset: a loader, mower, backhoe, and material handler all in one. For anyone needing a compact, reliable tractor that can shift roles seasonally or project-by-project, this configuration offers excellent flexibility and long-term value.
what is the width of the j.d. 3046r tractor
Hi, Benny. Overall Width = 69.1 in (1756 mm) / John Deere 3046R tractor equipped with standard 11.2-24 4PR R1 rear tires and 7.00-14 6PR R1 front tires.
