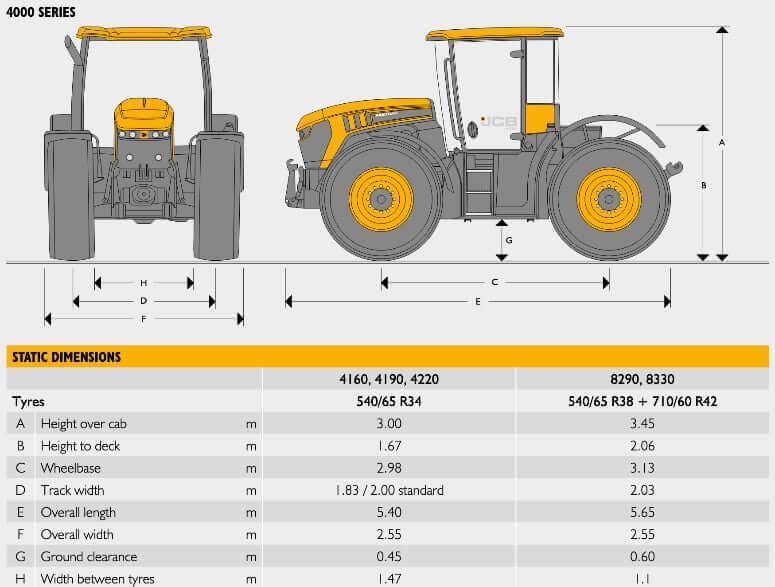

Dimensions
| Overall Length | 212.6 in (5400 mm) |
| Wheelbase | 117.3 in (2980 mm) |
| Overall Width | 100.4 in (2550 mm) |
| Track Width | 72 in / 78.7 in (1830 mm / 2000 mm) |
| Height Over Cab | 118.1 in (3000 mm) |
| Height To Deck | 65.7 in (1670 mm) |
| Ground Clearance | 17.7 in (450 mm) |
Weight
| Tractor | Total | Front Axle | Rear Axle |
|---|---|---|---|
| Operating Weight | 16700 lb (7575 kg) | 8477 lb (3845 kg) | 8223 lb (3730 kg) |
| Base Machine + 600/70 R30, front link & front PTO | 20370 lb (9240 kg) | 10736 lb (4870 kg) | 9634 lb (4370 kg) |
| Maximum Permissible Mass | 31967 lb (14500 kg) | 17637 lb (8000 kg) | 22046 lb (10000 kg) |

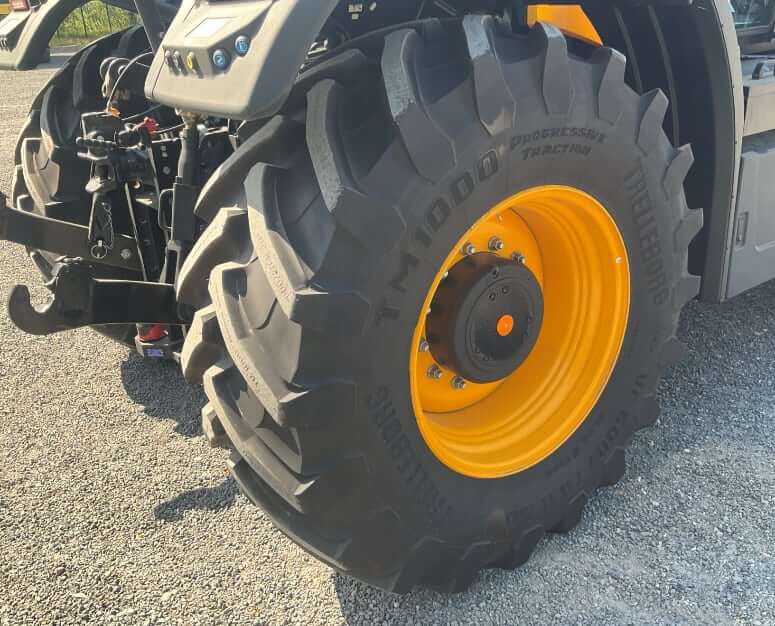

Tires
| JCB Fastrac 4160 | Tire Size | Track width (mm) |
|---|---|---|
| Agricultural pattern | VF 540/65 R30 | 73.6 / 78.7 in (1870 / 2000 mm) |
| Agricultural pattern | IF 540/65 R34 | 73.6 / 78.7 in (1870 / 2000 mm) |
| Agricultural pattern | VF 540/65 R34 | 73.6 / 78.7 in (1870 / 2000 mm) |
| Agricultural pattern | IF 600/70 R30 | 75.4 / 78.7 in (1916/2000 mm) |
| Agricultural pattern | VF 600/70 R30 | 75.4 / 78.7 in (1916/2000 mm) |
| Utility pattern | 540/65 R28 | 73.6 in (1870 mm) |
| Utility pattern | 540/65 R30 | 73.6 in (1870 mm) |
| Agricultural pattern (Row crop) | VF 380/85 R38 | Variable |

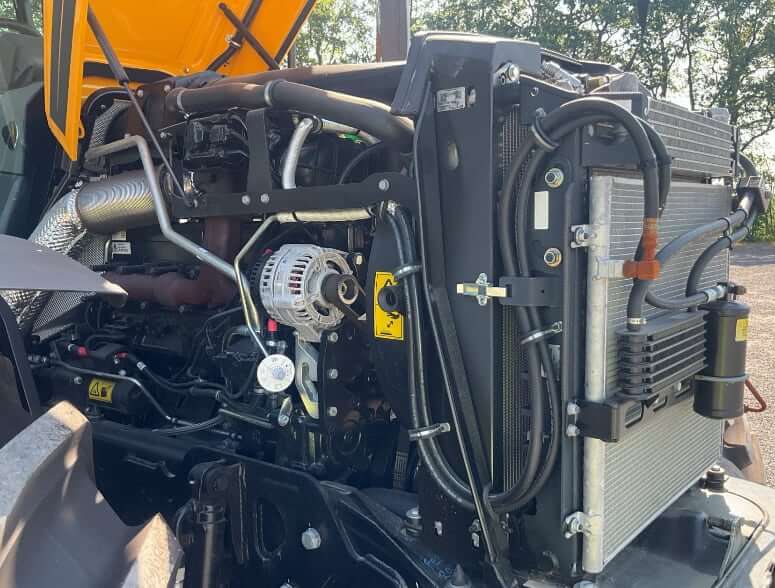

Engine Details
| Number Of Cylinders | 6 |
| Engine Make | AGCO Power |
| Engine Model | AGCO Power 66 AWF |
| Displacement | 402.8 cu in (6.6 L) |
| Max Horsepower | 178 hp (133 kw) |
| Max Power Measured @ | 1900 rpm |
| Rated Horsepower | 167 hp (125 kw) |
| Rated Power Measured @ | 2100 rpm |
| Peak Torque | 608.5 lb ft (825 Nm) |
| Torque Measured @ | 1500 rpm |
| Injection | Bosch CP4 common rail |
| Cooling Method | Water |
| Aspiration | Turbocharged and intercooled |
| Emission Standards | US Tier 4 Final + EU Stage IV |
Electrical System
| Voltage | 12 V |
| Alternator | 200 amps |
| Battery Capacity | 2x 12V, 110 Ah |

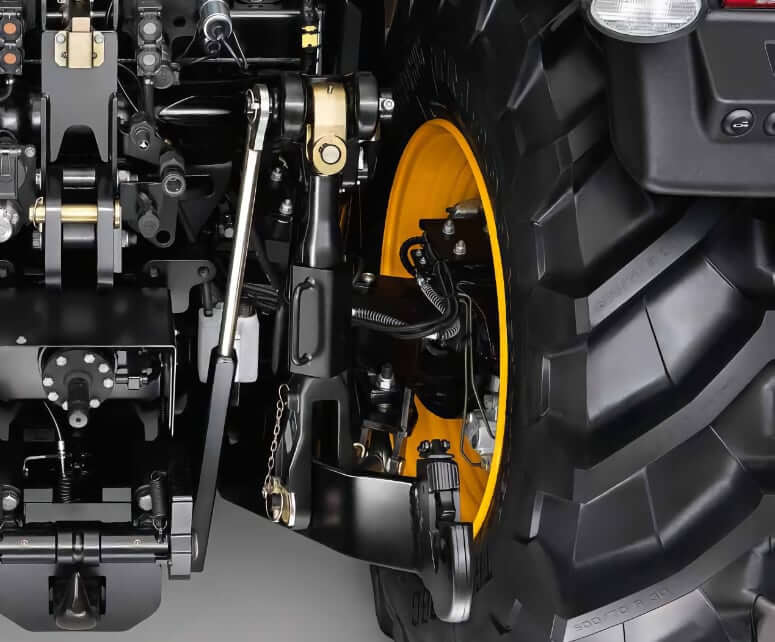

PTO (Power Take-Off)
| Rear PTO Type | 4-speed pto with electro hydraulic soft engage and electro-hydraulic speed shift |
| Rear PTO Speeds | 540 / 1000 / 540E / 1000E |
| PTO Horsepower | 140 hp (103 kw) |

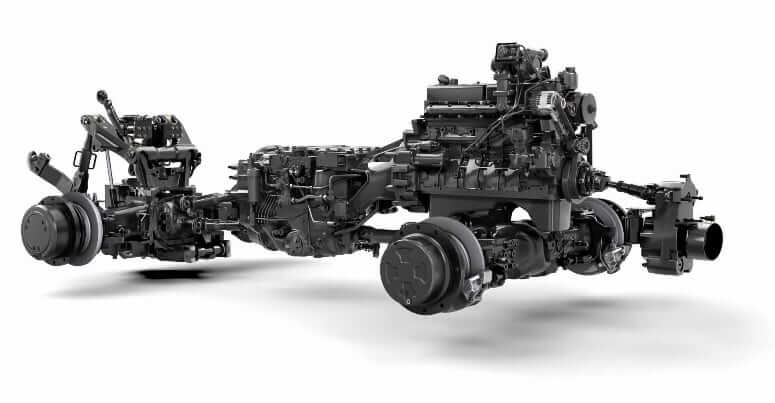

Transmission
| Type | 2 range continuously variable |
| Model | AGCO ML180 CVT |
| Low Range Speed | 0 – 24.9 mph (0 – 40 km/h) |
| High Range Speed | 0 – 37.3 mph (0 – 60 km/h) |
Hydraulic System
| Max Oil Flow | 51.5 gpm (195 L/min) |
| Flow Per Slice | 26.5 gpm (100 L/min) |
| Operating Pressure | 3046 psi (21000 kPa) |
| Rear 3 point linkage control | Electronic raise/lower with depth, draft/position intermix, rate of drop and maximum lift height control plus external lift and lower |
| Rear 3 point linkage type | Category 3; Quick attach hook ends, eye end top link. 15432 / 17637 lb (7000 / 8000 kg) capacity |
Service Refill Capacities
| Fuel Tank Capacity | 103.1 gal (390 L) |
| DEF Tank Capacity | 11.9 gal (45 L) |
| Hydraulic Tank Capacity | 34.4 gal (130 L) |
