Dimensions
| Goldoni Star 85 Q | Tall | Low |
|---|---|---|
| Overall Length | 131.8 in (3347 mm) | 131.8 in (3347 mm) |
| Wheelbase | 77.2 in (1961 mm) | 76.5 in (1944 mm) |
| Height to Top of ROPS | 88.9 in (2260 mm) | 84.8 in (2155 mm) |
| Height to Top of Cab | 87.4 in (2220 mm) | 83.3 in (2115 mm) |
| Ground Clearance | 14.8 in (376 mm) | 10.9 in (277 mm) |
| Overall Width | 60.9 – 75.8 in (1547 – 1925 mm) | 58.7 – 71.7 in (1490 – 1820 mm) |
| Rear > Front Tire Size | 380/85×24 > 250/80×18 340/85×24 > 8.25×16 420/70×24 > 280/70×18 360/70×28 > 280/70×18 380/70×24 > 280/70×16 44/18.00×20 > 29/12.00×15 |
380/70×20 > 240/70×16 320/70×24 > 240/70×16 360/70×24 > 260/70×16 380/70×24 > 280/70×16 44/18.00×20 > 29/12.00×15 |
Operational Specs
| Operating Weight with ROPS | 5225 lb (2370 kg) |
| Operating Weight with Cab | 5512 lb (2500 kg) |
| Operating Voltage | 12 V |
| Battery | 12 V, 100 Ah |
| Noise Level | 82 dB(A) |
Engine Details
| Engine Make | VM Motori | John Deere |
|---|---|---|
| Number Of Cylinders | 4 | 3 |
| Engine Model | VM Motori D704 Diesel | John Deere Powertech 3029 |
| Displacement | 169.4 cu in (2.776 L) | 179.4 cu in (2.94 L) |
| Net Power | 83 hp (61 kW) | 58 hp (43 kw) |
| Power Measured @ | 2300 rpm | 2500 rpm |
| Peak Torque | 214 lb ft (290 Nm) | 141 lb ft (191 Nm) |
| Torque Measured @ | 1400 rpm | 1600 rpm |
| Torque Rise | 12% | 12% |
| Aspiration | Turbocharged | Turbocharged and aftercooled |
| Emission Standards | US EPA Tier 1, EU Stage I | US EPA Tier 1, EU Stage I |
Transmission
| Transmission Type | Synchronized reverse shuttle / Synchronized Dual power transmission |
| Number Of Gears | 40 speeds – a lever can be used to select the 8+8 transmission with synchronized reverse shuttle or the 16+8 transmission with synchronized Dual power (-20%) |
| Number Of Gears (optional) | 24 speeds – 16 FWD + 8 REV, with the Creeper |
| Max Travel Speed, Forward | 24.9 mph (40 km/h) |
| Max Travel Speed, Reverse | 17.6 mph (28.4 km/h) |
| Steering | Hydrostatic with load sensing valve |
| Drive | 4×4 |
| Service Brake | Oil-cooled multiple-plate integral braking on all four wheels |
| Steering Angle | 57° |

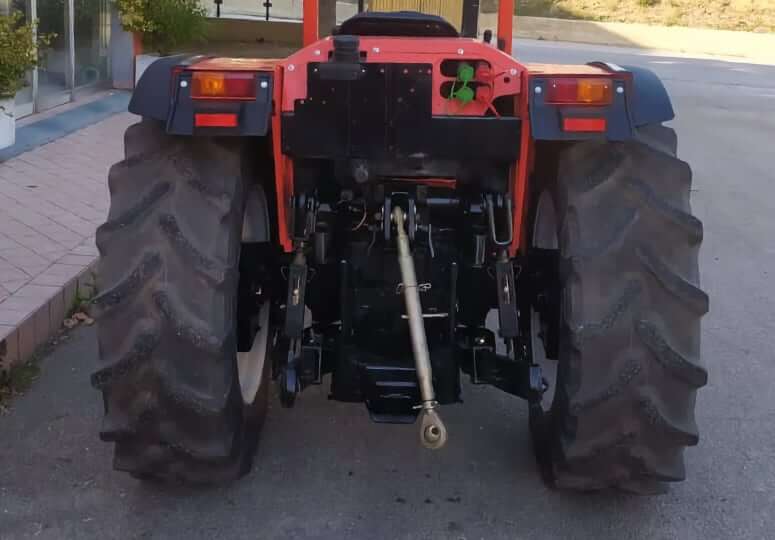

PTO (Power Take-Off)
| PTO Type | Independent rear PTO. Optional: front PTO |
| Rear PTO Speed | 540 / 750 |
| Front PTO Speed (optional) | 1000 |
| Synchronised w/ Gearbox | Synchronised with all gearbox speeds |
Hydraulic System
| Type | Open centre load sensing hydraulic system |
| Pump Flow Capacity | 9.2 gal/min (35 L/min) |
| Relief Valves Pressure Setting | 2611 psi (18000 kPa) |
| Number of Remote Control Valves | 2 standard |
| 3 Point Hitch Type | Cat I and II |
| 3 Point Hitch Lift Capacity @ 24 Inches | 5512 lb (2500 kg) |
Service Refill Capacities
| Engine Model | VM Motori D704 Diesel | John Deere Powertech 3029 |
|---|---|---|
| Fuel Tank Capacity | 16 gal (60 L) | 16 gal (60 L) |
| Engine Oil Capacity | 2.11 gal (8 L) | 2.25 gal (8.5 L) |
| Cooling System Capacity | 2.6 gal (10 L) | 3.2 gal (12 L) |
| Transmission/Hydraulic System Capacity | 8.45 gal (32 L) | 8.45 gal (32 L) |
