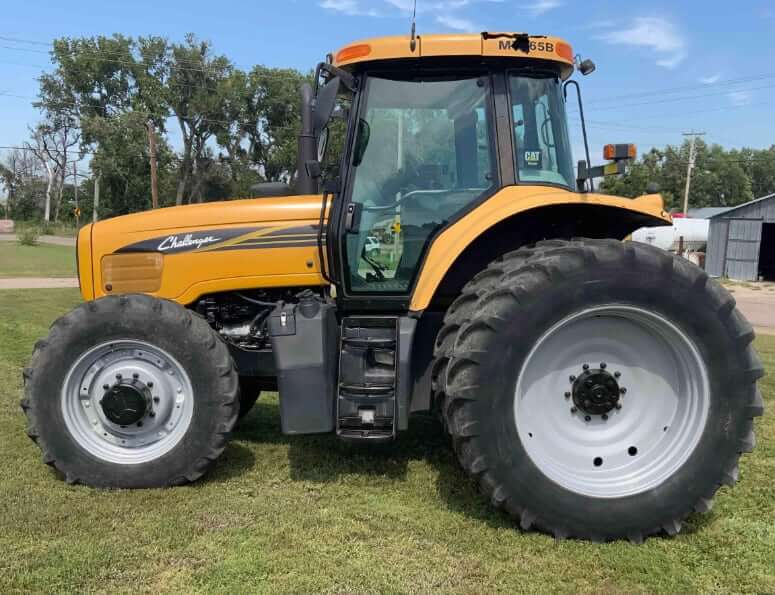

Dimensions
| Type | 2WD | 4WD |
|---|---|---|
| Overall Length | 182.3 in (4630 mm) | 182.3 in (4630 mm) |
| Wheelbase | 121.4 in (3080 mm) | 118.7 in (3010 mm) |
| Overall Width | 81.1 in (2050 mm) | 81.1 in (2050 mm) |
| Overall Height (Cab with ROPS) | 112.8 in (2860 mm) | 112.8 in (2860 mm) |
| Ground Clearance (Drawbar) | 15.4 in (390 mm) | 15.4 in (390 mm) |
| Front Tread | 64.1 – 83 in (1620 – 2100 mm) | 61.2 – 89.2 in (1550 – 2260 mm) |
| Rear Tread | 59.2 – 120.5 in (1500 – 3060 mm) | 59.2 – 120.5 in (1500 – 3060 mm) |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | CAT |
| Engine Model | Cat 3056C |
| PTO Power | 168 hp (125.3 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 365.2 cu in (6.0 L) |
| Bore | 3.9 in (100 mm) |
| Stroke | 5.0 in (127 mm) |
| Compression | 17.5:1 |
| Aspiration | Turbocharged |
| Emission Standards | Tier II |
Operational Specs
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 150 amps |
| Battery | 2x 12 V, CCA 420 |
| PTO (claimed) | 145 hp (108.1 kw) |
| PTO (tested) | 153.1 hp (114.2 kw) |
| Drawbar (tested) | 125.0 hp (93.2 kw) |

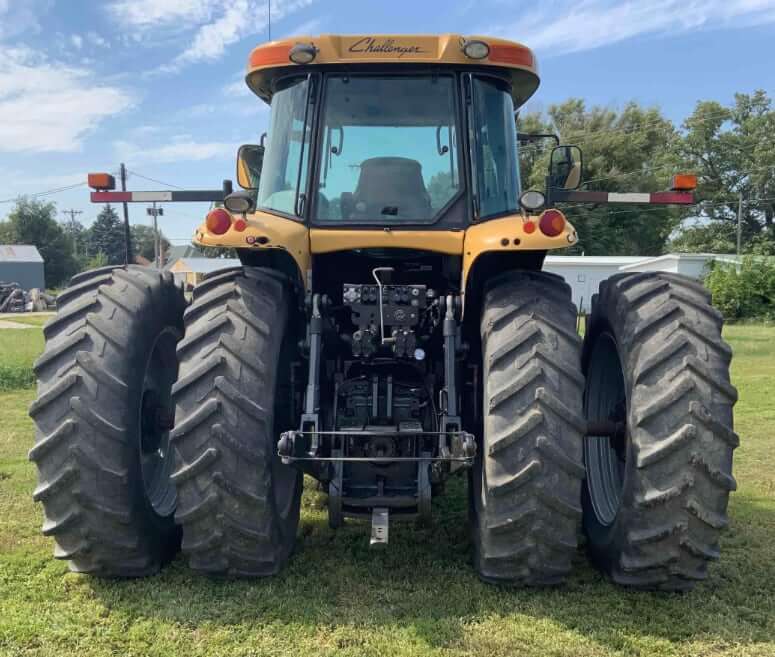

| 3 Point Hitch Lift Capacity @ 24 Inches | 14284 lb (6479 kg) |
| Front Tire Size (Ag) | 420/90R30, 380/85R30 |
| Rear Tire Size (Ag) | 520/85R42, 480/80R42 |
Operating Weight
| Type | 2WD | 4WD |
|---|---|---|
| Operating Weight | 14028 lb (6363 kg) | 14528 lb (6589 kg) |
| Operating Weight (CVT) | – | 15060 lb (6831 kg) |
| Ballasted | 19645 lb (8910 kg) | 19645 lb (8910 kg) |
| Max Drawbar | 4046 lb (1835 kg) | 4046 lb (1835 kg) |
| Max Front Axle Load | 5203 lb (2360 kg) | 10141 lb (4599 kg) |
| Max Rear Axle Load | 16314 lb (7400 kg) | 16314 lb (7400 kg) |

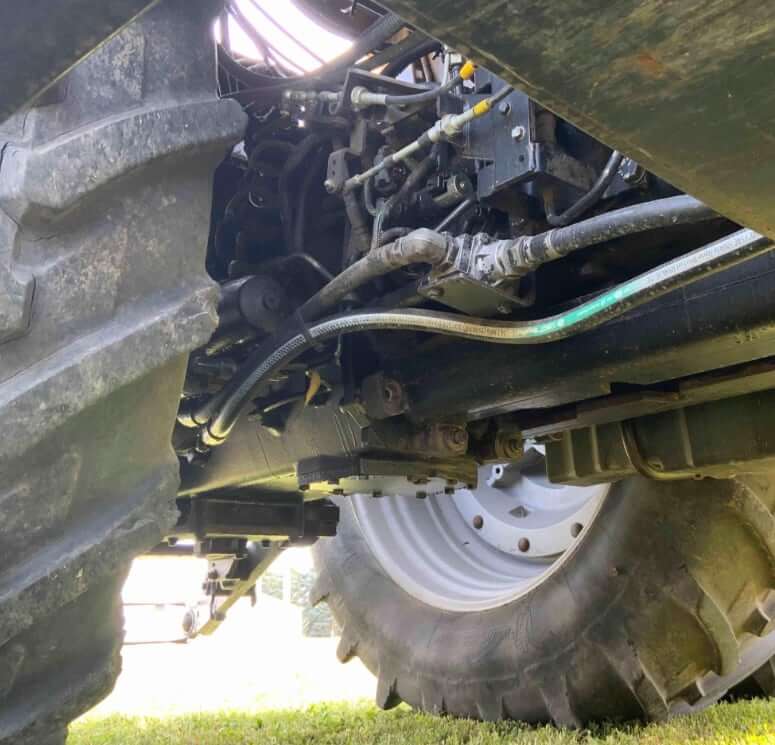

Transmission
| Transmission Type | Continuously variable transmission (TechStar CVT) | Partial power shift (AutoPower IV) |
| Number of Gears | Infinite forward and reverse (2-range) | 32 forward and reverse |
| Max Speed | 25 mph (40.3 km/h) | 25 mph (40.3 km/h) |
Hydraulic System
| Type | Closed center PFC |
| Pump Flow Capacity | 29 gal/min (109.8 L/min) |
| Relief Valve Setting | 2900 psi (20000 kPa) |
| Number Of Remote Control Valves | 4 |
Service Refill Capacities
| Fuel Tank Capacity | 100 gal (378.5 L) |
| Engine Oil Capacity | 4.99 gal (18.9 L) |
| Cooling System Fluid Capacity | 6.8 gal (25.5 L) |
| Transmission Oil Capacity | 15.3 gal (57.9 L) |
| Hydraulic System Capacity (AutoPower) | 18.5 gal (70 L) |
| Hydraulic System Capacity (CVT) | 26.4 gal (100 L) |
