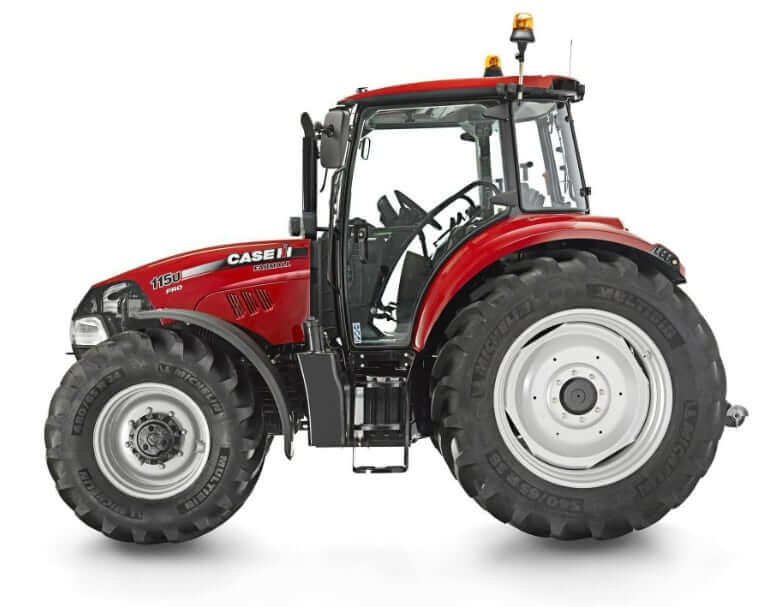

Dimensions
| Overall Length | 165.2 in (4197 mm) |
| Overall Width | 82.7 in (2100 mm) |
| Overall Height to Top of Cab | 106.5 in (2705 mm) |
| Wheelbase | 95.3 in (2420 mm) |
| Centre of Rear Axle to Roof | 75.0 in (1905 mm) |

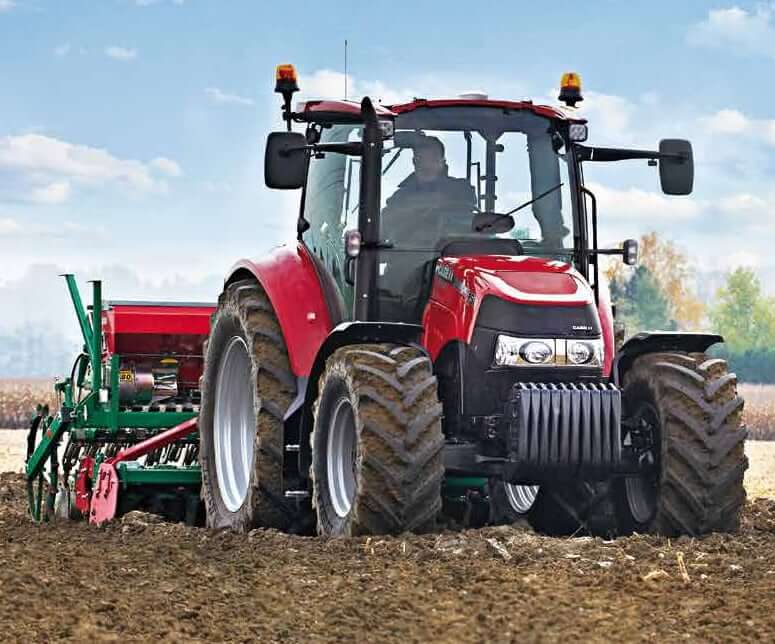

Weights
| Operating Weight | 9921 lb (4500 kg) |
| Maximum Operating Weight | 16535 lb (7500 kg) |

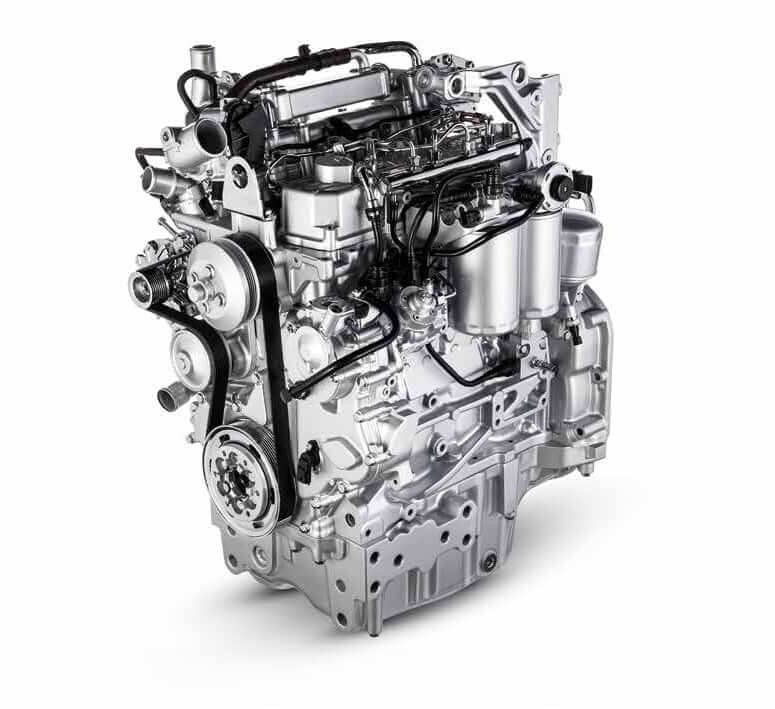

Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Case IH FPT |
| Engine Model | FPT 3.4 L |
| Rated Engine Power | 114 hp (84 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 337 lb ft (457 Nm) |
| Torque Measured @ | 1500 rpm |
| Torque Rise (OECD) | 32% |
| Displacement | 207.5 cu in (3.4 L) |
| Bore | 3.9 in (99 mm) |
| Stroke | 4.4 in (110 mm) |
| Aspiration | Turbocharged and intercooled |
| Fuel System | High Pressure Common Rail |
| Emissions Level | Stage III B |
Electrical System
| Operating Voltage | 12 V |
| Alternator | 120 amps |
Transmission
| Type | 32×32 4-speed Powershift with Powershuttle |
| Number Of Gears | 32F / 32R |
| Maximum Speed Forward | 24.9 mph (40 km/h) |
| Maximum Steering Angle | 60° |
Axles, Tires & Brakes
| Drive | 4WD |
| Front Axle | Electro-hydraulic / optional electro-hydraulic diff lock |
| Differential | Electro-hydraulic fully locking differential |
| Trailer Brakes | Hydraulic or pneumatic |
| Front Tire Size | 480/65 R24, 14.9R24 |
| Rear Tire Size | 540/65 R38, 18.4R34 |
Hydraulic System
| Hydraulic Type | OCLS – Open Centre | CCLS – Closed Centre |
|---|---|---|
| Main Pump | Fixed displacement pump | Variable displacement, pressure flow compensated pump |
| Max Pump Flow | 15.8 gal/min (60 L/min) | 26.4 gal/min (100 L/min) |
| Control Type | EHC (Electronic Hitch Control) | EHC (Electronic Hitch Control) |
| Number Of Remote Valves | 2 rear with flow control / Optional: 4 rear, 2 mid mounts | 2 rear with flow control / Optional: 4 rear, 2 mid mounts |

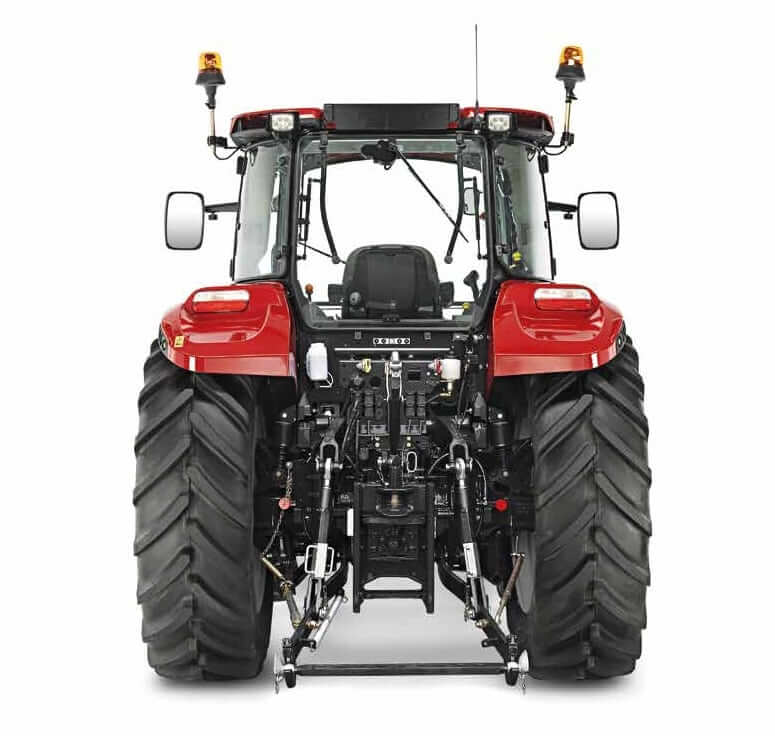

3-Point Hitch
| Category | Category 2 |
| Rear Hitch Lift Capacity @ 24” with 15.8 gal/min (60 L/min) | 9039 lb (4100 kg) |
| Rear Hitch Lift Capacity @ 24” with 26.4 gal/min (100 L/min) | 10362 lb (4700 kg) |
| Front Hitch Lift Capacity | 4960 lb (2250 kg) |
Power Take-off (PTO)
| PTO Engagement Type | Electro-hydraulic with Auto PTO control |
| Rear PTO Speed | 540 / 540E / 1000 / 1000E |
| Front PTO Speed (optional) | 1000 |
Service Refill Capacities
| Fuel Tank Capacity | 39.6 gal (150 L) |
| Cooling System Capacity | 4.6 gal (17.3 L) |
| Engine OIl Capacity | 2.1 gal (8 L) |
