Contents

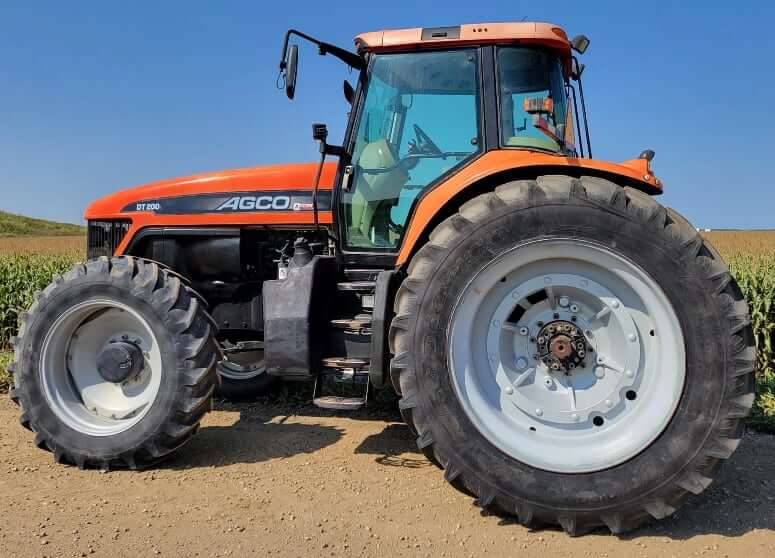

Dimensions
| Overall Length | 206 in (5230 mm) |
| Wheelbase | 121 in (3075 mm) |
| Height to Top of Cab | 122 in (3090 mm) |
| Height of Drawbar | 20.5 in (520 mm) |
| Front Tread | 72.5 – 78.6 in (1842 – 1996 mm) |
| Rear Tread | 66.9 – 91.6 in (1699 – 2326 mm) |
| Front Tire Size | 600/70R28; 380/85R34; 14.9R34 |
| Rear Tire Size | 650/85R38; 480/80R46; 18.4R46 |
Operational Specs
| Operating Weight | 19910 lb (9030 kg) |
| Shipping Weight | 19136 lb (8680 kg) |
| Ballasted Weight | 25850 lb (11725 kg) |
| Operating Voltage | 12 V |
| Alternator | 150 amps |
| Battery | 2x 12 V, 480 Ah |
| Drive | 4WD |
| Steering | Hydrostatic power |
| Front Axle | HydraMaxx (optional) |
| Final Drive | inboard planetary |
| Service Brakes | Multiple wet disc hydraulically operated by 2 foot pedals that can be locked together |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | SISU Power |
| Engine Model | SisuDiesel 74 CTA-4V |
| Displacement | 449 cu in (7.365 L) |
| Bore | 4.25 in (108 mm) |
| Stroke | 5.28 in (134 mm) |
| Gross Power | 235 hp (175 kw) |
| PTO Power | 233 hp (174 kw) |
| Drawbar Power | 175 hp (131 kw) |
| Power Measured @ | 2200 rpm |
| Aspiration | Turbocharged intercooled |
| Aspiration | US EPA Tier 2 |
Transmission
| Model | PowerMaxx CVT |
| Transmission Type | Continuously variable transmission |
| Number of Gears | Infinite forward and reverse |
| Number of Ranges | Two |
| Max Speed Forward | 25 mph (40.2 km/h) |
| Max Speed Reverse | 12 mph (19.3 km/h) |

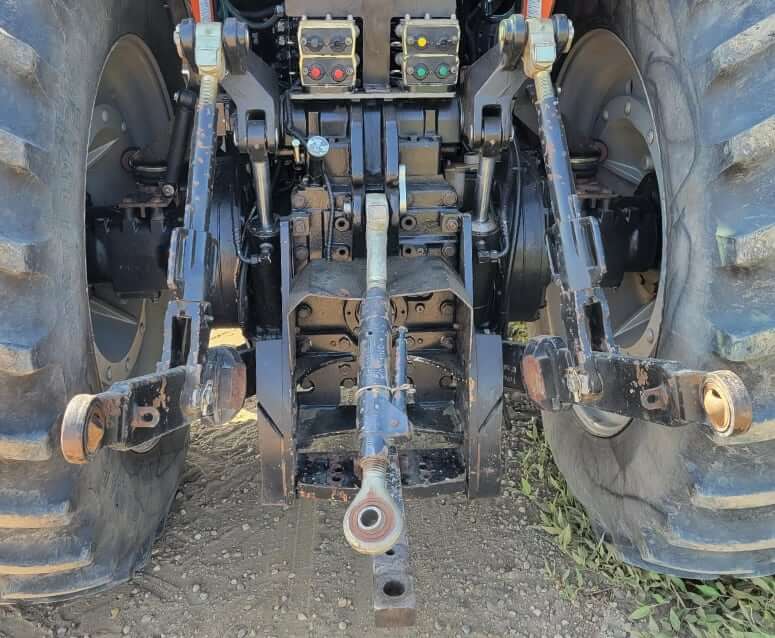

PTO (Power Take-Off)
| Rear PTO Type | Independent |
| Rear PTO Speed | 540/1000 |
| PTO Power (claimed) | 200 hp (149 kw) |
| PTO / Engine RPM | 540 @1588 / 1000@ 2033 |
Hydraulic System
| Type | Closed center pressure flow compensated (PFC) |
| Working Pressure | 2900 psi (20000 kPa) |
| Pump Flow Capacity | 39 gal/min (147 L/min) |
| Number Of Remote Control Valves | 4 or 5 |
| 3 Point Hitch Type | Category III |
| 3 Point Hitch Lift Capacity @ 24 Inches | 14400 lb (6531 kg) |
Service Refill Capacities
| Fuel Tank Capacity | 158.6 gal (600 L) |
| Engine Oil Capacity | 5.3 gal (20 L) |
| Cooling System Capacity | 9 gal (34 L) |
| Transmission Oil Capacity | 15.3 gal (58 L) |
| Front Axle Fluid Capacity | 1.6 gal (6 L) |
| Front Final Drives (each) | 0.4 gal (1.5 L) |
| Rear Final Drives (each) | 3.4 gal (13 L) |
| Hydraulic System Capacity | 26.4 gal (100 L) |
