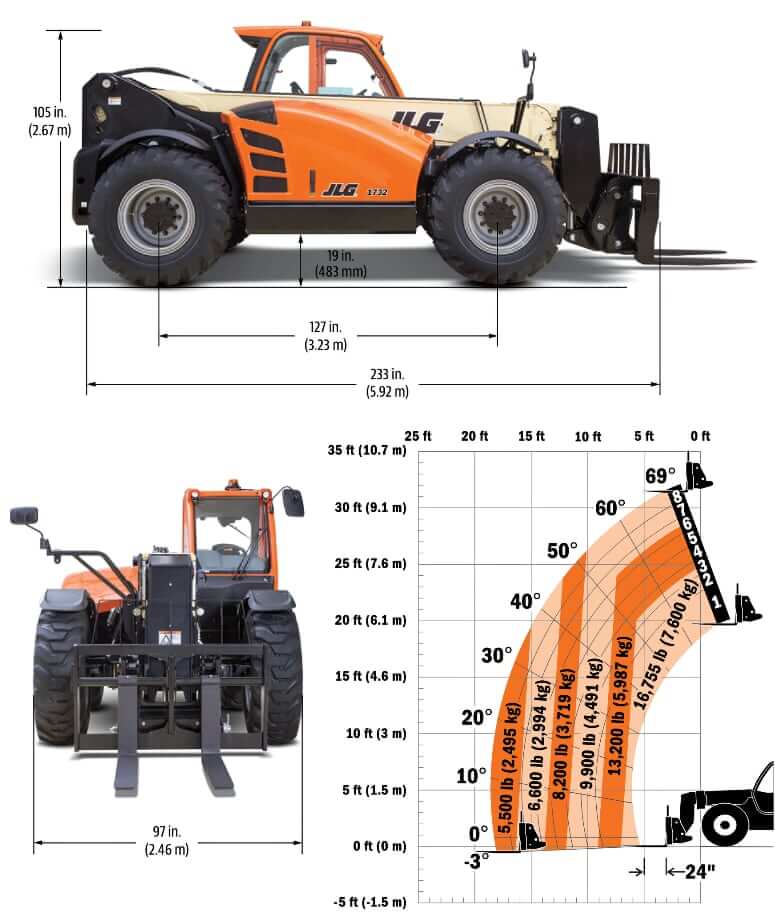

Dimensions
| Ground Clearance | 19 in (483 mm) |
| Overall Height | 105 in (2670 mm) |
| Wheelbase | 127 in (3230 mm) |
| Width | 97 in (2460 mm) |
| Overall Length | 233 in (5920 mm) |
Lift
| Max Lift Capacity | 16755 lb (7600 kg) |
| Max Load At Max Height | 9900 lb (4491 kg) |
| Max Load At Max Reach | 5500 lb (2495 kg) |
| Max Lift Height | 31.8 ft in (9650 mm) |
| Maximum Forward Reach | 18 ft 7 in (5660 mm) |
| Frame Leveling | 8 degrees |
Engine Details
| Engine Make | Deutz |
| Engine Model | Deutz TCD 3.6L |
| Gross Power | 134 hp (100 kw) |
| Power Measured @ | 2200 rpm |
| Emission Standards | Tier 4 Final |
Operational Specs
| Operating Weight | 31145 lb (14127 kg) |
| Drawbar Pull | 23000 lb (102 kN) |
| Fuel Tank Capacity | 39 gal (148 L) |
| Tire Size | 17.5-25 SGG |
| Outside Turning Radius | 13 ft 2 in (4.01 m) |
Hydraulic System
| Pump Type | Load sense piston pump |
| Hydraulic System Capacity | 77 gal (292 L) |
| Maximum Lift | 14.1 sec |
| Maximum Lower | 10.9 sec |
| Maximum Telescope In | 10.9 sec |
| Maximum Telescope Out | 13.2 sec |
JLG 1732 Attachments
| Standard Carriage | 60 in (1.5 m) |
| Carriage | 72 in (1.8 m) |
| Carriage | 87 in (2.2 m) |
| Dual Fork Positioning Carriage | 72 in (1.8 m) |
| Side-Shift Carriage with Dual Fork Positioning | 72 in (1.8 m) |
| General Purpose Bucket | 94 in / 2.6 yd3 (2.38 m / 1.98 m3) |
| Light Material Bucket | 94 in / 5.2 yd3 (2.38 m / 3.97 m3) |
| Multipurpose 4-in-1 Bucket | 94 in / 1.3 yd3 (2.38 m / 0.99 m3) |
| Multipurpose 4-in-1 Bucket | 94 in / 2.6 yd3 (2.38 m / 1.98 m3) |
| Grapple Bucket | 94 in / 1.7 yd3 (2.38 m / 1.29 m3) |
| Grapple Bucket | 94 in / 2.6 yd3 (2.38 m / 1.98 m3) |
| Material Handling Arm | 16750 lb (7598 kg) Capacity |
| Hook, Coupler-mounted | 16750 lb (7598 kg) Capacity |
| Winch, Coupler-mounted | 8000 lb (3629 kg) Capacity |
| Bale Cradle, Round Bale | 7000 lb (3175 kg) Capacity |
| Bale Clamp, Square Bale | 10000 lb (4536 kg) Capacity |
| Pipe Grapple | 96 in / 8000 lb (2.4 m / 3629 kg) Capacity |
| Log Handler | 80 in / 8000 lb (2.03 m / 3629 kg) Capacity |
| Steel Coil Handler | 16750 lb (7598 kg) Capacity |
| Tire Handler | 7000 lb (3175 kg) Capacity |
| Lifting Hook, Fork-mounted | 15000 lb (6804 kg) Capacity |
| Extendable Truss, Fork-mounted | 8000 lb (3629 kg) Capacity |
Transmission
| Transmission Type | Hydrostatic |
| Maximum Travel | 20 mph (32.2 km/h) |
| Front Axle | High Bias, Limited Slip |
| Rear Axle | Oscillating |
| Service Brakes | Wet Multi-Disc |
