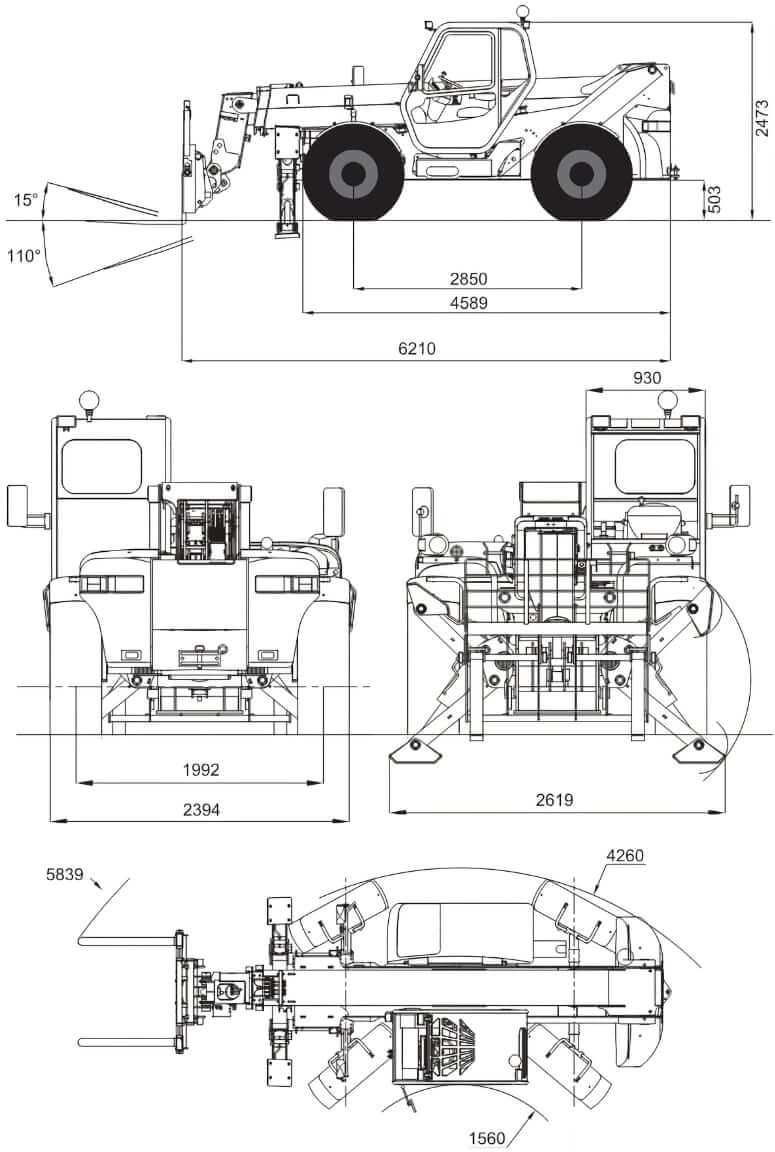

Dimensions
| Length To Fork Face | 244.5 in (6210 mm) |
| Width Over Tires | 94.3 in (2394 mm) |
| Overall Height | 97.4 in (2473 mm) |
| Wheelbase | 112.2 in (2850 mm) |
| Ground Clearance | 19.8 in (503 mm) |
| Turning Radius Outside Tires | 167.7 in (4260 mm) |

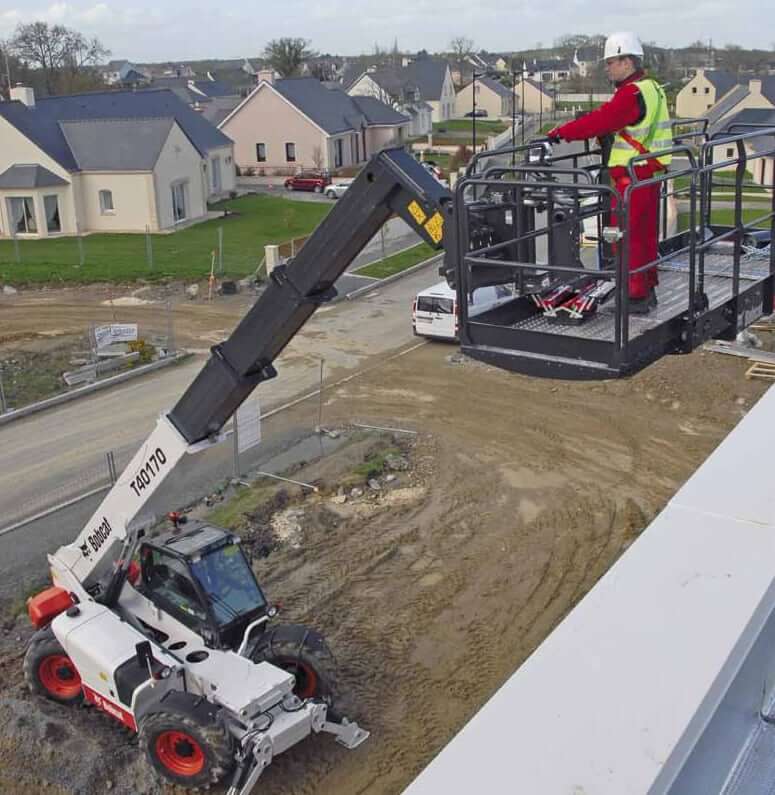

Performance
| Max Lift Height (on tires) | 686.2 in (17430 mm) |
| Max Lift Height (on stabilizers) | 676.4 in (17180 mm) |
| Max Reach (on tires) | 540.6 in (13730 mm) |
| Max Reach (on stabilizers) | 538.2 in (13670 mm) |
| Max Lift Capacity | 8818 lb (4000 kg) |
| Capacity at Max Height (on tires) | 2756 lb (1250 kg) |
| Capacity at Max Height (on stabilizers) | 5512 lb (2500 kg) |
| Capacity at Max Reach (on stabilizers) | 1235 lb (560 kg) |
| Telescope Fully Retracted (on tires) | 124.4 in (3160 mm) |
| Telescope Fully Retracted (on stabilizers) | 87.4 in (2220 mm) |
| Crowding Force | 11240 lbf (50 kN) |
Weight
| Weight w/o Attachment | 24185 lb (10970 kg) |
| Weight w/ Pallet Frame and Forks (no load) | 24890 lb (11290 kg) |
| Weight w/ Pallet Frame and Forks (4000 kg load) | 33709 lb (15290 kg) |
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Perkins |
| Engine Model | Perkins 1004.40T |
| Displacement | 268.6 cu in (4.4 L) |
| Bore | 3.94 in (100 mm) |
| Stroke | 4.13 in (105 mm) |
| Gross Power | 100 hp (74.5 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 296.5 lb ft (402 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged |
Operational Specs
| Rated Capacity | 8818 lb (4000 kg) |
| Operating Voltage | 12 V |
| Alternator | 70 amps |
| Battery | 12 V, 105 Ah, CCA 720 |
| Steering | Steering Wheel w / 3 Mode Selections (Front-Wheel, All-Wheel, Crab) |
| Tire Size | 400/80×24 |
Transmission
| Type | Infinitely variable hydrostatic piston pump, driving 1 fully reversing hydrostatic motor |
| Main Drive | Hydrostatic 4 wheel drive |
| Final Drive | Front Differential with reduction gear box, Rear Differential, Planetary Axles with Oil Lubrication |
| Max Travel Speed, Low Range | 4.9 mph (8 km/h) |
| Max Travel Speed, High Range | 18.7 mph (30 km/h) |
Hydraulic System
| Pump Type | Gear |
| Main Pump Flow Capacity | 25 gal/min (95 L/min) |
| Total Pump Flow Capacity | 35.7 gal/min (135 L/min) |
| Relief Valve Pressure | 3843 psi (26500 kPa) |
| Controls | Joystick (electric) w / switches |
| Auxiliary Hydraulics | Electric Switches on Joystick |
Service Refill Capacities
| Fuel Tank Capacity | 37 gal (140 L) |
| Engine Oil Capacity | 2.2 gal (8.5 L) |
| Cooling System Capacity | 4.5 gal (17 L) |
| Hydraulic System Capacity (w/ Tank) | 38.3 gal (145 L) |
| Hydraulic Tank Capacity | 20.3 gal (77 L) |
| Front Axle (central casing) | 1.8 gal (6.7 L) |
| Front Axle (central casing) | 1.8 gal (6.7 L) |
| Front Reduction Gearbox | 0.2 gal (0.8 L) |
| Front Axle Transferbox | 0.2 gal (0.8 L) |
| Rear Planetary Carrier | 0.2 gal (0.8 L) |
