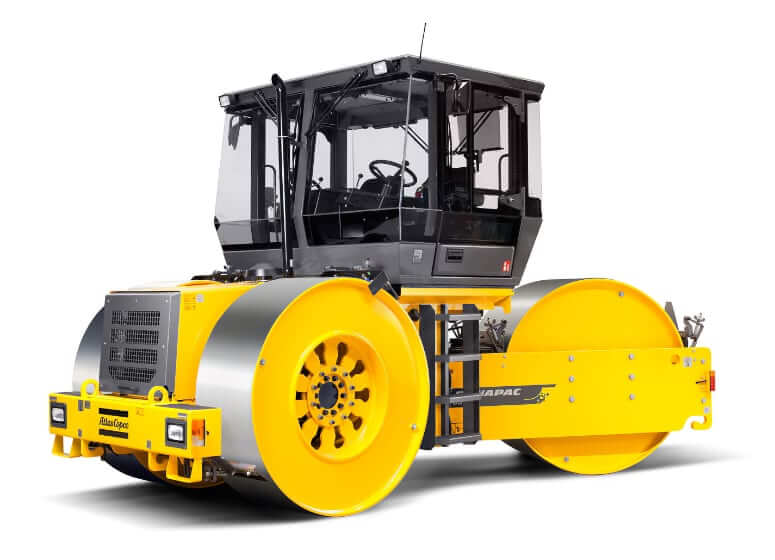

Dimensions
| Overall Length | 188.2 in (4780 mm) |
| Wheelbase | 114.2 in (2900 mm) |
| Overall Width | 84.6 in (2150 mm) |
| Height to Steering Wheel | 98.4 in (2500 mm) |
| Height to Top of Cab with ROPS | 133.8 in (3400 mm) |
| Ground Clearance | 12.6 in (320 mm) |
| Turning Radius – Inside | 139.8 in (3550 mm) |
| Turning Radius – Outside | 222.4 in (5650 mm) |
Drum
| Drum Working Width (Front) | 82.7 in (2100 mm) |
| Drum Working Width (Rear) | 59.7 in (1515 mm) |
| Drum Diameter | 59.1 in (1500 mm) |
| Drum Thickness | 0.87 in (22 mm) |
| Drum Overlap | 1.97 in (50 mm) |
| Static Linear Load (Front, w/o ballast) | 280 lb/in (50 kg/cm) |
| Static Linear Load (Front, w/ ballast) | 330 lb/in (59 kg/cm) |
| Static Linear Load (Rear, w/o ballast) | 269 lb/in (48 kg/cm) |
| Static Linear Load (Rear, w/ ballast) | 325 lb/in (58 kg/cm) |
| Oscillating Angle | ±9° |
| Steering Angle | ±35° |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Cummins |
| Engine Model | Cummins QSB 3.3 |
| Displacement | 201.4 cu in (3.3 L) |
| Bore | 3.74 in (95 mm) |
| Stroke | 4.53 in (115 mm) |
| Gross Power | 99 hp (74 kw) |
| Power Measured @ | 2200 rpm |
| Aspiration | Turbocharged |
| Emission Standards | US EPA Tier 3 + EU Stage III |
Operational Specs
| Operating Weight (ROPS) | 23814 lb (10800 kg) |
| Operating Weight (Cab) | 28665 lb (13000 kg) |
| Front Drum Module Weight (w/ ballast) | 14994 lb (6800 kg) |
| Rear Drum Module Weight (w/ ballast) | 13671 lb (6200 kg) |
| Operating Voltage | 12 V |
| Alternator | 95 amps |
| Battery | 12 V, 170 Ah |
| Steering Type | Articulated steering |
| Guaranteed Sound Power Level, LwA | 103 dB(A) |
| Sound Pressure Level at the Operator’s Ear (Open platform), LpA | 83 dB(A) |
| Sound Pressure Level at the Operator’s Ear (Cab), LpA | 78 dB(A) |
Transmission
| Type | Hydrostatic transmission |
| Max Travel Speed | 9.3 mph (15 km/h) |
| Climbing Capacity (theoretical) | 45 % |
| Service Brakes | Hydrostatic in forward and reverse lever |
| Parking Brake | Failsafe multidisc on all 3 drums |
Hydraulic System
| Driving Pump Type | Axial piston pump with variable displacement. 3 axial piston motors, 2 with variable displacement |
| Steering Pump Type | Gear pump with constant displacement |
| Driving System Pressure | 6092 psi (42000 kPa) |
| Supply System Pressure | 319 psi (2200 kPa) |
| Control System Pressure | 2030 psi (14000 kPa) |
| Brake System Pressure | 218 psi (1500 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 29 gal (110 L) |
| Engine Oil Capacity (w/ filter) | 2.1 gal (8 L) |
| Cooling System Capacity | 5 gal (19 L) |
| Hydraulic / Transmission Oil Capacity | 26.4 gal (100 L) |
| Water Spray Tank Capacity | 140 gal (530 L) |
