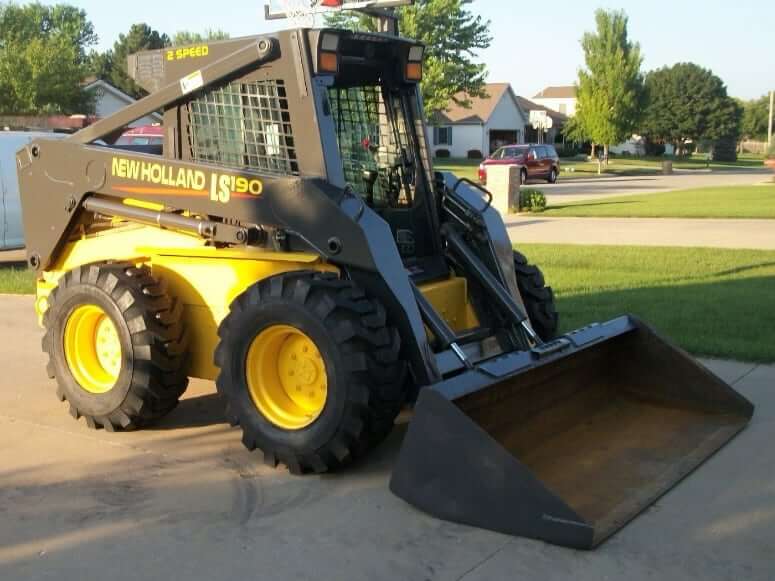

Loader Performance
| Tipping Load | 5600 lb (2540 kg) |
| Rated Operating Capacity (50% Tipping) | 2800 lb (1270 kg) |
| Rated Operating Capacity (35% Tipping) | 1960 lb (889 kg) |
| Bucket Breakout Force | 7670 lbf (34.1 kN) |
| Boom Breakout Force | 6229 lbf (27.7 kN) |
| Standard Bucket Width | 72 in (1829 mm) |
| Lift Arm Path | Vertical |

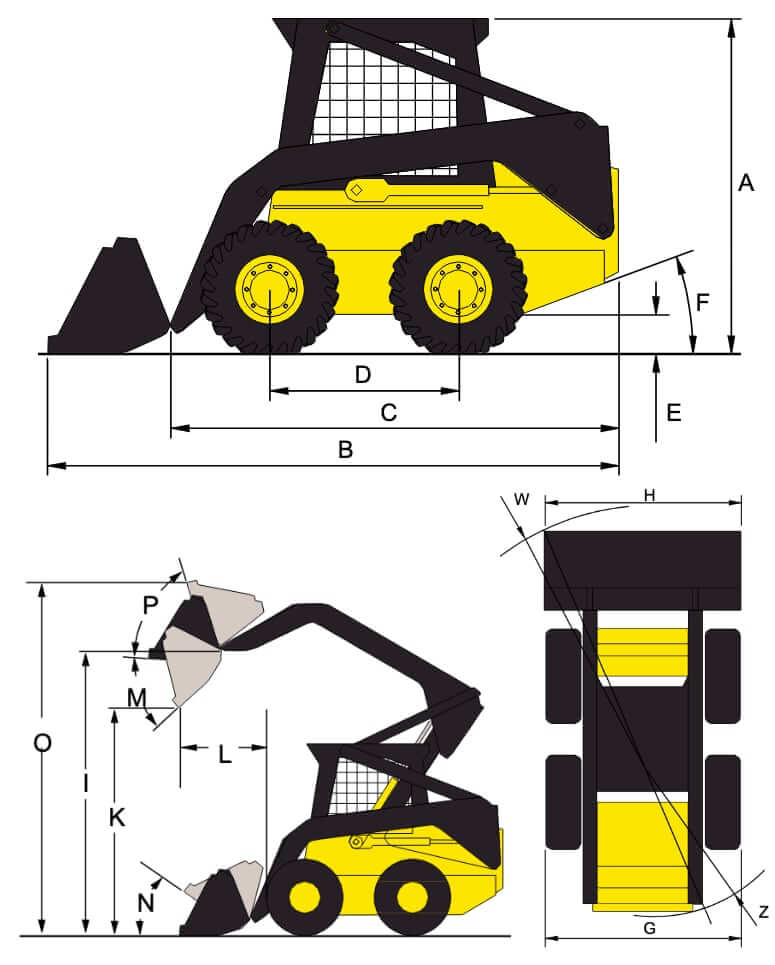

Dimensions
| A. Height to Top of Cab w/ ROPS | 79.4 in (2017 mm) |
| B. Overall Length w/ Bucket | 147.3 in (3741 mm) |
| C. Overall Length w/o Attachment | 123.6 in (3139 mm) |
| D. Wheelbase | 51.4 in (1306 mm) |
| E. Ground Clearance (Bottom of Belly Pan) | 11.2 in (284 mm) |
| E. Ground Clearance (Bottom of Chain Case) | 9.9 in (251 mm) |
| F. Angle of Departure | 27° |
| G. Wheel Tread | 62.3 in (1580 mm) |
| G. Width Over Tires (14 x 17.5) | 76.1 in (1934 mm) |
| H. Standard Bucket Width | 72 in (1829 mm) |
| I. Bucket Hinge Pin Height | 124.1 in (3152 mm) |
| K. Dump Height w/ Bucket @ 45° | 100.6 in (2553 mm) |
| L. Dump Reach (Max Height) @ 45° | 31.5 in (800 mm) |
| M. Max Dump Angle | 46.7° |
| N. Rollback Angle at Ground | 37.2° |
| O. Max Operating Height | 150.6 in (3825 mm) |
| P. Rollback Angle at Full Height | 74.2° |
| W. Turning Radius, Front (w/ Bucket) | 83.7 in (2126 mm) |
| Z. Turning Radius, Rear | 73.4 in (1864 mm) |

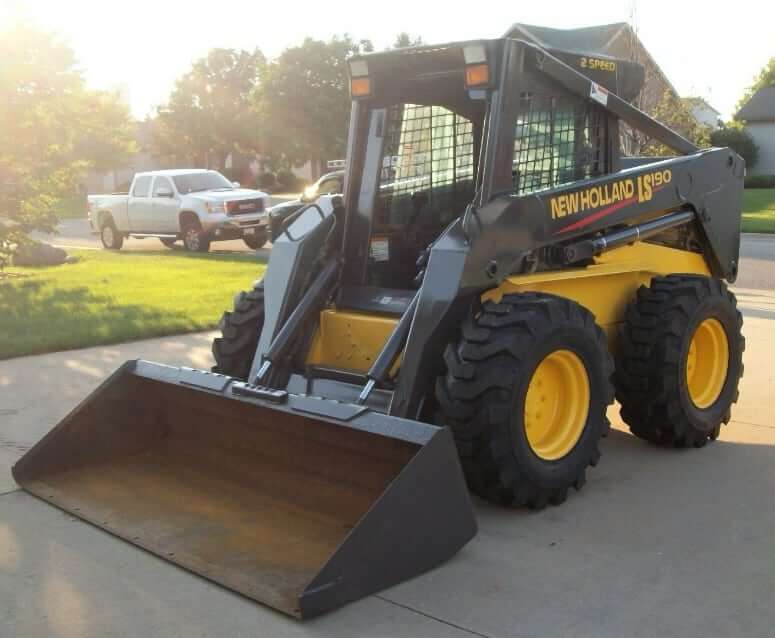

Buckets for New Holland LS190
| New Holland LS190 | Bucket Width | Heaped Capacity |
|---|---|---|
| Low Profile Bucket | 66 in (1676 mm) | 15.5 ft3 (0.44 m3) |
| Dirt and Foundry Bucket | 66 in (1676 mm) | 15.2 ft3 (0.41 m3) |
| Low Profile Bucket | 72 in (1829 mm) | 17.1 ft3 (0.48 m3) |
| Dirt and Foundry Bucket (Standard) | 72 in (1829 mm) | 16.7 ft3 (0.45 m3) |
| Manure and Fertilizer Bucket | 72 in (1829 mm) | 19.1 ft3 (0.54 m3) |
| Light Material Bucket | 72 in (1829 mm) | 23.7 ft3 (0.65 m3) |
| Low Profile Bucket | 84 in (2134 mm) | 20.2 ft3 (0.57 m3) |
| Manure and Fertilizer Bucket | 84 in (2134 mm) | 22.5 ft3 (0.64 m3) |
| Light Material Bucket | 84 in (2134 mm) | 27.9 ft3 (0.79 m3) |
| Utility Fork | 66 in (1676 mm) | |
| Pallet Fork | 36, 42, 48 in fork sets |

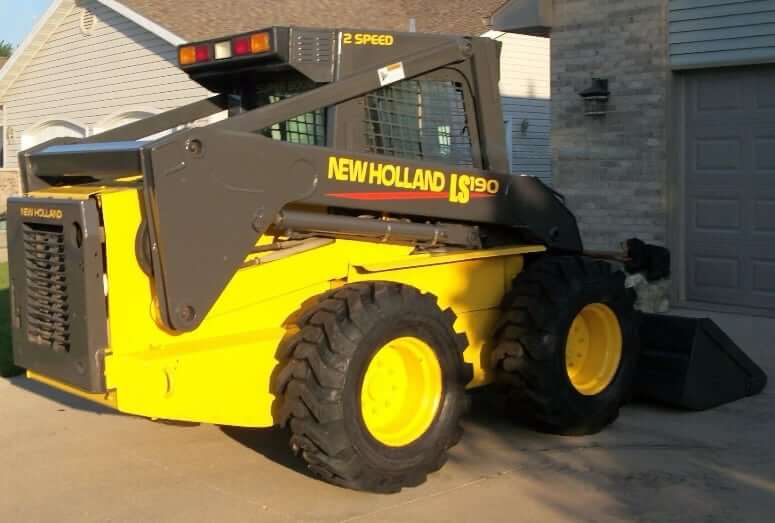

Tires
| Tire Size | Type and Pressure |
|---|---|
| 14.00 x 17.5 (Standard) | Cleat Tread; 60 psi (410 kPa) |
| 12.00 x 16.5 | R4 Cleat Tread; 50 psi (345 kPa) |
| 12.00 x 16.5 | Heavy Duty (HD 2000); 50 psi (345 kPa) |
| 12.00 x 16.5 | HST Hollow Segmented |
| 8.25 x 15 | Chevron Tread; 50 psi (345 kPa) |
| 8.25 x 15 | HST Hollow Segmented |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | New Holland |
| Engine Model | CNH 450/NC |
| Displacement | 304 cu in (5 L) |
| Bore | 4.4 in (112 mm) |
| Stroke | 5.0 in (127 mm) |
| Gross Power | 83 hp (61 kw) |
| Net Power | 75 hp (55.2 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 240 lb ft (325 Nm) |
| Torque Measured @ | 1300 rpm |
| Low Idle | 1000 – 1050 rpm |
| High Idle | 2325 – 2375 rpm |
| Fuel System | Direct Injection |
| Fuel Consumption | 4.4 gal/h (16.6 L/h) |
| Compression Ratio | 17.5:1 |
| Air Cleaner | Dry type dual element with plastic air cleaner canister |
| Aspiration | Naturally aspirated |
| Engine Oil | API SH/CG4 SAE 10W-30 |

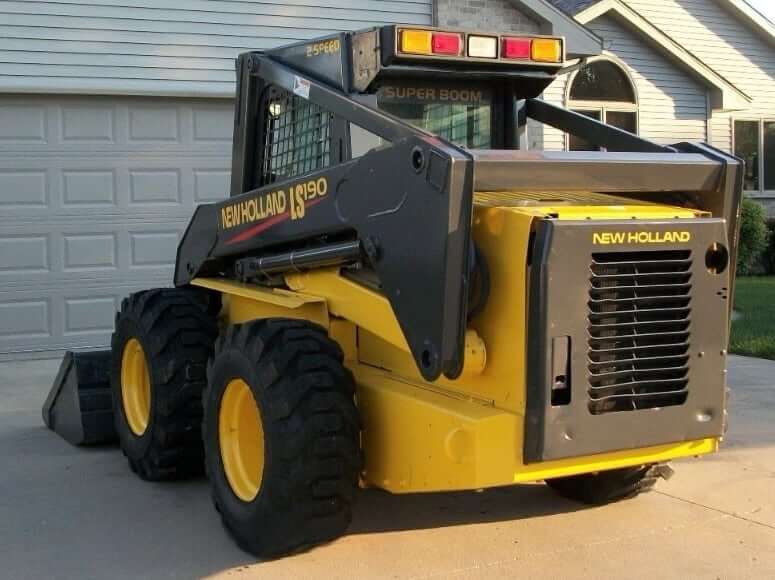

Operational Specs
| Operating Weight | 7860 lb (3565 kg) |
| SAE Load Capacity | 2800 lb (1270 kg) |
| Operating Voltage | 12 V |
| Alternator | 45 amps |
| Battery | 2x 12 V, CCA 650, BCI 35/75 |
| Starter | 12 V, 4.2 hp (3.1 kw), four-pole series wound |
Transmission
| Type | Hydrostatic transmission |
| Max Travel Speed, Low | 7.6 mph (12.2 km/h) |
| Max Travel Speed, High | 12.1 mph (19.3 km/h) |
| Parking Brake | Mechanically activated, double disc brake system. Park brake discs are attached to each of the two hydrostatic motor shafts located in the gearboxes |
| Chain Size | 100 HD |
| Front Chain Length | 80 in (2032 mm), 64 links |
| Rear Chain Length | 80 in (2032 mm), 64 links |
| Drive Pump Type | Variable displacement piston type |
| Drive Motor Type | Variable displacement piston type |
| Transmission Oil Type | SAE 10W-30 API SH/CG-4 |
| Charge Pressure | 250 – 300 psi (1700 – 2040 kPa) |
| Transmission Relief Pressure | 5000 psi (34470 kPa) |

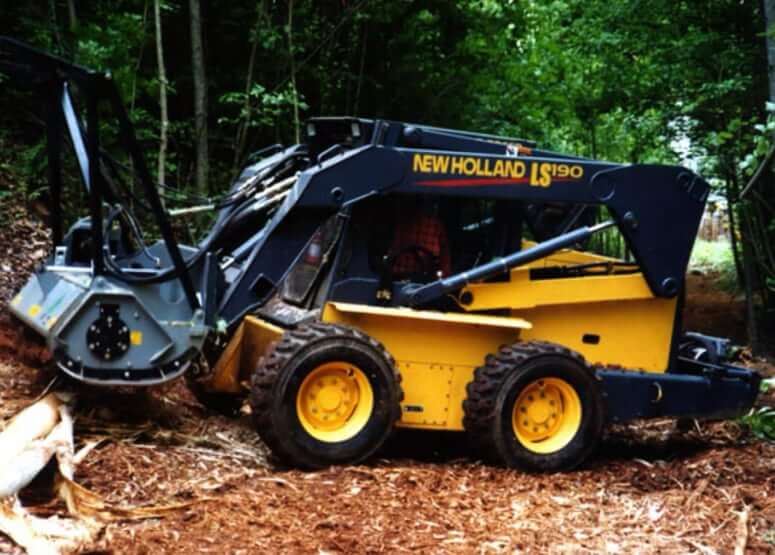

Hydraulic System
| Main Pump Type | Gear Pump |
| Pump Flow Capacity | 20 gal/min (75.7 L/min) |
| Pump Flow Capacity (High Flow) | 33.8 gal/min (127.9 L/min) |
| Main System Relief | 2500 – 2600 psi (17000 – 17600 kPa) |
| Boom Circuit Relief | 3500 psi (23800 kPa) |
| Control Valve Type | 3 Spool Open Center |
| Hydraulic Fluid | API Service SH/CG4 10W-30 |

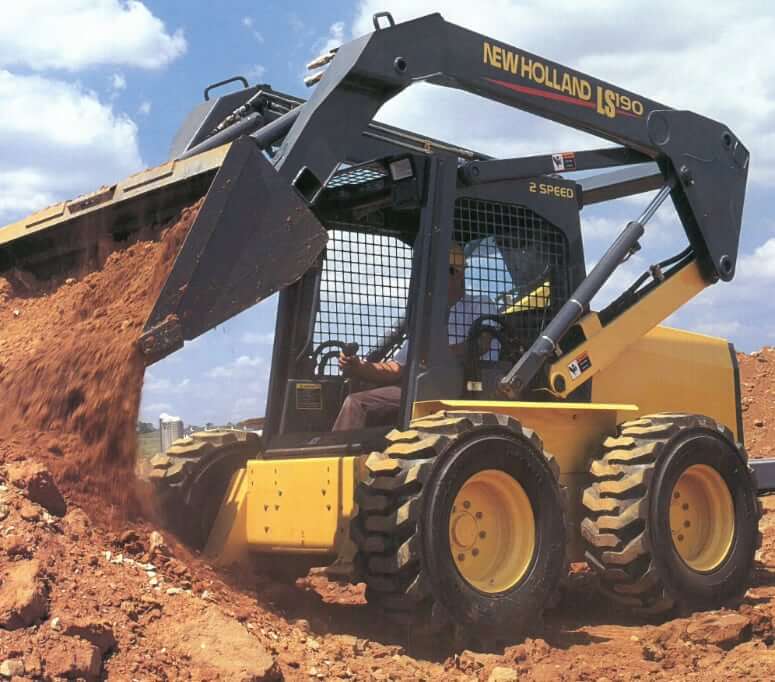

Hydraulic Circle Time
| Raise Time | 3.9 sec |
| Lower Time | 2.8 sec |
| Dump Time | 2.2 sec |
| Roll Back Time (Curl) | 2.5 sec |
| Total Hydraulic Circle Time | 11.4 sec |
New Holland LS190 Filters
| Air Filter (Primary Element) | NH #86555826 |
| Air Filter (Safety Element) | NH #86555827 |
| Fuel Filter | NH #87801434 |
| Water Separator | F0NN9B328AE |
| Engine Oil Filter | NH #87800083 |
| Hydraulic Oil Filter (Spin-on Canister) | NH #9842392 |
Service Refill Capacities
| Fuel Tank Capacity | 21.5 gal (81.4 L) |
| Engine Oil Capacity (w/ filter) | 2.9 gal (10.9 L) |
| Cooling System Capacity | 4 gal (15.1 L) |
| Hydraulic System Capacity (w/ tank) | 11.3 gal (42.6 L) |
| Transferbox Fluid Capacity | 0.35 gal (1.32 L) |
| Chain Case w/ Gearbox Capacity (each side) | 3 gal (11.4 L) |
