Contents
Loader Performance
| Tipping Load | 4400 lb (1996 kg) |
| Rated Operating Capacity (50% Tipping) | 2200 lb (998 kg) |
| Rated Operating Capacity (35% Tipping) | 1400 lb (699 kg) |
| Bucket Breakout Force | 6034 lbf (28.8 kN) |
| Boom Breakout Force | 4194 lbf (18.7 kN) |
| Standard Bucket Width | 72 in (1829 mm) |
| Lift Arm Path | Vertical |

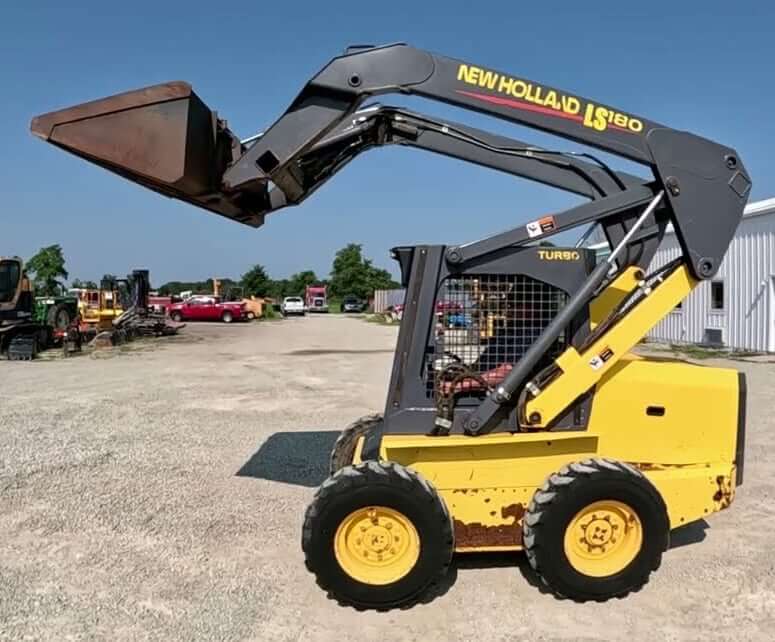

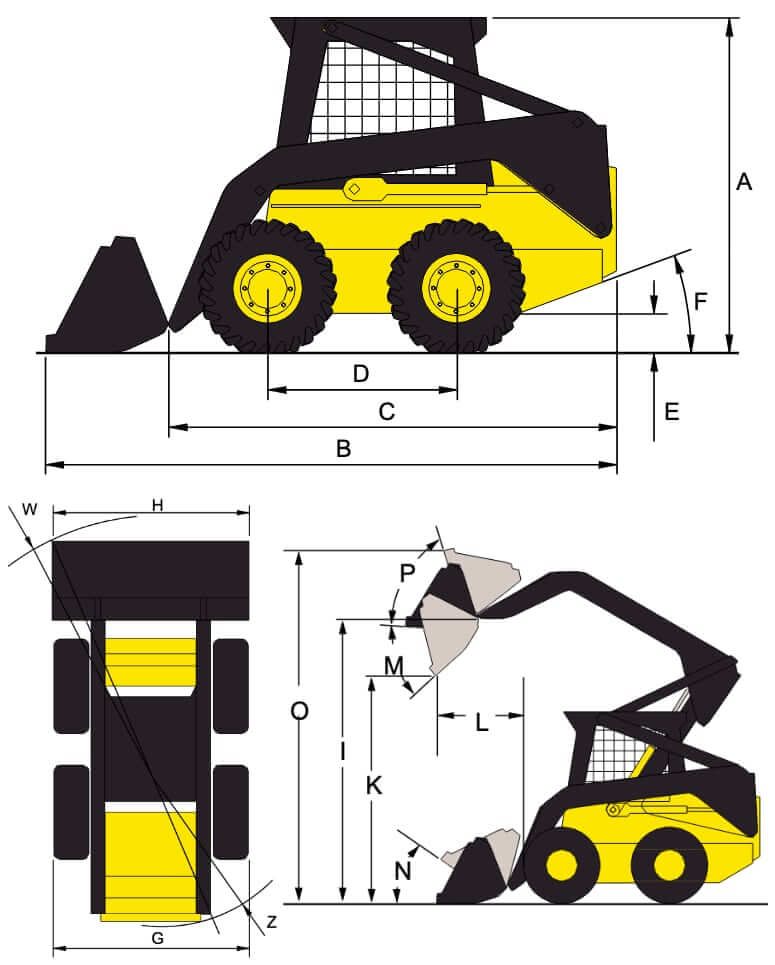

Dimensions
| A. Height to Top of Cab w/ ROPS | 77 in (1956 mm) |
| B. Overall Length w/ Bucket | 141 in (3581 mm) |
| C. Overall Length w/o Attachment | 116.1 in (2949 mm) |
| D. Wheelbase | 47.8 in (1214 mm) |
| E. Ground Clearance (Bottom of Belly Pan) | 9.4 in (239 mm) |
| E. Ground Clearance (Bottom of Chain Case) | 8.0 in (203 mm) |
| F. Angle of Departure | 28.4° |
| G. Wheel Tread (12.00 x 16.5) | 58.3 in (1481 mm) |
| G. Width Over Tires (12.00 x 16.5) | 73.2 in (1859 mm) |
| H. Standard Bucket Width | 72 in (1829 mm) |
| I. Bucket Hinge Pin Height | 124.6 in (3165 mm) |
| K. Dump Height w/ Bucket @ 45° | 99.9 in (2538 mm) |
| L. Dump Reach (Max Height) @ 45° | 32.5 in (826 mm) |
| M. Max Dump Angle | 45.2° |
| N. Rollback Angle at Ground | 37.4° |
| O. Max Operating Height | 150.9 in (3833 mm) |
| P. Rollback Angle at Full Height | 74.5° |
| W. Turning Radius, Front (w/ Bucket) | 82.75 in (2102 mm) |
| Z. Turning Radius, Rear | 69.25 in (1759 mm) |

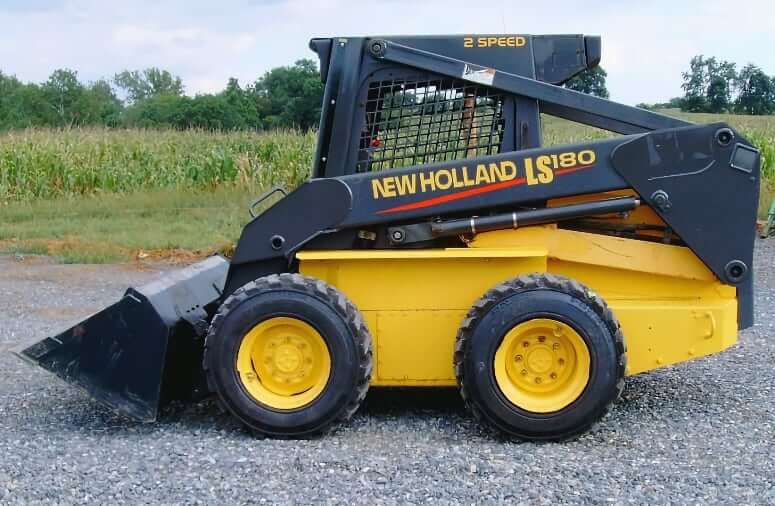

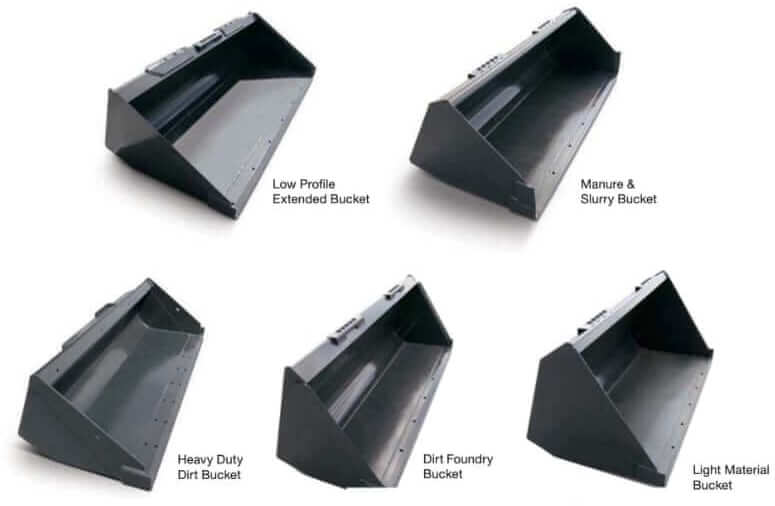

Buckets for New Holland LS180
| New Holland LS180 | Bucket Width | Heaped Capacity |
|---|---|---|
| Low Profile Bucket | 66 in (1676 mm) | 15.5 ft3 (0.44 m3) |
| Dirt and Foundry Bucket | 66 in (1676 mm) | 15.2 ft3 (0.41 m3) |
| Low Profile Bucket | 72 in (1829 mm) | 17.1 ft3 (0.48 m3) |
| Dirt and Foundry Bucket (Standard) | 72 in (1829 mm) | 16.7 ft3 (0.45 m3) |
| Manure and Fertilizer Bucket | 72 in (1829 mm) | 19.1 ft3 (0.54 m3) |
| Light Material Bucket | 72 in (1829 mm) | 23.7 ft3 (0.65 m3) |
| Low Profile Bucket | 84 in (2134 mm) | 20.2 ft3 (0.57 m3) |
| Manure and Fertilizer Bucket | 84 in (2134 mm) | 22.5 ft3 (0.64 m3) |
| Light Material Bucket | 84 in (2134 mm) | 27.9 ft3 (0.79 m3) |
| Utility Fork | 66 in (1676 mm) | |
| Pallet Fork | 36, 42, 48 in fork sets |
Pallet Fork
| Max Reach Height (w/ counterweight) | 110 in (2794 mm) |
| Max Reach Height (w/o counterweight) | 110 in (2794 mm) |
| Load Capacity SAE (w/ counterweight) | 1773 lb (804 kg) |
| Load Capacity SAE (w/o counterweight) | 1670 lb (757 kg) |
Utility Fork
| Standard Tine Spacing | 8.5 in (216 mm) |
| Additional Tine Spacing | 4.25 in (108 mm) |
| Purposes | Handling matted, stringy material |
Tires
| Tire Size | Type and Pressure |
|---|---|
| 12.00 x 16.5 (Standard) | R4 Cleat Tread; 50 psi (345 kPa) |
| 12.00 x 16.5 | Heavy Duty (HD 2000); 50 psi (345 kPa) |
| 12.00 x 16.5 | HST Hollow Segmented |
| 8.25 x 15 | Chevron Tread; 50 psi (345 kPa) |
| 8.25 x 15 | HST Hollow Segmented |
Engine Details
| Number of Cylinders | 3 |
| Engine Make | New Holland |
| Engine Model | CNH 332T/JF |
| Displacement | 192 cu in (3.15 L) |
| Bore | 4.4 in (112 mm) |
| Stroke | 4.2 in (106.7 mm) |
| Gross Power | 67 hp (49.3 kw) |
| Net Power | 60 hp (44.1 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 187 lb ft (253 Nm) |
| Torque Measured @ | 1400 rpm |
| Low Idle | 1000 – 1050 rpm |
| High Idle | 2350 – 2400 rpm |
| Fuel System | Direct Injection |
| Fuel Consumption | 3.7 gal/h (14 L/h) |
| Compression Ratio | 17.5:1 |
| Air Cleaner | Dry type dual element with plastic air cleaner canister |
| Aspiration | Turbocharged |
| Emission Standards | US EPA Tier 1 |
Operational Specs
| Operating Weight | 7193 lb (3263 kg) |
| Operating Weight (w/ 2-speed) | 7223 lb (3276 kg) |
| SAE Load Capacity | 2200 lb (998 kg) |
| Operating Voltage | 12 V |
| Alternator | 45 amps |
| Battery | 12 V, CCA 925, BCI PC31 |
| Starter | 12 V, 4.2 hp (3.1 kw), four-pole series wound |
Transmission
| Type | Hydrostatic transmission |
| Max Travel Speed, Low | 7.2 mph (11.6 km/h) |
| Max Travel Speed, High (2-speed) | 11.4 mph (18.3 km/h) |
| Parking Brake | Mechanically activated, double disc brake system. Park brake discs are attached to each of the two hydrostatic motor shafts located in the gearboxes |
| Chain Size | 100 HD |
| Front Chain Length | 80 in (2032 mm), 64 links |
| Rear Chain Length | 72.5 in (1841.5 mm), 58 links |
| Drive Pump Type | Variable displacement piston type |
| Drive Motor (w/ single speed) | Fixed displacement piston type |
| Drive Motor (w/ 2-speed) | Variable displacement piston type |
| Charge Pressure | 250 – 300 psi (1700 – 2040 kPa) |
| Transmission Relief Pressure | 5000 psi (34470 kPa) |
| Transmission Oil Type | SAE 10W-30 API SH/CG |
Hydraulic System
| Main Pump Type | Gear Pump |
| Pump Flow Capacity | 18.5 gal/min (70 L/min) |
| Pump Flow Capacity (High Flow) | 32.3 gal/min (122.8 L/min) |
| Main System Relief | 2500 – 2600 psi (17000 – 17600 kPa) |
| Boom Circuit Relief | 3500 psi (23800 kPa) |
| Control Valve Type | 3 Spool Open Center |
| Hydraulic Fluid | API Service SH/CG4 10W-30 |
Hydraulic Circle Time
| Raise Time | 3.6 sec |
| Lower Time | 1.5 sec |
| Dump Time | 2.4 sec |
| Roll Back Time (Curl) | 1.8 sec |
| Total Hydraulic Circle Time | 9.3 sec |
New Holland LS180 Filters
| Air Filter (Primary Element) | NH #86555826 |
| Air Filter (Safety Element) | NH #86555827 |
| Fuel Filter w/ Water Trap | NH #87801434 |
| Engine Oil Filter (CNH 332T/JF) | NH #87800083 |
| Hydraulic Oil Filter (Spin-on Canister) | NH #9842392 |
Service Refill Capacities
| Fuel Tank Capacity | 18 gal (68 L) |
| Engine Oil Capacity (w/ filter) | 1.7 gal (6.6 L) |
| Cooling System Capacity | 3.9 gal (14.7 L) |
| Hydraulic System Capacity (w/ tank) | 11.3 gal (42.6 L) |
| Transferbox Fluid Capacity | 0.35 gal (1.32 L) |
| Chain Case w/ Gearbox Capacity (each side) | 2.4 gal (9.1 L) |
