Loader

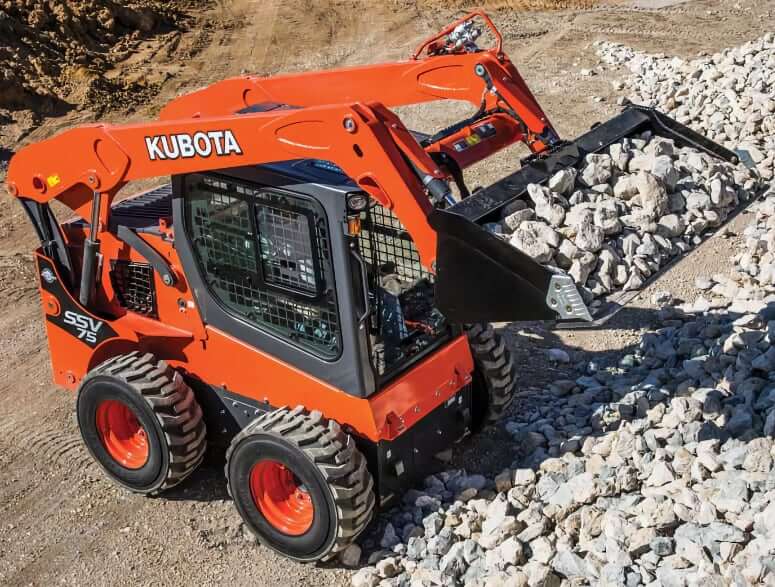

| Rated Operating Capacity (35% Tipping Load) | 2690 lb (1220 kg) |
| Tipping Load | 5380 lb (2440 kg) |
| Breakout Force (Bucket) | 5884 lbf (26.2 kN) |
| Breakout Force (Lift arm) | 4850 lbf (21.6 kN) |
| Bucket Width | 75 in (1905 mm) |
| Lift Arm Path | Vertical |

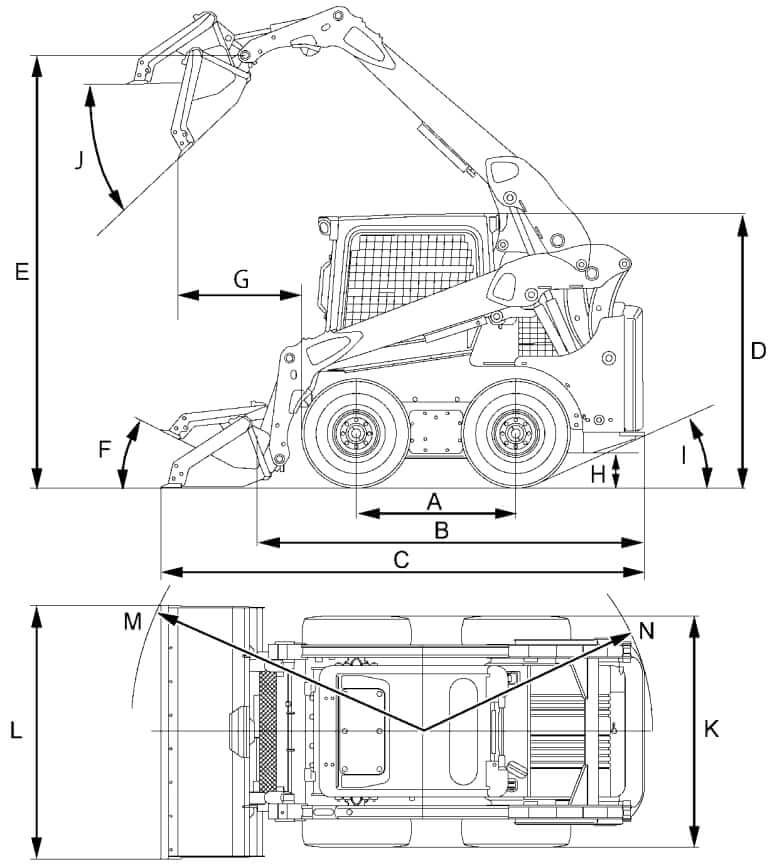

Dimensions
| A. Length of Tire on Ground | 47.2 in (1200 mm) |
| B. Length without Bucket | 115.0 in (2920 mm) |
| C. Length with Bucket on Ground | 144.1 in (3660 mm) |
| D. Height to Top of Cab | 81.3 in (2065 mm) |
| E. Bucket Hinge Pin Height at Max. Lift | 128.3 in (3258 mm) |
| F. Rollback Angle at Carry Position | 27° |
| G. Reach at Max. Lift and Dump | 36.9 in (936 mm) |
| H. Ground Clearance | 8.1 in (207 mm) |
| I. Departure Angle | 24.6° |
| J. Max. Dump Angle | 43° |
| K. Vehicle Width (Standard Track) | 71.8 in (1823 mm) |
| L. Width with Bucket | 75 in (1905 mm) |
| M. Turning Radius from Center – Machine Front w/ Bucket | 98.5 in (2503 mm) |
| N. Turning Radius from Center – Machine Rear | 56.5 in (1435 mm) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Kubota |
| Engine Model | Kubota V3307-CR-TE4 |
| Displacement | 203.3 cu in (3.331 L) |
| Bore | 3.8 in (94 mm) |
| Stroke | 4.8 in (120 mm) |
| Gross Horsepower | 74.3 hp (55.4 kw) |
| Net Horsepower | 71.6 hp (53.4 kw) |
| Power Measured @ | 2600 rpm |
| Low Idling Speed @ | 1250 rpm |
| Peak Torque | 195.5 lb ft (265 Nm) |
| Torque Measured @ | 1500 rpm |
| Combustion System | Direct injection |
| Fuel System | Common rail system |
| Aspiration | Turbocharged |
| Aftertreatment | DOC + DPF |
| Emission Standards | US EPA/CARB Tier 4 + EU Stage IIIB |
Powertrain
| Type | Hydrostatic transmission with electronic travel torque management |
| Number of Gears | Two-speed travel |
| Max Travel Speed (Low) | 7.4 mph (11.9 km/h) |
| Max Travel Speed (High) | 11.8 mph (19.0 km/h) |
| Traction Force | 8494 lbf (37.8 kN) |
| Shockless Ride | Kubota Shockless Ride (KSR) (optional) |
Operational Specs

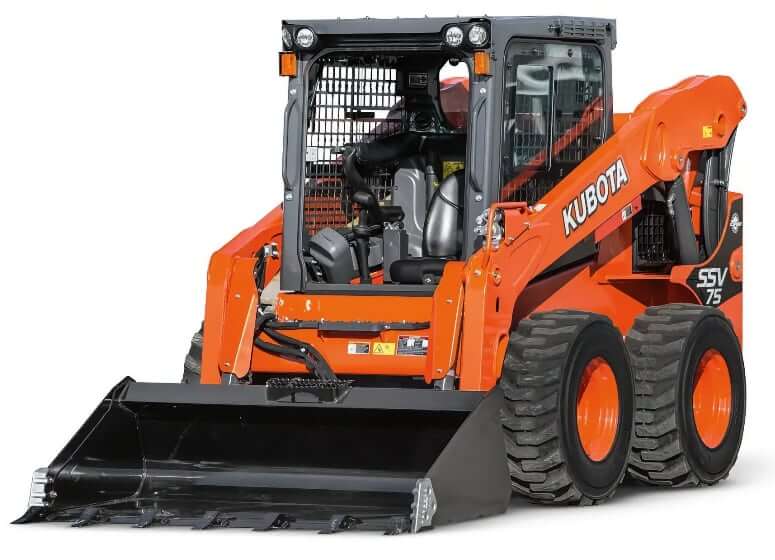

| Operating Weight (Open Cab) | 8245 lb (3740 kg) |
| Operating Weight (Closed Cab) | 8466 lb (3840 kg) |

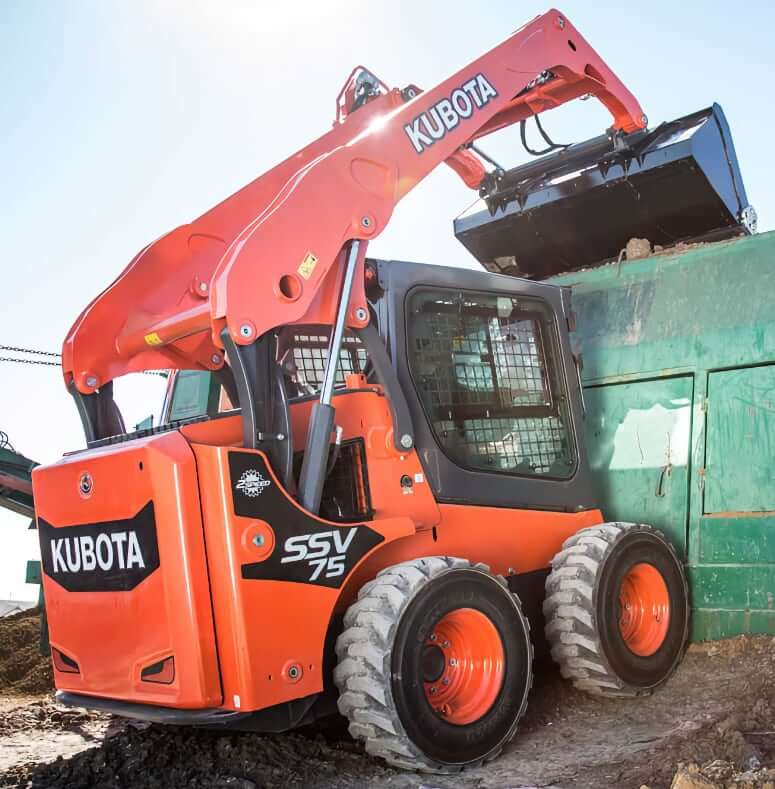

| Max Operating Lift Capacity (ROC) | 2690 lb (1220 kg) |
| Operating Voltage | 12 V |
| Alternator (Open Cab / Closed Cab) | 100 amps |
| Battery | 12 V, 85.3 Ah, RC: 160 min, CCA 900, GP31 (105E41R) |
| Tire Size | 12-16.5 10ply, 65 psi (448 kPa) |
| Tire Size (Optional) | 14-17.5 12ply, 80 psi (552 kPa) |
| Chain Size ASA# | 100 |

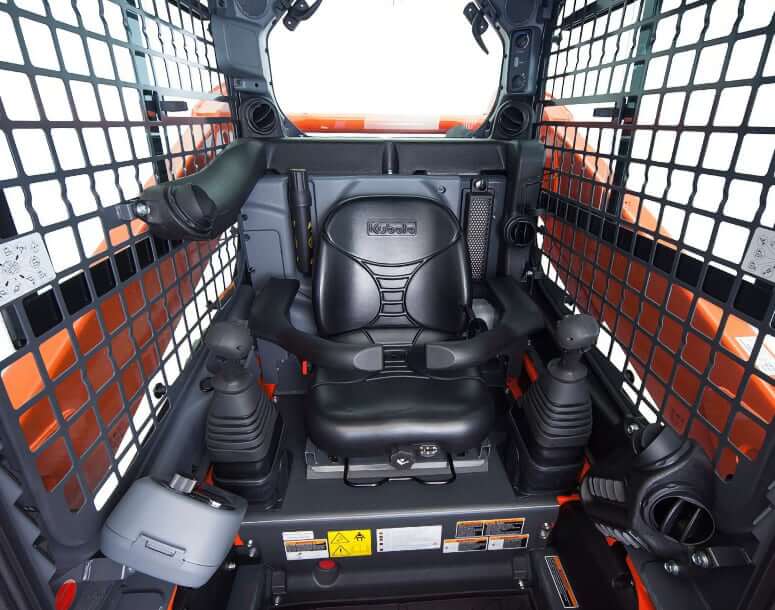

Cab
| Cab Safety | OSHA-certified ROPS/FOPS |
| Cab Front Height | 30.7 in (780 mm) |
| Cab Front Width | 39.3 in (1141 mm) |
| Seat Belt | 3 in (76.2 mm) Retractable seat belt |
| Operator Seat | The standard suspension seat. (Air Suspension seat is optional) |
| Sliding Side Windows | The front sections of both side windows slide open towards the back of the cab |
| Side-window Grille | The side-window grilles are installed on the inside to let you easily clean the outer glass surfaces of the windows |
| Working Lights | 2x Front + 2x Rear working lights + 2x Side lights |
Hydraulic System
| Type | Standard hydraulics / High Flow hydraulics (optional) |
| Standard Pump Flow | 20.9 gal/min (79.0 L/min) |
| High Flow Pump Flow | 30.4 gal/min (115.0 L/min) |
| Standard Relief Valve Pressure | 3271 psi (22500 kPa) |
| AUX Hydraulic Line | AUX hydraulic lines routed inside the arm |
| Multi-function Levers (optional) | The optional multi-function levers provide fingertip control of all major vehicle and attachment operations |

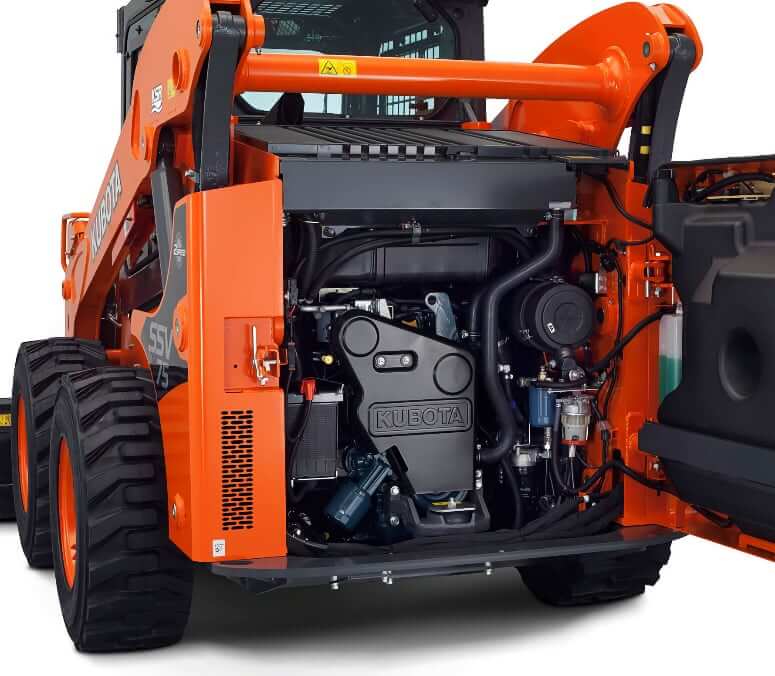

Service Refill Capacities
| Fuel Tank Capacity | 26.9 gal (102 L) |
| Engine Oil Capacity | 2.64 gal (10 L) |
| Cooling System Capacity | 2.0 gal (7.6 L) |
| Cooling Recovery Tank | 0.5 gal (2 L) |
| Hydraulic System Fluid Capacity | 9.25 gal (35 L) |
| Hydraulic Tank Capacity | 3.0 gal (11.2 L) |
| Chain Case Oil Capacity (each) | 7.4 gal (28 L) |
Kubota SSV75 Attachmets
The Kubota SSV75 Skid Steer Loader is a high-performance machine engineered for tough tasks and heavy-duty applications. With its powerful engine, strong hydraulic output, and durable frame, the SSV75 is well-suited for a wide range of attachments.
Whether you’re trenching, grading, digging, sweeping, or snow clearing, the SSV75 accommodates a full suite of tools – from buckets, augers, and rakes to blades, brooms, grapples, snow pushers, and planers. Designed for efficiency and quick attachment changes, the SSV75 enhances productivity on construction sites, farms, and landscaping projects, making it a versatile workhorse for year-round operations.
Skid Cutters
| Tool Type | Models | Key Features |
|---|---|---|
| Rotary Cutters, SC25 Series | SC2560, SC2572 | 2″ Diameter cut capacity. 1-1/2″ – 18″ Cutting height; infinitely variable. 10 Gauge steel deck; 1/4″ side skirt |
| Rotary Cutters, SC40 Series | SC4060, SC4072 | 4″ Diameter cut capacity. 1/4″ Deck thickness. Pressure gauge. Tapered full length skid shoes |
| Rotary Cutters, SC60 Series | SC6072 | 18-31 gpm. 72″ Width. 6″ Cutting capacity. 1/4″ Deck thickness. Single plate blade carrier. Replaceable carbide teeth on bottom of carrier. Patent pending retractable door. Wide angled full length skid shoes |
Snow Tools
| Tool Type | Models | Key Features |
|---|---|---|

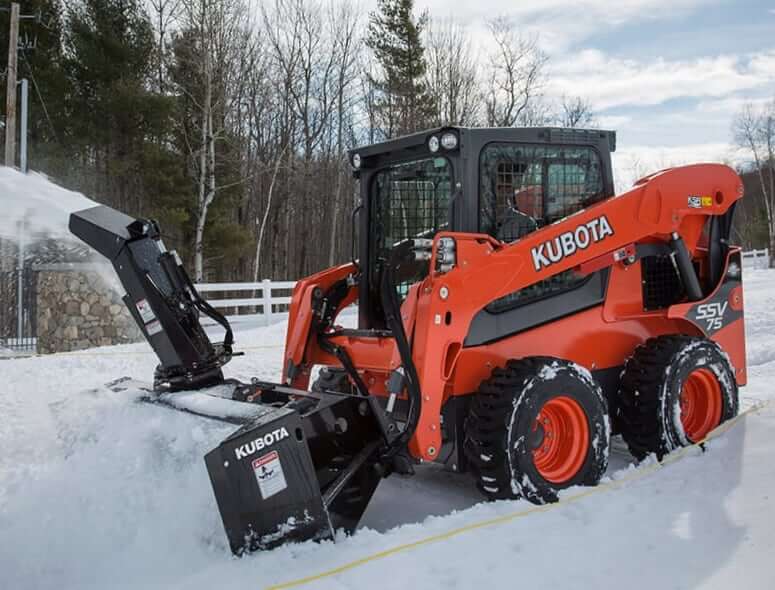

| Snow Blowers, SBL25 Series | SBL2566, SBL2574, SBL2584 | 3/16″ Side plate material. 24″ Diameter impeller; 4 Impeller blades. 16″ Diameter auger; 4 Auger paddles |
| Snow Blowers, SBL30 Series | SBL3074, SBL3084 | 74″ and 84″ models. 17-23 gpm or 27-33 gpm. 16″ Rotor. 26″ 5 blade impeller. Adjustable skid shoes. Fold over chute |
| Snow Blowers, K Series | K66247HB, K76249HB, K76249HH, K842611HH | 66”, 76” and 84” models available. 3 piece chute. Reversible cutting edge. Adjustable skid shoes. Hydraulic operated chute. Load sensing hydraulics |

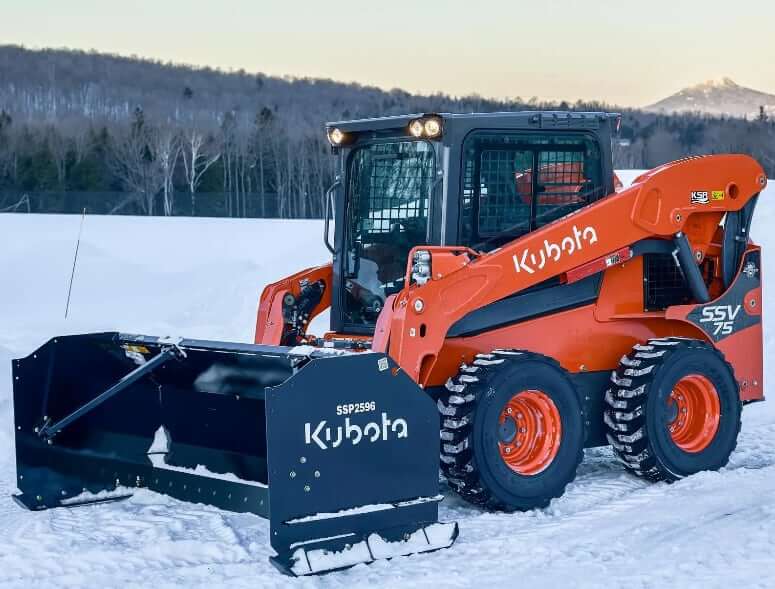

| Snow Pusher | SSP2596 | Adjustable rubber or steel cutting edge. AR400 skid shoes. Rubber pull back blade option. Gusseted corners for strength |
| Snow Buckets | LM2584, LM2596, LM25108 | See through backplate for visibility. Optional bolt-on cutting edge. Heavy-duty construction. Inside bend gussets |
| Trip Edge Blades | TE3596, TE35108 | 22° Oscillation of blade to follow contour of the surface. 30° Angle right and left. Heavy-duty tension springs. Radiused blade rolls snow efficiently |
Material Handling
| Tool Type | Models | Key Features |
|---|---|---|
| Angle Brooms | AB72, AB84 | 32″ Brush diameter. Replaceable hex drive system. Poly, wire, or combination bristles. Optional dust suppression system with 25 gallon tank |
| Buckets, HD Series | HD66, HD68, HD74 | 66″ (1.67 m), 68″ (1.72 m), 74″ (1.87 m). Available with standard floor or long floor. Available with weld-on teeth or bolt-on edge. 3/16″ Shell on heavy-duty. Standard side cutters |
| Claw Grapples | SGC2072, SGC2084 | 6″ Teeth spacing. 1/2″ Tooth thickness. High tensile AR400 steel. 6″ x 6″ Frame tube |
| 4-in-1 Buckets | CB2568, CB2574, CB2580, CB3574, CB3580, CB3584 | 4-in-1 Design: bucket, scraper, grapple, and dozer. Dual cutting edge on jaw. Bolt-on edge on back blade. Cylinder protection. Struck cap. 10–17 cu. ft.; Heaped cap. 15–24 cu. ft. |

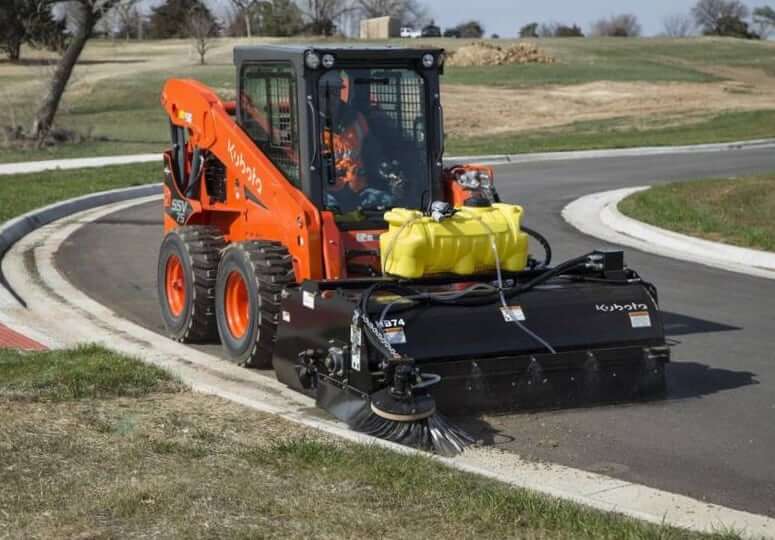

| Hopper Brooms | HB74, HB84 | Heavy-duty bucket design – 3/16″ shell. Bucket tapered front to back to hold material in. 26″ Replaceable brush. Tool-less height adjustment. Heavy-duty metal top with bump protection |
| Light Material Buckets | LM2584, LM2596, LM25108 | See through backplate for visibility. Optional bolt-on cutting edge. Heavy-duty construction. Inside bend gussets |
| Loader Boom | LB60 | 6″ x 6″ Tube construction. Two 1″ lifting lugs. Stabilizer chain connections in side plates |
| Pallet Forks | PFL5648, PFL5660 | PFL56: 48″, 60″. Forks adjust to 4″ spacing. Spring loaded toggle fork position lock. Wide frame with step. Removeable top center bracket |
| Rock Grapples / Buckets | SGR1566, SGR1572, SGR1578, SRB1566, SRB1572, SRB1578 | 3″ Teeth spacing. 3/8″ Tooth thickness. 37″ Jaw opening. Independent grapples |
| Root Grapples | RG3068, RG3074, RG3080 | Gusseted 1/2″ frame tines. 3/4″ Thick grapple tines. Greaseable pivot points. Wide tine spacing. Zinc-plated steel hydraulic lines |
| Scrap Grapple Buckets | GB3068, GB3074, GB3080 | 1/4″ Shell material. 1/2″ End panels. Five wear bars on bottom. 3/4″ Grapple tines. Zinc-plated steel hydraulic lines |
| Stump Grinders, SSG20 Series | SSG2024 | 8-21 gpm. Optional mounts. 24″ Cutting wheel. Direct drive. 15 Wearsharp teeth |
| Stump Grinders, SSG25 Series | SSG2524 | Maximum cutting arc of 55°. Hydraulic motor with electric over hydraulics. Depth of 8″ below ground. 1/2″ by 20″ diameter wheel with carbide teeth |
| Tree/Post Puller | STP25 | 10″ Jaw opening. Laser cut saw tooth design. Interlocking teeth on the jaws. 3″ x 3-1/2″ Square tubing frame |
| Utility Bucket | UB25 | Replaceable pin-on tooth tips. Angled bottom to aide in leverage. Top tapered ripper teeth in sidewall. Hardened cutting edge |
Dirtworking
| Tool Type | Models | Key Features |
|---|---|---|
| 6-Way Dozer Blades | DZ3084, DZ096 | 3/8″ Moldboard w/full boxed bracing. 3/4″ x 8″ Reversible cutting edge – 3 piece design. 3″ Pivot pins. 3-1/2″ x 8″ Welded cylinders. 1/2″ x 4″ Full length wear bar |
| Box Blades | BB3084, BB3096 | Bi-directional with hinged cutting edge. Floating front axle. Replaceable side plates with adjustable side cutters. Lift/tilt with parallel links standard. Ability to accept attachment control system |
| Powered Rakes | SR2772, SR2790 | Float or rigid option. Manual or hydraulic angle. Cast chain housing. Carbide tipped studs |
| Ripper | RP30 | 5 Shank design with replaceable tips. Skid shoes. Patented level indicator |
| Skid Augers | SA20, SA35 | SA20: 2″ Hex output shaft Center & 18” offset mount to the right. SA35: 2″ Hex or 2-9/16″ round output shaft. Planetary gearbox. Patented level indicator on SA20 |
| Skid Graders | SG2572, SG2584 | Ripper teeth break compacted soils. Bi-directional blades; Adjustable cutting angles. Replaceable skid shoes. Bucket carrier lugs on top |
| Trenchers | TR48, TR60 | Adjustable spoil auger. Manual or hydraulic sideshift. 6″, 8″, 10″ Width chain options. 4 teeth configurations. Patented depth gauge |
Demolition
| Tool Type | Models | Key Features |
|---|---|---|
| Breakers | KXB310, KXB360, KXB460 | Multiple tool options. Wear resistant steel housing. Replaceable seal and bushing. CBE Constant blow energy |
| Cold Planers | CP3012LF, CP3016LF, CP3018, CP3024, CP3030, CP3040, CP3048 | Independent RH/LH skid shoe control. Hydraulic tilt, depth, and sideshift integrated into multi-function grips of the SSV65 / SSV75. Optional water system. Removable cutting teeth. 3 Line set up (pressure, return, and case drain) |
| Concrete Claw | CC30 | 3/4″ Side plates. 1/2″ Floor pan. Long floor for more leverage. 3 Replaceable teeth |
| Road Saws | SW3010-2.5, SW3010-4.5, SW3018-3.0, SW3018-4.5, SW3018-6.0 | Hydraulic control of sideshift and depth. Either 10″ or 18″ cutting depth. 2.5″ – 6″ Cutting width |
Skid Tillers / Seeders
| Tool Type | Models | Key Features |
|---|---|---|
| Skid Tillers | SRT62, SRT76 | Case drain protection. Adjustable ripper shanks. Forward or reverse rotation. Replaceable skid shoes with depth control. Spiral rotor design with C-shaped bi-directional tines. 6″ Offset capability |
| Primary Seeders | PS2072, PS2086 | Patent pending bi-directional seed cups. Universal Quick-Attach Hitch and 3-Point Hitch standard. Large capacity seed box. Floating packer wheels to follow the contours |
Hitches
| Tool Type | Models | Key Features |
|---|---|---|
| Skid Hitch | SH35 | Fits Cat. 1 or 2 tractor implements. Adjustable top hook. Universal skid plate. Built in 2″ receiver hitch. Automatic locking |
| Tilt Hitch | TH35 | 20° Tilt in either direction. Angle gauge and level – standard. Nylon slide pads |
