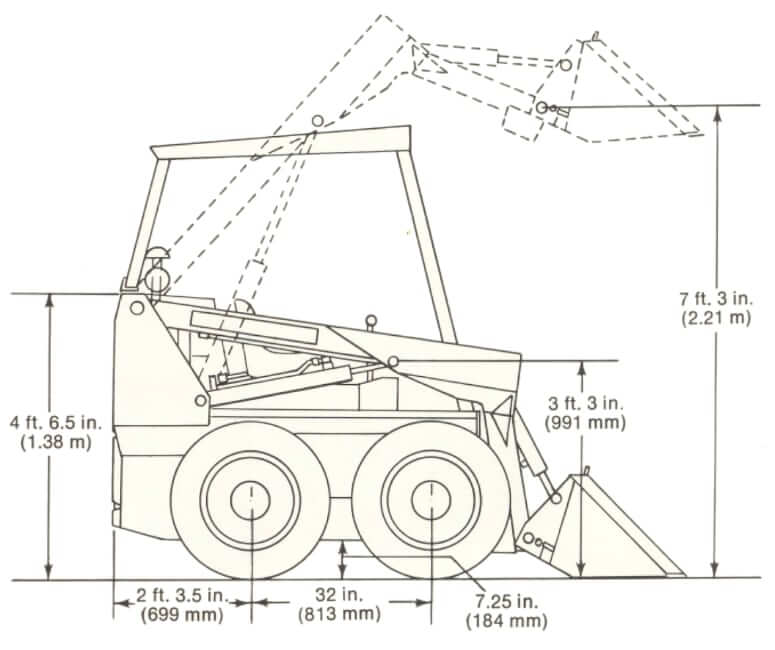

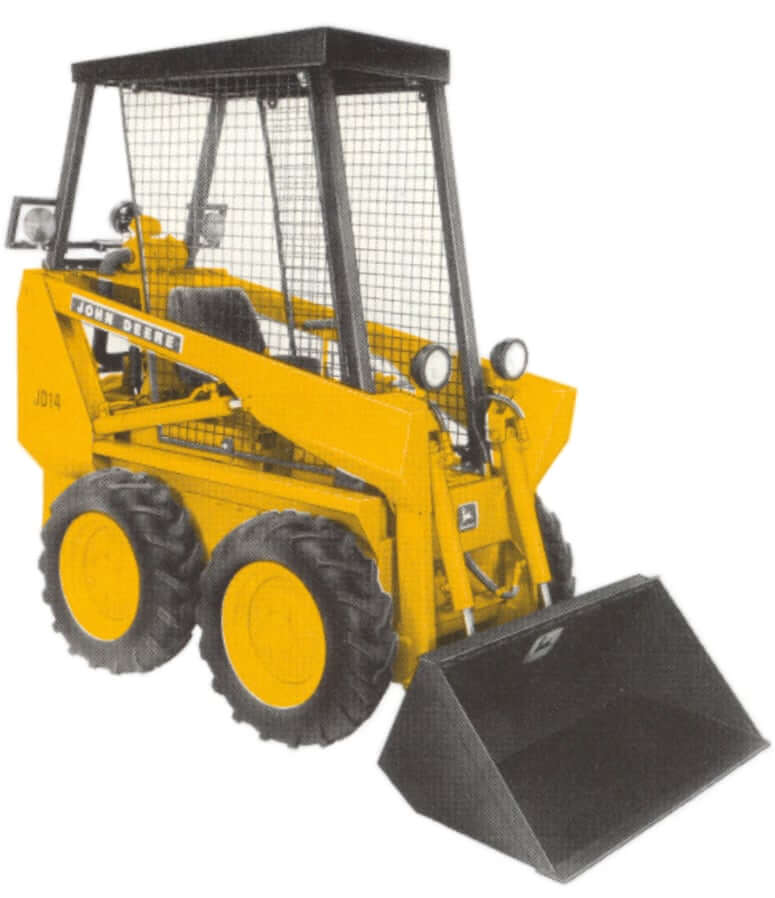

Dimensions
| Length w/ Bucket (Standard) | 98.4 in (2500 mm) |
| Length w/o Bucket | 72 in (1830 mm) |
| Width w/o Bucket | 46.1 in (1170 mm) |
| Wheel Tread | 37 in (940 mm) |
| Wheelbase | 32 in (813 mm) |
| Ground Clearance | 7.25 in (184 mm) |
| Height to Hinge Pin | 87 in (2210 mm) |
| Clearance at Max Lift and Dump | 62.6 in (1590 mm) |
| Reach at Max Lift and Dump | 14.5 in (368 mm) |
| Reach at Ground | 35.8 in (910 mm) |
| Reach, Bucket Rolled Back | 35 in (889 mm) |
| Rollback Angle | 33° |
| Dump Angle | 41° |
| Digging Depth Below Ground Level | 0.5 in (12.7 mm) |
| Rear Clearance Circle Radius | 45.3 in (1150 mm) |
Loader Performance
| Rated Operating Capacity | 800 lb (363 kg) |
| Tipping Load | 1700 lb (771 kg) |
| Breakout Force | 1500 lbf (6.72 kN) |
| Standard Bucket Capacity | 0.22 yd3 (0.17 m3) |
| Standard Bucket Width | 47 in (1190 mm) |
Buckets
| Type | Width | Capacity |
|---|---|---|
| Utility Bucket | 47 in (1190 mm) | 0.22 yd3 (0.17 m3) |
| Light Materials Bucket | 53 in (1350 mm) | 0.37 yd3 (0.28 m3) |
| Light Materials Bucket | 53 in (1350 mm) | 0.44 yd3 (0.34 m3) |
Engine Details
| Number Of Cylinders | 2 |
| Engine Make | Onan |
| Engine Model | Onan NHC |
| Fuel Type | Gasoline |
| Displacement | 60 cu in (0.983 L) |
| Bore | 3.56 in (90 mm) |
| Stroke | 3.00 in (76 mm) |
| Net Power | 25 hp (18.7 kw) |
| Power Measured @ | 3600 rpm |
| Peak Torque | 41 Ib ft (55 Nm) |
| Torque Measured @ | 2200 rpm |
| Lubrication System | Pressure system with full-flow filter |
| Air Cleaner | Dry with restriction indicator |
Operational Specs
| Operational Weight | 2587 lb (1173 kg) |
| Rated Operating Capacity | 800 lb (363 kg) |
| Utility Bucket Weight | 150 lb (68 kg) |
| Light Materials Bucket Weight | 195 lb (89 kg) |
| Pallet Fork (w/mounting frame) Weight | 250 lb (113 kg) |
| Operating Voltage | 12 V |
| Tire Size | 8.50-27-15, 4-ply-rating |
Transmission
| Type | Two hydrostatic pumps with variable angle cam plates and two hydrostatic motors with fixed angle cam plates. |
| Chains | Primary drive, No. 50; final drive, No. 60 (standard) |
| Axle | 2.56 in (65 mm) diameter, one-piece forged steel |
| Steering | T-bar control |
| Max Travel Speed | 5 mph (8.1 km/h) |
Hydraulic System
| Pump Type | Gear pump |
| Pump Flow Capacity | 8 gal/min (30.3 L/min) |
| Relief Valve Pressure | 1500 psi (10342 kPa) |
| Control | Dual-pedal, double hydraulic system |
| Oil Lines | Welded JIC steel tubing; single-wire-braid hose |
| Hydraulic Oil Filter | 33-micron paper cartridge in suction line |
Service Refill Capacities
| Fuel Tank Capacity | 11 gal (41.6 L) |
| Engine Oil Capacity (w/ filter) | 1.1 gal (3.8 L) |
| Hydraulic System Capacity | 15 gal (56.8 L) |
