Dimensions
| Max Operating Height | 143.2 in (3637 mm) |
| Height to Hinge Pin | 115.2 in (2925 mm) |
| Dump Height | 90.2 in (2290 mm) |
| Dump Angle (At Full Height) | 45° |
| Bucket Rollback (At Ground) | 35° |
| Dump Reach (Heavy-Duty Foundry Bucket) | 28.1 in (715 mm) |
| Dump Reach (Heavy-Duty Construction Bucket) | 35.1 in (892 mm) |
| Wheelbase | 42.3 in (1075 mm) |
| Overall Length without Bucket | 102 in (2591 mm) |
| Overall Length with Bucket | 125.8 in (3196 mm) |
| Overall Width with Bucket | 72 in (1829 mm) |
| Overall Width without Bucket | 69.9 in (1776 mm) |
| Wheel Tread | 56.7 in (1440 mm) |
| Height to ROPS | 76.8 in (1950 mm) |
| Angle of Departure | 27° |
| Turning Radius (Front) | 78.9 in (2004 mm) |
| Turning Radius (Rear) | 61.4 in (1559 mm) |
| Height to Axle Center Point | 15.6 in (396 mm) |
| Ground Clearance | 9.6 in (244 mm) |
Loader Performance
| Tipping Load | 3600 lb (1633 kg) |
| Rated Operating Capacity | 1750 lb (794 kg) |
| Rated Operating Capacity w/ counterweight | 2100 lb (953 kg) |
| Bucket Breakout Force (Foundry Bucket) | 5500 lbf (24.47 kN) |
| Bucket Breakout Force (Construction Bucket) | 3900 lbf (17.35 kN) |
| Boom Breakout Force, SAE | 3100 lbf (13.79 kN) |
| Standart Bucket Width | 72 in (1829 mm) |
Engine Details
| Number Of Cylinders | 3 |
| Engine Make | John Deere |
| Engine Model | John Deere 3029T |
| Displacement | 179 cu in (2.9 L) |
| Bore | 4.17 in (106 mm) |
| Stroke | 4.33 in (110 mm) |
| Gross Power | 64.4 hp (48 kw) |
| Net Power | 61 hp (45.5 kw) |
| Power Measured @ | 2400 rpm |
| Torque Rise | 30% |
| Aspiration | Turbocharged |
| Air Cleaner | Dry paper with primary & secondary elements |
Operational Specs

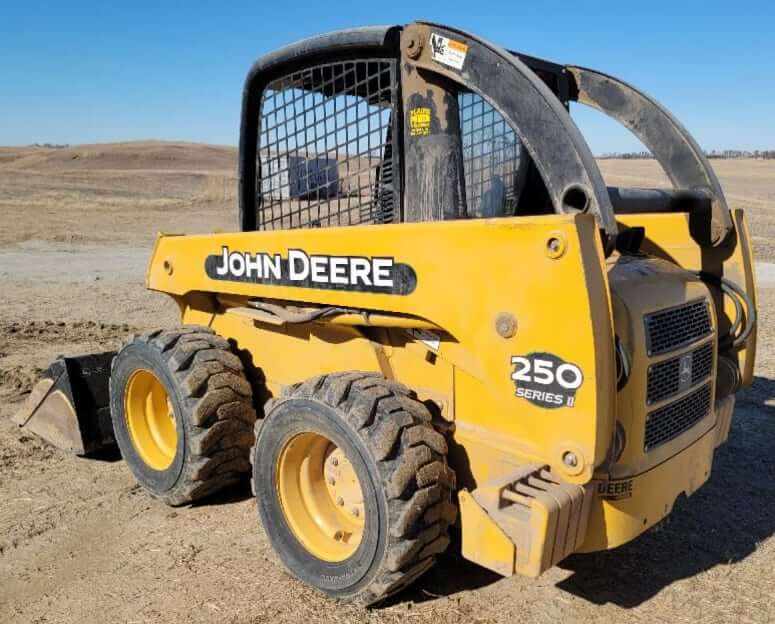

| Operational Weight | 6250 lb (2835 kg) |
| Rated Operating Capacity | 1750 lb (794 kg) |
| Rated Operating Capacity w/ Counterweight | 2100 lb (953 kg) |
| Operating Voltage | 12 V |
| Alternator | 55 amps |
| Starter | 12 V, 3.4 hp (2.5 kw), Valeo |
| Battery | 12 V, CCA 750, RC: 180 min |
Transmission
| Type | Hydrostatic four-wheel drive transmission |
| Max Travel Speed | 6.8 mph (10.9 km/h) |
| Axle Torque | 4725 Ib ft (6406 Nm) |
| Service Brakes | Wet disks on hydrostatic motor shaft-SAHR (spring-applied, hydraulic-release) |

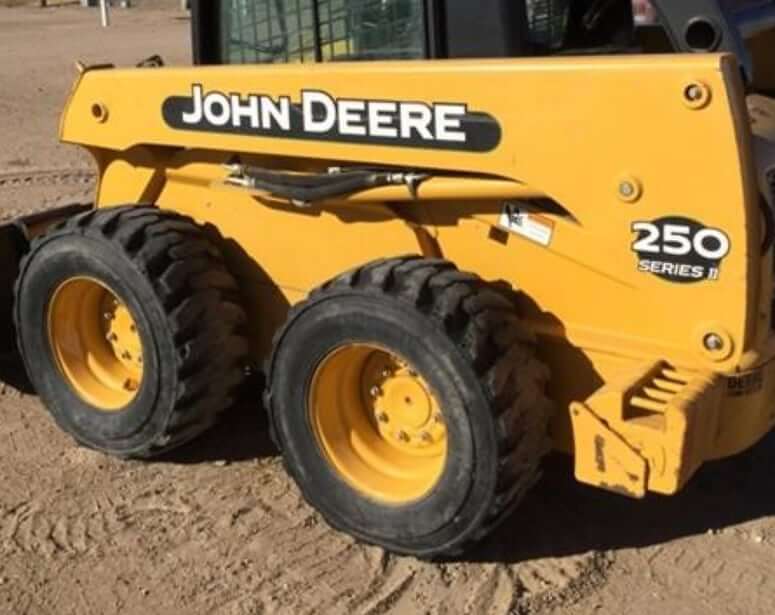

Tires
| Tire Size (Standard) | 12×16.5 SKS, 8-ply rating |
| Tire Size (Optional) | 10×16.5 |
Hydraulic System
| Type | Open center |
| Main System Relief Pressure | 3100 psi (21374 kPa) |
| Pump Standard Flow Capacity | 17.6 gal/min (66.6 L/min) |
| Pump High Flow Capacity | 30.1 gal/min (113.9 L/min) |
| Standard Flow Hydraulic Horsepower | 31.8 hp (23.8 kW) |
| High Flow Hydraulic Horsepower | 54.2 hp (40.4 kW) |
Service Refill Capacities
| Fuel Tank Capacity | 15 gal (57 L) |
| Engine Oil Capacity (w/ filter) | 1.96 gal (7.4 L) |
| Cooling System Capacity | 2.8 gal (10.6 L) |
| Hydraulic System Capacity | 6 gal (23 L) |
