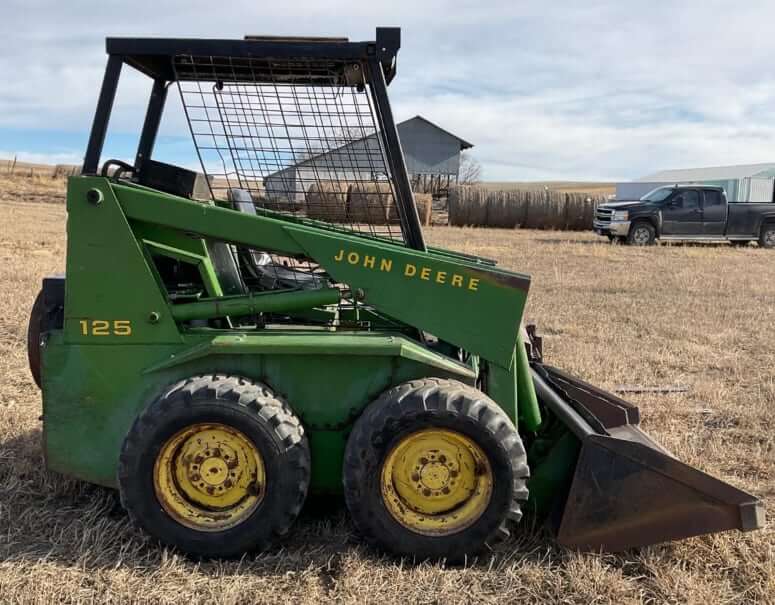

Dimensions
| Overall Height – Lift Arms Raised | 146.25 in (3715 mm) |
| Height to Hinge Pin | 108.25 in (2749 mm) |
| Overall Height (w/o Roll Gard) | 59.88 in (1521 mm) |
| Overall Length w/ Bucket | 118.75 in (3016 mm) |
| Dump Angle | 42° |
| Dump Height | 77.62 in (1971 mm) |
| Reach at Max Height | 19.5 in (495 mm) |
| Specified Height | 57 in (1448 mm) |
| Reach | 22.25 in (565 mm) |
| Reach – Bucket on Ground | 52 in (1321 mm) |
| Max Rollback Angle at Ground | 28° |
| Carry Position | 8.5 in (216 mm) |
| Max Rollback Angle at Carry Position | 31° |
| Max Rollback Angle at Fully Raised | 100° |
| Height to Seat | 42.8 in (1086 mm) |
| Wheelbase | 35 in (889 mm) |
| Overall Height w/ Roll Gard | 82.75 in (2102 mm) |
| Overall Length w/o Bucket | 90.25 in (2292 mm) |
| Ground Clearance | 7 in (178 mm) |
| Max Grading Angle | 94° |
| Angle Departure | 22° |
| Clearance Circle Radius | 51.25 in (1306 mm) |
| Wheel Tread | 48.87 in (1211 mm) |
| Overall Width w/o Bucket | 59.12 in (1502 mm) |

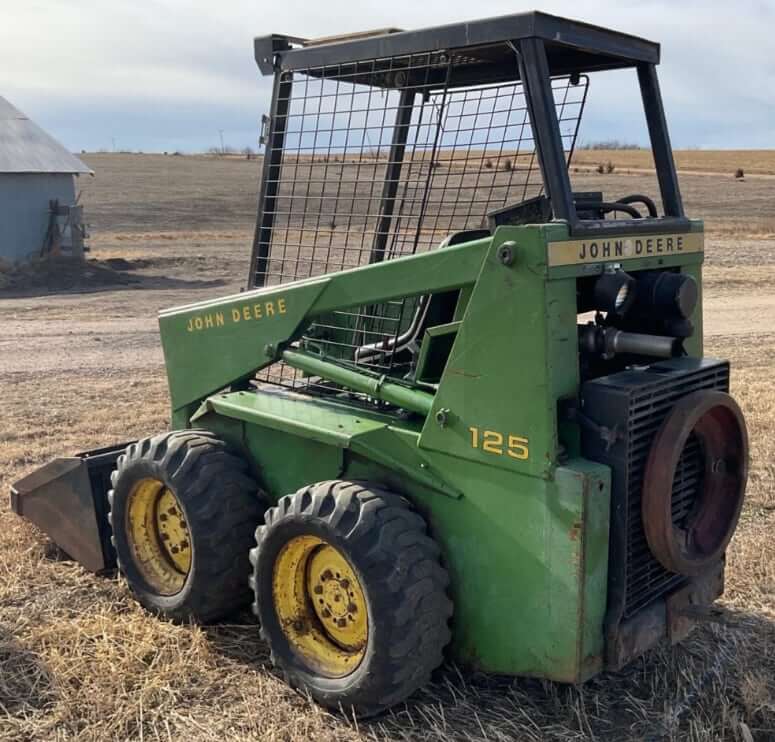

Loader Performance
| Engine Model | Continental Y112 | Isuzu C190 |
|---|---|---|
| Rated Operating Capacity | 1325 lb (601 kg) | 1410 lb (640 kg) |
| Tipping Load | 2650 lb (1202 kg) | 2820 lb (1279 kg) |
| Weight Distribution (Front/Rear) | 33% / 67% | 27% / 73% |
| Utility Bucket Width (Standard) | 56 in (1425 mm) | 56 in (1425 mm) |
| Utility Bucket Capacity (Standard) | 0.44 yd3 (0.34 m3) | 0.44 yd3 (0.34 m3) |
Engine Details
| Engine Model | Continental Y112 | Isuzu C190 |
|---|---|---|
| Number Of Cylinders | 4 | 4 |
| Fuel Type | Gasoline | Diesel |
| Displacement | 112 cu in (1.836 L) | 119 cu in (1.950 L) |
| Bore | 3.19 in (81 mm) | 3.39 in (86 mm) |
| Stroke | 3.50 in (89 mm) | 3.31 in (84 mm) |
| Net Horsepower | 37 hp (27.6 kw) | 40 hp (29.4 kw) |
| Power Measured @ | 2800 rpm | 2800 rpm |
| Peak Torque | 90 lb ft (122 Nm) | 79.6 lb ft (108 Nm) |
| Torque Measured @ | 1500 rpm | 2000 rpm |
| Compression Ratio | 6.07:1 | 20:1 |
Operational Specs
| Operational Weight (Continental Y112) | 5420 lb (2458 kg) |
| Operational Weight (Isuzu C190) | 5470 lb (2481 kg) |
| Operating Voltage | 12 V |
| Tire Size | 10-16.5, 6PR flotation |
| Max Travel Speed | 6.1 mph (9.8 km/h) |
| Transmission | Hydrostatic |
| Chains | No. 50 Primary + No. 80 Final |
Hydraulic System
| Pump Type | Open-center |
| Pump Flow Capacity | 15 gal/min (56.8 L/min) |
| Relief Valve Pressure | 2000 psi (137.8 kPa) |
Service Refill Capacities
| Engine Model | Continental Y112 | Isuzu C190 |
|---|---|---|
| Fuel Tank Capacity | 15 gal (56.8 L) | 15 gal (56.8 L) |
| Engine Oil Capacity | 1 gal (3.8 L) | 1.5 gal (5.5 L) |
| Cooling System Capacity | 3.1 gal (11.4 L) | 3.1 gal (11.4 L) |
| Hydraulic System Capacity | 18 gal (68 L) | 18 gal (68 L) |
