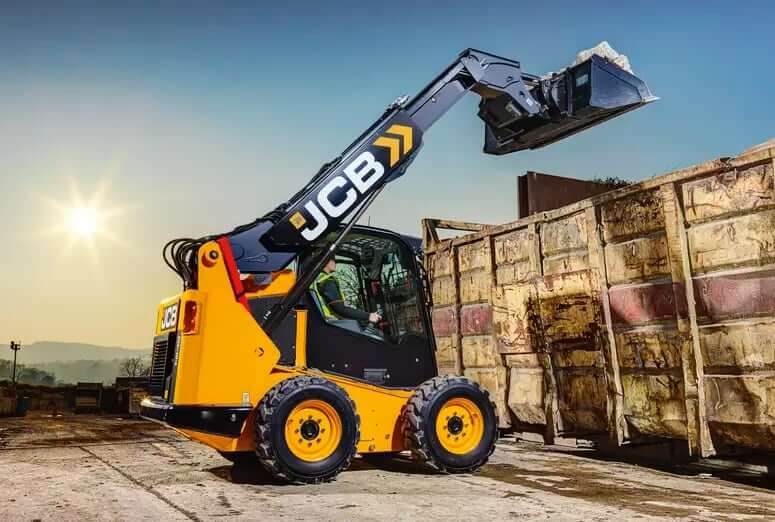

Loader Performance
| Tipping Load (retracted) | 6418 lb (2911 kg) |
| Tipping Load (extended) | 2694 lb (1222 kg) |

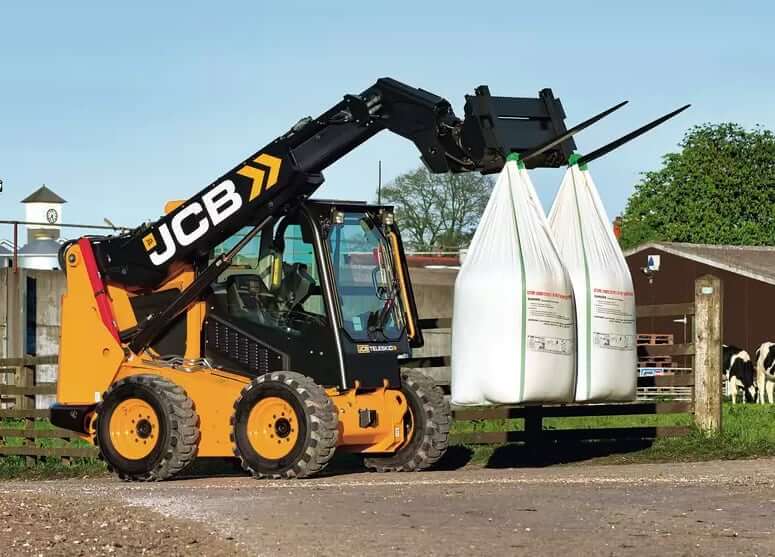

| Rated Operating Capacity, ROC 50% (retracted) | 3208 lb (1455 kg) |
| Rated Operating Capacity, ROC 50% (extended) | 1347 lb (611 kg) |
| Loader Lift Capacity (retracted) | 5260 lbf (23.4 kN) |
| Loader Lift Capacity (extended) | 3527 lbf (15.7 kN) |
| Bucket Tilt Breakout Force (retracted) | 6473 lbf (28.8 kN) |
| Bucket Tilt Breakout Force (extended) | 6695 lbf (29.8 kN) |
| Standard Bucket Capacity | 0.56 yd3 (0.43 m3) |
| Standard Bucket Width | 72.8 in (1850 mm) |

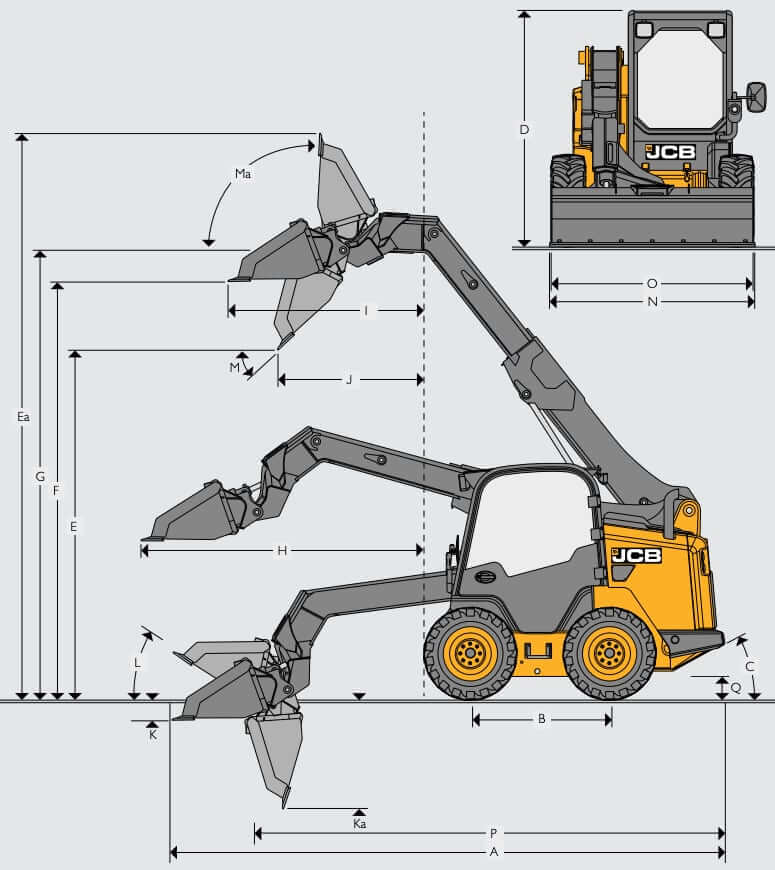

Dimensions
| JCB 3TS-8W Teleskid | Retracted Boom | Extended Boom |
|---|---|---|
| A. Overall Length | 149 in (3785 mm) | 193 in (4902 mm) |
| B. Wheelbase | 59 in (1500 mm) | 59 in (1500 mm) |
| C. Angle of Departure | 29° | 29° |
| D. Overall Height | 83 in (2108 mm) | 83 in (2108 mm) |
| E. Dump Height | 91 in (2311 mm) | 122 in (3099 mm) |
| Ea. Crowd Height | 165 in (4191 mm) | 202 in (5131 mm) |
| F. Loadover Height | 115 in (2921 mm) | 155 in (3937 mm) |
| G. Height to Hinge Pin (Fully Raised) | 118 in (2997 mm) | 147 in (3734 mm) |
| H. Reach | 126 in (3200 mm) | 160 in (4064 mm) |
| I. Max Reach @ Full Height | 42 in (1067 mm) | 84 in (2134 mm) |
| J. Reach @ Full Height – Fully Dumped | 25 in (635 mm) | 51 in (1295 mm) |
| K. Dig Depth – Toe Plate Horizontal Clearance | 0.81 in (22 mm) | 8 in (201 mm) |
| Ka. Dig Depth – Toe Plate Vertical Clearance | 32.4 in (825 mm) | 39.7 in (1010 mm) |
| L. Rollback @ Ground | 30° | 30° |
| M. Dump Angle | 42° | 42° |
| Ma. Max Rollback Angle | 94° | 94° |
| N. Bucket Width – Standard | 73 in (1850 mm) | 73 in (1850 mm) |
| O. Width Over Tires – Standard | 72 in (1829 mm) | 72 in (1829 mm) |
| P. Length Without Attachment | 119 in (3023 mm) | 119 in (3023 mm) |
| Q. Ground Clearance | 9.4 in (238 mm) | 9.4 in (238 mm) |
Tires
| Front Tire Size (Standard) | 12 x 16.5 10PR HD Wide |
| Rear Tire Size (Standard) | 12 x 16.5 10PR HD Wide |
| Front Tire Size (Optional) | 12.5 x 16.5 10PR Lifemaster Industrial |
| Rear Tire Size (Optional) | 12.5 x 16.5 10PR Lifemaster Industrial |
| Turning Radius, Bucket Corner | 90 in (2286 mm) |
| Turning Radius, Quick Hitch | 59 in (1499 mm) |
| Turning Radius, Rear Chassis | 69 in (1753 mm) |
| Departure Angle | 29° |

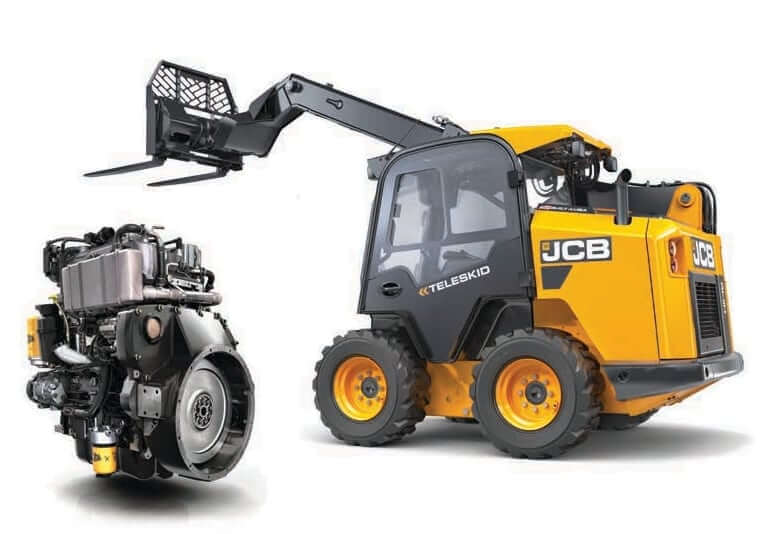

Engine Details
| Number of Cylinders | 4 |
| Engine Make | JCB |
| Engine Model | JCB EcoMAX TCAE-55 |
| Displacement | 268 cu in (4.399 L) |
| Bore | 4.06 in (103 mm) |
| Stroke | 5.20 in (132 mm) |
| Gross Power | 74 hp (55 kw) |
| Power Measured @ | 2400 rpm |
| Peak Torque | 295 lb ft (400 Nm) |
| Torque Measured @ | 1200 rpm |
| Cooling System | Liquid |
| Injection System | Common Rail |
| Air Cleaner | Centrifugal dry engine air filter with primary and secondary elements |
| Aspiration | Turbocharged |
| Emission Standards | US EPA Tier 4 Final + EU Stage IIIB |
Operational Specs

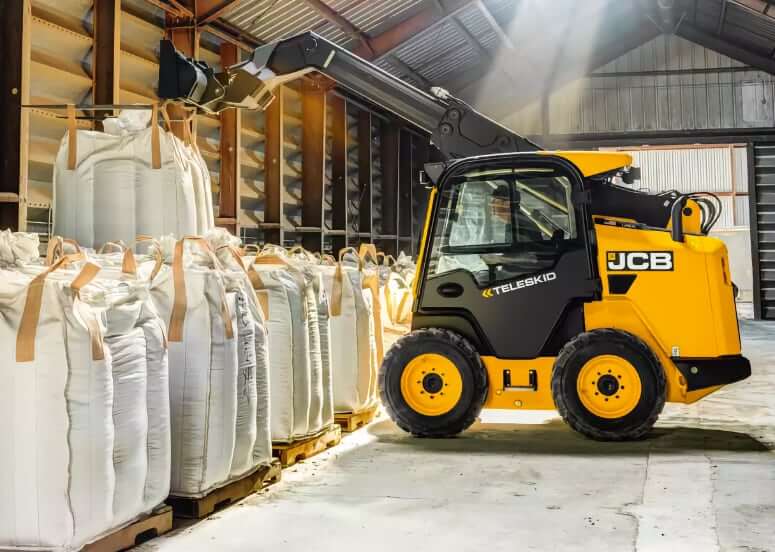

| Operating Weight (Cab) | 9859 lb (4472 kg) |
| Operating Weight (Canopy) | 9726 lb (4412 kg) |
| Tipping Load | 6418 lb (2911 kg) |
| ROC (50% of tipping load) | 3208 lb (1455 kg) |
| Operating Voltage | 12 V |
| Alternator | 95 amps |
| Battery | 12 V, 109 Ah, CCA 1000 |
| Starter Motor | 12 V, 5.6 hp (4.2 kw) |
Operator Environment
| Cab Options | Open canopy or Sealed cab with heater/defroster |
| Operator Seat | Fully adjustable seat with retractable 2 in (51 mm) seat belt |
| ROPS/FOPS | ROPS + FOPS Level 1 |
| Working Lights | 4x LED front and 2x LED rear work lights |
| Door | Operator Enclosure access through side door |
| Monitor | 7-in touch screen display |
| Telematics | JCB LiveLink telematics |
| Control | Electric over hydraulic controls with 7-way multi-function joysticks |

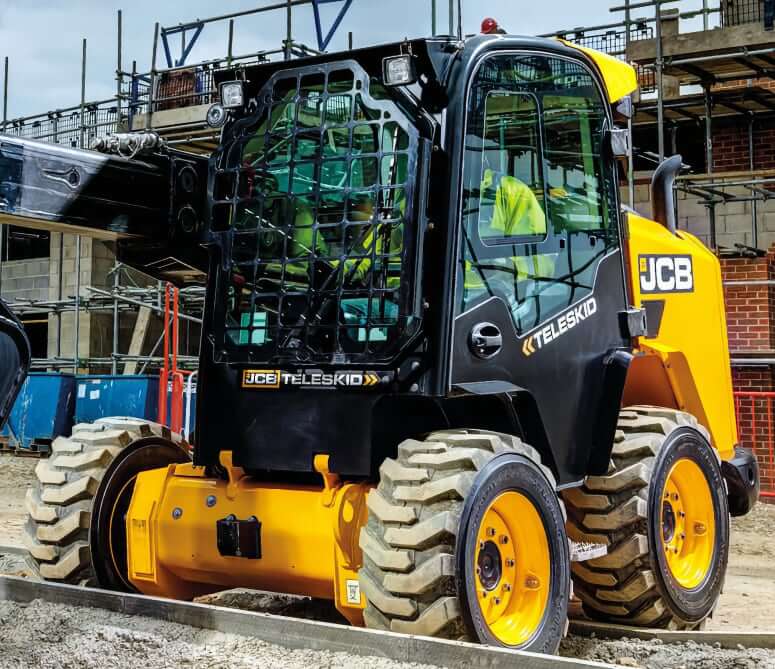

Transmission
| Type | Full electro-hydraulic controlled hydrostatic transmission |
| Number of Gears | One Speed / Two Speed |
| Max Travel Speed (Single Speed) | 6.8 mph (10.9 km/h) |
| Max Travel Speed (Two Speed) | 12.4 mph (20.0 km/h) |
| Parking Brake | Hydraulic park brake |

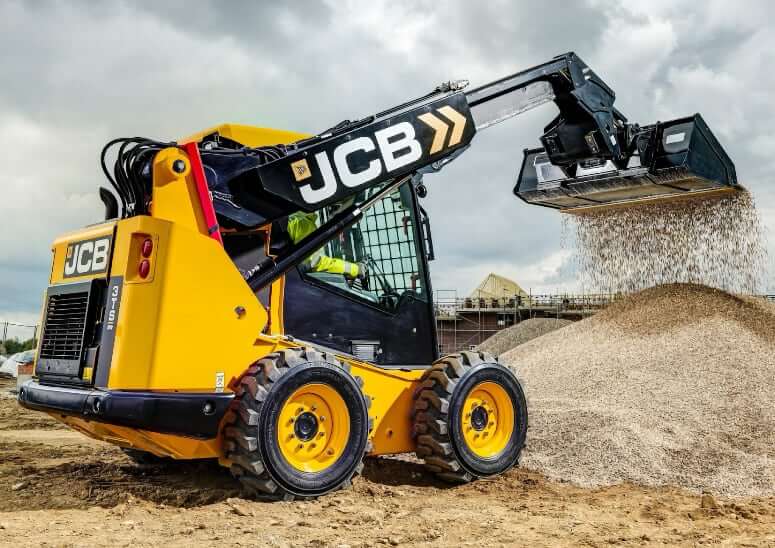

Hydraulic System
| Main Relief Pressure | 3335 psi (23000 kPa) |
| Pump Flow Capacity (Standard) | 24 gal/min (90 L/min) |
| Hydraulic Power | 46.7 hp (34.8 kw) |
| Pump High Flow Capacity (Optional) | 33 gal/min (125 L/min) |
| Hydraulic Power, High Flow (Optional) | 64.2 hp (47.8 kw) |
| ISO/H-pattern | Switchable ISO/H-pattern controls |
| Auxiliary Hydraulics | High flow auxiliary hydraulics |

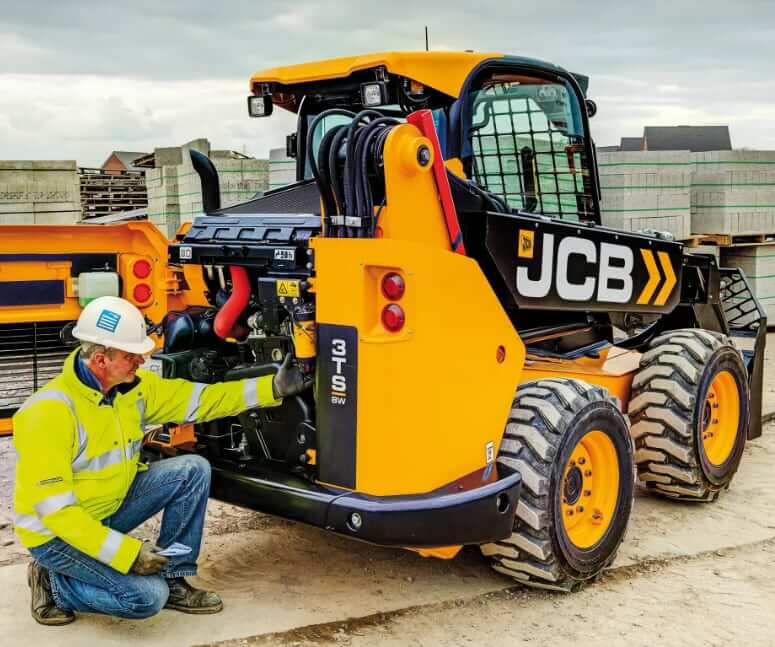

Service Refill Capacities
| Fuel Tank Capacity | 27.2 gal (103 L) |
| Engine Oil Capacity (w/ filter) | 3.7 gal (14 L) |
| Cooling System Capacity | 5.8 gal (22 L) |
| Hydraulic System Capacity (w/ tank) | 14.5 gal (55 L) |
| Hydraulic Tank Capacity | 6.9 gal (26 L) |
| Chaincase Fluid Capacity (each) | 3.1 gal (11.7 L) |
Attachments for JCB 3TS-8W Teleskid
The JCB 3TS-8W Teleskid Skid Steer Loader is a uniquely engineered machine that combines the power of a traditional skid steer with the extended reach and versatility of a telescopic boom.
Designed to handle a wide variety of jobsite applications – from construction and landscaping to agriculture and snow management – the Teleskid’s compatibility with a vast range of JCB-approved attachments makes it one of the most adaptable loaders on the market.
| Type | Size / Description |
|---|---|
| Buckets, 6-in-1 | 60″, 66″, 72″, 78″, 84″ (clam-style multifunction bucket) |
| Buckets, GP | 54″, 60″, 66″, 72″, 75″, 78″, 84″ |
| Buckets, High-Capacity | 75″, 84″, 96″ widths (for light material handling) |
| Buckets, Landscape | 54″, 60″, 66″, 72″, 78″, 84″ |
| Buckets, Snow | 54″, 66″, 84″, 96″, 108″ |
| Angle Brooms | 60″, 72″, 84″ hydraulic rotary broom with manual angle |
| Augers | 4′ x 6″, 9″, 12″, 15″, 18″, 24″, 30″, 36″ standard, heavy-duty, and extreme-duty planetary auger drives |
| Bale Spear | Single and double spear configurations |
| Brush Cutters | 60″, 72″, 78″ (standard flow / high flow) |
| Cold Planers | 12″, 16″, 18″, 24″, 30″, 40″ (standard flow / high flow) |
| Dozer Blades | 84″ and 96″ 6-way hydraulic dozer blade for grading |
| Forestry Mulchers | 60” forestry cutting head (high flow) |
| Forks, Manure | 60″, 66″, 72″, 84″ manure forks with top grapples |

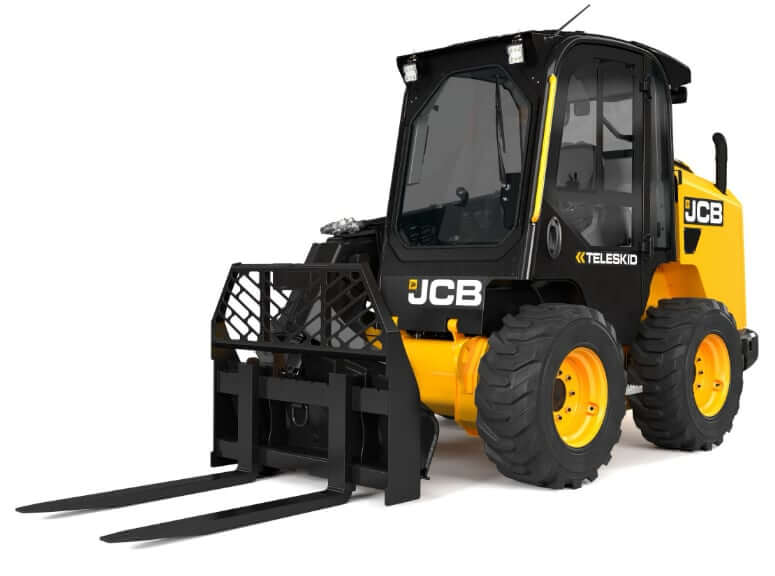

| Forks, Pallet | 42″, 48″ tines + 50” hydraulic fork positioning carriage w/ 48” forks |

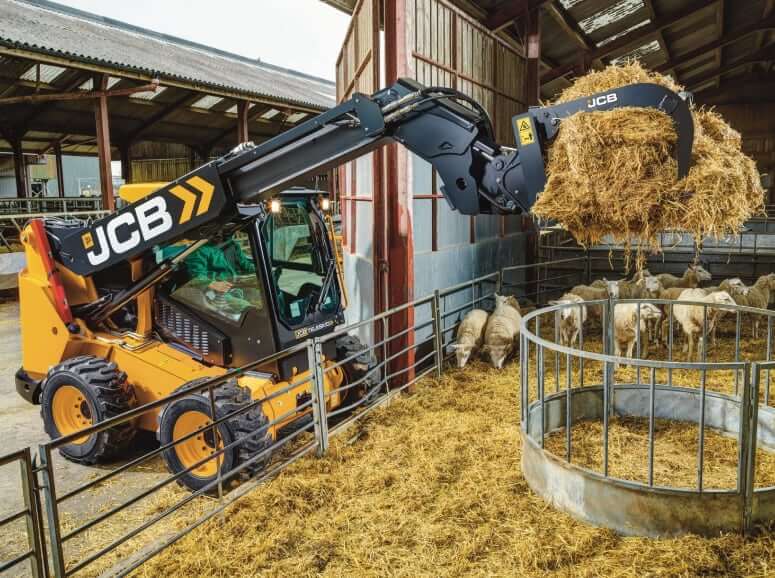

| Grapples, Brush | 60″, 66″, 72″, 78″, 84″ |
| Grapples, Scrap | 60″, 66″, 76″, 82″ |
| Hydraulic Breakers | HM033T, HM266Q, HM386Q series breakers |
| Landscape Rakes | 60″, 72″, 84″, 90″ with manual / hydraulic angle |
| Rock Saws | 18″, 24″ high-torque hydraulic rotary rock cutting saw (high flow) |
| Rotary Tillers | 52”, 66″, 78″ – 6″ tines (standard flow / high flow) |
| Snow Blades | 60″, 72″, 84″, 96″, 108″, 120″ snow blades with manual / hydraulic angle |
| Snow Blowers | Hydraulic drive; 60″, 72″, 78″, 84″ (standard flow / high flow) |
| Snow Pushers | 72″, 84″, 96″ |
| Stump Grinders | 26” wheel diameter (standard flow), 30” wheel diameter (high flow) |
| Sweepers | 60″, 72″, 84″ pick-ip sweepers |
| Tree Spades | Hydraulic tree spade with blades, 25° cutting angle, 18” – 26” / 24” – 36” / 32” – 44” ball diameter |
| Trenchers | 6″ wide chain x 30″, 36″, 48″ (standard flow / high flow) |
| Vibratory Rollers | 66”, 73″, 84″ hydraulic drive, smooth or padfoot drum |
Attachments for the JCB 3TS-8W include buckets, brooms, augers, dozer blades, trenchers, and forestry tools, ensuring maximum efficiency in digging, grading, material handling, and surface preparation. Heavy-duty options such as hydraulic breakers, cold planers, stump grinders, and rock saws deliver powerful performance for demanding tasks, while snow blades, blowers, and pushers extend its utility through all seasons.
With attachment options like hydraulic-powered vibratory rollers, pallet forks, and tree spades, the JCB 3TS-8W stands out as a top-ranking machine for operators who demand precision, versatility, and productivity. Whether tackling earthmoving, material handling, or site cleanup, this Teleskid transforms into a multi-functional tool carrier built for efficiency and strength.
