Loader
| Bucket Capacity | 0.4 yd3 (0.31 m3) |
| Operating Load Rating | 1505 lb (682 kg) |
| Breakout Force (Bucket) | 3139 lb (1424 kg) |
| Breakout Force (Boom) | 2890 lb (1310 kg) |
| Tipping Load | 3009 lb (1365 kg) |
| B. Hinge Pin Height | 112.0 in (2845 mm) |
| K. Dump Angle | 45° |
| L. Dumping Height | 86.3 in (2192 mm) |
| M. Maximum Reach | 20.4 in (518 mm) |
| N. Max. Rollback at Ground | 25° |
| O. Max. Rollback- Extended | 94° |

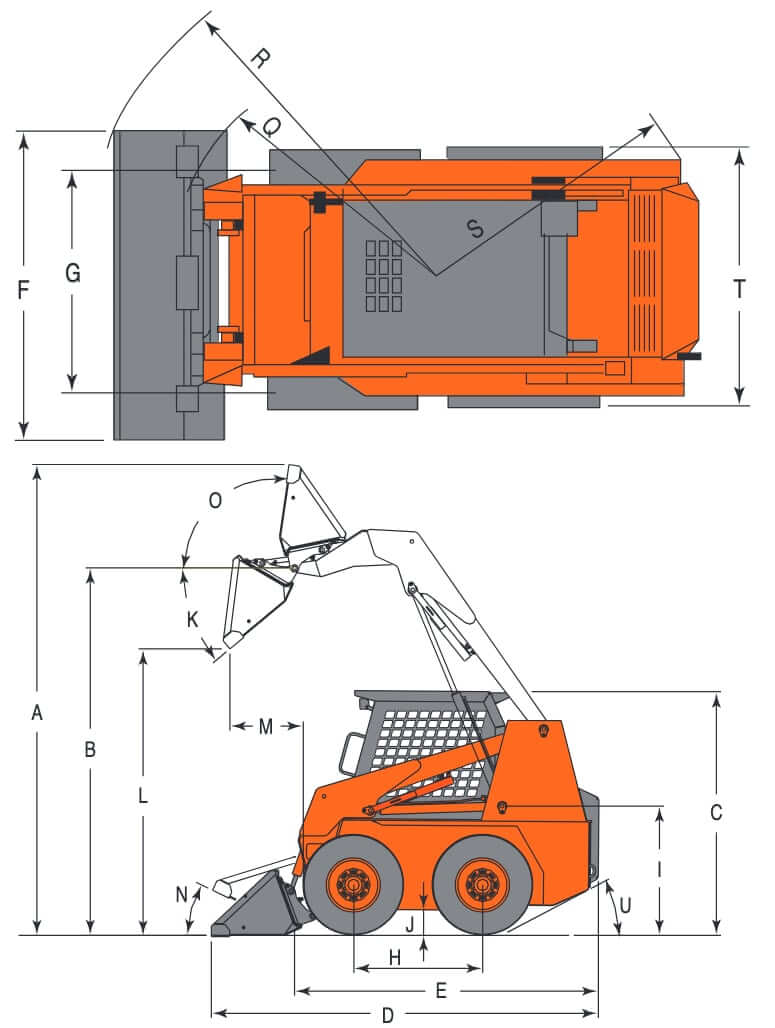

Dimensions
| A. Height at Maximum Extension | 142.4 in (3617 mm) |
| B. Hinge Pin Height | 112.0 in (2845 mm) |
| C. Height To Top Of Cab | 76.1 in (1934 mm) |
| D. Length with Bucket | 120.0 in (3047 mm) |
| E. Length without Bucket | 93.3 in (2371 mm) |
| F. Width with Bucket | 61.5 in (1562 mm) |
| G. Track Width | 58.5 in (1486 mm) |
| H. Wheelbase | 37.7 in (957 mm) |
| I. Seat Index Point | 37.8 in (959 mm) |
| J. Ground Clearance | 7.5 in (190 mm) |
| K. Dump Angle | 45° |
| L. Dumping Height | 86.3 in (2192 mm) |
| M. Maximum Reach | 20.4 in (518 mm) |
| N. Max. Rollback at Ground | 25° |
| O. Max. Rollback- Extended | 94° |
| Q. Clearance Circle w/o Bucket | 46.6 in (1183 mm) |
| R. Clearance Circle with Bucket | 71.0 in (1804 mm) |
| S. Clearance Circle- Rear | 60.4 in (1534 mm) |
| T. Width w/o Bucket | 48.1 in (1222 mm) |
| U. Departure Angle | 27° |
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Cummins |
| Engine Model | Cummins A2000 |
| Displacement | 122 cu in (2.0 L) |
| Net Power | 45 hp (33 kw) |
| Power Measured @ | 2800 rpm |
| Peak Torque | 101.3 lb ft (137.3 Nm) |
| Torque Measured @ | 1600 rpm |
Operational Specs
| Operational Weight | 5703 lb (2587 kg) |
| Operating Voltage | 12 V |
| Max Travel Speed | 7.5 mph (12.1 km/h) |
| Front Tire Size | 10-16.5-6PR |
| Rear Tire Size | 10-16.5-6PR |
Hydraulic System
| Pump Type | Gear |
| Pump Flow Capacity | 11.8 gal/min (44.8 L/min) |
| Pump Flow Capacity (High Flow) | 25.9 gal/min (98 L/min) |
| Relief Valve Pressure | 2537.5 psi (17500 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 14 gal (53 L) |
| Engine Oil Capacity | 1.82 gal (6.9 L) |
| Cooling System Capacity | 2.32 gal (8.8 L) |
| Hydraulic Tank Capacity | 6.1 gal (23 L) |
| Chain Box Capacity (each side) | 1.7 gal (6.5 L) |
