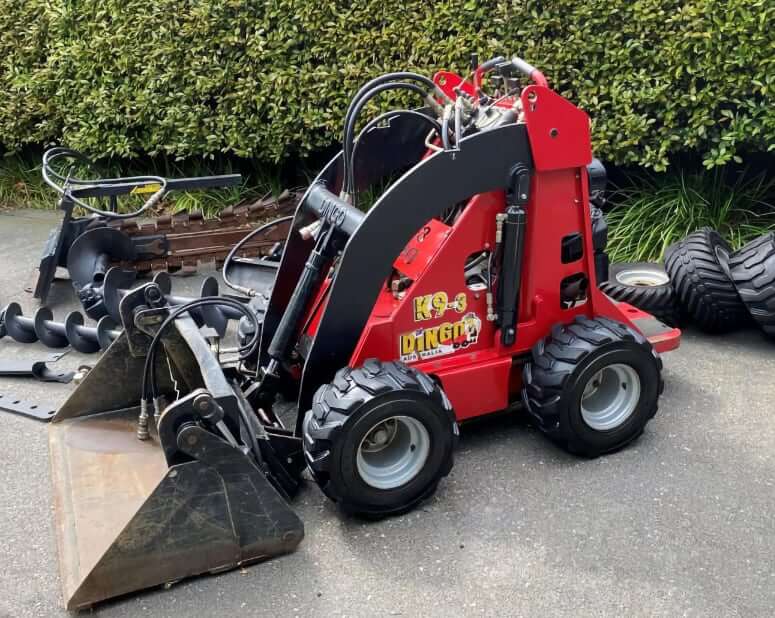

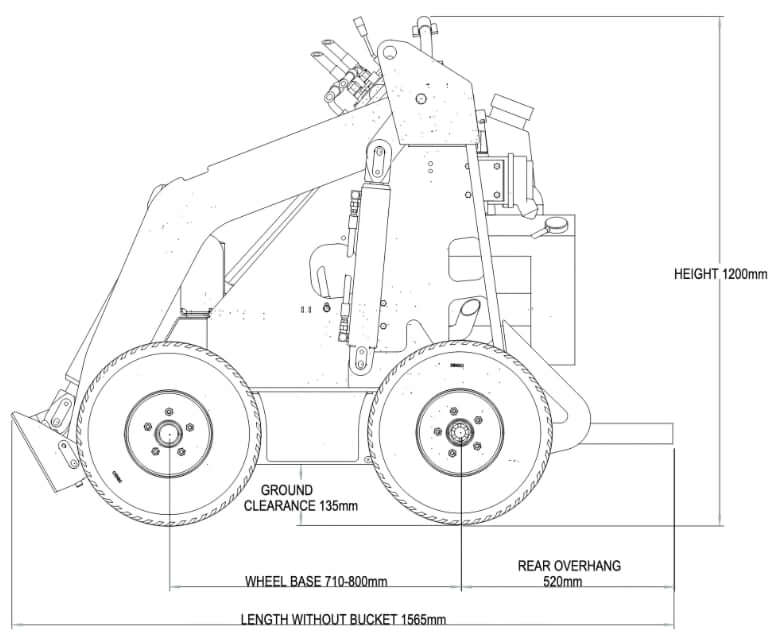

Dimensions
| Length w/o Attachments | 61.6 in (1565 mm) |
| Transport Width | 33-41 in (840-1040 mm) |
| Width w/ Bucket | 41.34 in (1050 mm) |
| Transport Height | 47.2 in (1200 mm) |
| Wheelbase | 31.5 in (800 mm) |
| Rear Overhang | 20.5 in (520 mm) |
| Ground Clearance | 5.3 in (135 mm) |
| Departure Angle | 20 degrees |
Track Width
| Tire Type | Machine Width |
|---|---|
| 8″ Dingo Tires | 38.2 in (970 mm) |
| 8″ Turf Tires | 40.9 in (1040 mm) |
| 8″ Lug Tractor Type Tires | 40.9 in (1040 mm) |
| 20 x 8″ Sand Tires | 43.3 in (1100 mm) |
| 5″ Forklift Type Tires | 35.0 in (890 mm) |
| 3″ Narrow Solid Tires | 33.1 in (840 mm) |
| Over-the-Tire Tracks | 47.2 in (1200 mm) |
Loader Working Range
| Dingo K9-3 Buckets | GP Bucket | 4 in 1 Bucket |
|---|---|---|
| Bucket Capacity | 0.14 yd3 (0.11 m3) | 0.14 yd3 (0.11 m3) |
| Max Lifting Capacity | 1102 lb (500 kg) | 1102 lb (500 kg) |
| Safe Lifting Capacity | 551 lb (250 kg) | 551 lb (250 kg) |
| Bucket Width | 41.34 in (1050 mm) | 41.34 in (1050 mm) |
| Max Dumping Height | 48.8 in (1240 mm) | 68.9 in (1750 mm) |
| Reach at Max Lift and Dump | 23.6 in (600 mm) | 23.6 in (600 mm) |
| Max. Operating Height | 81.9 in (2080 mm) | 81.9 in (2080 mm) |
| Height to Hinge Pin at Max Lift | 66.1 in (1680 mm) | 66.1 in (1680 mm) |
Engine Details
| Engine Make | Perkins | Kohler | Robin |
|---|---|---|---|
| Number Of Cylinders | 3 | 2 | 2 |
| Engine Model | Perkins 403C-07 | Kohler CH23 Twin | Robin EH65 V-Twin |
| Displacement | 46.5 cu in (0.762 L) | 41.0 cu in (0.674 L) | 39.8 cu in (0.653 L) |
| Gross Power | 20.2 hp (15 kw) | 22.7 hp (16.9 kw) | 22 hp (16.4 kw) |
| Power Measured @ | 3600 rpm | 3600 rpm | 3600 rpm |
| Peak Torque | 32.8 lb-ft (44.5 Nm) | 35.79 lb ft (48.5 Nm) | 33.6 lb ft (45.6 Nm) |
| Torque Measured @ | 2200 rpm | 2400 rpm | 2500 rpm |
| Cooling System | Liquid-cooled | Air-cooled | Air-cooled |
Operational Specs
| Operating Weight | 1653 lb (750 kg) |
| Transmission Type | OEM manufactured hydraulic drive motors |
| Max Travel Speed, Forward | 3.7 mph (6 km/h) |
| Max Travel Speed, Reverse | 3.7 mph (6 km/h) |
| Operating Voltage | 12 V |
| Battery | 12 V, CCA 380 |
| Turning Radius with Bucket | 51.2 in (1300 mm) |
| Optional Tires | 8″ Dingo Tires, 8″ Turf, 8″ Lug, 20 x 8″ Sand, 5″ Forklift Type, 3″ Narrow Solid Tires |
Hydraulic System
| Pump Type | 2x Gear pumps |
| Pump Flow Capacity | 11.4 gal/min (43 L/min) |
| Relief Valve Pressure | 3000 psi (20600 kPa) |
| Hydraulic Oil Filtration | 25 microns |
| Hydraulic Couplers | 1x Auxiliary Hydraulic Outlet |
Service Refill Capacities
| Engine Model | Perkins 403C-07 | Kohler CH23 | Robin EH65 |
|---|---|---|---|
| Fuel Tank Capacity | 4.5 gal (17 L) | 4.5 gal (17 L) | 4.5 gal (17 L) |
| Hydraulic System Capacity | 15.6 gal (60 L) | 15.6 gal (60 L) | 15.6 gal (60 L) |
| Engine Oil Capacity w/ Filter | 0.8 gal (3.05 L) | 0.48 gal (1.8 L) | 0.41 gal (1.55 L) |
| Coolant Capacity | 0.32 gal (1.2 L) | Air-cooled | Air-cooled |
