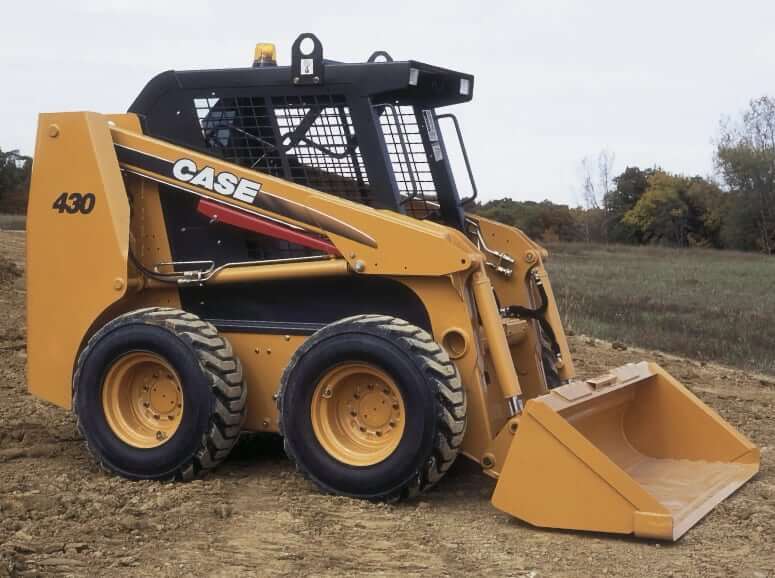

| Tipping Load |
4000 lb (1815 kg) |
| Rated Operating Capacity* |
2000 lb (908 kg) |
| Breakout Force (Lift cylinder)* |
4520 lbf (20.1 kN) |
| Breakout Force (Bucket cylinder)* |
5413 lbf (24.1 kN) |
| Standartd Bucket Width |
66 in (1676 mm) |
| Raise Time |
4.5 sec |
| Lower Time |
3.0 sec |
| Dump Time |
2.2 sec |
| Rollback Time |
1.9 sec |
SAE rated lift capacities. Breakout force and cycle time measured with rated load in FE (foundry / excavating) bucket, 66 in (1676 mm).

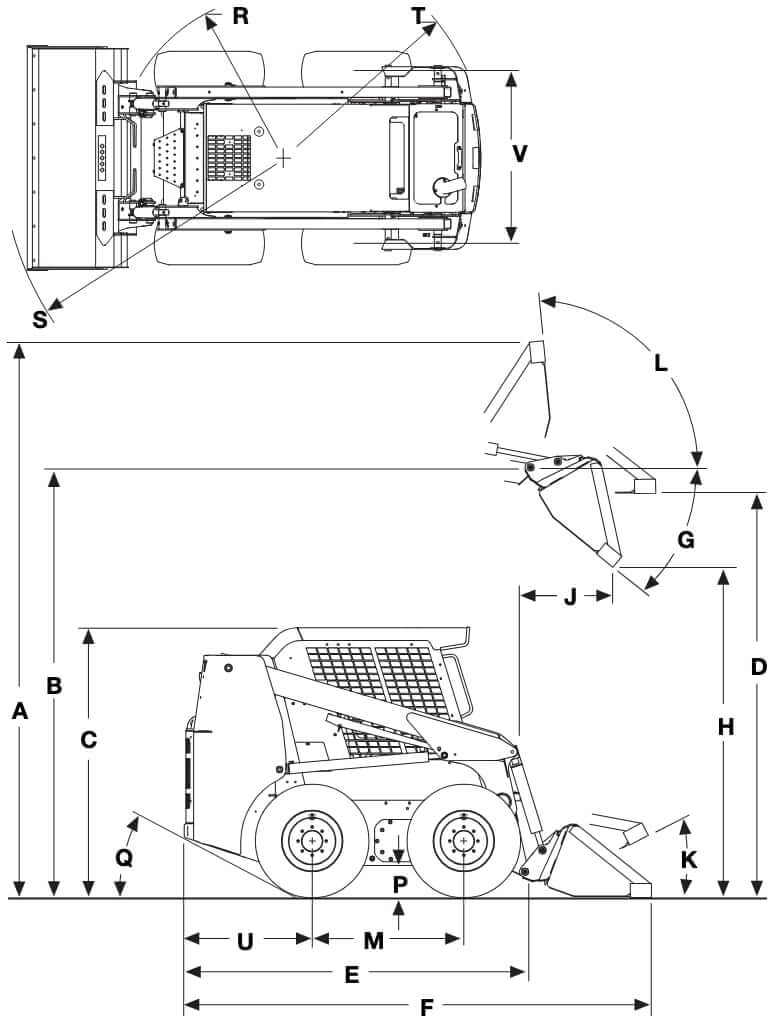

Dimensions
| A. Overall Operating Height w/ FE Bucket (Short lip) |
152.4 in (3871 mm) |
| A. Overall Operating Height w/ LP Bucket (Standard lip) |
158.0 in (4013 mm) |
| A. Overall Operating Height w/ LPE Bucket (Long lip) |
163.0 in (4140 mm) |
| B. Height to Bucket Hinge Pin |
121.5 in (3086 mm) |
| C. Height to Top of Rollover Protective Structure |
76.7 in (1948 mm) |
| D. Height to Bottom of Level Bucket, Loader Arm Fully Raised |
114.2 in (2901 mm) |
| E. Overall Length w/o Attachment w/ Coupler |
103.9 in (2639 mm) |
| F. Overall Length w/ FE Bucket on Ground |
127.2 in (3231 mm) |
| F. Overall Length w/ LP Bucket on Ground |
132.9 in (3376 mm) |
| F. Overall Length w/ LP Extended Bucket on Ground |
137.9 in (3503 mm) |
| G. Dump Angle at Maximum Height |
39° |
| H. Dump Height – Loader Arm Fully Raised w/ FE Bucket |
96.6 in (2454 mm) |
| H. Dump Height – Loader Arm Fully Raised w/ LP Bucket |
93.1 in (2365 mm) |
| H. Dump Height – Loader Arm Fully Raised w/ LPE Bucket |
90.0 in (2286 mm) |
| J. Reach – Loader Arm Fully Raised w/ FE Bucket |
21.3 in (541 mm) |
| J. Reach – Loader Arm Fully Raised w/ LP Bucket |
25.9 in (658 mm) |
| J. Reach – Loader Arm Fully Raised w/ LPE Bucket |
29.7 in (754 mm) |
| K. Maximum Attachment Rollback – Bucket on Ground |
32° |
| L. Maximum Attachment Rollback – Bucket at Full Height |
84° |
| M. Wheelbase |
43.1 in (1095 mm) |
| N. Ground Clearance |
9 in (229 mm) |
| P. Bottom of Belly Pan |
9 in (229 mm) |
| Q. Angle of Departure |
28° |
| R. Clearance Circle Front (Less Bucket) |
50.3 in (1278 mm) |
| S. Clearance Circle Front w/ 66 in (1680 mm) FE Bucket on Ground |
76.7 in (1948 mm) |
| S. Clearance Circle Front w/ 66 in (1680 mm) LP Bucket on Ground |
81.9 in (2080 mm) |
| S. Clearance Circle Front w/ 66 in (1680 mm) LPE Bucket on Ground |
83.1 in (2110 mm) |
| T. Clearance Circle Rear |
59.1 in (1501 mm) |
| U. Rear Axle to Bumper |
36.6 in (930 mm) |
| V. Tread Width, Centerline to Centerline |
52.6 in (1336 mm) |

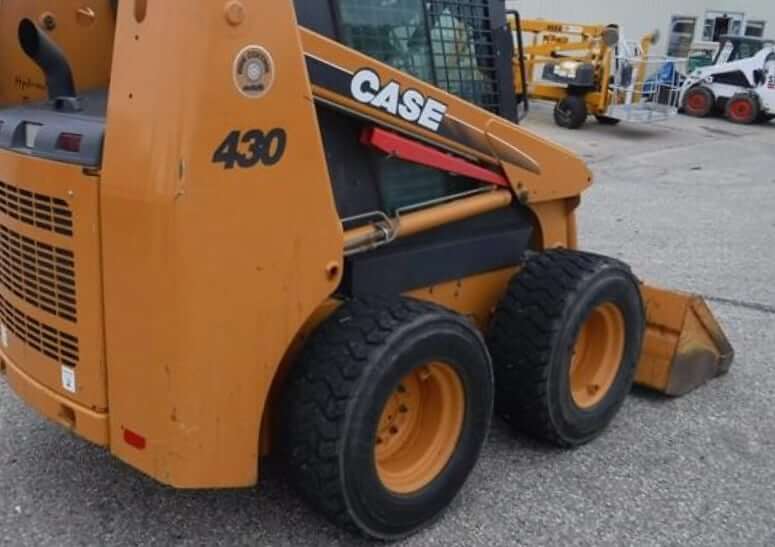

Tires
| Model |
Tire Size |
Width Over Tires |
| Solideal Hauler SKS |
12.00 x 16.5 10PR |
64 in (1526 mm) |
| Solideal Hauler SKS (offset wheel) |
12.00 x 16.5 10PR |
71 in (1803 mm) |
| Galaxy Beefy Baby II |
12.00 x 16.5 10PR |
64 in (1526 mm) |
| Galaxy Beefy Baby (offset wheel) II |
12.00 x 16.5 10PR |
71 in (1803 mm) |
| Galaxy Hulk |
12.00 x 16.5 12PR |
64 in (1526 mm) |
| Galaxy Bulky Hulk |
33/15.50 x 16.5 14PR |
70 in (1778 mm) |
Buckets
| Bucket Type |
Bucket Width |
Weight |
Heaped Capacity |
| Foundry / Excavating |
66 in (1676 mm) |
370 lb (168 kg) |
15.2 ft3 (0.43 m3) |
| Foundry / Excavating |
72 in (1829 mm) |
390 lb (177 kg) |
16.7 ft3 (0.47 m3) |
| Foundry / Excavating |
78 in (1981 mm) |
495 lb (225 kg) |
18.4 ft3 (0.52 m3) |
| Low Profile |
66 in (1676 mm) |
400 lb (181 kg) |
13.2 ft3 (0.37 m3) |
| Low Profile |
72 in (1829 mm) |
425 lb (193 kg) |
14.5 ft3 (0.41 m3) |
| Low Profile Extended |
66 in (1676 mm) |
434 lb (197 kg) |
15.5 ft3 (0.44 m3) |
| Low Profile Extended |
72 in (1829 mm) |
477 lb (216 kg) |
17.1 ft3 (0.48 m3) |
| Low Profile Extended |
78 in (1981 mm) |
502 lb (228 kg) |
18.6 ft3 (0.53 m3) |
| Utility / Light Material |
72 in (1829 mm) |
434 lb (197 kg) |
23.7 ft3 (0.67 m3) |
| Utility / Light Material |
84 in (2134 mm) |
497 lb (225 kg) |
27.9 ft3 (0.79 m3) |
| Manure / Slurry |
72 in (1829 mm) |
465 lb (211 kg) |
19.1 ft3 (0.54 m3) |
Engine Details
| Number of Cylinders |
4 |
| Engine Make |
Case |
| Engine Model |
Case Family III 445/M2 |
| Displacement |
274 cu in (4.5 L) |
| Bore |
4.1 in (104 mm) |
| Stroke |
5.2 in (132 mm) |
| Gross Horsepower |
80 hp (60 kw) |
| Net Horsepower |
74 hp (55.2 kw) |
| Power Measured @ |
2300 rpm |
| Peak Torque |
236 lb ft (320 Nm) |
| Torque Measured @ |
1400 rpm |
| Fuel System |
Direct injection |
| Low Idle RPM |
1050 rpm |
| High Idle RPM |
2480 rpm |
| Air Cleaner |
Dual element air cleaner |
| Aspiration |
Naturally Aspirated |
| Emission Standards |
US EPA Tier 2 + EU Stage II |
Operational Specs

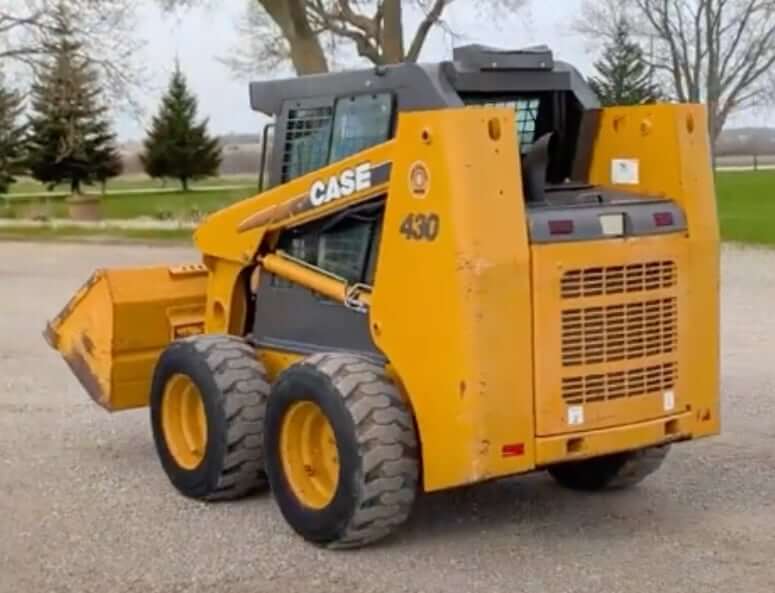

| Operating Weight |
6875 lb (3119 kg) |
| Shipping Weight |
6207 lb (2816 kg) |
| Rated Operating Capacity |
2000 lb (908 kg) |
| Operating Voltage |
12 V |
| Alternator |
95 amps |
| Battery |
12 V, CCA 850 |
| Operator Station |
ROPS/FOPS canopy with side screens |
| Operator Seat |
Water-shedding vinyl seat with 2 in (51 mm) retractable seat belt |
| Operator Seat (Optional) |
Vinyl suspension seat with 3 in (76 mm) retractable seat belt |
Powertrain
| Type |
Tandem, axial piston hydrostatic transmission with integral charge pump driven directly off engine flywheel |
| Max Travel Speed, Low |
7.3 mph (11.8 km/h) |
| Max Travel Speed, High |
11.9 mph (19.2 km/h) |
| Drive Motors |
Fixed displacement radial piston |
| Final Drive |
Single-reduction chain drive |
| Hydrostatic Flow |
Bi-directional |
| Controls |
Servo |
| Drive Chain Size |
ASA #100HV. Tensile strength 30000 lb (133.4 kN) |
| Drive |
Hydrostatic four wheel drive |
| Parking Brake |
Spring applied, hydraulic release disc |
Hydraulic System
| Main Pump Type |
Gear pump |
| Pump Flow Capacity |
21 gal/min (79.4 L/min) |
| High Flow Capacity (Optional) |
31 gal/min (117 L/min) |
| Relief Valve Pressure |
3000 psi (20700 kPa) |
| Loader Control Valve |
3-spool open-center series with power beyond port |
| Port Relief Pressure #1B Raise |
3350 psi (23000 kPa) |
| Hydraulic Oil Filtration |
6 micron spin onreplaceable element on the return line withwarning indicator |
Service Refill Capacities
| Fuel Tank Capacity |
22 gal (83.3 L) |
| Engine Oil Capacity (w/ filter) |
3.2 gal (12 L) |
| Cooling System Capacity |
4.5 gal (17 L) |
| Hydraulic System Capacity (w/ tank) |
13.3 gal (50.2 L) |
| Hydraulic Tank Capacity |
7.1 gal (32.4 L) |
| Chain Box Capacity (each side) |
1.5 gal (5.7 L) |
