Loader
| Tipping Load | 4126 lb (1472 kg) |
| Rated Operating Capacity (ROC), SAE J732 | 1750 lb (794 kg) |
| ROC with Counterweight (optional) | 1850 lb (839 kg) |
| Lift Breakout Force (SAE) | 3600 lbf (16.01 kN) |
| Tilt Breakout Force (SAE) | 3550 lbf (15.79 kN) |
| Push Force | 4300 lbf (19.13 kN) |
| Bucket Width (Standard) | 68 in (1727 mm) |
| Bucket Width (Option #1) | 62 in (1575 mm) |
| Bucket Width (Option #2) | 74 in (1880 mm) |

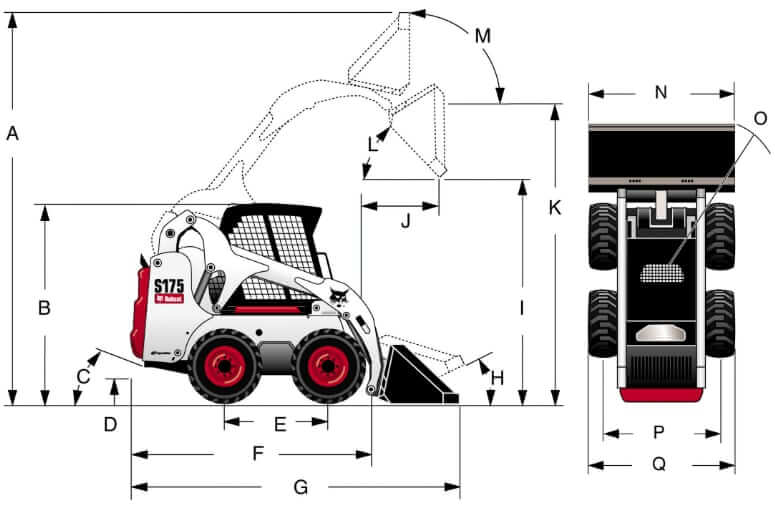

Dimensions
| A. Operating Height | 152.1 in (3863 mm) |
| B. Height with Operator Cab | 76.3 in (1938 mm) |
| C. Angle of Departure | 23° |
| D. Ground Clearance | 7.5 in (191 mm) |
| E. Wheelbase | 40.6 in (1030 mm) |
| F. Length without Attachment | 101.8 in (2586 mm) |
| G. Length with Standard Bucket | 130.3 in (3309 mm) |
| H. Rollback @ Carry Position | 27° |
| I. Dump Height with Standard Bucket | 91.0 in (2310 mm) |
| J. Dump Reach @ Maximum Height | 29.6 in (752 mm) |
| K. Height to Bucket Hinge Pin | 118.2 in (3002 mm) |
| L. Dump Angle @ Maximum Height | 42° |
| M. Rollback Fully Raised @ Maximum Height | 95° |
| N. Width Over Bucket | 68 in (1727 mm) |
| O. Turning Radius with Standard Bucket | 78.8 in (2001 mm) |
| O. Turning Radius Rear Clearance of Machine | 62.2 in (1579 mm) |
| P. Wheel Tread (10-16.5) | 56.4 in (1433 mm) |
| Q. Width Over Tires (10-16.5) | 66.0 in (1676 mm) |
| Carry Position | 9.0 in (229 mm) |
Engine Details
| Engine Model | Kubota V2403-MDI-E3 | Kubota V2203-M-DI |
|---|---|---|
| Number of Cylinders | 4 | 4 |
| Displacement | 149 cu in (2.4 L) | 134 cu in (2.2 L) |
| Bore | 3.43 in (87 mm) | 3.43 in (87 mm) |
| Stroke | 4.03 in (102 mm) | 3.64 in (92.4 mm) |
| Gross Horsepower | 49 hp (36 kw) | 46 hp (34 kw) |
| Power Measured @ | 2700 rpm | 2800 rpm |
| Peak Torque | 109.6 lb ft (149 Nm) | 103.5 lb ft (140 Nm) |
| Torque Measured @ | 1650 rpm | 1700 rpm |
| Fuel Consumption | ≈1.8 gph (6.8 L/h) | ≈1.7 gph (6.4 L/h) |
| Fuel System | In-line pump | In-line pump |
| Air Cleaner | Dry replaceable paper cartridge with safety element | Dry replaceable cartridge w/safety element |
| Lubrication System | Gear Pump Pressure | Pressure system with filter |
| Aspiration | Naturally aspirated | Naturally aspirated |
| Emission Standards | US EPA Tier 2 + EU Stage II | US EPA Tier 2 + EU Stage II |
Operational Specs
| Operating Weight | 6290 lb (2453 kg) |
| Tipping Load | 4126 lb (1472 kg) |
| Rated Operating Capacity | 1750 lb (794 kg) |
| Operating Voltage | 12 V |
| Alternator | 90 amps |
| Battery | 12 V, RC: 115 min, CCA 600 |
| Starter | 12 V, gear type, 3.6 hp (2.7 kw) |

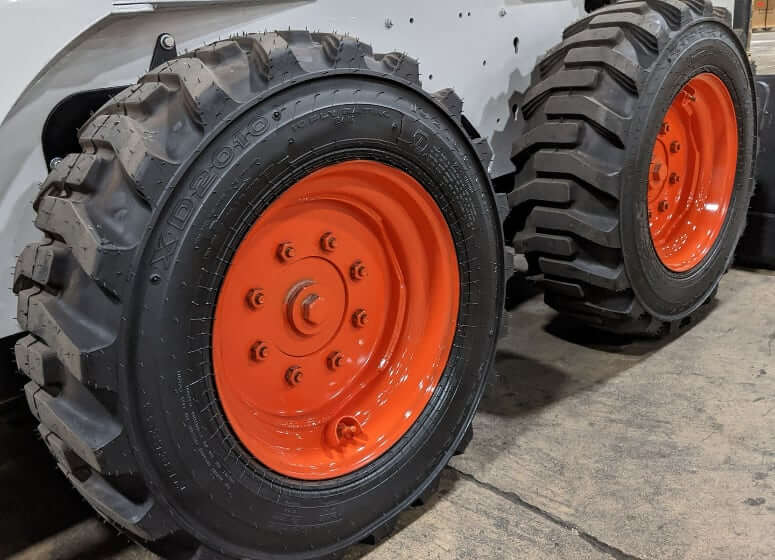

| Tire Size (Standard) | 10×16.5 |
| Tire Size (Optional) | 31.5×13-16.5 |
Power Train
| Type | Fully hydrostatic transmission, 4WD |
| Number of Gears | Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motors |
| Max Travel Speed (Single Speed) | 7.3 mph (11.8 km/h) |
| Max Travel Speed (2-Speed) | 7.3 mph (11.8 km/h), low 11.1 mph (17.9 km/h), high |
| Final Drive Chains | Prestressed #80 HSOC endless roller chain and sprockets in sealed chaincase with oil lubrication. 2 chains per side with no idler sprocket |
| Service Brakes | 2 independent hydrostatic systems controlled by two hand operated steering levers or optional joystick(s) |
| Secondary Brake | 1 of the hydrostatic transmissions |
| Parking Brake | Mechanical disc, manually operated switch on front instrument panel |
Operator Environment
| Cab (Options) | Open Cab Package / Heated Cab Package |
| ROPS | SAE-J1040 and ISO 3471 |
| FOPS | SAE-J1043 and ISO 3449, Level I |
| Operator Seat | Cushion suspension seat |
| Working Lights | 2x Front + 2 Rear working lights |
| Noise Level Operator LpA (98/37 & 474-1) | 85 dB(A) |
| Noise Level LWA (EU Directive 2000/14/EC) | 101 dB(A) |
| Whole body vibration (ISO 2631–1) | 1.09 ms2 |
| Hand-arm vibration (ISO 5349–1) | 2.61 ms2 |
Hydraulic System
| Type | Open center hydraulic system |
| Pump Type | Engine driven, gear type |
| Standard Pump Flow | 16.9 gal/min (64 L/min) |
| High Flow Pump Flow (optional) | 26.4 gal/min (100 L/min) |
| Standard Relief Pressure at Quick Couplers | 3300 psi (22753 kPa) |
| Hydraulic Filter | Full flow replaceable, 3-micron synthetic media element |
| Hydraulic Cylinders | Double-acting; Tilt cylinders have cushioning feature on dump |
| Fluid Lines | SAE Standard tubelines, hoses and fittings |
Service Refill Capacities
| Engine Model | Kubota V2403 | Kubota V2203 |
|---|---|---|
| Fuel Tank Capacity | 24 gal (90.8 L) | 23 gal (87.1 L) |
| Engine Oil Capacity (w/ Filter) | 2.4 gal (9.0 L) | 2.4 gal (9.0 L) |
| Cooling System Capacity (Cab w/o HVAC) | 2.6 gal (10.4 L) | 2.6 gal (10.4 L) |
| Cooling System Capacity (Cab w/ HVAC) | 2.9 gal (11.4 L) | 2.9 gal (11.4 L) |
| Hydraulic System Fluid Capacity | 8.5 gal (32.2 L) | 8.5 gal (32.2 L) |
| Hydraulic Tank Capacity | 4.8 gal (18.2 L) | 4.8 gal (18.2 L) |
| Chaincase Reservoir Capacity | 9 gal (34.1 L) | 9 gal (34.1 L) |
Bobcat S175 Filters
| Filter | Part Number |
|---|---|
| Air Filter (Inner) | 6598362 |
| Air Filter (Outer) | 6598492 |
| Engine Oil Filter | 6675517 |
| Fuel Filter | 6667352 |
| Hydraulic Filter | 6661248 6661807 |
| Case Drain Filter | 6661022 |
| Hydraulic Fill/Breather Cap | 7025626 |
| Heater Filter | 6677983 |
| Recirculating Air Filter | 6678207 |
| Cooling/Charge Filter, S/N: 5250 11001-; 5251 11001-; 5252 11001-; 5253 11001-; 5301 11001-; 5302 11001-; A8M4 11001-; A8NY 11001-; A8NZ 11001-; A3L5 11001- | 6686926 |

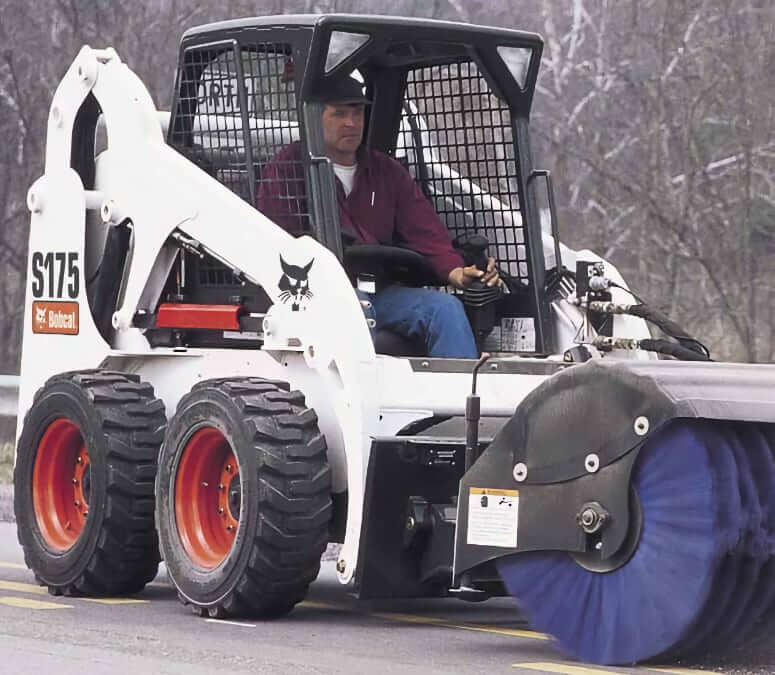

The Bobcat S175 Skid Steer Loader is a compact yet powerful machine known for its versatility and dependable performance in a wide range of applications. Designed to adapt to the diverse needs of construction, landscaping, agriculture, and industrial operations, the S175 supports an extensive lineup of Bobcat-approved attachments.
From earthmoving to snow management, lifting, trenching, or material handling, this loader is compatible with tools like angle brooms, augers, breakers, trenchers, grapples, planers, pallet forks, and much more. Whether you’re prepping a jobsite, clearing snow, grading surfaces, or managing materials, the Bobcat S175 delivers the flexibility and performance to get the job done efficiently with the right attachment.
