Loader
| Tipping Load | 3800 lb (1724 kg) |
| Rated Operating Capacity (ROC) | 1900 lb (862 kg) |
| ROC with Counterweight | 2000 lb (907 kg) |
| Breakout Force, Lift (SAE) | 3700 lbf (16.5 kN) |
| Breakout Force, Tilt (SAE) | 3800 Ibf (16.9 kN) |
| Bucket Width (Standard) | 74 in (1880 mm) |
| Bucket Width (Optional) | 68 in (1727 mm) |

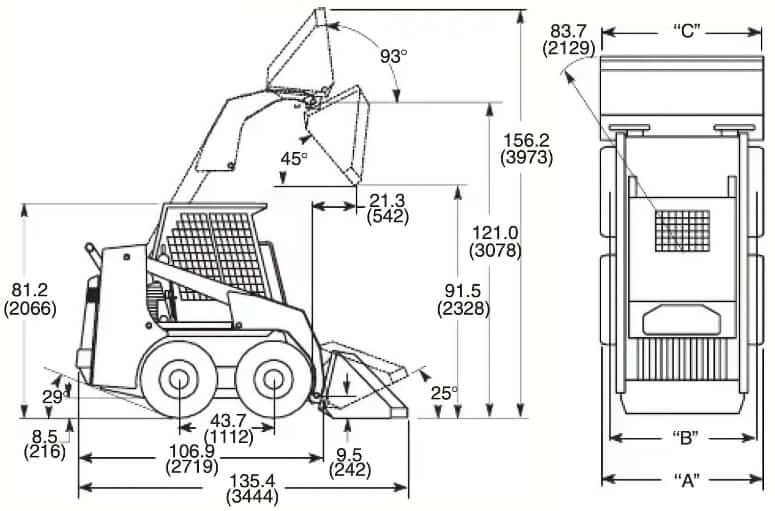

Dimensions
| Operating Height | 156.2 in (3968 mm) |
| Height with Operator Cab | 82.3 in (2090 mm) |
| Length without Attachment | 106.9 in (2715 mm) |
| Length with Standard Bucket | 135.4 in (3439 mm) |
| A. Width over Tires (12-16.5) | 67.0 in (1702 mm) |
| B. Wheel Tread (12-16.5) | 54.4 in (1382 mm) |
| C. Width over Standard Bucket | 74.0 in (1880 mm) |
| Ground Clearance | 8.5 in (216 mm) |
| Angle of Departure | 29° |
| Wheelbase | 43.7 in (1110 mm) |
| Turning Radius | 83.7 in (2166 mm) |
| Dump Height with Standard Bucket | 91.5 in (2324 mm) |
| Height to Bucket Hinge Pin | 121.0 in (3073 mm) |
| Dump Reach @ Maximum Height | 21.3 in (540 mm) |
| Dump Angle @ Maximum Height | 45° |
| Rollback Fully Raised @ Maximum Height | 93° |
| Rollback @ Ground | 25° |
Tires
| Tire Type | Tire Size |
|---|---|
| Standard Tires | 12-16.5, 10 ply rating |
| Flotation Tires | 31-15.5 x 15, 8 Ply Rating |
| Industrial Tires | 8.25 x 15 |
| Solid Rubber Tires | 8 x 16 |

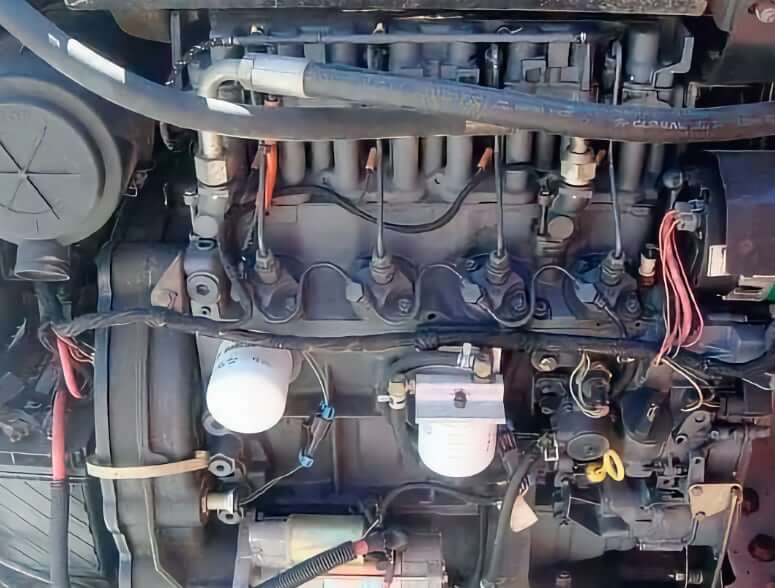

Engine Details
| Number of Cylinders | 4 |
| Engine Make | Deutz |
| Engine Model | Deutz BF4M1011F |
| Displacement | 178 cu in (2.912 L) |
| Bore | 3.58 in (91 mm) |
| Stroke | 4.41 in (112 mm) |
| Gross Horsepower | 83 hp (61.0 kw) |
| Net Horsepower | 73 hp (53.7 kw) |
| Power Measured @ | 2400 rpm |
| Peak Torque | 176 lb ft (238 Nm) |
| Torque Measured @ | 1800 rpm |
| Lubrication System | Pressure system with filter |
| Cooling System | Fully oil cooled (with conventional cooling system) |
| Crankcase Ventilation | Closed |
| Air Cleaner | Dry replaceable cartridge with safety element |
| Low Idle | 1125 – 1175 rpm |
| High Idle | 2425 – 2475 rpm |
| Aspiration | Turbocharged |
| Specific Fuel Consumption | 0.34 lb/hph (207 g/kWh) |
Operational Specs
| Operating Weight (Bobcat 863) | 7135 lb (3239 kg) |
| Operating Weight (Bobcat 863H) | 7180 lb (3260 kg) |
| Tipping Load | 3800 lb (1724 kg) |
| Max Lift Capacity (w/ counterweight) | 2000 lb (907 kg) |
| Operating Voltage | 12 V |
| Alternator | 50 amps |
| Battery | 12 V, RC: 180 min, CCA 1000 |
| Starter | 12 V, Direct Drive 4 hp (3 kw) |
Operator Environment
| Cab | Deluxe Cab |
| Cab (Optional) | Cab Enclosure with Heater |
| ROPS / FOPS | SAE J1040 and SAE J1043 |
| Working Lights | 2x Front working lights + 2 Rear working lights |
| Operator Seat | Adjustable Cushion Seat |
| Operator Seat (Optional) | Suspension Seat (Vinyl or Cloth Cover) |
| Control | Forward, reverse, travel speed and steering controlled by two hand levers. Raise/lower lift arms and dump/rollback bucket controlled by two foot pedals or optional hand controls |
Transmissiom
| Drive | Hydrostatic 4 wheel drive |
| Transmission | Infinitely variable tandem hydrostatic piston pumps, driving 2 fully reversing hydrostatic motors |
| Final Drive | #100 HS endless roller chain & sprockets in sealed chaincase with oil |
| Total Engine to Wheel Reduction | 39:1 |
| Max Travel Speed, One-Speed | 7.2 mph (11.6 km/h) |
| Max Travel Speed, Two-Speed (Optional) | 12.5 mph (20.1 km/h) |
| Axle Size | 2.76 in (70 mm) |
| Axle Torque | 6100 lb ft (8271 Nm) |
| Service Brakes | Two independent hydrostatic systems controlled by two hand operated steering levers |
| Secondary Brake | One of the hydrostatic transmissions |
| Parking Brake | Mechanical disc, foot operated pedal |
Hydraulic System
| Model | Bobcat 863 | Bobcat 863H |
|---|---|---|
| Type | Open center hydraulics | Open center hydraulics |
| Hydraulic Pump Type | Engine driven, gear type pump | Engine driven, gear type pump |
| Standard Pump Flow | 18.0 gpm (68.1 L/min) | 18.0 gpm (68.1 L/min) |
| High Flow Pump Capacity | 28.0 gpm (106.0 L/min) | |
| System Relief at Quick Couplers | 3000 psi (20685 kPa) | 3000 psi (20685 kPa) |
| Control Valve | 3-spool, open center type w/float detent on lift and electrically controlled auxiliary spool | |
| Hydraulic Oil Filtration | Full flow replaceable, 3 micron synthetic media element | |
| Fluid Lines | SAE standard tubelines, hoses, and fittings | |
| Raise Lift Arms Time | 5.1 sec | |
| Lower Lift Arms Time | 3.3 sec | |
| Bucket Dump Time | 2.8 sec | |
| Bucket Rollback Time | 2.4 sec | |
| Fluid Type | Bobcat Fluid (P/N 6563328) if fluid is not available, use 10W-30 / 10W-40 Class SE motor oil for temperatures above 0°F (-18°C) 5W-30 Motor Oil for temperatures below 0°F (-18° C). | |
Service Refill Capacities
| Fuel Tank Capacity | 25 gal (94.6 L) |
| Engine Oil Capacity (w/ filter) | 4 gal (15.1 L) |
| Hydraulic System Capacity | 10 gal (38 L) |
| Hydraulic Tank Capacity | 4 gal (15.1 L) |
| Chaincase Reservoir | 11 gal (42 L) |
Bobcat 863 Filters
| Filter | Part Number |
|---|---|
| Inner Air Filter | 6666376 |
| Outer Air Filter | 6666375 |
| Engine Oil Filter | 6665603 |
| Fuel Filter In-line | 6667352 |
| Hydraulic Oil Filter | 6661248 |
| Hydraulic Oil Filter (In-Line) | 6661807 |
| Cab Recirculating Air Filter | 6678207 |
| Heater Filter | 6660880; 6727140; 6677983 |
The Bobcat 863 Skid Steer Loader supports a versatile lineup of attachments, making it a reliable machine for a wide range of applications – from construction and landscaping to snow removal and agriculture. Designed with powerful hydraulics and a vertical lift path, the 863 is compatible with both standard and hydraulically driven tools.
Available attachments include essentials like buckets, pallet forks, and augers, as well as more specialized tools such as stump grinders, trenchers, and graders. High-demand attachments like the snowblower, angle broom, and soil conditioner require the optional Attachment Control Kit for full functionality. This versatility allows the Bobcat 863 to tackle nearly any task on the jobsite.
