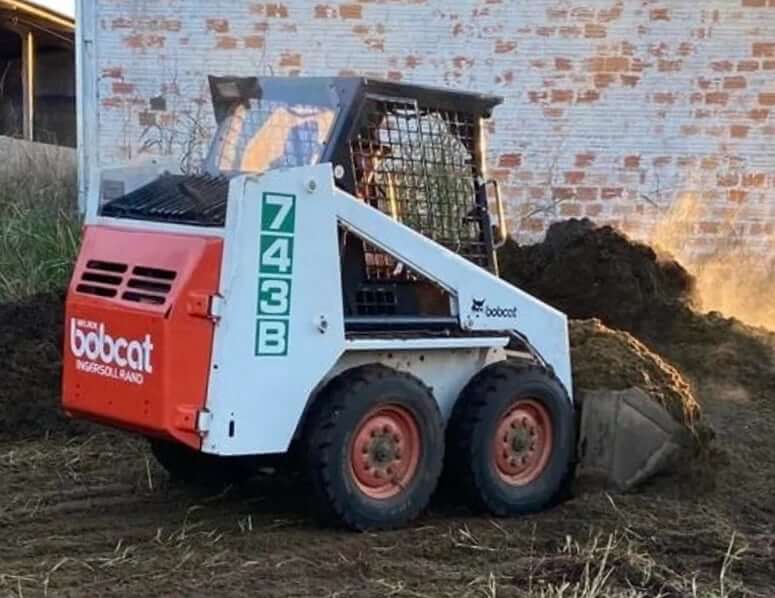

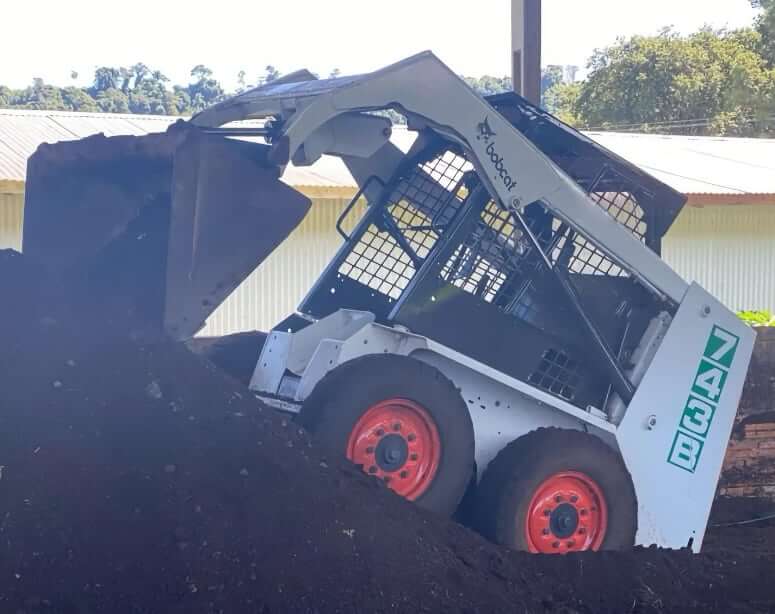

Loader Performance
| Tipping Load | 2600 lb (1180 kg) |
| Rated Operating Capacity (ROC) | 1300 lb (590 kg) |
| Bucket Width | 55.1 in (1400 mm) |
| Bucket Capacity | 9.5 ft3 (0.27 m3) |

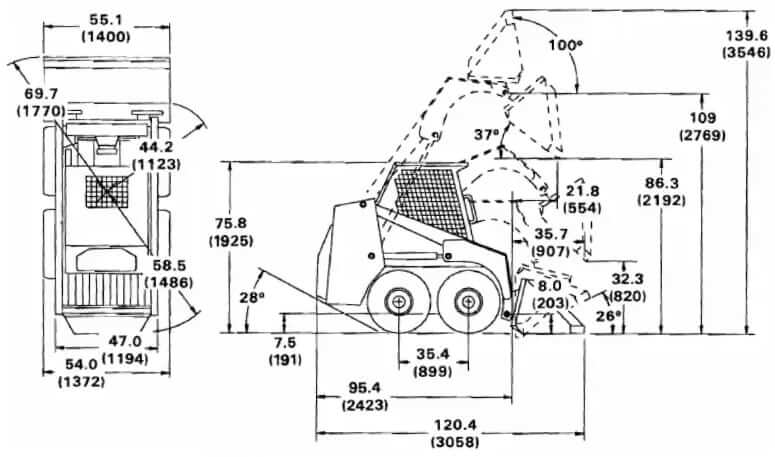

Dimensions
| Length w/o Attachment | 95.4 in (2422 mm) |
| Length w/ Bucket | 120.4 in (3058 mm) |
| Wheelbase | 35.4 in (899 mm) |
| Width Over Tires | 54 in (1372 mm) |
| Wheel Tread | 47 in (1194 mm) |
| Width Over Bucket | 55.1 in (1400 mm) |
| Operating Height | 139.6 in (3545 mm) |
| Height to Top of Cab | 75.8 in (1925 mm) |
| Ground Clearance | 7.5 in (189 mm) |
| Angle of Departure | 28° |
| Turning Radius Over Bucket | 69.7 in (1770 mm) |
| Turning Radius Over Rear Tires | 58.5 in (1486 mm) |
| Turning Radius Over Center | 44.2 in (1123 mm) |
| Dump Height with Bucket | 86.3 in (2192 mm) |
| Height to Bucket Hinge Pin | 109 in (2769 mm) |
| Height to Bucket Hinge Pin @ Ground | 8 in (203 mm) |
| Dump Reach @ Maximum Height | 21.8 in (554 mm) |
| Dump Angle @ Maximum Height | 37° |
| Rollback Fully Raised @ Maximum Height | 100° |
| Rollback @ Ground | 26° |

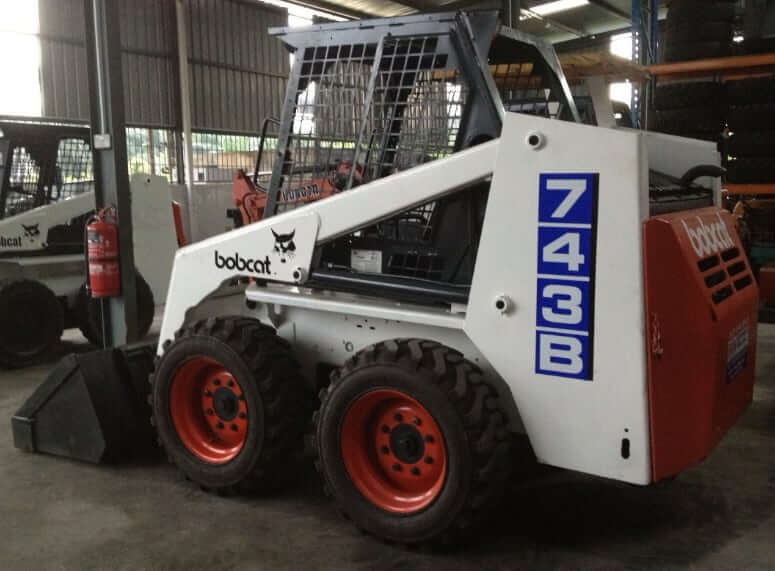

Tires
| Type | Tire Size | Tire Presssure |
|---|---|---|
| Standard | 7.00 x 15, 6 ply rating | 55 psi (379 kPa) |
| Flotation | 10 x 16.5, 4 ply rating | 35 psi (240 kPa) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Kubota |
| Engine Model | Kubota V1702 BA |
| Displacement | 105.7 cu in (1.732 L) |
| Bore | 3.23 in (82 mm) |
| Stroke | 3.23 in (82 mm) |
| Gross Horsepower | 36 hp (26.8 kw) |
| Power Measured @ | 2800 rpm |
| Peak Torque | 80 lb ft (108 Nm) |
| Torque Measured @ | 1600 rpm |
| Lubrication System | Gear pump pressure |
| Air Cleaner | Replaceable dry cartridge with safety element |
| Crankcase Ventilation | Open breathing |
| Governor | Centrifugal ball mechanical governor |
| Fuel System | Direct Bosch K-type mini fuel injection pump |
| Aspiration | Naturally aspirated |

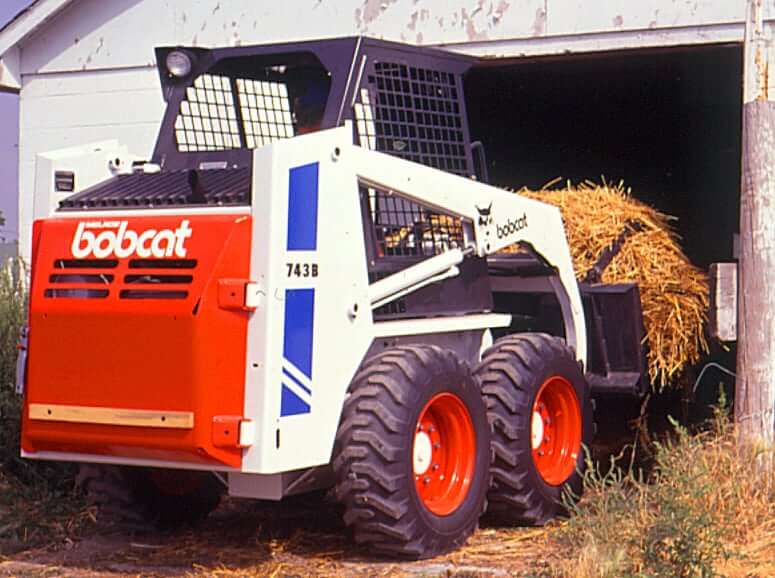

Operational Specs
| Operating Weight | 4720 lb (2143 kg) |
| Shipping Weight | 4330 Ib (1964 kg) |
| Load Capacity | 1300 lb (590 kg) |
| Operating Voltage | 12 V |
| Alternator | 55 amps |
| Battery | 12 V, CCA 625, RC: 170 min |
| Starter | 12 V, gear drive 4.15 hp (3.1 kw) |
Transmissiom
| Type | Hydrostatic transmission with tandem pumps driving 2 fully reversing hydrostatic motors |
| Hydrostatic Pump Type | Inline, axial piston pump |
| Hydrostatic Motor Type | Geroler |
| Final Drive | Gear reduction & #80 HS roller chain & sprockets in sealed chaincase with oil lubrication |
| Total Engine to Wheel Reduction | 40:1 |
| Max Travel Speed | 6 mph (9.7 km/h) |
Hydraulic System
| Control Valve | 3-Spool Melroe Control Valve |
| Hydraulic Pump Type | Vane pump / SN -13887 Gear pump / SN 13888- |
| Hydraulic Pump Flow | 12.1 gal/min (45.8 L/min) |
| System Relief Pressure | 2400 psi (16548 kPa) |
| Port Relief Pressure | 3500 psi (24132 kPa) |
| Replenishing Valves | 2 |
| Anti-Cavitation Valves | 2 |
| Load Check Valves | 3 |
| Hydraulic Oil Filtration | #3 Element |
| Type of Cylinders | Doubleacting cylinders |
| Tilt Cylinders, Bore x Rode x Stroke (1) | 3.25 x 1.50 x 12.3 in (82.55 x 38.1 x 312.42 mm) |
| Lift Cylinders, Bore x Rode x Stroke (2) | 2.00 x 1.25 x 25.0 in (50.80 x 31.75 x 635 mm) |
Hydraulic Function Time
| Move Lift Arms to Max Height | 3.5 sec. |
| Lower Lift Arms from Max Height | 2.7 sec. |
| Move Bucket to Dumping Position | 2.7 sec. |
| Move Bucket to Retracted Position | 2.3 sec. |
Service Refill Capacities
| Fuel Tank Capacity | 13 gal (49 L) |
| Engine Oil Capacity | 2.2 gal (8.5 L) |
| Cooling System Capacity | 3.3 gal (12.3 L) |
| Chaincase Reservoir Capacity | 9 gal (34 L) |
| Hydraulic Tank Capacity | 3.5 gal (13.2 L) |
| Hydraulic System Capacity (w/ tank) | 6 gal (22.7 L) |
Bobcat 743B Filters
| Filter | Part Number |
|---|---|
| Inner Air Filter | 6598362 |
| Outer Air Filter | 6598492 |
| Engine Oil Filter | 6675517 |
| Fuel Filter In-Line | 3885315 |
| Hydraulic Oil Filter | 6598903 |
| Hydraulic Oil Filter (In-Line), SN 18001- | 6661807 |
