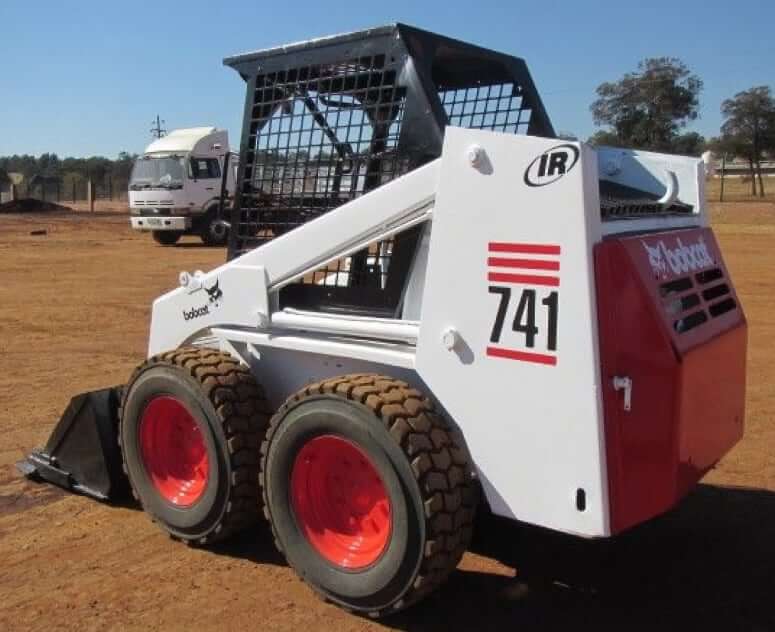

Loader
| Tipping Load | 2600 lb (1180 kg) |
| Rated Operating Capacity (ROC) | 1300 lb (590 kg) |
| Bucket Width (Standard) | 55.1 in (1400 mm) |

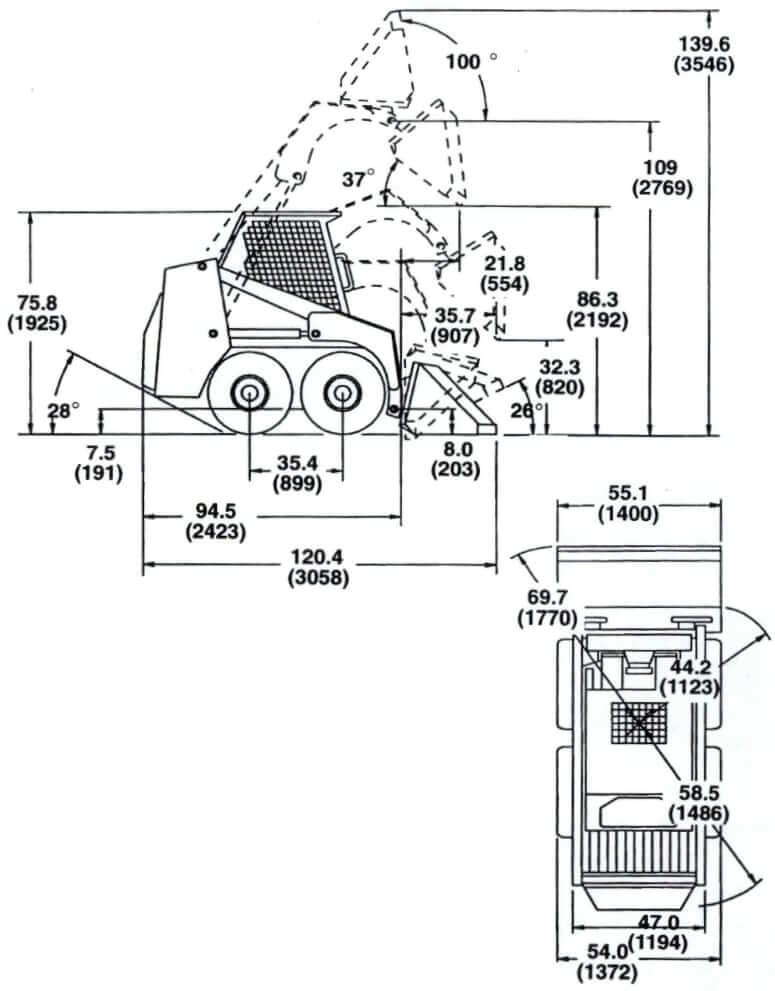

Dimensions
| Operating Height | 139.6 in (3545 mm) |
| Height to Top of Cab | 75.8 in (1925 mm) |
| Length w/o Bucket | 95.4 in (2422 mm) |
| Length w/ Bucket | 120.4 in (3058 mm) |
| Width Over Bucket | 55.1 in (1400 mm) |
| Width Over Tires | 54 in (1372 mm) |
| Wheel Tread | 47 in (1194 mm) |
| Ground Clearance | 7.5 in (189 mm) |
| Angle of Departure | 28° |
| Dump Height with Standard Bucket | 86.3 in (2192 mm) |
| Height to Bucket Hinge Pin | 109 in (2769 mm) |
| Height to Bucket Hinge Pin @ Ground | 8 in (203 mm) |
| Dump Reach @ Maximum Height | 21.8 in (554 mm) |
| Dump Angle @ Maximum Height | 37° |
| Rollback Fully Raised @ Maximum Height | 100° |
| Rollback @ Ground | 26° |
| Wheelbase | 35.4 in (899 mm) |
| Turning Radius Over Bucket | 69.7 in (1770 mm) |
| Turning Radius Over Rear Tires | 58.5 in (1486 mm) |
| Turning Radius Over Center | 44.2 in (1123 mm) |

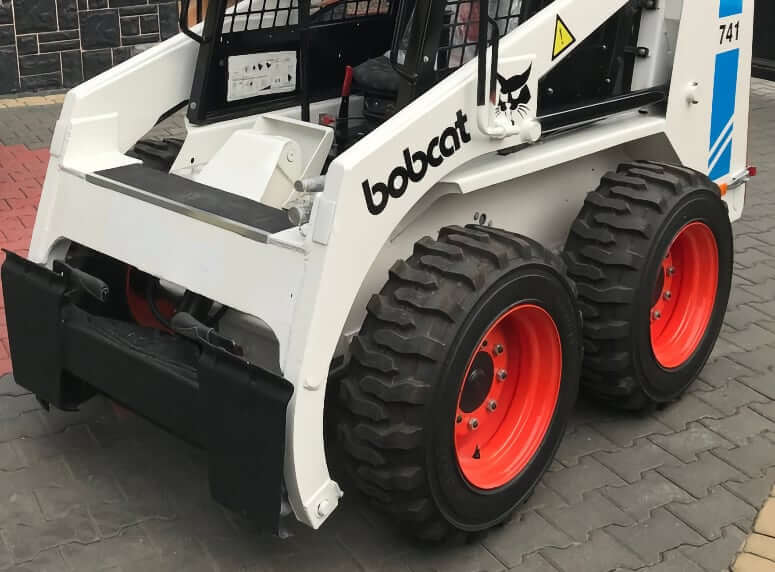

Tires
| Type | Tire Size | Tire Presssure |
|---|---|---|
| Standard Tires | 7.00 x 15, 6 PR | 55 psi (379 kPa) |
| Flotation Tires | 10 x 16.5, 4 PR | 35 psi (240 kPa) |

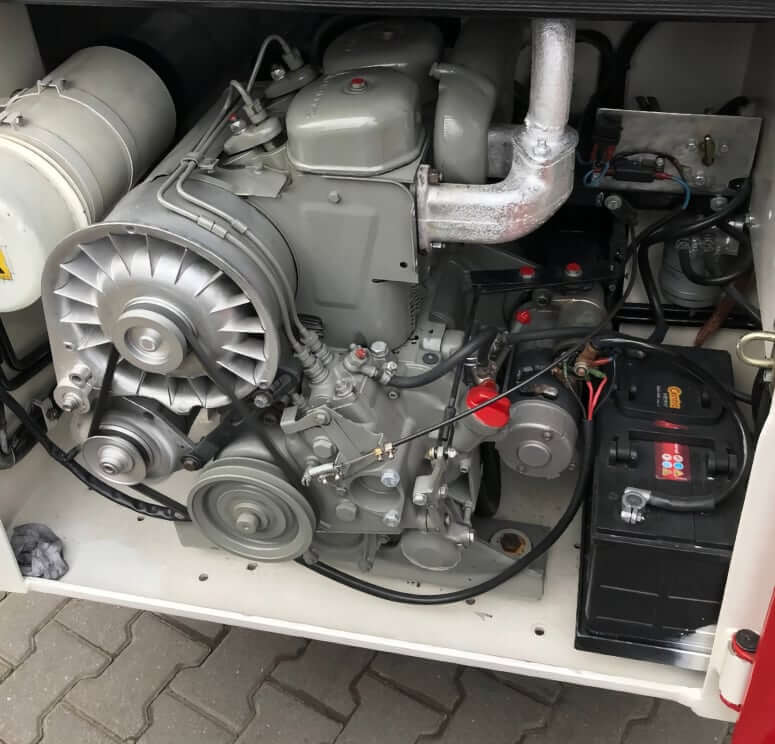

Engine Details
| Number of Cylinders | 2 |
| Engine Make | Deutz |
| Engine Model | Deutz F2L511 |
| Displacement | 101 cu in (1.655 L) |
| Bore | 3.94 in (100 mm) |
| Stroke | 4.14 in (105.2 mm) |
| Engine Type | Air-cooled four-stroke diesel engine |
| Gross Horsepower | 29.7 hp (22.1 kw) |
| Power Measured @ | 2800 rpm |
| Peak Torque | 64.9 lb ft (88 Nm) |
| Torque Measured @ | 2000 rpm |
| Lubrication System | Pressure system with filter |
| Air Cleaner | Replaceable dry paper cartridge with safety element |
| Fuel System | Direct injection |
| Aspiration | Naturally aspirated |

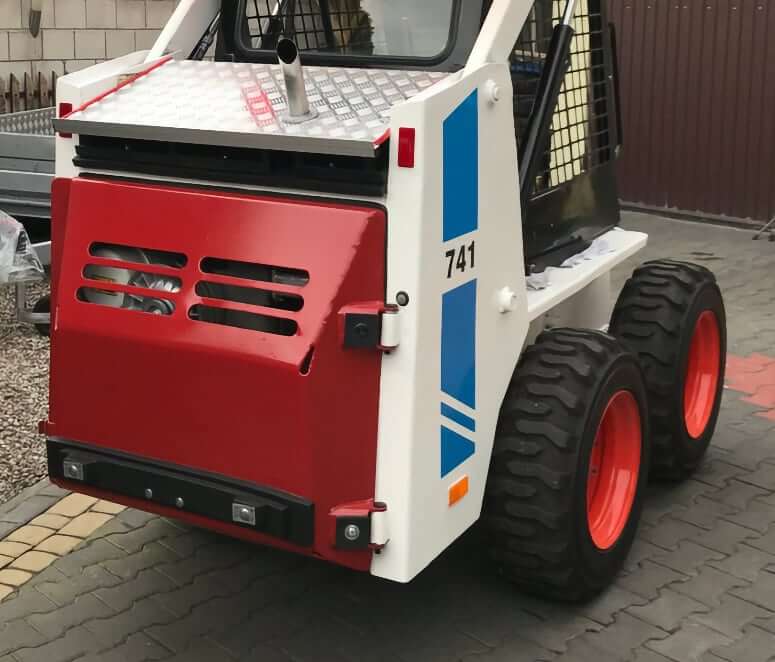

Operational Specs
| Operating Weight | 4730 lb (2145 kg) |
| Shipping Weight | 4240 Ib (1923 kg) |
| Rated Operating Capacity | 1300 lb (590 kg) |
| Operating Voltage | 12 V |
| Alternator | 55 amps |
| Battery | 12 V, CCA 625, RC: 170 min |
| Starter | 12 V, gear drive 4.15 hp (3.1 kw) |
Transmissiom
| Main Drive | Hydrostatic transmission with tandem hydraulic pumps driving 2 fully reversing hydrostatic motors |
| Hydrostatic Pump Type | Inline, axial piston tandem pump |
| Max Travel Speed | 6 mph (9.7 km/h) |
| Final Drive | Gear reduction #80 HS roller chain & sprockets in sealed chaincase with oil lubrication |
| Total Engine to Wheel Reduction | 40:1 |
Hydraulic System
| Control Valve | 4-spool, open center with lift, tilt and auxiliary sections |
| Pump Type | Vane pump |
| Pump Flow | 11 gal/min (42 L/min) |
| System Relief Pressure | 2400 psi (16548 kPa) |
| Port Relief Pressure | 3500 psi (24132 kPa) |
| Hydraulic Fluid Type | 10W-30 or 10W-40 |
| Hydraulic Oil Filtration | 10 micron replaceable cartridge and 40 micron sintered filter |
| Type of Cylinders | Doubleacting cylinders |
| Lift Cylinders, Bore x Rode x Stroke (2) | 2.00 x 1.25 x 25.0 in (50.80 x 31.75 x 635 mm) |
| Tilt Cylinders, Bore x Rode x Stroke (1) | 3.25 x 1.50 x 14.5 in (82.55 x 38.1 x 368 mm) |
Hydraulic Function Time
| Move Lift Arms to Maximum Height | 3.5 sec. |
| Lower Lift Arms from Maximum Height | 2.7 sec. |
| Move Bucket to Dumping Position | 2.7 sec. |
| Move Bucket to Retracted Position | 2.3 sec. |
Service Refill Capacities
| Fuel Tank Capacity | 13 gal (49 L) |
| Engine Oil Capacity (w/ filter) | 1 gal (3.8 L) |
| Cooling System Capacity | Air-cooled |
| Chaincase Oil Reservoir Capacity | 8 gal (30.3 L) |
| Hydraulic System Capacity (w/ tank) | 6 gal (22.7 L) |
| Hydraulic Tank Capacity | 3.5 gal (13.2 L) |
Bobcat 741 Filters
| Filter | Part Number |
|---|---|
| Inner Air Filter | 6597362 |
| Outer Air Filter | 6598492 |
| Engine Oil Filter | 6511793 |
| Fuel Filter In-Line | 3885315 |
| Hydraulic Oil Filter; SN: -14999 | 6515541 (10 micron) |
| Hydraulic Oil Filter, SN: 15001- | 6598903 |
