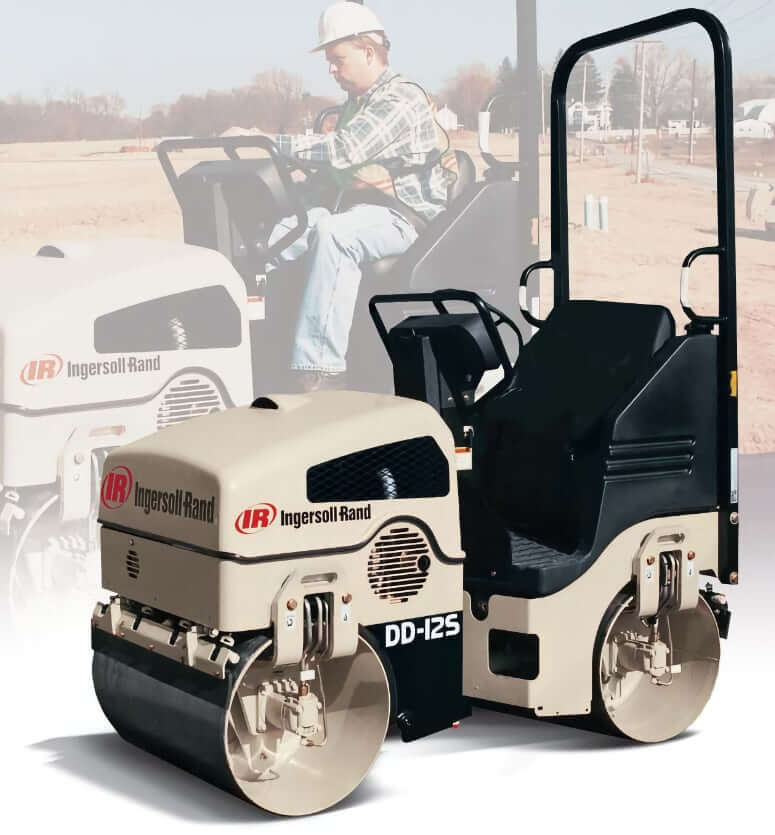

Ingersoll Rand DD12S Dura-Pac Tandem Roller

Contents

Dimensions
Drum
Engine Details
Operational Specs
Service Refill Capacities

Dimensions

Overall Length	80 in (2034 mm)
Overall Width	39 in (989 mm)
Height To Top Of Cab	88 in (2235 mm)
Wheelbase	55.1 in (1400 mm)
Ground Clearance	13.3 in (337 mm)

Drum

Drum Width	35.5 in (900 mm)
Drum Diameter	21.9 in (556 mm)
Vibration Frequency 1	66.7 Hz
Nominal Amplitude – High	0.1 in (0.4 mm)
Centrifugal Force – High	3305 lbf (14.7 kN)

Engine Details

Number of Cylinders	2
Engine Make	Briggs & Stratton
Engine Model	Briggs & Stratton Vanguard
Displacement	34.8 cu in (0.6 L)
Gross Power	16.1 hp (12.1 kw)
Power Measured @	3000 rpm

Operational Specs

Operating Weight	2950 lb (1338 kg)
Static Weight @ Front Drum	1290 lb (585 kg)
Static Weight @ Rear Drum	1660 lb (753 kg)
Shipping Weight	2485 lb (1127 kg)
Operating Voltage	12 V
Alternator	15 amps
Battery	12 V, CCA 410

Service Refill Capacities

Fuel Tank Capacity	4.6 gal (17.4 L)
Hydraulic System Fluid Capacity	9 gal (34 L)
Water Tank Capacity	52 gal (197 L)
