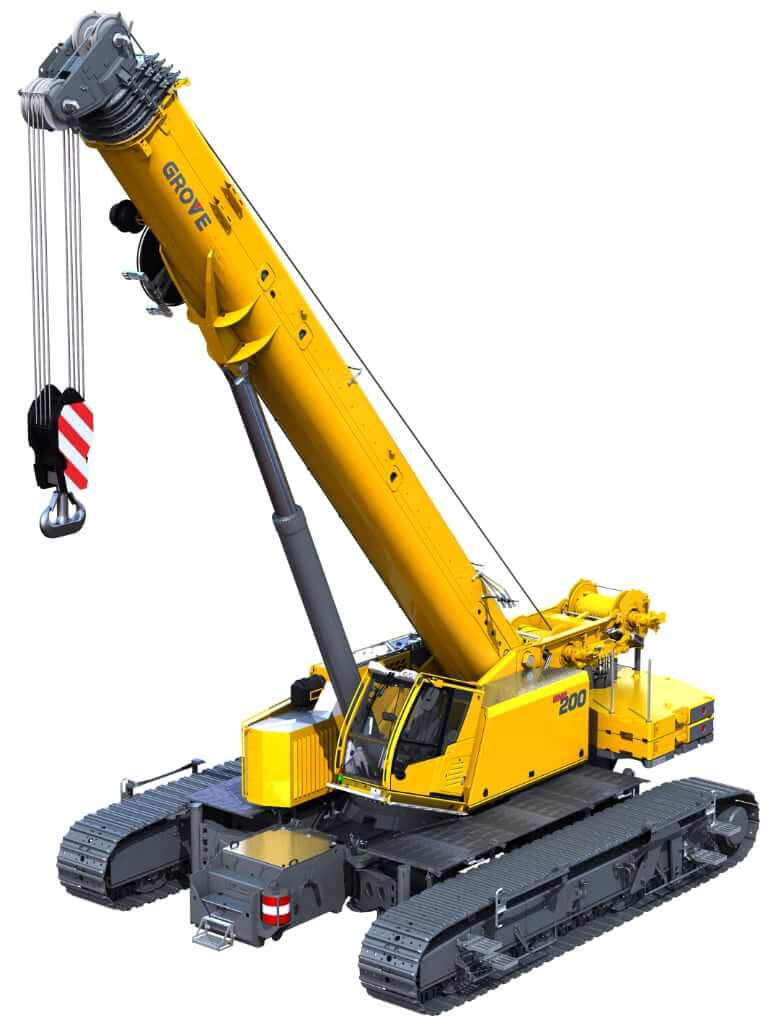

The Manitowoc Company, Inc. has officially introduced the Grove GHC200, a groundbreaking addition to its GHC series and the largest telescopic crawler crane the company has ever produced. Designed for unparalleled lifting power and jobsite versatility, the GHC200 delivers a maximum lifting capacity of 200 USt (160 metric tons) and a class-leading 185-foot (56.4 m) six-section pin boom.
Engineered for heavy-duty performance, the GHC200 offers a maximum tip height of 265.7 ft (81.0 m) with the use of optional boom extensions, which include manual or hydraulic swingaway sections. The crane is built for outstanding pick-and-carry capabilities, even on slopes of up to 4°, making it ideal for energy, industrial, and infrastructure applications.
GHC200 Operating Specifications
- Capacity: 200 USt (160 t)
- Main boom: 185 ft (56.4 m)
- Maximum boom extension: 71.5 ft (16.4 ft + 18.4 ft + 36.7 ft) / 21,8 m (5.0 m + 5.6 m + 11.2 m)
- Maximum tip height: 265.7 ft (81.0 m)
“As jobs get more challenging, higher load charts are needed to accomplish them. We are excited to bring the GHC200 to the market because it will increase the ability of companies to compete for and win jobs that require higher lifting capacities,”
said JJ Grace, Manitowoc’s product manager for GHC (Grove Hydraulic Crawler) cranes.
“It is an ideal crane for general construction and renewable energy, for example, because of its strength and increased pick-and-carry capabilities.”
Grove GHC200 Key Features:

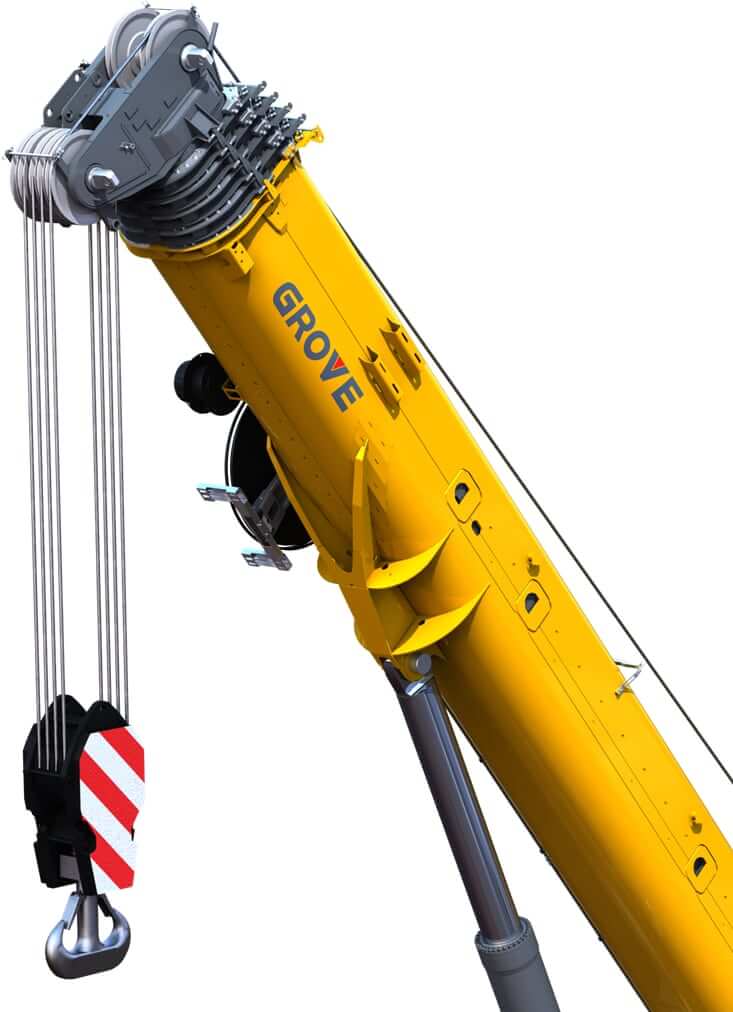

- 185 ft (56.4 m) main boom with pin boom design
- 71.5 ft (21.8 m) of maximum boom extensions
- Cummins B6.7L Tier 3 or Tier 4 Final diesel engine
- 26 mm wire rope with 13.5 t (29,765 lbs) line pull
- 360° lifting capability at 100% load chart

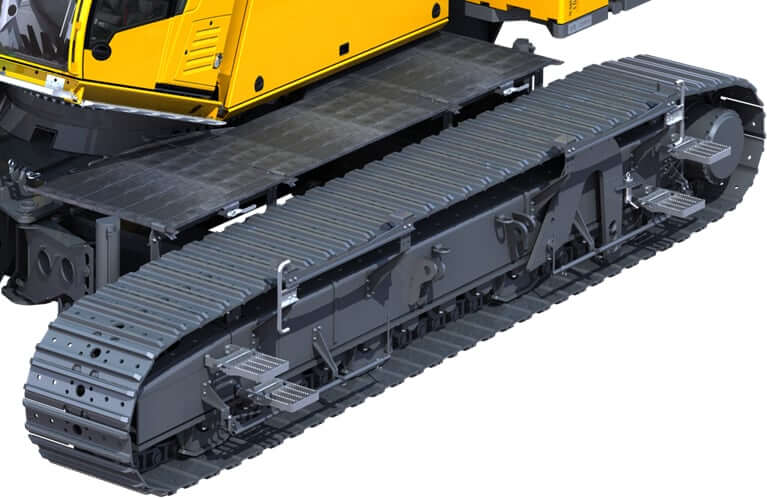

- Hydraulically extendable/retractable crawlers for optimized transport and setup

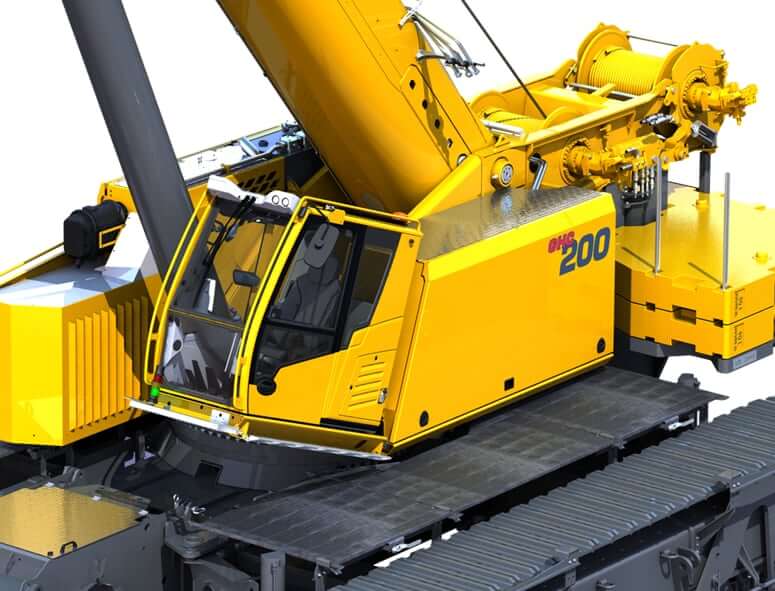

- High-visibility tilting cab (20°) with integrated camera systems
Designed with productivity and serviceability in mind, the GHC200 also features large access compartments, 39 in (1000 mm) double bar or flat maintenance-free track shoes, and built-in tool and stowage boxes to streamline daily operations.
The GHC200 can be transported to a job site in six to seven loads and offers quick self-assembly. Operators will appreciate in-cab amenities, including a large air suspension heated seat, a climate control system for added comfort, and cameras providing hoist, rear and right-side views. A 20-degree tilting cab provides high visibility and increased operator ergonomics when working at high angles with an extended boom.
The Grove GHC200 is now available for order through Manitowoc’s global distributor network.

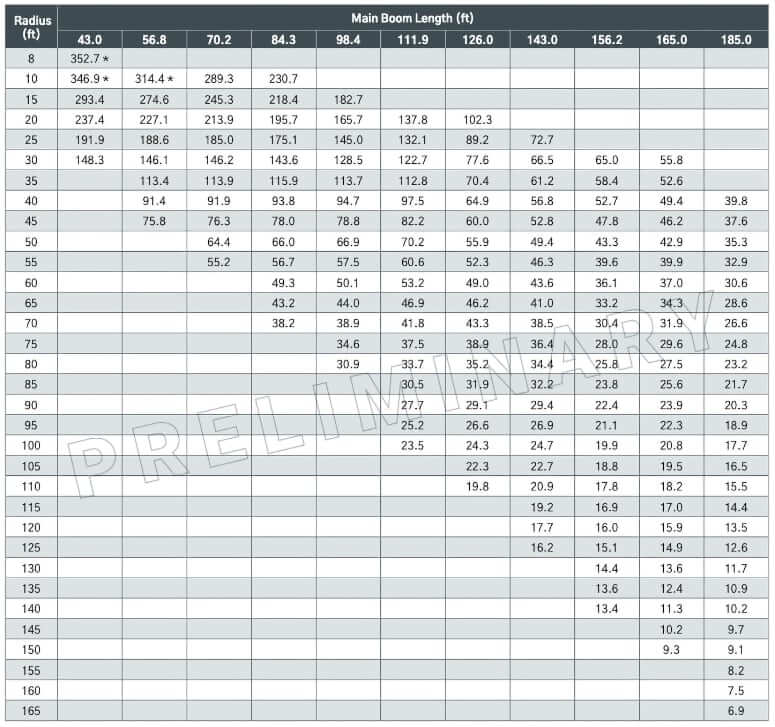

Grove GHC200 Load Chart
This crane exemplifies the pinnacle of telescopic crawler crane engineering.
What is the fuel tank capacity of the Grove GHC200?
Currently, official Manitowoc’s documentation provide detailed information about its lifting capacity, boom length, features, and operator cab but do not mention fuel tank size. Based on typical fuel tank capacities for large hydraulic crawler cranes in this class, the fuel tank is likely to be in the range of 500 to 600 liters (130-160 gallons), but for the exact figure, you would need to contact Manitowoc directly.
