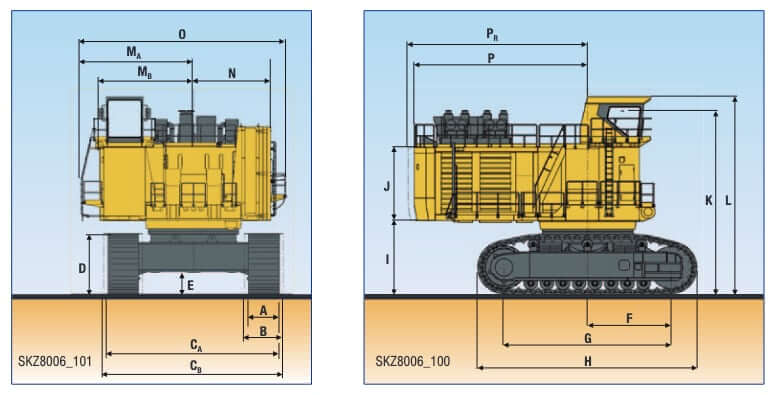

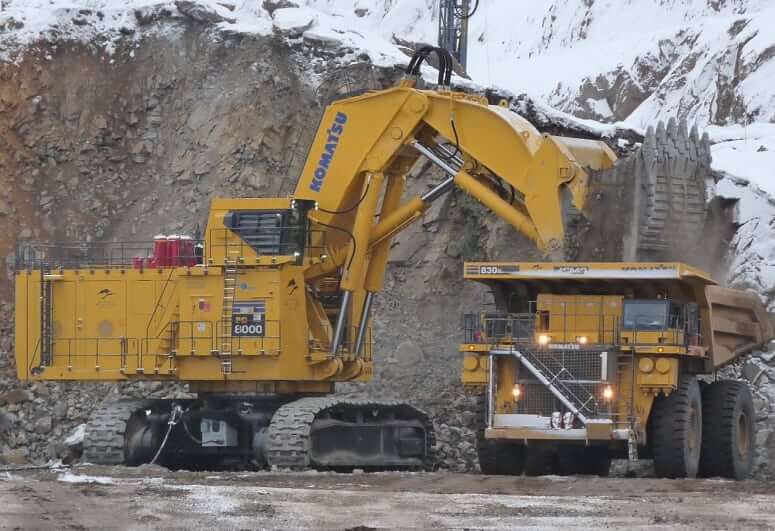

Dimensions
| A. Shoe Width (Standard) | 4’11” (1500 mm) |
| B. Shoe Width (Optional) | 6’3″ (1900 mm) |
| CA. Overall Track Width (59″ shoe) | 27’4″ (8330 mm) |
| CB. Overall Track Width (75″ shoe, optional) | 28’8″ (8730 mm) |
| D. Undercarriage Height | 9’10” (2995 mm) |
| E. Ground Clearance | 3’6″ (1065 mm) |
| F. Swing Center to Front Idler Distance | 13’3″ (4050 mm) |
| G. Length of Track on Ground | 26’7″ (8100 mm) |
| H. Length of Track | 35’1″ (10685 mm) |
| I. Upper Structure Clearance | 11’4″ (3640 mm) |
| J. Upper Structure Height | 11’8″ (3560 mm) |
| K. Operator Eye Level | 29’5″ (8956 mm) |
| L. Height to Top of Cab with FOPS | 31’8″ (9653 mm) |
| MA. Swing Center to Stairs | 17’7″ (5370 mm) |
| MB. Swing Center to LH Sidewalks | 14’11” (4550 mm) |
| N. Swing Center to RH Sidewalks | 12’4″ (3750 mm) |
| O. Overall Width | 32’4″ (9850 mm) |
| P. Swing Center to Upper Structure Rear End | 27’7″ (8410 mm) |
| PR. Swing Center to Rear End | 28’7″ (8720 mm) |
PC8000-6 Backhoe Weight
| Shoe Width | Operating Weight | Ground Pressure |
|---|---|---|
| 59″ (1500 mm) | 1682400 lb (763 t) | 40.4 psi (27.9 N/cm2) |
| 75″ (1900 mm) | 1713300 lb (777 t) | 32.5 psi (22.4 N/cm2) |
PC8000-6 Shovel Weight
| Shoe Width | Operating Weight | Ground Pressure |
|---|---|---|
| 59″ (1500 mm) | 1658200 lb (752 t) | 39.9 psi (27.5 N/cm2) |
| 75″ (1900 mm) | 1691200 lb (767 t) | 32.0 psi (22.1 N/cm2) |

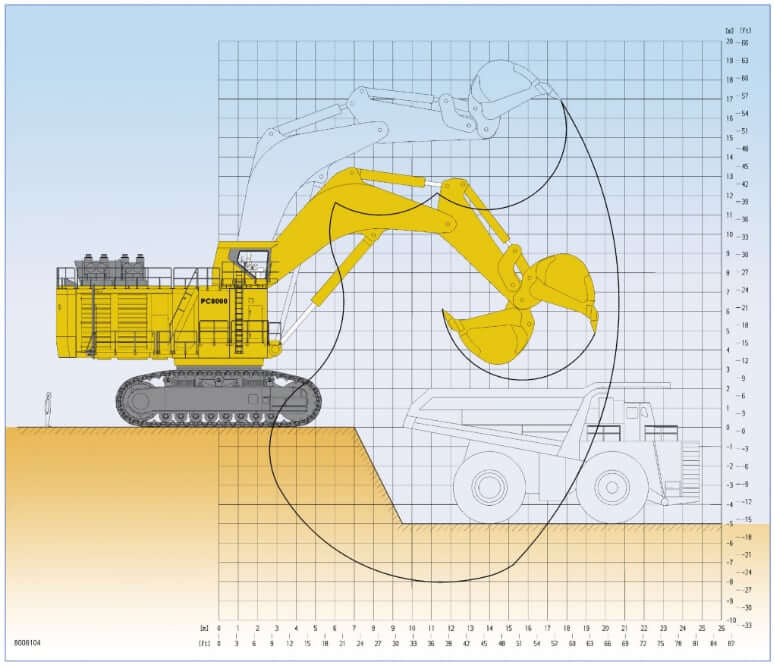

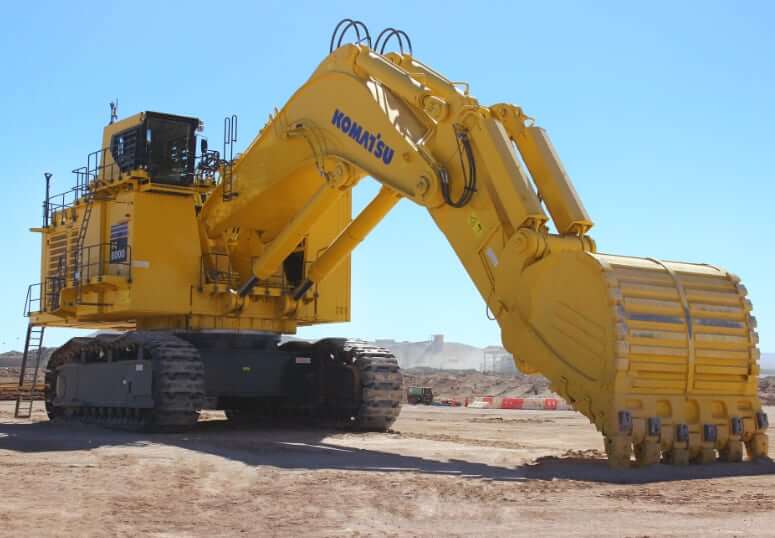

Backhoe Working Range
| Boom Length | 37’9″ (11500 mm) |
| Stick Length | 18’1″ (5500 mm) |
| Break-out Force (SAE) | 466850 lbf (2077 kN) |
| Tear-out Force (SAE) | 407510 lb (1813 kN) |
| Max. Digging Height | 55’5″ (16900 mm) |
| Max. Dumping Height | 36’9″ (11200 mm) |
| Max. Digging Depth | 26’3″ (8000 mm) |
| Max. Digging Reach | 67’11” (20700 mm) |
| Max. Digging Reach at Ground Level | 64’4″ (19600 mm) |

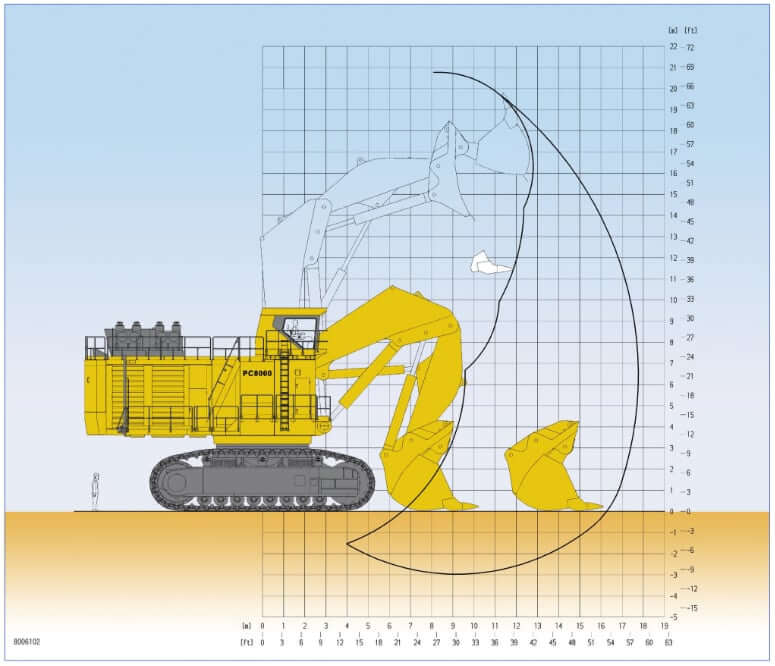

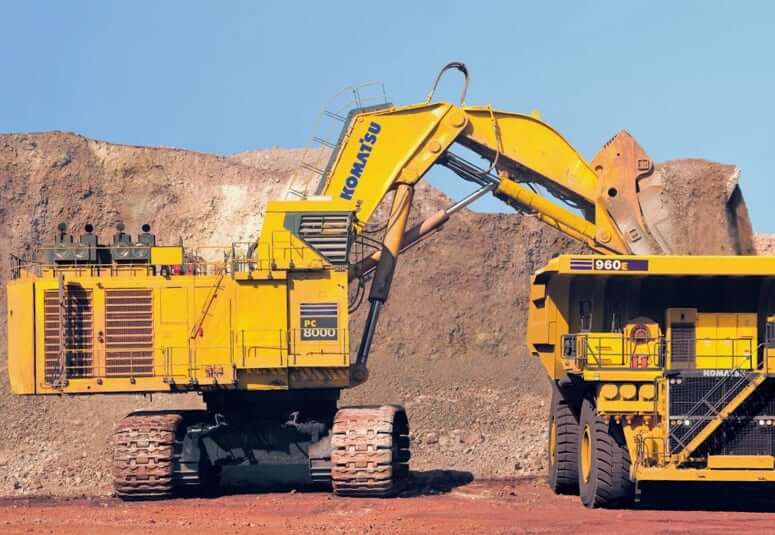

Shovel Working Range
| Boom Length | 26’9″ (8150 mm) |
| Stick Length | 18’9″ (5750 mm) |
| Break-out Force (SAE) | 523940 lbf (2331 kN) |
| Crowd Force (SAE) | 528890 lbf (2353 kN) |
| Max. Cutting Height | 68’7″ (20900 mm) |
| Max. Dumping Height | 45’7″ (13900 mm) |
| Max. Digging Depth | 9’10” (3000 mm) |
| Max. Digging Reach | 58’5″ (17800 mm) |
| Level Crowd at Ground Level | 19’0″ (5800 mm) |
| Bucket Opening Width | 10’6″ (3200 mm) |
Buckets
| Bucket Type | Backhoe, 55 yd3 (42 m3) | Shovel, 37 yd3 (28 m3) | Shovel, 55 yd3 (42 m3) |
|---|---|---|---|
| Width | 15′ (4575 mm) | 15′ (4575 mm) | 17’8″ (5375 mm) |
| Teeth | 6 | 6 | 6 |
| Wear Package | Medium abrasive | Severe abrasive | Medium abrasive |
| Weight | 105840 lb (48000 kg) | 137370 lb (62300 kg) | 153690 lb (69700 kg) |
| Max. Material Density (Loose) | 3000 lb/yd3 (1800 kg/m3) | 4700 lb/yd3 (2800 kg/m3) | 3000 lb/yd3 (1800 kg/m3) |
Undercarriage
| Centre Frame | H-type |
| Track Frame | Steel box-section |
| Track Adjustment | Automatic hydraulic type |
| Number Of Top Rollers Per Side | 3 |
| Number Of Bottom Rollers Per Side | 8 |
| Number Of Track Shoes Per Side | 49 |
Travel and Brakes
| Travel Control | 2 foot pedals |
| Travel Speed | 1.5 mph (2.5 km/h) |
| Service Brake | Hydraulic brake |
| Parking Brake | Wet, multiple-disk parking brake |
| Gradeability | Up to 50 % |
Swing System
| Swing Hydraulic Motors | 3 |
| Swing Service Brake | Hydraulic service brake |
| Swing Parking Brake | Wet, multiple-disc brake |
| Swing Ring Teeth | External |
| Max Swing Speed | 2.7 rpm |
Engine Details
| Number Of Cylinders | 16 |
| Engine Make | Komatsu |
| Engine Model | 2x Komatsu SDA16V160E-2 |
| Displacement | 2x 3661 cu in (2x 60 L) |
| Engine Power | 2x 2010 hp (2x 1500 kw) |
| Power Measured @ | 1800 rpm |
| Engine Type | 4-cycle, water-cooled, direct injection |
| Governor | All-speed, electronic |
| Aspiration | Turbocharged and aftercooled |
| Emission Standards | US EPA Tier 2 |

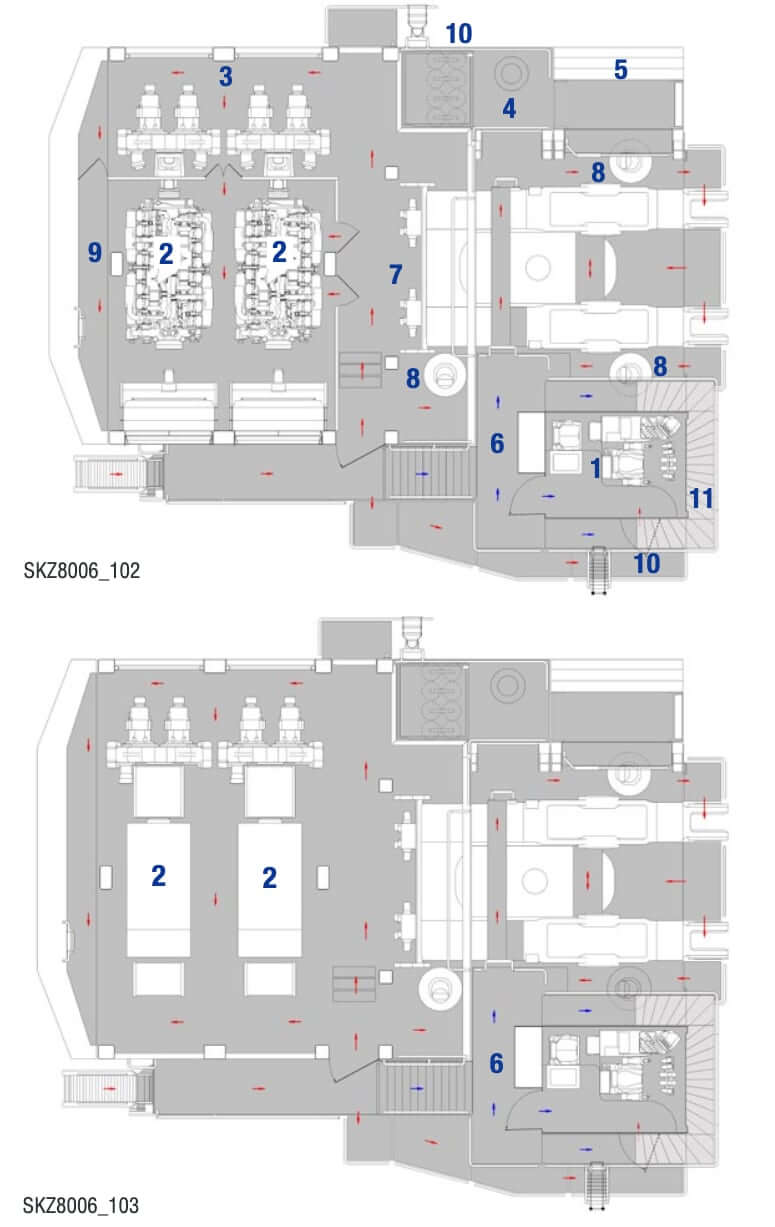

- Diesel Drive Vesrion: 1. Cab; 2. Diesel Engines; 3. Hydraulic Pumps; 4. Hydraulic Tank; 5. Hydraulic Coolers; 6. Fuel Tank; 7. Valve Blocks; 8. Swing Motors; 9. Counterweight; 10. Secondary Egress; 11. See-through Cab Walk.
- Variation for Electric Drive Version: 2. Electric Motors; 6. Hight Voltage Electric Cabinet
Electric Drive (Optional)
| Electric Drive Type | 2 x Squirrel cage induction motor |
| Power Output | 2x 1944 hp (2x 1450 kw) |
| Voltage | 6000 – 7200 V |
| Amperage (Approximate) | 2x 155 A – 2x 128 A |
| Frequency (Standard) | 60 Hz @ 1800 rpm |
| Frequency (Optional) | 50 Hz @ 1500 rpm |
Operating Specs
| Min Operating Weight | 1658200 lb (752145 kg) |
| Max Operating Weight | 1713300 lb (777140 kg) |
| Shovel Capacity, SAE 2:1 heaped | 55 yd3 (42 m3) |
| Backhoe Capacity, SAE 1:1 heaped | 55 yd3 (42 m3) |
| Max Travel Speed | 1.5 mph (2.5 km/h) |
| Operating Voltage | 24 V |
| Alternator | 2x 100 amps |
| Batteries (PC8000-6 Diesel Version) | 8 x 12 V (series / parallel) |
| Batteries (Electric Drive Version) | 4 x 12 V (series / parallel) |
| Working Lights | 14 Xenon high performance working lights |
| Service Lights | Throughout the platform |
Hydraulic System
| Type | Open circuit hydraulics |
| Total Pump Flow | 2190 gal/min (8280 L/min) |
| Relief Valve Setting | 4495 psi (31000 kPa) |
| Swing Pump Flow | 547 gal/min (2070.7 L/min) |
| Relief Valve Setting (Swing circuit) | 4495 psi (31000 kPa) |
| High Pressure in Line Filter | 200 microns one per pump located at the valve blocks |
| Full Flow Return Line Filters (7 elements) | 10 microns at head of hydraulic tank |
| Case Drain/by-pass Return Line Filters | 3 microns |
Service Refill Capacities
| Fuel Tank Capacity | 3672 gal (13900 L) |
| Engine Oil Capacity | 2x 77 gal (2x 290 L) |
| Cooling System Capacity | 2x 125 gal (2x 475 L) |
| Hydraulic System Capacity | 3040 gal (11500 L) |
| Hydraulic Tank Capacity | 2006 gal (8350 L) |
| Reserve Oil Make Up Tank | 2x 279 gal (2x 1056 L) |
Operator Environment
| Noise Level in Operator’s Cab (ISO 6396) | 78 dB(A) |
| Whole Body Vibration and Shock (ISO 2631-1) | < 0,5 m/s2 |
| Hand-lever Vibration (ISO 5349-1) | < 2,5 m/s2 |
| HVAC (ISO 10263-4) | Heating and air conditioning second heater or air conditioner as option |
| FOPS | ISO 3449 Falling Objects Protection Structure |
| Cab Damping | 18 viscous damping pads |
| Operator’s Seat | Air suspended, electrically heated and has a lap seat belt and offers multiple adjustments + trainer seat |
| Joystick Controls | Low-effort joystick controls are electro-hydraulic with foot controls for front shovel clam, crawler and swing brake |
| Emergency Exit | The right hand window is an emergency exit |
