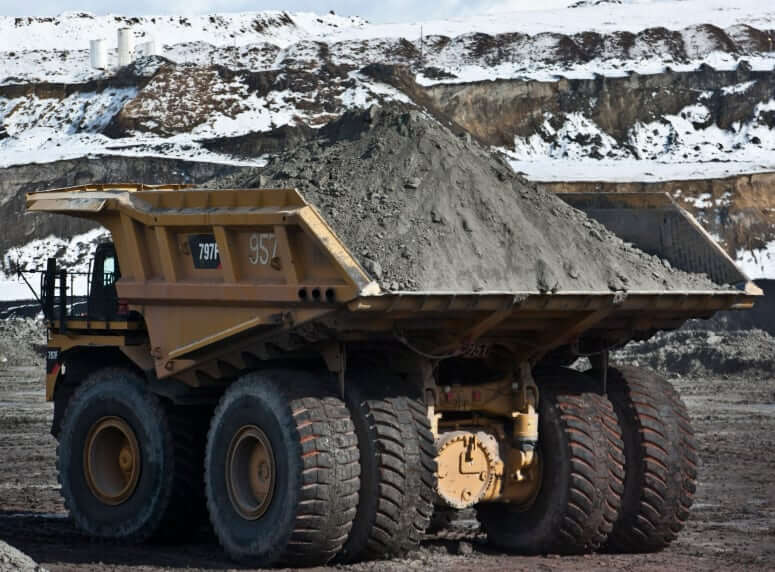

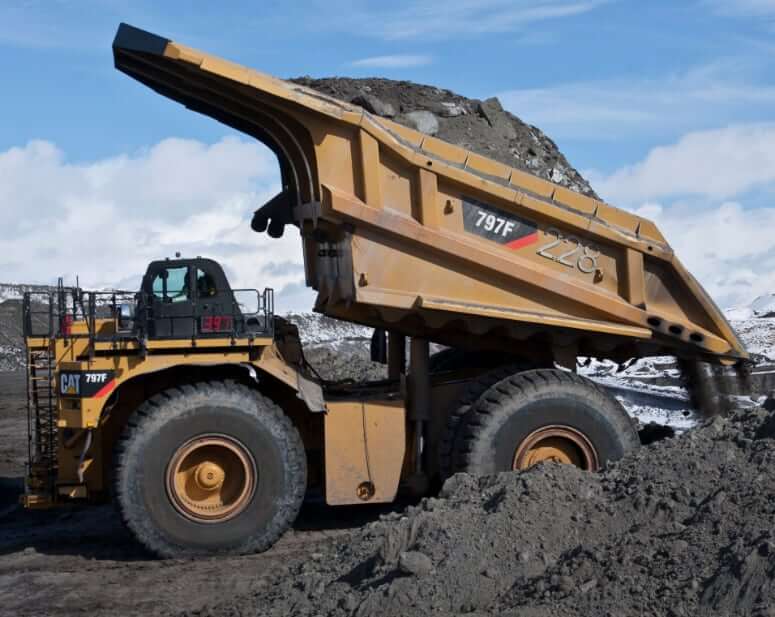

Dump System
| Payload Capacity | 802000 lb (363781 kg) |
| Capacity, Heaped SAE 2:1 | 314-350 yd3 (240-267 m3) |
| Capacity, Struck | 246-290 yd3 (188-213 m3) |
| Body Plate | High-strength steel |
| Dump Angle | 50° |
| Body Raise Time (High Idle) | 25 sec |
| Body Lower Time (Float) | 19 sec |
| Body Power Down (High Idle) | 18 sec |

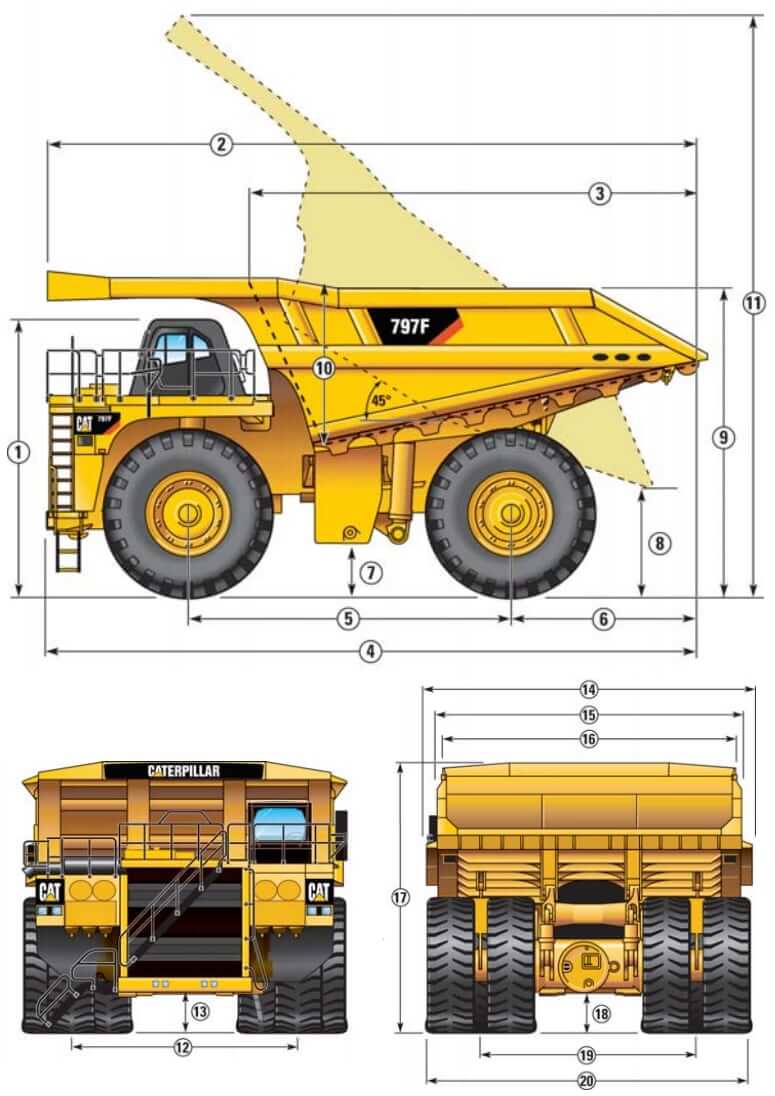

Dimensions
| 1. Height to Top of ROPS (Empty) | 256.9 in (6526 mm) |
| 2. Overall Body Length | 614.2 in (15 583 mm) |
| 3. Inside Body Length | 393 in (9976 mm) |
| 4. Overall Length | 614.2 in (15 583 mm) |
| 5. Wheelbase | 283.1 in (7195 mm) |
| 6. Rear Axle to Tail | 155 in (3944 mm) |
| 7. Loaded Ground Clearance | 31 in (786 mm) |
| 8. Dump Clearance | 70 in (1768 mm) |
| 9. Loading Height (Empty) | 267 in (6786 mm) |
| 10. Inside Body Depth (Maximum) | 132.4 in (3363 mm) |
| 11. Overall Height (Body Raised) | 610 in (15 485 mm) |
| 12. Centerline Front Tire Width | 257 in (6534 mm) |
| 13. Engine Guard Clearance (Loaded) | 39.8 in (1025 mm) |
| 14. Outside Body Width | 409 in (10 393 mm) |
| 15. Overall Canopy Width | 409 in (10 393 mm) |
| 16. Inside Body Width | 355.7 in (9036 mm) |
| 17. Front Canopy Height (Empty) | 300 in (7630 mm) |
| 18. Rear Axle Clearance (Loaded) | 37.3 in (947 mm) |
| 19. Centerline Rear Dual Tire Width | 245 in (6233 mm) |
| 20. Overall Tire Width | 374 in (9529 mm) |

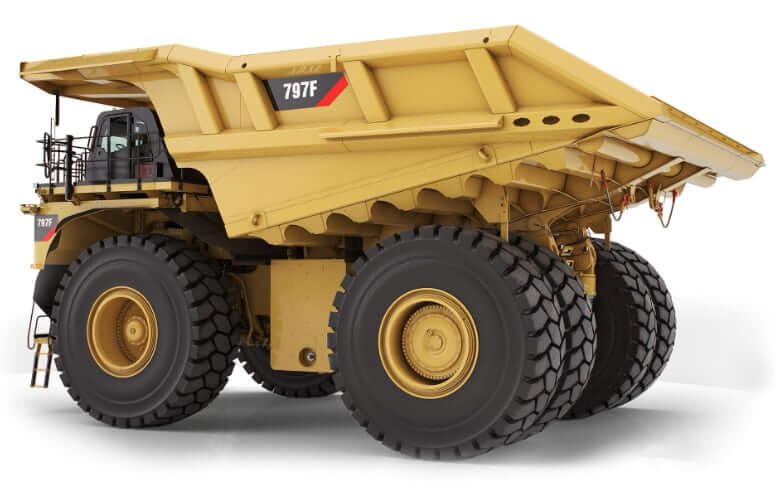

Weight Distributions
| CAT 797F | Empty | Loaded |
|---|---|---|
| Front Axle | 47.2% | 33.3% |
| Rear Axle | 52.8% | 66.7% |
| Total Weight | 573000 lb (259909 kg) | 1375000 lb (623690 kg) |

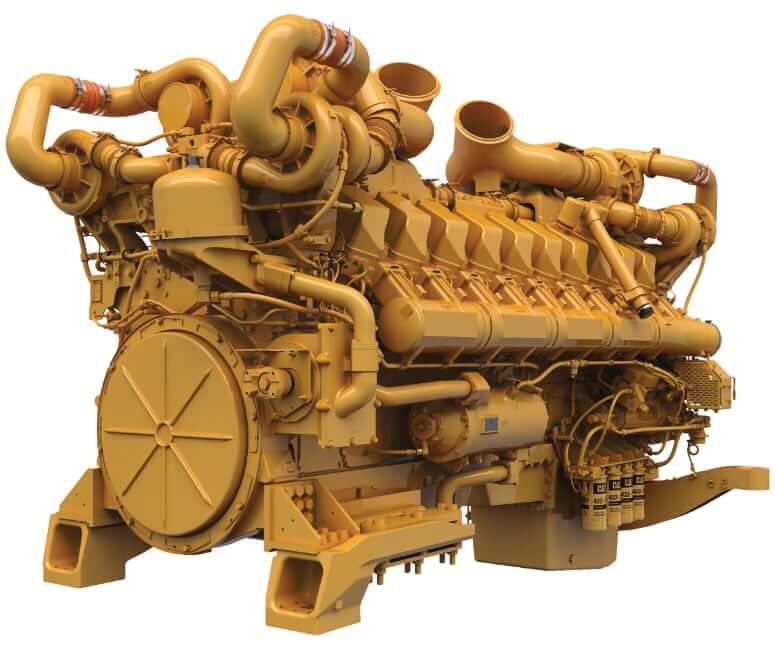

Engine Details
| Engine Model | Cat C175-20 Tier 2 | Cat C175-20 Tier 4F |
|---|---|---|
| Number of Cylinders | 20 | 20 |
| Displacement | 6469 cu in (106 L) | 6469 cu in (106 L) |
| Bore | 6.9 in (175 mm) | 6.9 in (175 mm) |
| Stroke | 8.7 in (220 mm) | 8.7 in (220 mm) |
| Gross Power | 4000 hp (2983 kw) | 4000 hp (2983 kw) |
| Net Power | 3795 hp (2828 kw) | 3887 hp (2899 kw) |
| Power Measured @ | 1750 rpm | 1750 rpm |
| Lubrication System | Gear type lube oil pump with integral lube oil cooler | Gear type lube oil pump with integral lube oil cooler |
| Fuel System | Common Rail | Common Rail |
| Compression Ratio | 15.3:1 | 15.3:1 |
| Air Cleaner | 4x Single element canister air filter with service indicator | 4x Single element canister air filter with service indicator |
| Aspiration | Turbocharged Aftercooled (TA) | Turbocharged Aftercooled (TA) |
| Emission Standards | US EPA Tier 2 + EU Stage II | US EPA Tier 4 Final + EU Stage V |
Electric Specs
| Operating Voltage | 24 V |
| Alternator | 225 amps |
| Battery | 2x 12 V, 210 Ah, CCA 1500, RC: 465 min, 8D |
| Starter | 24 V, Teeth: 11/12, IP67 |
Operational Specs
| Target Gross Machine Operating Weight (GMW) | 1375000 lb (623690 kg) |
| Nominal Payload Capacity (NRP) | 802000 lb (363781 kg) |
| Body Weight (BW) | 94799 lb (43000 kg) |
| Chassis Weight (CW) | 474472 lb (215217 kg) |
| Steering Angle | 40° |
| Front Turning Diameter | 123 ft (37.4 m) |
| Maximum Gradeability | 12% |
| Number fo Tires | 6 |
| Rims | 44 x 63 (Quick Change Rims optional) |
| Tire Size | 59/80 R63 (Radial, tubeless) |

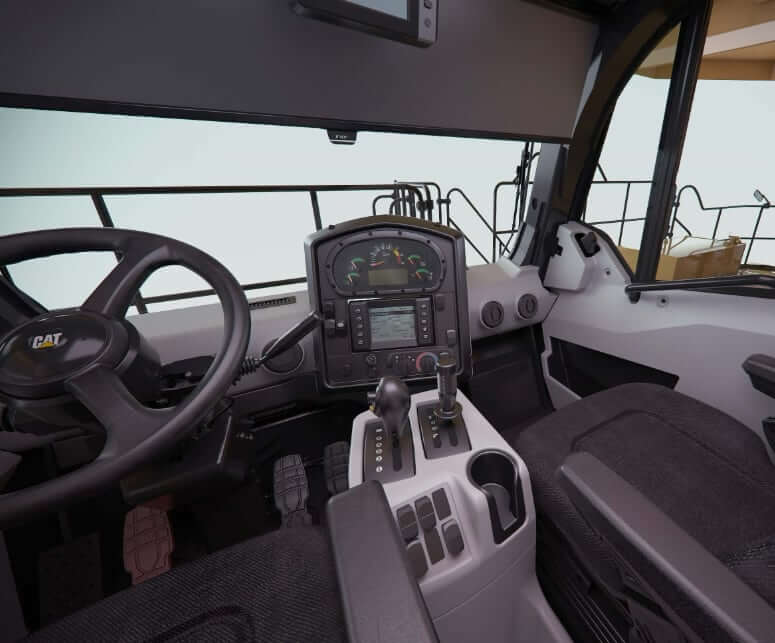

Operator Environment
| Cab Option | Standard Cab / Deluxe Cab / Deluxe Cold Weather Cab |
| Operator Seat | Air Suspension Seat with Three-Point Operator Restraint |
| Trainer Seat | Air Suspension Trainer Seat |
| Noise Level (Interior) | 74 dB(A) |
| HVAC | Heating/Air Conditioning |
| Display Option | Work Area Vision System / Cat MineStar Monitor |
| ROPS | ISO 3471:1994 ROPS Criteria |
| FOPS | ISO 3449:1992 Level II FOPS Criteria |

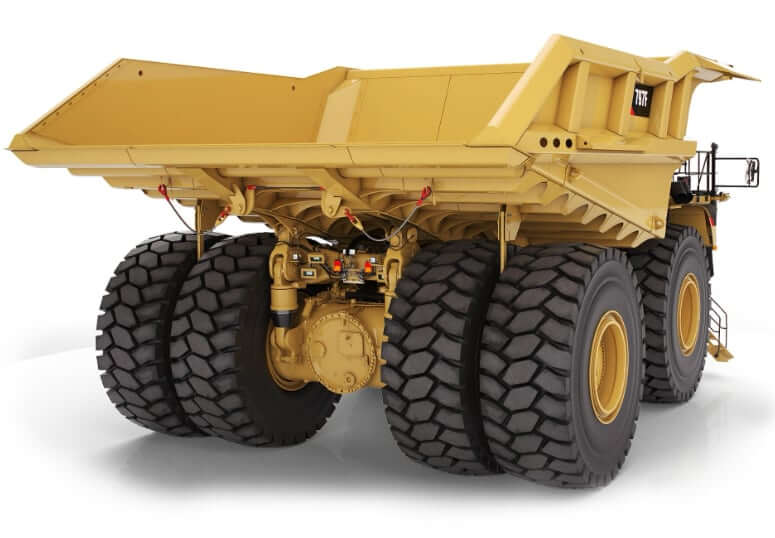

Transmission
| Transmission Type | Caterpillar 7-speed planetary powershift transmission |
| Number of Gears | 7F / 1 R |
| Max Forward Speed | 42 mph (67.6 km/h) |
| Max Reverse Speed | 7.4 mph (11.9 km/h) |
| Torque Converter | Lock-up torque converter |
| Service Brakes | Four-Corner, Wet Disc, Oil Cooled, Hydraulically Actuated |
| Parking Brake | Four-corner, Multi-disc, Spring applied, Hydraulically Released |
| Anti-Lock Brake System (ABS) | Optional with CMD package |
| Brake System Standards | ISO 3450:2011 |
| Front Wet Disc Brake Surface Area (10 discs per side) | 20500 in2 (132258 cm2) |
| Rear Wet Disc Brake Surface Area (15 discs per side) | 30750 in2 (198387 cm2) |
| Brake Surface | 51250 in2 (330645 cm2) |
| Retarder | Oil-cooled, multiple disc design |
Axles and Final Drives
| Type of Final Drives | Double reduction, planetary with full floating axles |
| Differential Ratio | 1.276:1 |
| Planetary Ratio | 16.67:1 |
| Total Reduction Ratio | 21.26:1 |
| Rear Axle Oscillation | ±4° |
| Suspension Cylinders | Self-contained nitrogen/oil cylinders, rear strut pin-to-pin mounting, top & bottom double shear clevis attachments |
| Front Effective Cylinder Stroke | 3.9 in (99.1 mm) |
| Rear Effective Cylinder Stroke | 3.7 in (93.2 mm) |

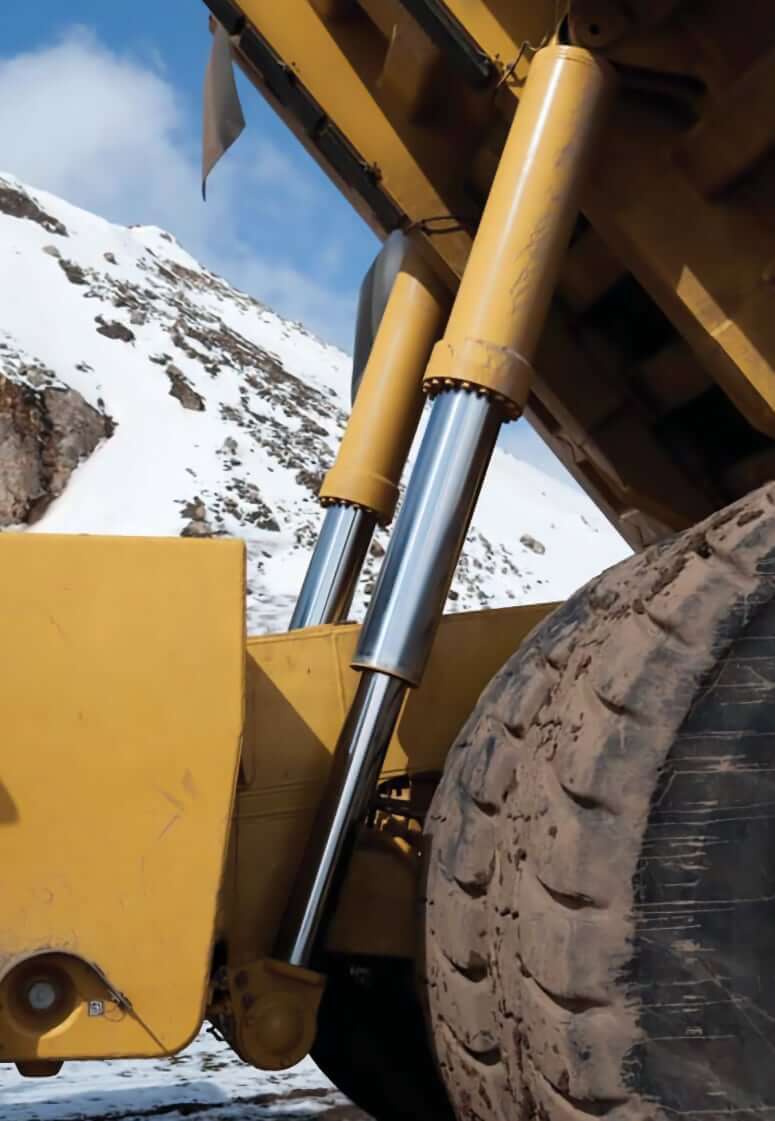

Hydraulic System
| Pump Flow (High Idle) | 317 gal/min (1200 L/min) |
| Relief Valve Setting (Raise) | 3510 psi (24200 kPa) |
| Hydraulic Cylinders | Twin, two-stage hydraulic cylinders with snubbing valve |
Service Refill Capacities
| Fuel Tank Capacity (Tier 2) | 1000 gal (3785 L) |
| Fuel Tank Capacity (Tier 2), Optional | 2000 gal (7570 L) |
| Fuel Tank Capacity (Tier 4) | 1200 gal (4540 L) |
| DEF Tank Capacity (for Tier 4) | 99 gal (375 L) |
| Engine Oil Capacity (w/ filter) | 84 gal (319 L) |
| Cooling System Capacity | 306 gal (1160 L) |
| Steering System Capacity (w/ tank) | 94 gal (355 L) |
| Steering Hydraulic Tank Capacity | 67 gal (254 L) |
| Brake/Hoist Hydraulic System Capacity (w/ tank) | 441 gal (1600 L) |
| Brake/Hoist Hydraulic Tank Capacity | 203 gal (770 L) |
| Brake/Hoist Hydraulic Lines | 219 gal (830 L) |
| Transmission Oil Capacity (w/ torque converter) | 166 gal (629 L) |
| Torque Converter Sump Capacity | 80 gal (303 L) |
| Differentials Fluid Capacity | 311 gal (1176 L) |
| Front Wheels Capacity (each) | 16 gal (61 L) |
| Final Drives Fluid Capacity (each) | 49 gal (185 L) |
Excavator Pass Matching
| HMS | Passes |
|---|---|
| 6050 | 7-8 |
| 6060 | 6 |
| 6090 FS | 4 |
| ERS | Passes |
| 7495 HF | 4 |

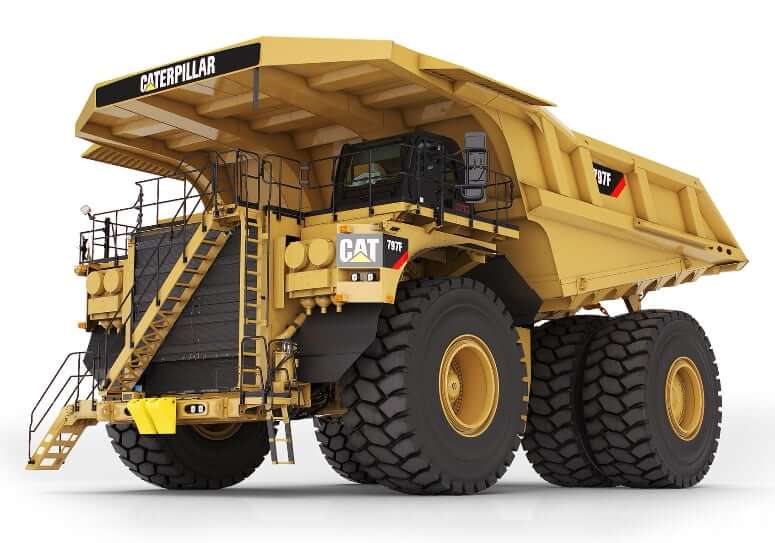

The Caterpillar 797F is one of the flagship ultra-class trucks in Caterpillar’s mining fleet — a true powerhouse designed for high-volume haul operations. It’s driven by the massive Cat C175-20 engine, delivering up to 4000 hp (2983 kW), which gives it the muscle to carry its enormous payload back and forth in the pit. At its heart, this truck is all about efficiency: moving huge loads fast, while minimizing cost per ton. One of the modern touches on the 797F is its engine emissions flexibility. In Tier 4 Final variants, the truck even includes a Diesel Exhaust Fluid (DEF) system — a trade-off for much lower NOx and particulate emissions.
On the weight and capacity side, the 797F is no lightweight. Its gross operating weight sits around 623,690 kg (1,375,000 lb), and it can haul 400 US tons (363 tonnes) of material per load. Its body’s heaped volume (SAE 2:1) can reach about 330 cubic yards (≈ 252 m3) depending on the configuration — so it’s built for serious production cycles.
