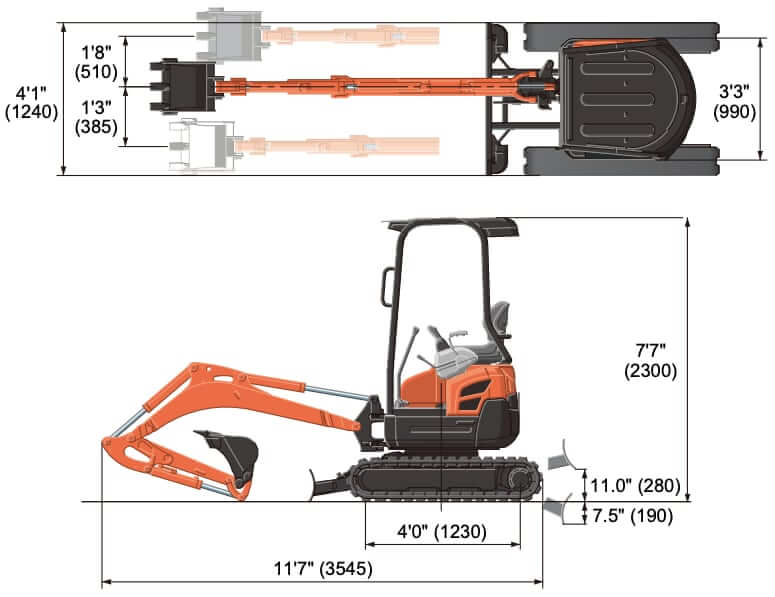

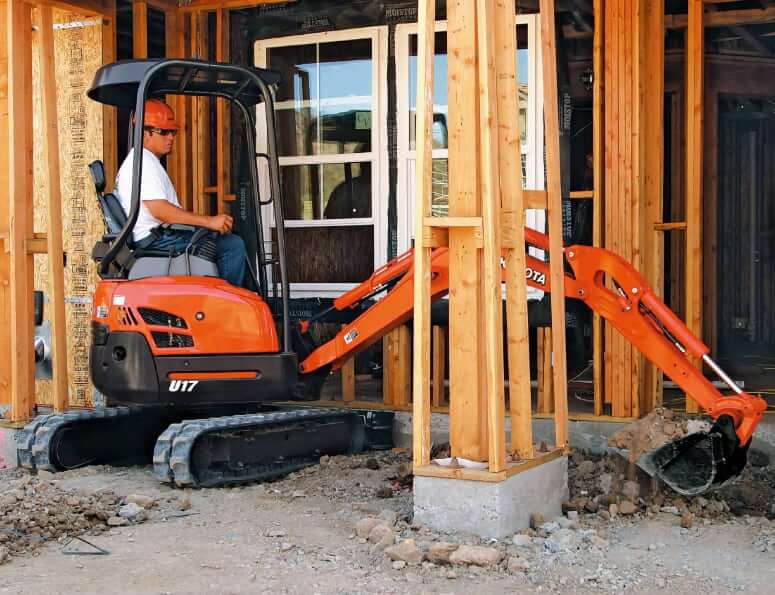

Dimensions
| Overall Length | 139.6 in (3545 mm) |
| Overall Width | 39 in (990 mm) Narrow / 49 in (1240 mm) Standard |
| Track Gauge | 30 in (760 mm) Narrow / 40 in (1010 mm) Standard |
| Overall Height | 92.1 in (2340 mm) |
| Ground Clearance | 5.9 in (150 mm) |

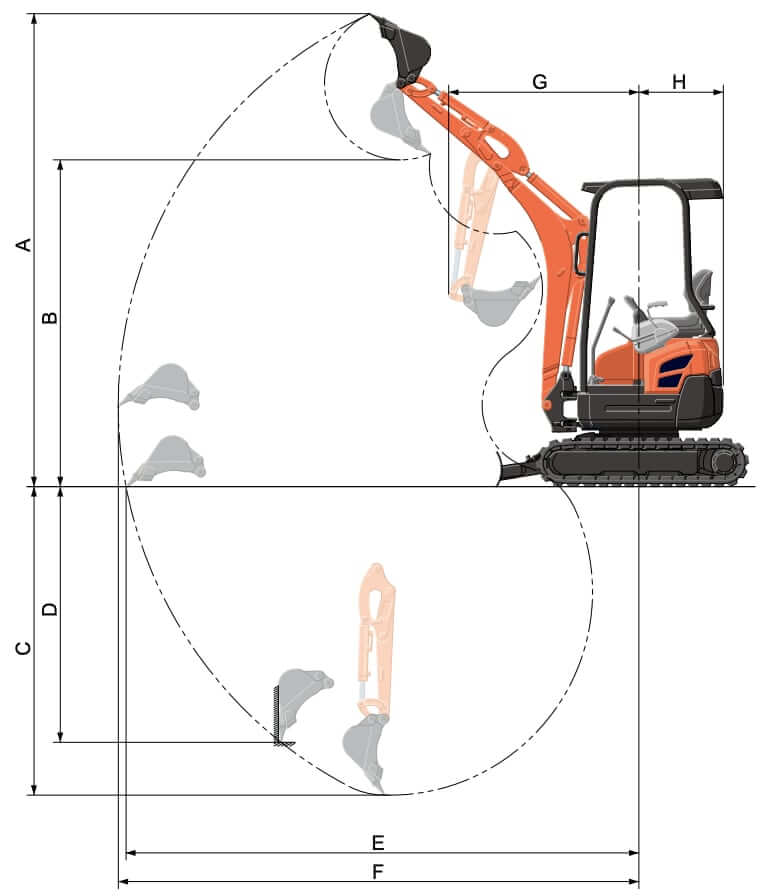

Working Range
| A. Max Digging Height | 139.4 in (3540 mm) |
| B. Max Dumping Height | 96.1 in (2440 mm) |
| C. Max Digging Depth | 90.9 in (2310 mm) |
| D. Max Vertical Digging Depth | 75.2 in (1910 mm) |
| E. Max Digging Radius at Ground | 151.2 in (3840 mm) |
| F. Max Digging Radius | 153.5 in (3900 mm) |
| G. Min Turning Radius (w/o swing) | 56.7 in (1440 mm) |
| G. Min Turning Radius (w/ swing) | 47.8 in (1215 mm) |
| H. Min Tail Turning Radius | 24.4 in (620 mm) |

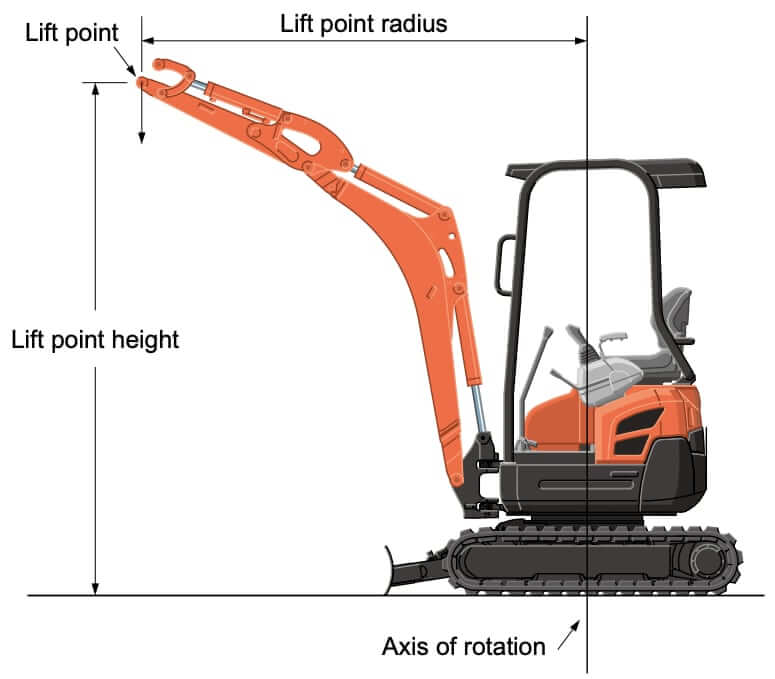

Lift Capacity Over-Front
| Lift Point Radius | |||
|---|---|---|---|
| Lift Point Height | 6 ft | 8 ft | 10 ft |
| 6 ft | 620 lb (281 kg) | 700 lb (317 kg) | – |
| 4 ft | 1170 lb (530 kg) | 850 lb (385 kg) | 690 lb (313 kg) |
| 2 ft | 1500 lb (680 kg) | 960 lb (435 kg) | 700 lb (317 kg) |
| Ground Level | 1400 lb (635 kg) | 940 lb (426 kg) | 670 lb (304 kg) |
Lift capacity over-front blade down: Kubota U17 w/ ROPS canopy + rubber crawler, w/o bucket.
Lift Capacity Over-Side
| Lift Point Radius | |||
|---|---|---|---|
| Lift Point Height | 6 ft | 8 ft | 10 ft |
| 6 ft | 620 lb (281 kg) | 530 lb (240 kg) | – |
| 4 ft | 780 lb (354 kg) | 510 lb (231 kg) | 360 lb (163 kg) |
| 2 ft | 720 lb (326 kg) | 490 lb (222 kg) | 350 lb (158 kg) |
| Ground Level | 700 lb (317 kg) | 470 lb (213 kg) | 340 lb (154 kg) |
Swing Mechanism
| Type | Zero tail swing excavator |
| Swivel Motor Type | Orbit motor |
| Swing Speed | 9.1 rpm |
| Boom Swing Angle, Left | 65° |
| Boom Swing Angle, Right | 58° |
| Tail Swing Radius | 24.4 in (620 mm) |

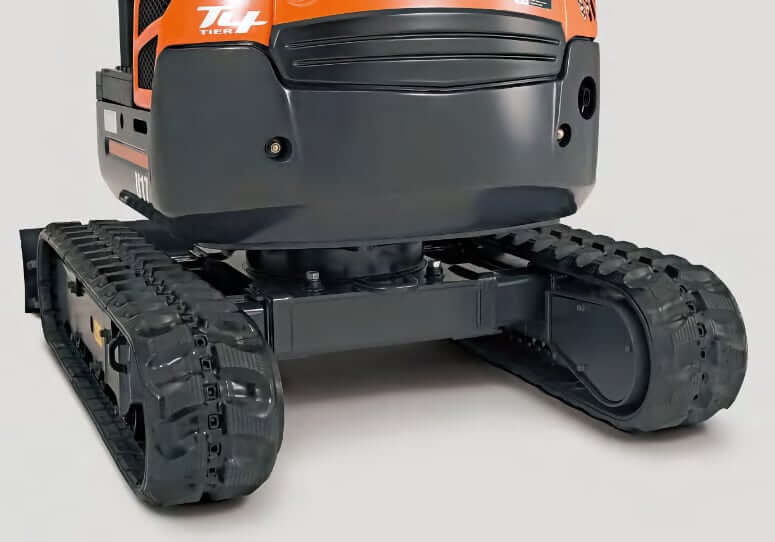

Undercarriage
| Type of Tracks | Short-pitched rubber tracks |
| Type of Track Rollers | Double-flanged track rollers |
| Standard Track Width | 49 in (1240 mm) |
| Narrow Track Width * | 39 in (990 mm) |
| Shoe Width | 9.1 in (230 mm) |
| Tumbler Distance | 48.4 in (1230 mm) |
| Crawler Length | 62.4 in (1585 mm) |
| Ground Pressure | 3.8 psi (26.2 kPa) |
| Max Traction Force | 4865 lbf (21.6 kN) |
| Max Climbing Angle | 30° (58%) |
*Do not operate in narrow track width [39 in (990mm)], it makes risk of the excavator tipping over, operate always in standard track width [49 in (1240mm)], except to pass through narrow space on a even ground.

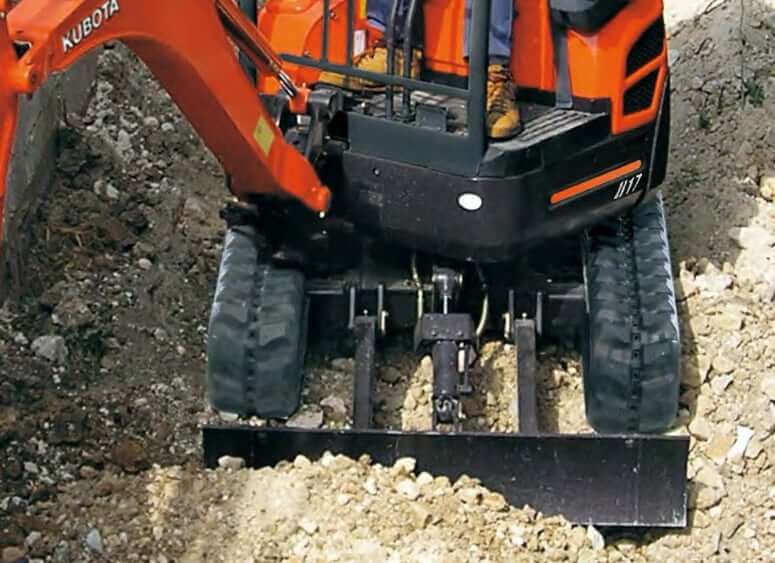

Dozer Blade
| Blade Width | 49 in (1240 mm) Standard 39 in (990 mm) Narrow Mode |
| Blade Height | 10.3 in (260 mm) |
| Max Lift Above Ground | 11 in (280 mm) |
| Max Drop Below Ground | 7.5 in (190 mm) |
Engine Details
| Number of Cylinders | 3 |
| Engine Make | Kubota |
| Engine Model | Kubota D902-E4 |
| Displacement | 54.8 cu in (0.898 L) |
| Bore | 2.83 in (72 mm) |
| Stroke | 2.90 in (73.6 mm) |
| Gross Power | 16.1 hp (12.0 kw) |
| Net Power | 15.1 hp (11.3 kw) |
| Power Measured @ | 2300 rpm |
| Peak Torque | 41.4 lb ft (56.1 Nm) |
| Torque Measured @ | 2600 rpm |
| Combustion System | Indirect Injection |
| Fuel System | TVCR |
| Aspiration | Naturally aspirated |
| Emission Standards | US EPA Tier 4 + EU Stage V |

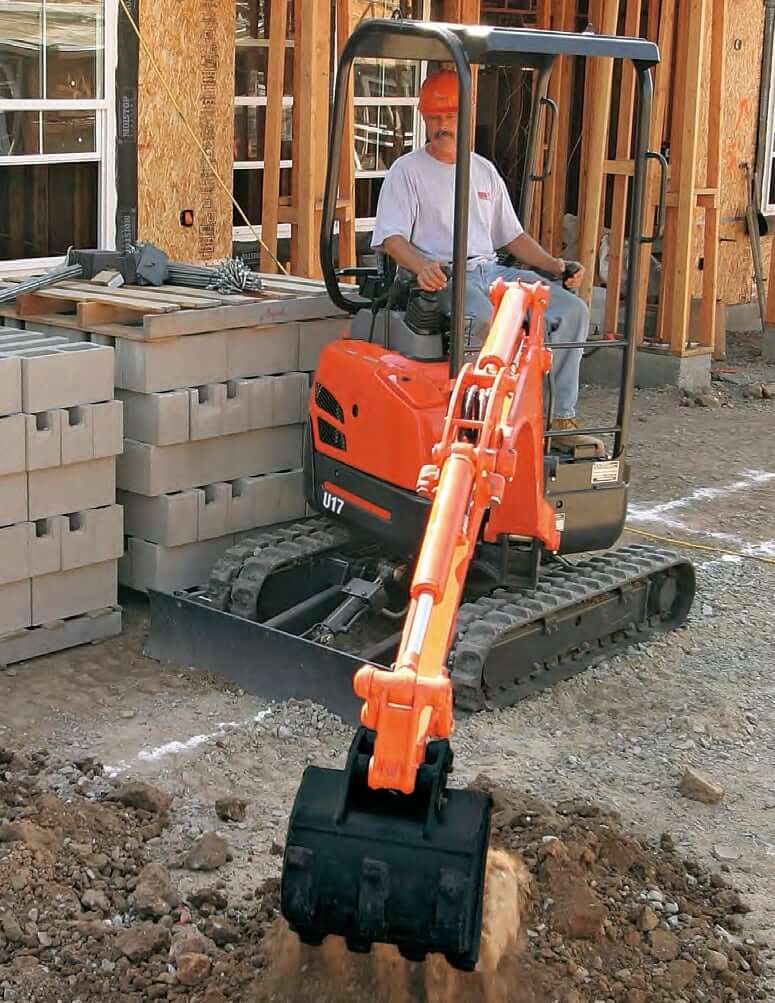

Operational Specs
| Operating Weight | 3703 lb (1680 kg) |
| Operating Voltage | 12 V |
| Alternator | 40 amps |
| Battery | 12 V, 48 Ah, CCA 350, RC: 75 min, 55B24R |

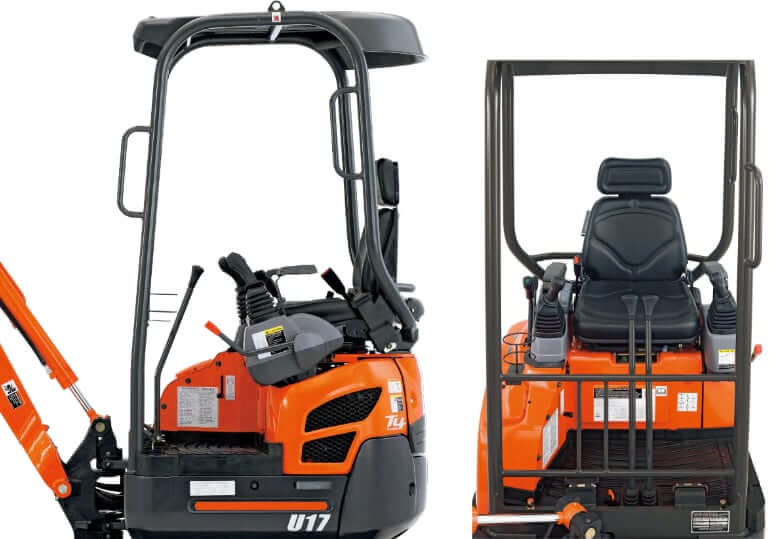

| Operator Station | Canopy with ROPS |
| ROPS | ROPS/OPG (TOP Guard, Level Ⅰ) |
| Operator Seat | High-back suspension seat |
| Controls | Hydraulic pilot control levers with wrist rests. Convenient Two-pattern Selection System (TPSS) – change between ISO and SAE operating patterns |
| Instrument Panel | Kubota’s Intelligent Control System LCD panel |
| Working Lights | 2 working lights on canopy + 1 light on the boom |
Drive System
| Type | 2-speed hydrostatic transmission, auto-shift |
| Travel Motor Type | Piston motor: 2F |
| Max Travel Speed, Low | 2.6 mph (4.0 km/h) |
| Max Travel Speed, High | 1.4 mph (2.2 km/h) |
| Service Brakes | Hydrostatic brake |

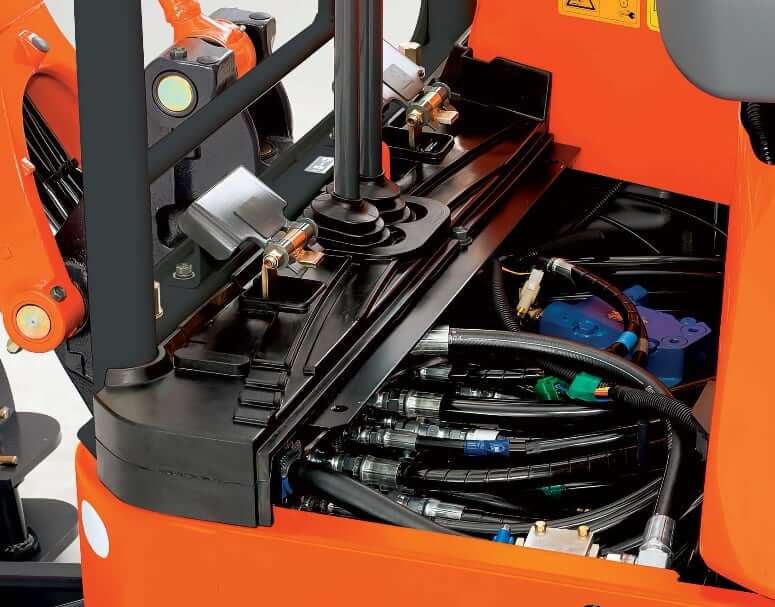

Hydraulic System
| Type | Hydraulic System with 3 independent pumps for boom, arm and swivel |
| Pump Type | 2x variable displacement pumps + 1x gear pump |
| Hydraulic Pump Flow Capacity | 2x 4.57 gal/min (2x 17.3 L/min) + 2.75 gal/min (10.4 L/min) |
| Auxiliary Hydraulic Flow | 7.32 gal/min (27.7 L/min) |
| Max Pressure | 2702 psi (18600 kPa) |
| Max Breakout Force, Bucket | 3417 lbf (15.2 kN) |
| Max Breakout Force, Arm | 1918 lbf (8.5 kN) |
| Auxiliary Hydraulic System | Bi-directional auxiliary hydraulic controls, and a control valve |

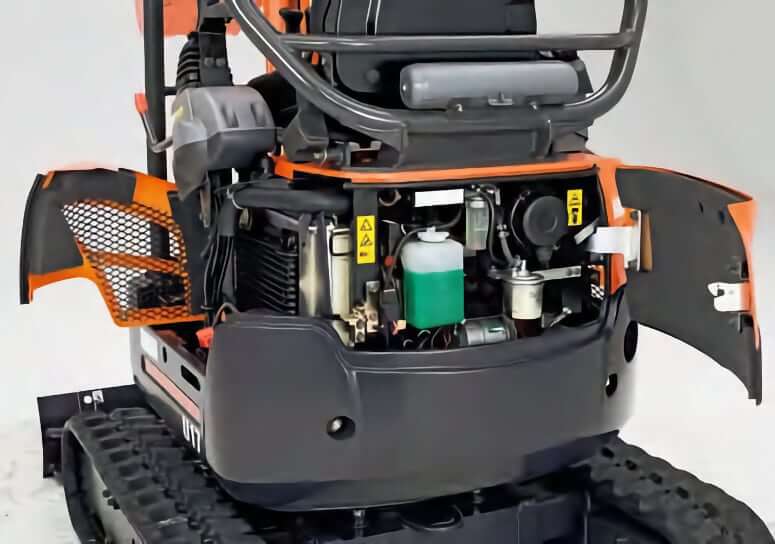

Service Refill Capacities
| Fuel Tank Capacity | 5 gal (19 L) |
| Engine Oil Capacity | 0.95 gal (3.6 L) |
| Cooling System Capacity | 0.63 gal (2.4 L) |
| Hydraulic System Capacity | 6.1 gal (23 L) |
| Hydraulic Tank Capacity | 3.4 gal (13 L) |
| Travel Reduction Unit | 0.07 gal (0.25 L) |
Kubota U17 Buckets
| Bucket Type and Width | Heaped Capacity | Weight | Number of Teeth |
|---|---|---|---|
| 8 in (203 mm), Pin On Trenching Bucket | 0.51 ft3 (0.014 m3) | 54 lb (24.5 kg) | 3 |
| 10 in (254 mm), Pin On Trenching Bucket | 0.70 ft3 (0.020 m3) | 59 lb (26.8 kg) | 3 |
| 12 in (305 mm), Pin On Trenching Bucket | 0.89 ft3 (0.025 m3) | 65 lb (29.5 kg) | 4 |
| 16 in (406 mm), Pin On Trenching Bucket | 1.27 ft3 (0.036 m3) | 83 lb (37.6 kg) | 5 |
| 18 in (457 mm), Pin On Trenching Bucket | 1.49 ft3 (0.042 m3) | 90 lb (40.8 kg) | 5 |
| 24 in (610 mm), Ditching Bucket, Quick Attach Coupler | 2.03 ft3 (0.057 m3) | 90 lb (40.8 kg) | – |
