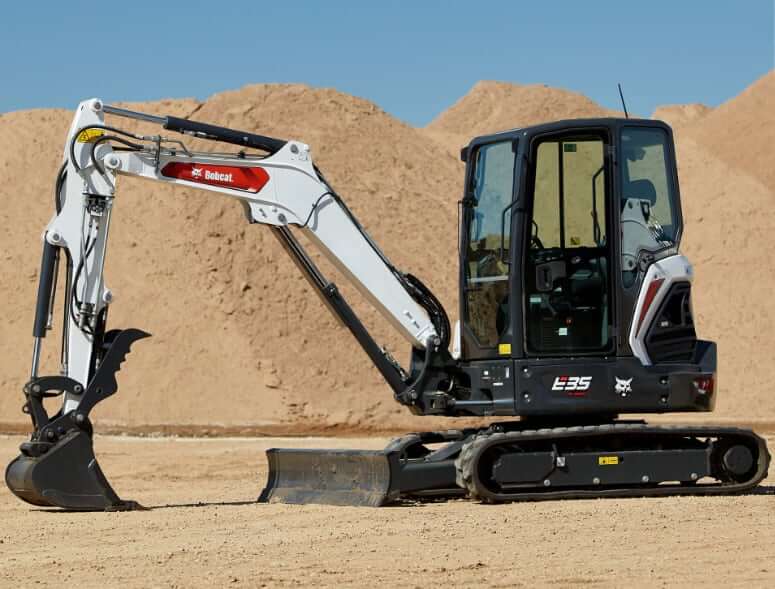

Dimensions

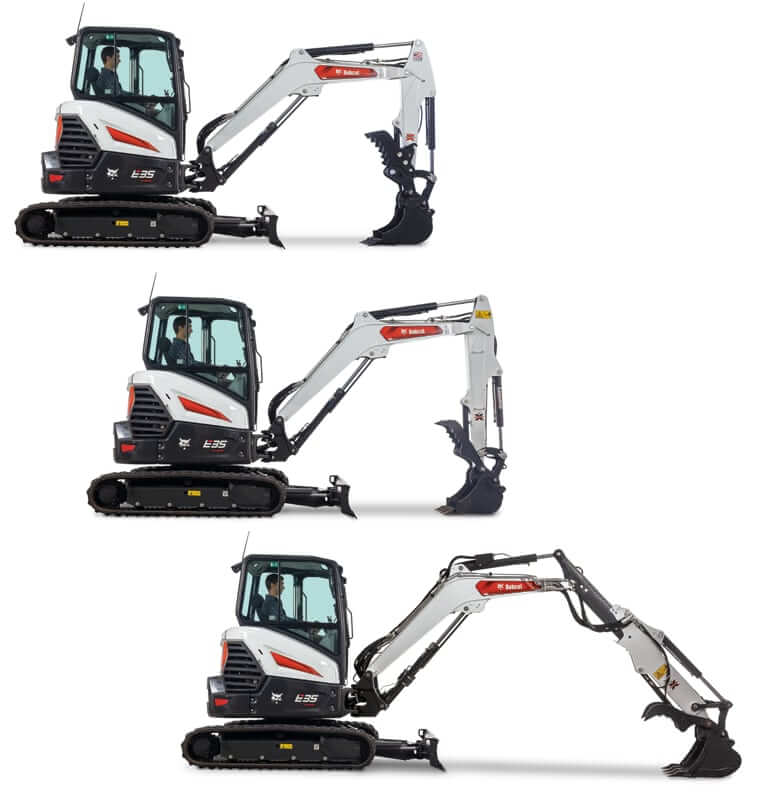

| Bobcat E35 | Standard Arm | Long Arm | Extendable Arm |
|---|---|---|---|
| Overall Length | 189.9 in (4823 mm) | 190.3 in (4834 mm) | 190.5 in (4839 mm) |
| Overall Height | 96.2 in (2443 mm) | 96.2 in (2443 mm) | 96.2 in (2443 mm) |
| Overall Width | 69.0 in (1753 mm) | 69.0 in (1753 mm) | 69.0 in (1753 mm) |
| Length of Track on Ground | 64.8 in (1647 mm) | 64.8 in (1647 mm) | 64.8 in (1647 mm) |
| Overall Length of Track Assembly | 81.4 in (2068 mm) | 81.4 in (2068 mm) | 81.4 in (2068 mm) |
| Machine Centre Line to Blade | 60.9 in (1546 mm) | 60.9 in (1546 mm) | 60.9 in (1546 mm) |
| Tail Swing Clearance, Rear | 34.4 in (875 mm) | 34.4 in (875 mm) | 34.4 in (875 mm) |
| Upper Structure Clearance to Ground Line | 21.1 in (537 mm) | 21.1 in (537 mm) | 21.1 in (537 mm) |

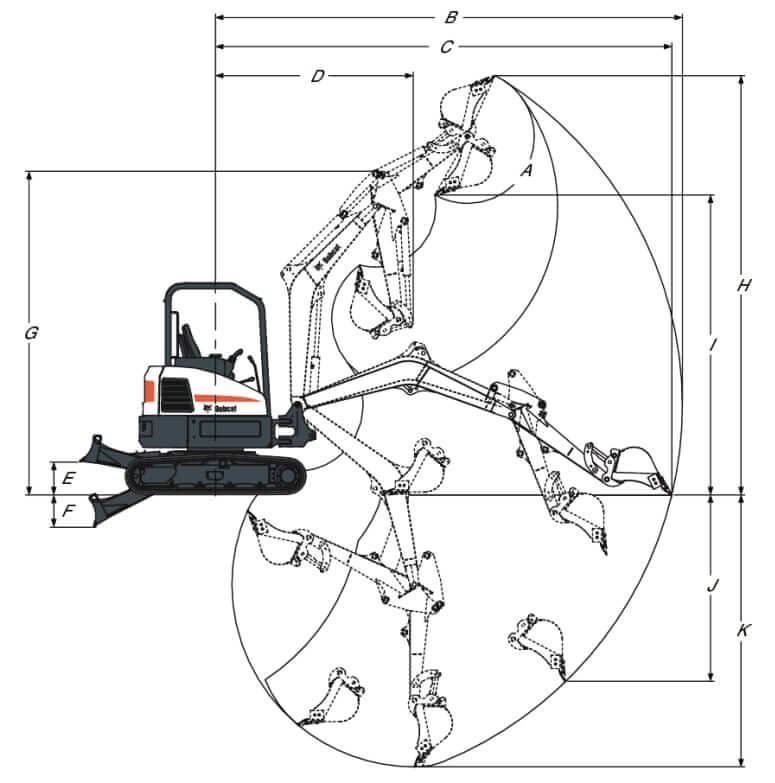

Working Range
| Bobcat E35 | Standard Arm | Long Arm | Extendable Arm |
|---|---|---|---|
| Arm Digging Force | 4690 lbf (20.9 kN) | 4002 lbf (17.8 kN) | 4474 lbf (19.9 kN) |
| Bucket Digging Force | 7284 lbf (32.4 kN) | 7284 lbf (32.4 kN) | 7284 lbf (32.4 kN) |
| A. Bucket Pivot Angle | 185° | 185° | 185° |

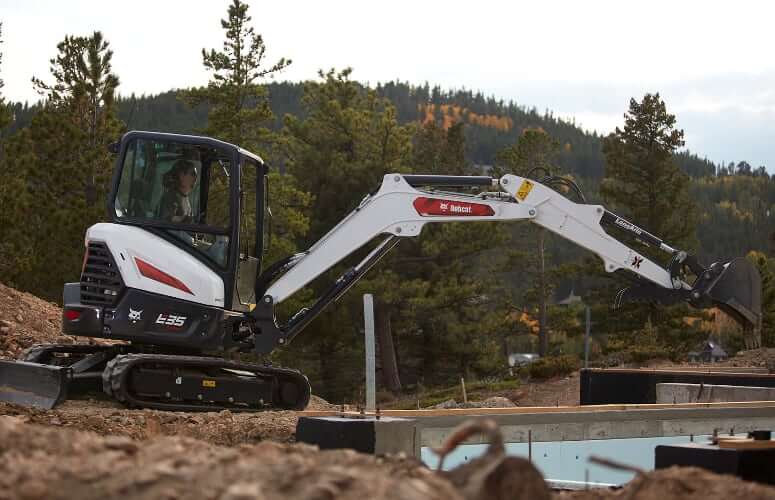

| B. Max Reach | 210.7 in (5351 mm) | 221.8 in (5633 mm) | |
| C. Max Reach at Ground Level | 204.3 in (5190 mm) | 215.8 in (5480 mm) | 235.1 in (5972 mm) |
| D. Max Radius w/ Boom at Max Height & Arm Fully Retracted | 89.3 in (2267 mm) | 91.6 in (2327 mm) | |
| E. Blade Lift Height | 14.8 in (376 mm) | 14.8 in (376 mm) | 14.8 in (376 mm) |
| F. Blade Dig Depth | 14.6 in (371 mm) | 14.6 in (371 mm) | 14.6 in (371 mm) |
| G. Max Height of Retracted Dipperstick | 146.0 in (3708 mm) | 146.0 in (3708 mm) | 146.0 in (3708 mm) |
| H. Maximum Dig Height | 189.1 in (4804 mm) | 196.3 in (4985 mm) | |
| I. Max Dump Height | 137.2 in (3484 mm) | 144.3 in (3665 mm) | 154.5 in (3925 mm) |
| J. Vertical Wall Digging Depth | 84.1 in (2136 mm) | 95.0 in (2414 mm) | |
| K. Max Digging Depth | 121.2 in (3077 mm) | 133.0 in (3377 mm) | 153.2 in (3892 mm) |

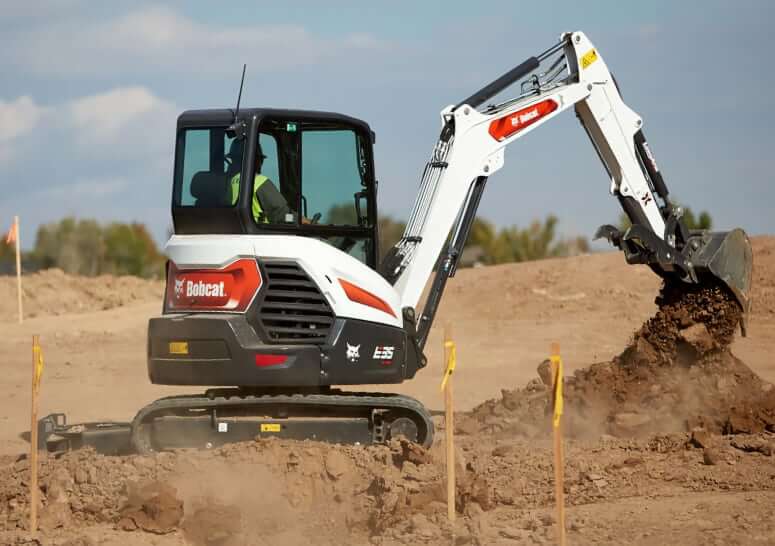

Rated Lift Capacity
| Rated Lift Capacity (Over blade, ground level, 10 ft / 3 m reach) | 3318 lb (1505 kg) |
| Rated Lift Capacity (Over side, ground level, 10 ft / 3 m reach) | 1393 lb (632 kg) |

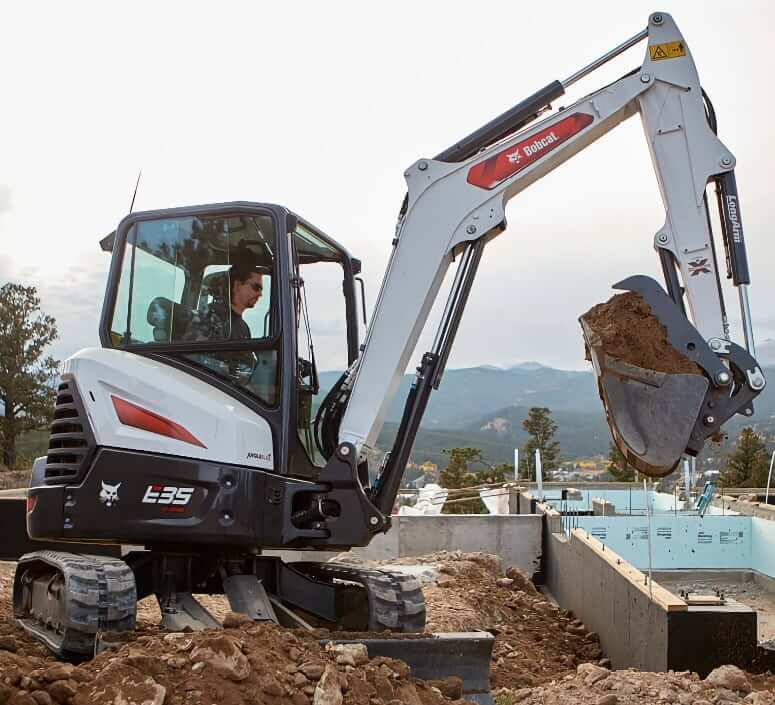

Weights
| Operating Weight (E35, 25 hp)* | 7530 lb (3415 kg) |
| Operating Weight (E35, 33 hp)* | 7728 lb (3505 kg) |
| Max Operating Weight** | 8590 lb (3897 kg) |
| Additional Counterweight | +650 lb (295 kg) |
| Optional Steel Tracks | + 212 lb (96 kg) |

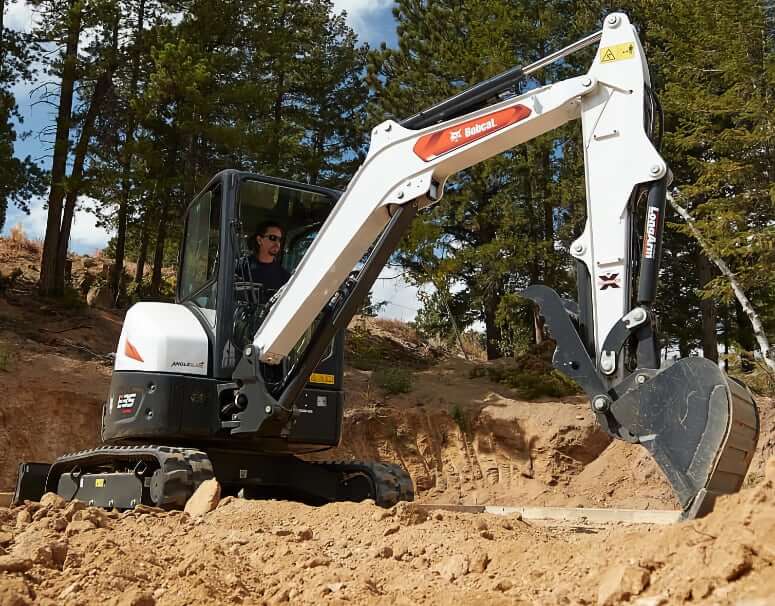

| Long Arm | + 675 lb (306 kg) |
| Cab w/ Heater | + 267 lb (121 kg) |
| Cab w/ HVAC | + 309 lb (140 kg) |
| Ground Pressure w/ Rubber Tracks | 4.1 psi (28.6 kPa) |
| Ground Pressure w/ Steel Tracks | 4.3 psi (29.4 kPa) |
| Ground Pressure w/ Long Dipperstick and Rubber Tracks | 4.5 psi (31.2 kPa) |
| Ground Pressure w/ Long Dipperstick and Steel Tracks | 4.6 psi (32.0 kPa) |
* Operating Weight w/ Canopy, standard rubber tracks, and 24 in (610 mm) bucket
** Operating Weight w/ Extendable Arm
Engine Details
| Horsepower | Bobcat E35 (25 hp) | Bobcat E35 (33 hp) |
|---|---|---|
| Number of Cylinders | 3 | 3 |
| Engine Model | Kubota D1703-M-DI-EF03 | Kubota D1803-M-D1-E3B-BC-3 |
| Displacement | 100.5 cu in (1.647 L) | 111.4 cu in (1.826 L) |
| Bore | 3.43 in (87.0 mm) | 3.43 in (87.0 mm) |
| Stroke | 3.64 in (92.4 mm) | 4.03 in (102.4 mm) |
| Net Power | 24.8 hp (18.5 kw) | 33.5 hp (24.6 kw) |
| Power Measured @ | 2200 rpm | 2400 rpm |
| Peak Torque | 71.8 lb ft (97.4 Nm) | 83.8 lb ft (113.6 Nm) |
| Torque Measured @ | 1500 rpm | 1400 rpm |
| Fuel System | In-line pump | In-line pump |
| Combustion System | Direct Injection | Direct Injection |
| Lubrication System | Forced circulation | Forced circulation |
| Air Cleaner | Air cleaner with indicator | Dry, dual element, replaceable paper cartridge with safety element and restriction indicator |
| Aspiration | Naturally aspirated | Naturally aspirated |
| Emission Standards | US EPA/CARB Tier 4 (NRTC/NTE test mode) + EU Stage V | US EPA / CARB interim Tier 4 + EU Stage IIIA |
Electrical System
| Operating Voltage | 12 V |
| Alternator | 90 amps |
| Starter | 12 V, 2.0 kW, gear reduction type |
| Battery | 12 V, CCA 530 (7269858) |
| Working Lights | 2 Front Lights (Boom and Frame Mounted). Additional work light kit (Optional) |
Travel System
| Type | Each track is driven by a hydraulic axial piston motor |
| Type of Reduction | Two-stage planetary gear reduction 48.6:1 |
| Travel Speed, High | 2.9 mph (4.7 km/h) |
| Travel Speed, Low | 1.6 mph (2.6 km/h) |
| Traction Force (Drawbar Pull) | 7651 lbf (34.03 kN) |
| Service Brakes | Hydraulic brake on motor |
| Parking Brake | Spring applied, hydraulically released, multi-disk brake |

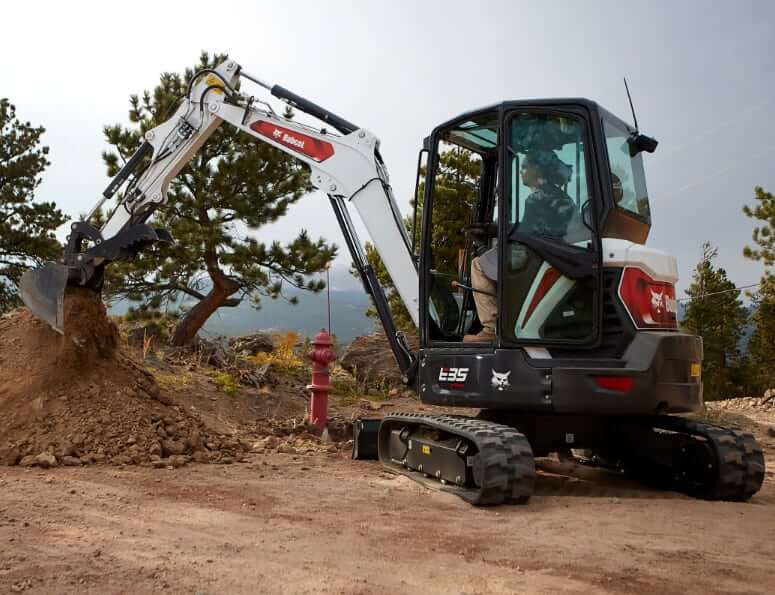

Undercarriage
| Type | Crawler X-frame design with reinforced box section track roller frame and sealed track rollers |
| Track Adjusters | Grease type with shock absorbing recoil springs |
| Rubber Tracks (Standard) | 11.8 in (300 mm) |
| Steel Tracks (Optional) | 11.8 in (300 mm) |
| Track Lug Height | 0.9 in (23 mm) |
| Number of Track Rollers (per side) | 5 |
| Number of Carrier Rollers (per side) | 1 |
| Length of Track on Ground | 64.8 in (1647 mm) |
| Overall Length of Track Assembly | 81.4 in (2068 mm) |

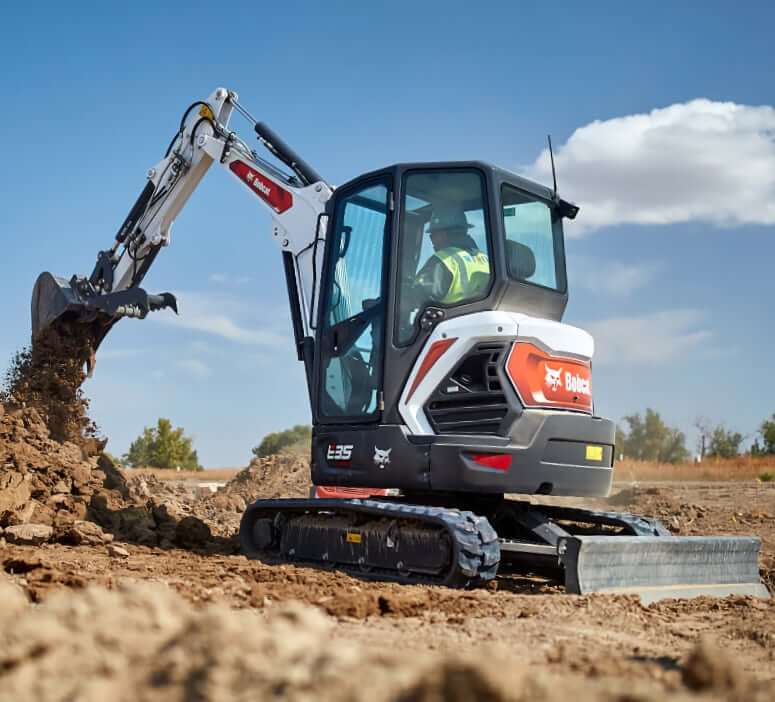

Dozer Blade
| Type | Automatically controlled floating blade |
| Blade Height | 13.8 in (350 mm) |
| Blade Width | 68.9 in (1750 mm) |
| Max Blade Lift Height | 14.8 in (376 mm) |
| Max Blade Dig Depth | 14.6 in (371 mm) |
| Machine Centre Line to Blade | 60.9 in (1546 mm) |
| Blade Control | Right hand lever |
Swing System
| Swing Speed | 8.6 rpm |
| Tail Swing Type | Zero |
| Tail Swing Overhang | 3.2 in (81 mm) |
| Boom Swing, Left | 77° |
| Boom Swing, Right | 50° |
| Swing Motor | Axial piston connected to a planetary drive |
| Slew Circle | Single row shear-type ball bearings with internal gear |
| Swing Service Brake | Spring applied, hydraulically released |
Hydraulic System
| Type | Closed centre, individually compensated |
| Controls | 2 joysticks control boom, bucket, arm and upper structure slew |
| Pump Type | Single outlet variable displacement, load sensing torque limited pump with gear pumps |
| Piston Pump Flow | 26.6 gal/min (100.8 L/min) |
| Gear Pump Flow | 2.5 gal/min (9.6 L/min) |
| Auxiliary Hydraulic Flow | 16.9 gal/min (63.9 L/min) |
| Auxiliary Hydraulic Pressure | 2987 psi (20595 kPa) |
| System Relief Pressure – Equipment | 4206 psi (29000 kPa) |
| System Relief Pressure – Swing Circuit | 2133 psi (21600 kPa) |
| Bucket Port Relief Base and Rod Wnd | 3916 psi (27000 kPa) |
| Hydraulic Filter | Full flow replaceable, 3 micron synthetic media element |
| 2nd Auxiliary Hydraulics | Optional |
| Auxiliary Quick Couplers on Arm | Optional |
Hydraulic Cycle Times
| Boom Raise | 4.4 sec |
| Boom Lower | 5.1 sec |
| Bucket Curl | 2.7 sec |
| Bucket Dump | 1.9 sec |
| Dipperstick Retract | 2.9 sec |
| Dipperstick Extend | 2.4 sec |
| Boom Swing Left | 7.0 sec |
| Boom Swing Right | 7.2 sec |
| Blade Raise | 3.1 sec |
| Blade Lower Time | 3.5 sec |

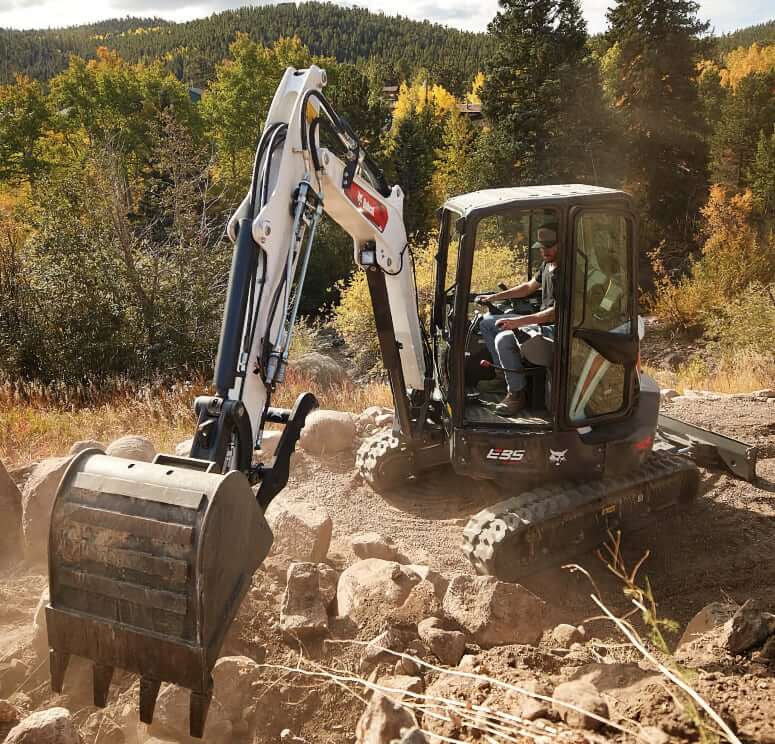

Bobcat E35 Buckets
| Bucket Type / Width | Weight | Capacity |
|---|---|---|
| Trenching, 230 mm (9 in) | 123 lb (55.8 kg) | 0.036 yd3 (0.028 m3) |
| Trenching, 300 mm (12 in) | 129 lb (58.7 kg) | 0.054 yd3 (0.041 m3) |
| Trenching, 400 mm (16 in) | 153 lb (69.5 kg) | 0.078 yd3 (0.060 m3) |
| Trenching, 450 mm (18 in) | 163 lb (74 kg) | 0.092 yd3 (0.070 m3) |
| Trenching, 500 mm (20 in) | 173 lb (78.5 kg) | 0.105 yd3 (0.080 m3) |
| Trenching, 600 mm (24 in) | 197 lb (89.2 kg) | 0.131 yd3 (0.100 m3) |
| Trenching, 700 mm (28 in) | 220 lb (99.9 kg) | 0.157 yd3 (0.120 m3) |
| Trenching, 750 mm (30 in) | 230 lb (104.4 kg) | 0.171 yd3 (0.131 m3) |
| Trenching, 800 mm (31.5 in) | 240 lb (108.9 kg) | 0.183 yd3 (0.140 m3) |
| Trenching, 900 mm (35.4 in) | 264 lb (119.6 kg) | 0.212 yd3 (0.162 m3) |
| Trenching HD, 300 mm (12 in) | 152 lb (68.9 kg) | 0.054 yd3 (0.041 m3) |
| Trenching HD, 600 mm (24 in) | 224 lb (101.5 kg) | 0.131 yd3 (0.100 m3) |
| Trenching HD, 700 mm (28 in) | 267 lb (121 kg) | 0.157 yd3 (0.120 m3) |
Operator Environment
| ROPS | SAE J1040 |
| TOPS | ISO 12117 |
| FOGS (Optional) | ISO 10262 Level 1 |
| Noise level LpA/EU Directive 2006/42/EC | 78 dB(A) |
| Noise level LWA/EU Directive 2000/14/EC | 93 dB(A) |
| Whole-Body Vibration (ISO 2631-1) | 0.14 m/s2 |
| Hand-Arm Vibration (ISO 5349-1) | 0.44 m/s2 |
| HVAC | Optional for Cab |
| Instrumentation Panel | Charging system indicator; engine oil pressure indicator; engine temperature gauge; fuel gauge; hour meter, resettable; hydraulic system indicator; tachometer; engine throttle dial; auto idle switch; A/C control switches; windshield wiper/washer switch; high travel speed indicator; work light switch; work light indicator; battery kill switch |
| Delux Instrumentation Panel (Optional) | Deluxe instrumentation and 7-inch display give you complete control and job monitoring. |
Service Refill Capacities
| Bobcat | E35 (25 hp) | E35 (33 hp) |
|---|---|---|
| Fuel Tank Capacity | 13.7 gal (51.9 L) | 14 gal (53.1 L) |
| Engine Oil Capacity (with Filter) | 1.4 gal (5.3 L) | 1.4 gal (5.2 L) |
| Cooling System Capacity | 2.1 gal (7.9 L) | 2.1 gal (8.0 L) |
| Hydraulic System Capacity | 10.5 gal (39.7 L) | 10.5 gal (39.7 L) |
| Hydraulic Tank Capacity | 2.5 gal (9.5 L) | 2.5 gal (9.5 L) |
| Final Drive Capacity (each) | 0.13 gal (0.5 L) | 0.13 gal (0.5 L) |
Bobcat E35 Maintenance Items
| Item | E35 SN AR1K11001- | E35, E35i (SN AC2P1100-; A93K11001-; B3K811001- , B3GR11001-, AUYM11001-) |
|---|---|---|
| Engine Oil Filter | 7012303 | 6675517 |
| Fuel Filter | 7023589 | 6667352 |
| Inner Air Cleaner Filter | 7020361 | 6672468 |
| Outer Air Cleaner Filter | 6690907 | 6672467 |
| Fan Belt | 7009795 | 7009795 |
| Alternator Belt | 7009797 | 7009797 |
| HVAC Filter | 7176099 7222791 |
7010331 7010332 |
| Engine Oil 10W-30 (1 gal) | 7023077 | 7023077 |
| Engine Oil 15W-40 (1 gal) | 7023081 | 7023081 |
| Engine Oil 5W-40 (1 gal) | 6989148 | 6989148 |
| Antifreeze – Premix (1 gal) | 6983128 | 6983128 |
| Antifreeze – Concen. (1 gal) | 6983129 | 6983129 |
| Battery, 12V, CCA 530 | 7269858 | 7269858 |
| Battery, 12V, CCA 600 | 7269859 | 7269859 |
| Hydraulics | Part Number | Part Number |
| Primary Filter (In-Line) | 7009365 | 7009365 |
| Hydrostatic Oil Filter | 6668819 | 6668819 |
| Hydraulic Cap | 6692836 | 6692836 |
| Hydrostatic Fluid (1 gal) | 6904026 | 6904026 |
| Synthetic Hydraulic Fluid (1 gal) | 6988778 | 6988778 |
| Grease | Part Number | Part Number |
| Supreme HD | 6687884 | 6687884 |
| Extreme HP | 6687885 | 6687885 |
| Multi-Purpose #2 | 6903122 | 6903122 |
| Replacement Track Options | Part Number | Part Number |
| 320 x 84 x 52.5 Track, Rubber | 7255667 | 7255667 |
| 300 x 84 x 52.5 Track, Rubber, Earth Force | 6988844EF | 6988844EF |
The Bobcat E35 Compact Excavator stands out as a powerful and versatile machine, designed to handle a wide range of tasks on construction sites, in landscaping, utility work, and beyond. To further enhance its efficiency and adaptability, the E35 supports a comprehensive lineup of specialized attachments. From digging and grading to compacting and trenching, operators can equip the E35 with digging buckets, grading buckets, tilt buckets, and skeleton buckets—offered in multiple mounting systems including Klac, Lehnhoff, Pin-on, and X-Change.

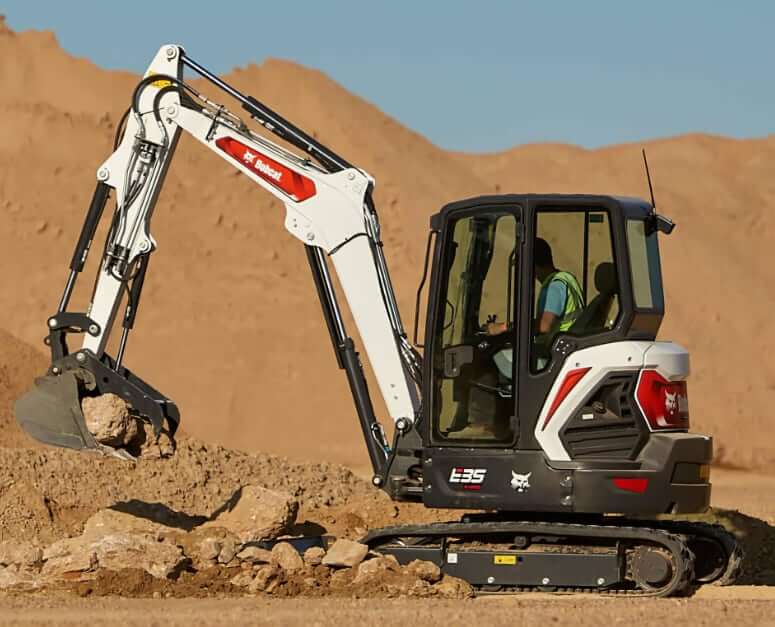

Advanced tools like hydraulic clamps, tilt rotators, and the Hydra Tilt expand maneuverability and precision, while augers, rippers, and trenchers tackle soil and subsoil tasks with ease. For demolition and hard material removal, attachments such as breakers, rotary grinders, and cutter crushers provide robust performance. Laser equipment enhances grading accuracy, and plate compactors or packer wheels ensure jobsite finishing meets quality standards. Whether it’s utility installation or site preparation, the Bobcat E35’s diverse attachment options allow it to adapt quickly to changing job demands.
