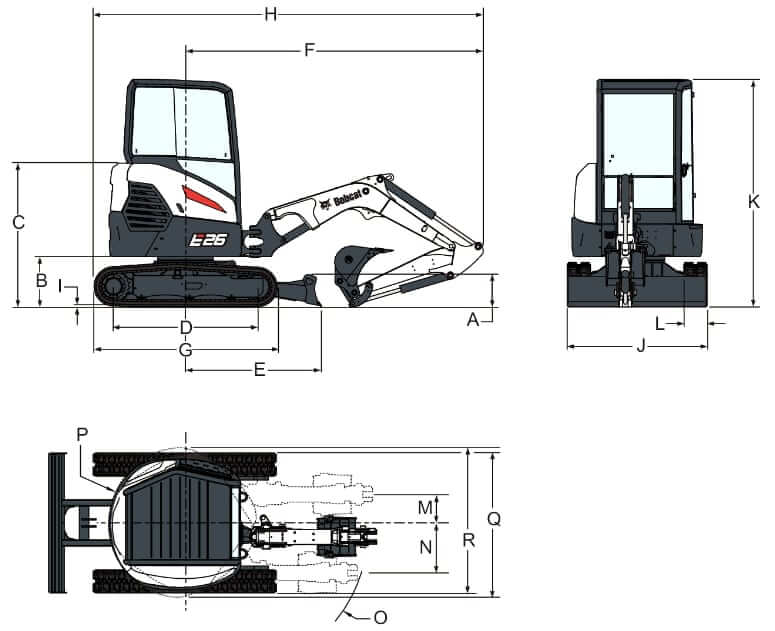

Dimensions
| Bobcat E26 | 2011-2020 | 2020-2025 |
|---|---|---|
| A. Blade Height | 13 in (330 mm) | 13 in (330 mm) |
| B. Tail Swing Clearance | 21 in (537 mm) | 21.2 in (539 mm) |
| C. Groundline to Top of Engine Cover | 57.3 in (1456 mm) | 60.6 in (1540 mm) |
| D. Length of Track on Ground | 61 in (1543 mm) | 61 in (1543 mm) |
| E. Machine Centerline to Blade | 57.5 in (1462 mm) | 57.5 in (1462 mm) |
| F. Minimum Radius in Transport Position | 132 in (3345 mm) | 125.7 in (3192 mm) |
| G. Overall Length of Track Assembly | 77.3 in (1965 mm) | 77.3 in (1965 mm) |
| H. Overall Length in Transport Position | 170.3 in (4327 mm) | 164.3 in (4174 mm) |
| I. Track Lug Height | 0.83 in (21 mm) | 0.83 in (21 mm) |
| J. Overall Width Over Blade | 60 in (1515 mm) | 59 in (1500 mm) |
| K. Overall Height to Top of Canopy / Cab | 95 in (2412 mm) | 96 in (2438 mm) |
| L. Track Width | 11.8 in (300 mm) | 9.8 in (250 mm) |
| M. Machine Centerline to Working Equipment Centerline, LH Rotation | 24 in (614 mm) | 22.8 in (580 mm) |
| N. Machine Centerline to Working Equipment Centerline, RH Rotation | 29 in (735 mm) | 27.8 in (705 mm) |
| O. Minimum Turning Radius (Standart Arm) | 65.3 in (1661 mm) | 69 in (1755 mm) |
| O. Minimum Turning Radius (Long Arm) | 75.8 in (1925 mm) | 69 in (1755 mm) |
| P. Tail Swing Radius (Standart Arm) | 30.3 in (770 mm) | 32.3 in (820 mm) |
| P. Tail Swing Radius (Long Arm) | 33.1 in (840 mm) | 33.1 in (840 mm) |
| Q. Working Width Maximum RH Rotation | 77 in (1949 mm) | 68.5 in (1741 mm) |
| R. Working Width Maximum LH Rotation | 63.6 in (1616 mm) |

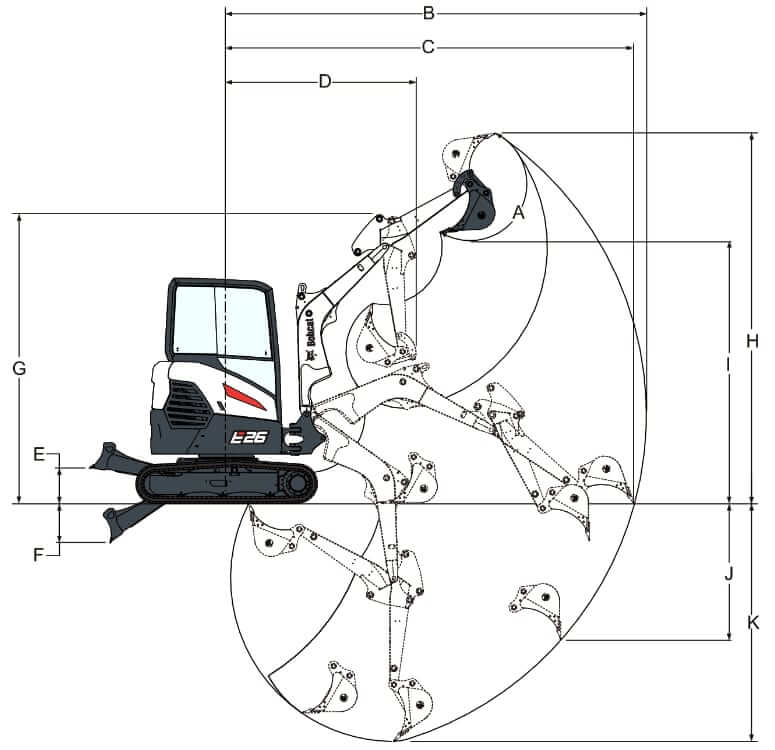

Working Range (2011-2020)
| Bobcat E26 (2011-2020) | Standard | Long Arm |
|---|---|---|
| Bucket Digging Force | 4991 lbf (22.2 kN) | 4991 lbf (22.2 kN) |
| Arm (Stick) Digging Force | 3552 lbf (15.8 kN) | 2967 lbf (13.2 kN) |
| A. Bucket Pivot Angle | 185° | 185° |
| B. Maximum Radius of Working Equipment | 184.2 in (4678 mm) | 195.5 in (4966 mm) |
| C. Maximum Reach at Ground Level | 188.8 in (4553 mm) | 191 in (4850 mm) |
| D. Maximum Working Equipment Radius with Boom @ Maximum Height | 83.94 in (2132 mm) | 84.06 in (2135 mm) |
| E. Maximum Blade Height | 15 in (385 mm) | 15 in (385 mm) |
| F. Maximum Blade Depth | 12.4 in (315 mm) | 12.4 in (315 mm) |
| G. Maximum Height of Working Equipment with Arm Retracted | 128 in (3246 mm) | 127.5 in (3239 mm) |
| H. Maximum Bucket Tooth Height | 168 in (4272 mm) | 176 in (4473 mm) |
| I. Maximum Dump Height | 120.3 in (3057 mm) | 127.5 in (3239 mm) |
| J. Maximum Depth of Vertical Wall which can be Excavated | 71 in (1809 mm) | 82.2 in (2089 mm) |
| K. Maximum Dig Depth | 102 in (2582 mm) | 114 in (2890 mm) |
Working Range (2020-2025)
| Bobcat E26 (2020-2025) | Standard Arm |
|---|---|
| Bucket Digging Force | 5332 lbf (23.72 kN) |
| Arm (Stick) Digging Force | 3527 lbf (15.69 kN) |
| A. Bucket Pivot Angle | 185° |
| B. Maximum Radius of Working Equipment | 178.8 in (4542 mm) |
| C. Maximum Reach at Ground Level | 173.7 in (4413 mm) |
| D. Maximum Working Equipment Radius with Boom @ Maximum Height | 80.8 in (2052 mm) |
| E. Maximum Blade Height | 15 in (385 mm) |
| F. Maximum Blade Depth | 16.5 in (420 mm) |
| G. Maximum Height of Working Equipment with Arm Retracted | 122.2 in (3104 mm) |
| H. Maximum Bucket Tooth Height | 157.7 in (4006 mm) |
| I. Maximum Dump Height | 112 in (2845 mm) |
| J. Maximum Depth of Vertical Wall which can be Excavated | 58 in (1474 mm) |
| K. Maximum Dig Depth | 101.1 in (2568 mm) |
Bobcat E26 Lift Capacities
| Lift Point Height | Over Blade, Blade Up | Over Side, Blade Up |
|---|---|---|
| 2000 mm | 1179 lb (535 kg) | 919 lb (417 kg) |
| 1000 mm | 1060 lb (481 kg) | 871 lb (395 kg) |
| Ground | 1036 lb (470 kg) | 841 lb (382 kg) |
| -1000 mm | 1056 lb (479 kg) | 864 lb (392 kg) |
Rated hydraulic lift capacity at 118 in (3000 mm) lift radius. Bobcat E26 (2020-2025) lifting capacities are based on ISO 10567 and do not exceed 75% of the static tilt load of the machine or 87% of the hydraulic lifting capacity of the machine.

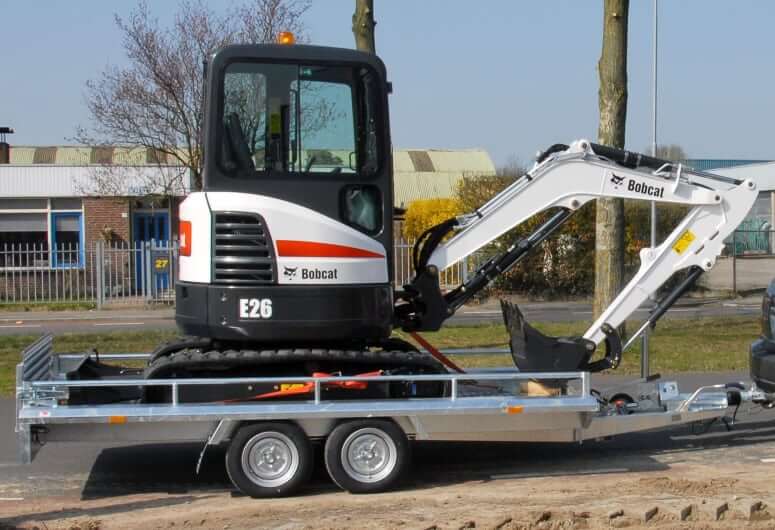

Weights
| Operating Weight – Canopy, Standard Arm (2011-2020) | 5666 lb (2570 kg) |
| Operating Weight – Cab w/ HVAC, Standard Arm (2011-2020) | 5994 lb (2719 kg) |
| Counterweight Kit (2011-2020) | 401 lb (183 kg) |
| Operating Weight – Canopy, Standard Arm (2020-2025) | 5490 lb (2490 kg) |
| Operating Weight – Cab, Standard Arm (2020-2025) | 5750 lb (2608 kg) |
| Shipping Weight (2020-2025) | 5461 lb (2477 kg) |
| Counterweight Kit (2020-2025) | 440 lb (200 kg) |

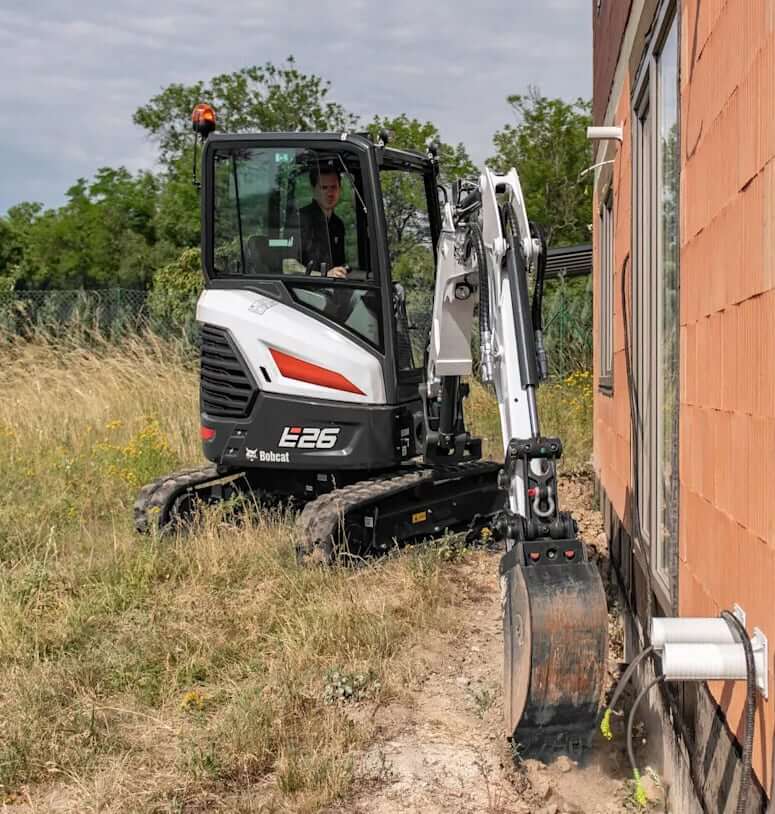

Ground Pressure
| Ground Pressure (2011-2020, Standard Arm, 300 mm Track) | 3.71 psi (25.6 kPa) |
| Ground Pressure (2011-2020, Long Arm, 300 mm Track) | 3.73 psi (25.7 kPa) |
| Ground Pressure (2011-2020, Standard Arm, 300 mm Track + Counterweight) | 3.96 psi (27.3 kPa) |
| Ground Pressure (2011-2020, Long Arm, 300 mm Track + Counterweight) | 3.97 psi (27.4 kPa) |
| Ground Pressure (2020-2025, Standard Arm, 250 mm Track) | 4.39 psi (30.3 kPa) |
Engine Details
| Engine Model | Kubota D1105-E2B-BCZ-2 | Kubota V1505-E4B-BCZ-2 | Yanmar 3TNV76-PBC |
|---|---|---|---|
| Number of Cylinders | 3 | 4 | 3 |
| Displacement | 68.5 cu in (1.123 L) | 91.4 cu in (1.498 L) | 68.1 cu in (1.116 L) |
| Bore | 3.07 in (78 mm) | 3.07 in (78 mm) | 3.00 in (76 mm) |
| Stroke | 3.09 in (78.4 mm) | 3.09 in (78.4 mm) | 3.23 in (82 mm) |
| Gross Horsepower | 20.8 hp (15.5 kw) | 24.8 hp (18.5 kw) | 20.0 hp (14.9 kw) |
| Power Measured @ | 2400 rpm | 2400 rpm | 2400 rpm |
| Peak Torque | 52.5 lb ft (71.2 Nm) | 68.3 lb ft (92.6 Nm) | 48.9 lb ft (66.3 Nm) |
| Torque Measured @ | 1400 rpm | 1700 rpm | 1800 rpm |
| Fuel System | In-line pump | In-line pump | In-line pump |
| Combustion System | Indirect injection | Indirect injection | Indirect injection |
| Air Cleaner | Dual dry paper cartridge | Dry cartridge w/ safety element | Dry air filter |
| Aspiration | Naturally aspirated | Naturally aspirated | Naturally aspirated |
| Emission Standards | US EPA Tier 2 + EU Stage IIIA | US EPA interim Tier 4 + EU Stage IIIA | US EPA interim Tier 4 + EU Stage V |
Electrical System
| Operating Voltage | 12 V |
| Alternator | 90 amps |
| Battery | 12 V, RC: 115 min, CCA 650, BCI 24 (Bobcat 7269859) |
| Working Lights | Boom-mounted and frame-mounted adjustable lights, 2x 37.5 W |
| Beacon Kit | Optional |
Operator Environment
| Cab / Canopy (Standard) | Canopy with ROPS / TOPS |
| Cab / Canopy (Optional) | TOPS / ROPS / FOPS cab with heater |
| ROPS | ISO 3471 |
| TOPS | ISO 12117 |
| FOPS | ISO 3449 |
| FOGS Kit | Optional overhead guard |
| HVAC | Optional for Cab |
| Operator Seat | Suspension seat with high back |
| Seat Belt | Retractable Seat Belt |
| Instrumentation | Fuel gauge, audible alarm, visual warning for engine functions and hourmeter |
| Noise Level, LpA (2011-2020 / 2020-2025) | 77 dB(A) / 80 dB(A) |
| Noise Level, LwA (2011-2020 / 2020-2025) | 93 dB(A) / 93 dB(A) |
| Whole Body Vibration (2011-2020 / 2020-2025) | 0.17 m/s2 / 0.11 m/s2 |
| Hand-arm Vibration (2011-2020 / 2020-2025) | 0.63 m/s2 / 0.50 m/s2 |
Swing System
| Swing Speed | 8.9 rpm (2011-2020) 9.3 rpm (2020-2025) |
| Boom Swing, Left | 60° |
| Boom Swing, Right | 60° |
| Swing Motor | Orbit Motor |
| Slew Circle | Single row shear type ball bearings with internal gear |
| Gear Reduction | 21.5:1 |
| Swing Service Brake | Spring applied, pressure released |
Travel System
| Type | Hydrostatic transmission |
| Hydraulic Drive Motors | 2x axial piston motors |
| Travel Speed, Low (2011-2020 / 2020-2025) | 1.5 mph (2.5 km/h) / 1.5 mph (2.5 km/h) |
| Travel Speed, High (2011-2020 / 2020-2025) | 2.8 mph (4.6 km/h) / 2.7 mph (4.3 km/h) |
| Traction Force (Drawbar Pull) (2011-2020 / 2020-2025) | 6789 lbf (30.2 kN) / 6537 lbf (29.08 kN) |
| Type of Reduction | Two stage planetary gear reduction 41.9:1 |
| Service Brakes | Hydraulic lock in hydrostatic motor circuit |
| Parking Brake | Hydraulic lock in motor circuit |

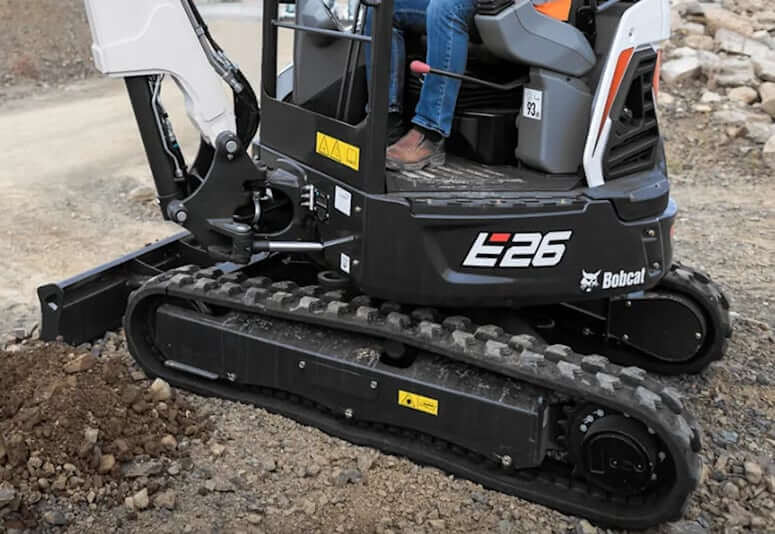

Undercarriage
| Track Width, Rubber (Standard, 2011-2020) | 11.8 in (300 mm) |
| Track Width, Rubber (Standard, 2020-2025) | 9.8 in (250 mm) |
| Track Width, Steel (Optional) | 11.8 in (300 mm) |
| Track Adjusters | Grease type track adjuster with shock absorbing recoil spring |
| Track Rollers | Sealed track rollers with boxed section track roller frame |
| Number of Track Rollers (per side) | 4 |
| Length of Track on Ground | 61 in (1543 mm) |
| Track Lug Height | 0.83 in (21 mm) |
| Gradeability | 30° |

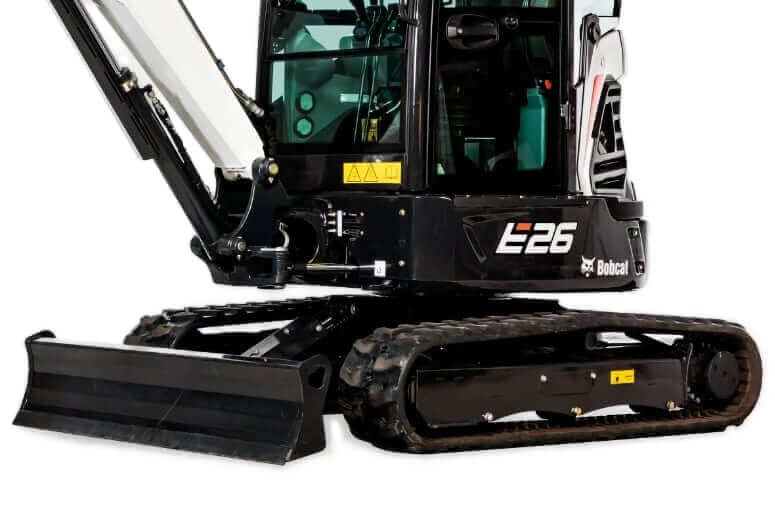

Dozer Blade
| Dozer Blade Height (2011-2020 / 2020-2025) | 13 in (330 mm) / 12.6 in (319 mm) |
| Dozer Blade Width (2011-2020 / 2020-2025) | 60 in (1515 mm) / 59 in (1500 mm) |
| Max Blade Lift Height | 15.0 in (385 mm) |
| Max Blade Dig Depth | 12.4 in (315 mm) |
| Dozer Blade Control | Hand lever |

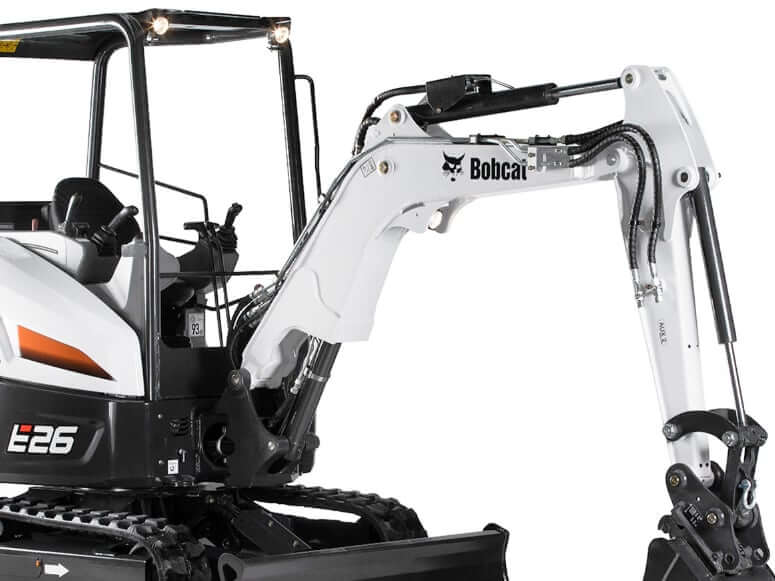

Hydraulic System
| Engine Model | Kubota D1105 | Kubota V1505 | Yanmar 3TNV76 |
|---|---|---|---|
| Pump Type | Dual outlet VDP with gear pumps | Dual outlet VDP with gear pumps | Dual outlet VDP with gear pumps |
| Total Hydraulic Capacity | 21.7 gal/min (82.1 L/min) | 24.9 gal/min (94.3 L/min) | |
| Piston Pump Capacity | 2x 7.6 gal/min (2x 28.8 L/min) | 2x 7.6 gal/min (2x 28.8 L/min) | 2x 8.9 gal/min (2x 33.8 L/min) |
| Gear Pump 1 Capacity | 4.9 gal/min (18.4 L/min) | 4.9 gal/min (18.4 L/min) | 5.3 gal/min (20 L/min) |
| Gear Pump 2 Capacity | 1.6 gal/min (6.2 L/min) | 1.6 gal/min (6.2 L/min) | 1.8 gal/min (6.8 L/min) |
| Auxiliary Pump (AUX1) Flow | 12.7 gal/min (48 L/min) | 12.5 gal/min (47.2 L/min) | 14.2 gal/min (53.8 L/min) |
| Auxiliary Pump (AUX2) Flow | 5.3 gal/min (20 L/min) | ||
| Relief Pressure (Auxiliary) | 2610 psi (18000 kPa) | 2610 psi (18000 kPa) | 2610 psi (18000 kPa) |
| Relief Pressure (Boom, Arm, Bucket, Travel) | 3480 psi (23994 kPa) | 3480 psi (23994 kPa) | 3480 psi (23994 kPa) |
| Control Valve | 10 spool, parallel series type, open center | 10 spool, parallel series type, open center | 10 spool, parallel series type, open center |
Hydraulic Cycle Times
| Bucket Curl Time | 2.45 sec |
| Bucket Dump Time | 1.66 sec |
| Arm Retract Time | 2.55 sec |
| Arm Extend Time | 1.77 sec |
| Boom Raise Time | 3.6 sec |
| Boom Lower Time | 4.33 sec |
| Boom Swing Left (60°) Time | 3.38 sec |
| Boom Swing Right (60°) Time | 4.81 sec |
| Blade Raise Time | 1.79 sec |
| Blade Lower Time | 2.54 sec |

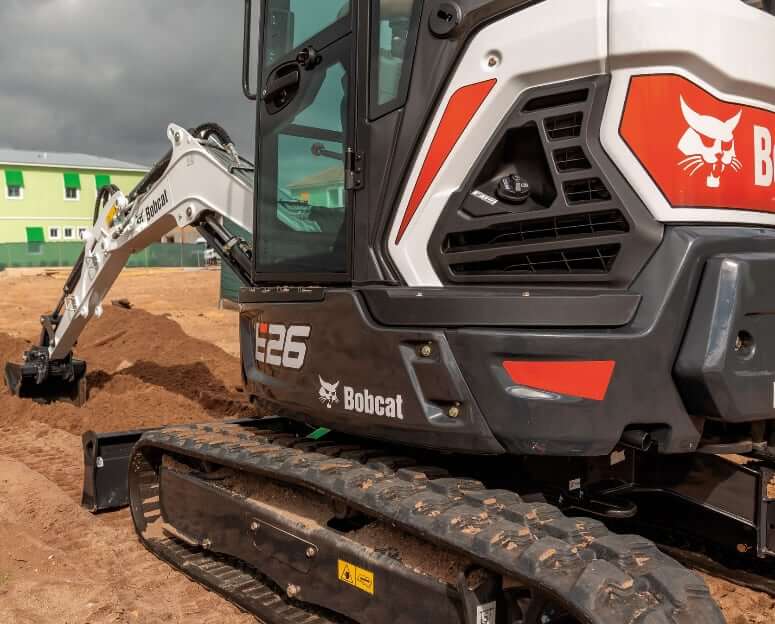

Service Refill Capacities
| Engine Model | Kubota D1105 | Kubota V1505 | Yanmar 3TNV76 |
|---|---|---|---|
| Fuel Tank Capacity | 9.1 gal (34.6 L) | 9.1 gal (34.6 L) | 9.1 gal (34.6 L) |
| Engine Oil Capacity (with Filter) | 1.3 gal (5.1 L) | 1.59 gal (6.0 L) | 0.89 gal (3.4 L) |
| Cooling System Capacity | 1.2 gal (4.6 L) | 1.64 gal (6.2 L) | 1.19 gal (4.5 L) |
| Hydraulic System Capacity | 6.6 gal (25 L) | 6.6 gal (25 L) | 6.6 gal (25 L) |
| Hydraulic Tank Capacity | 3.9 gal (14.7 L) | 3.9 gal (14.7 L) | 2.7 gal (10.2 L) |
| Drive Motors Capacity (each side) | 0.16 gal (0.6 L) | 0.16 gal (0.6 L) | 0.16 gal (0.6 L) |
Bobcat E26 Filters
| Filter | Part Number |
|---|---|
| Air Filter (Inner), SN: AJRY11001-; B33211001-; B3JE11001- | 6672468 |
| Air Filter (Inner), SN: ACRA11001- | 6673753 |
| Air Filter (Outer), SN: AJRY11001-; B33211001-; B3JE11001- | 6672467 |
| Air Filter (Outer), SN: ACRA11001- | 6673752 |
| Engine Oil Filter | 6657635 |
| Fuel Filter | 6667352 |
| Hydraulic Filter | 6661248 |
| Hydraulic In-Line Filter | 7009365 |
| Hydraulic Breather Cap | 6692836 |
| HVAC Filter, SN: AJRY11001-; ACRA11001 – 13001 | 7010331, 7010332 |
| HVAC Filter, SN: ACRA13002- | 7176099, 7222791 |
| HVAC Filter, SN: B33211001 – 11999 | 7010331, 7010332 |
| HVAC Filter, SN: B33212001-; B3JE11001- | 7176099, 7222791 |

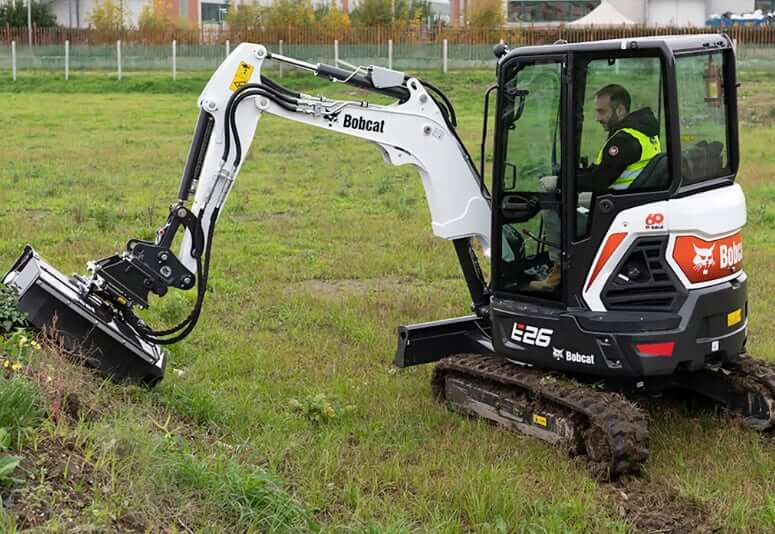

Buckets & Attachments
| Type | Attachment description |
|---|---|
| 12 in (305 mm) Trenching Bucket | Smooth, X-Change, Class 2 |
| 16 in (330 mm) Trenching Bucket | Smooth, X-Change, Class 2 |
| 16 in (406 mm) Trenching Bucket | Teeth, X-Change, Class 2 |
| 20 in (508 mm) Trenching Bucket | Smooth, X-Change, Class 2 |
| 20 in (508 mm) Trenching Bucket | Teeth, X-Change, Class 2 |
| 24 in (610 mm) Trenching Bucket | Smooth, X-Change, Class 2 |
| 24 in (610 mm) Trenching Bucket | Teeth, X-Change, Class 2 |
| 36 in (914 mm) Grading Bucket | X-Change Coupler, Class 3 |
| 48 in (1219 mm) Grading Bucket | X-Change Coupler, Class 3 |
| 55″ Grading Blade | X-Change Coupler, Height 14 in (356 mm), 320 lbs (145 kg) |
| Hydra Tilt Swing Attachment | Side-to-Side Rotation 60°; Length 31 in (787 mm); Output Torque 3210 lb ft (4353 Nm); Output Torque @ 3000 psi (20680 kPa); Operating Weight 250 lbs (113 kg); Width 17.5 in (445 mm) |
| Power Tilt Attachment | Bobcat PTX3 Power-Tilt. Side-to-Side Rotation 178°; Length 25 in (635 mm); Output Torque 2100 lb ft (2847 Nm); Output Torque @ 3000 psi (20680 kPa); Width 11 in (279 mm). X-Change Coupler |
| Grapple | 3-Tined Grapple, Class III. Width 20.5 in; Tine Radius 27 in; Tine Thickness 0.8 in; Weight 200 lbs |
| Augers | Auger Drive Units: Bobcat 10 (58 in); 12PH (62 in); 14PH (62 in); 15C (62 in); 15H (62 in); 30C (62 in); 30H (62 in) |
| Frost & Rock Ripper | Rip through tough, hard-packed, and frozen material |
| Packer Wheel Attachment | Length 39.8 in; Wheel Diameter 30 in; Width 11 in; Weight 385 lbs |
| Hydraulic Breaker | Bobcat HB680, HB880 |
| Nitrogen Breaker | Bobcat NB140, NB150 |
| Mechanical X-Change Coupler | The mechanical X-Change system simplifies your attachment hookup and helps you adapt your Bobcat compact excavator to new tasks |
| Mechanical Pin-Grabber Coupler | The easy-to-use mechanical pin-grabber coupler makes switching attachments on smaller compact excavators faster and easier than manual pin-on systems |
| Hydraulic Pin-Grabber Coupler | With the hydraulic pin-grabber system, you can stay in your seat and make fast attachment changes using hydraulic controls |
| Self-Levelling Flail Mower | Bobcat SL FM 85 |

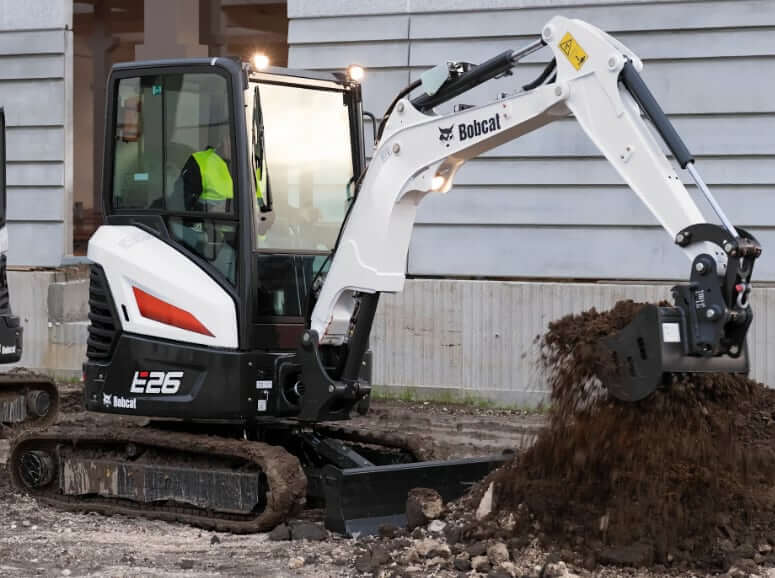

The Bobcat E26 compact excavator is built to handle a wide range of tasks with precision and versatility, thanks to its compatibility with an extensive lineup of specialized attachments. From digging and trenching to demolition and fine grading, the E26 can be equipped with tools that enhance its performance in construction, landscaping, utility work, and site development.
Whether paired with a hydraulic pin grabber or Klac coupler, fitted with digging or grading buckets, or matched with a flail mower or breaker, the E26 delivers reliable power and control. Its ability to work seamlessly with attachments such as tilt buckets, skeleton buckets, clay spade buckets, and laser-guided grading equipment makes it a compact excavator that’s ready for nearly any job.
