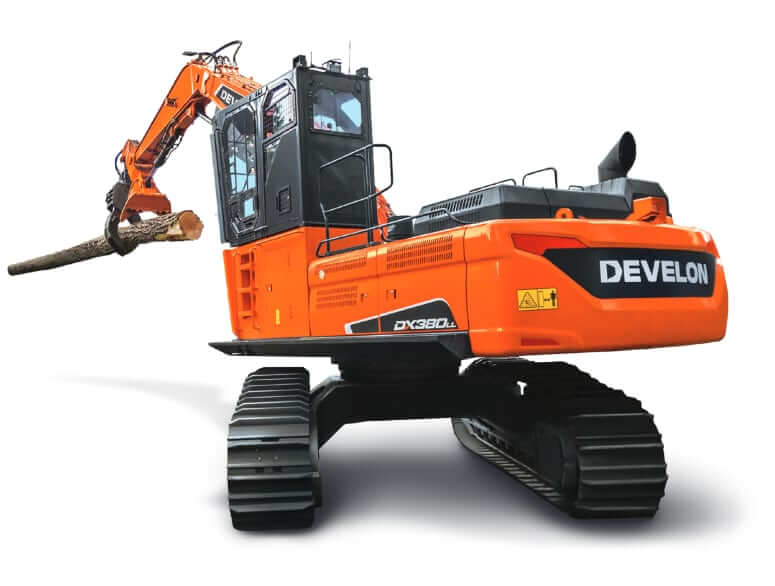

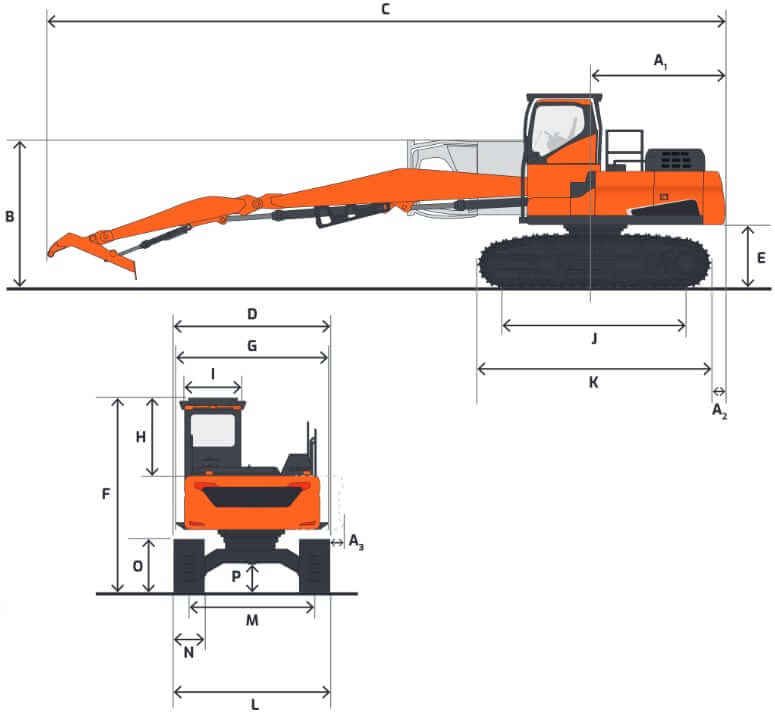

Dimensions
| Boom Length | 23′ 4″ (7100 mm) |
| Arm Length | 15′ 7″ (4750 mm) |
| Heel | 8′ 8″ (2630 mm) |
| A1. Tail Swing Radius | 13′ 0″ (3965 mm) |
| A2. Tail Swing Overhang (rear) | 4′ 0″ (1219 mm) |
| A3. Tail Swing Overhang (side) | 7′ 0″ (2145 mm) |
| B. Shipping Height** | 12′ 2″ (3700 mm) |
| C. Shipping Length | 56′ 3” (17150 mm) |
| D. Shipping Width | 11′ 11″ (3640 mm) |
| E. Counterweight Clearance** | 4′ 10″ (1464 mm) |
| F. Cabin Height** | 16′ 2″ (4940 mm) |
| Cab Riser* | 3′ 11″ (1200 mm) |
| G. Upper Structure Width | 11′ 10″ (3606 mm) |
| H. Cabin Height above House | 7′ 10″ (2380 mm) |
| I. Cabin Width | 3′ 9″ (1140 mm) |
| Cabin Guarding Width* | Std. on Forestry Cab Structure |
| J. Tumbler Distance | 14′ 8″ (4475 mm) |
| K. Overall Track Length | 18′ (5492 mm) |
| L. Undercarriage Width | 11′ 11″ (3640 mm) |
| M. Track Gauge Width | 9′ 8″ (2940 mm) |
| N. Track Shoe Width | 2′ 4″ (700 mm) |
| O. Track Height** | 3′ 11″ (1191 mm) |
| P. Car Body Clearance** | 2′ 6″ (760 mm) |
| Cabin Tilting Angle* | 90° |
| *Measured to bottom of log with a diameter of 24″ (610 mm) | **Without shoe grouser |
Undercarriage
| Track Type | High & Wide Fixed |
| Track Gauge | 9′ 8″ (2940 mm) |
| Track Shoe Size | 2′ 4″ (700 mm) |
| Upper Rollers (each track) | 2 |
| Lower Rollers (each track) | 9 |
| Number of Shoes (links per side) | 53 |
| Total Length of Track | 18′ (5492 mm) |
| Ground Pressure | 13 psi (89.6 kPa) |

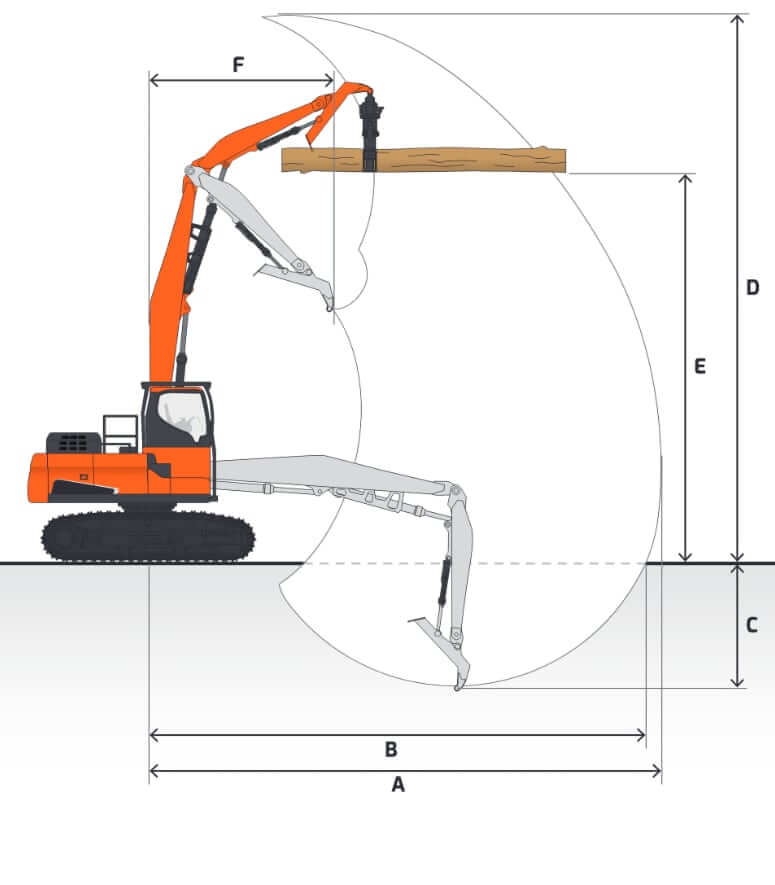

Working Range
| Boom Length | 23′ 4″ (7100 mm) |
| Arm Length | 15′ 7″ (4750 mm) |
| A. Max. Working Reach | 44′ 2″ (13470 mm) |
| B. Max. Working Reach (ground) | 43′ 2″ (13150 mm) |
| C. Max. Working Depth | 12′ 5″ (3785 mm) |
| D. Max. Working Height** | 49′ 2″ (14974 mm) |
| E. Max. Level Log Height* | 38′ 6″ (11729 mm) |
| F. Min. Swing Radius | 15′ 7″ (4750 mm) |
| *Measured to bottom of log with a diameter of 24″ (610 mm) | **Without shoe grouser |
Engine Details
| Number Of Cylinders | 5 |
| Engine Make | Scania |
| Engine Model | Scania DC09 089A |
| Gross Horsepower | 318 hp (237 kw) |
| Net Power | 313 hp (233 kw) |
| Power Measured @ | 1800 rpm |
| Net Torque | 976 lb ft (1323 Nm) |
| Torque Measured @ | 1300 rpm |
| Displacement | 568 cu in (9.4 L) |
| Bore | 5.2 in (130 mm) |
| Stroke | 5.6 in (140 mm) |
| Air Cleaner | Three-stage filtering |
| Aspiration | Variable Geometry Turbocharger |
| Emission Standards | US Tier 4f / EU Stage IV |
Operational Specs
| Operating Weight | 113538 lb (51500 kg) |
| Counterweight, Standard | 18739 lb (8500 kg) |
| Grapple LGX380 Weight | 3460 lb (1569 kg) |
| Operating Voltage | 24 V |
| Alternator | 100 amps |
| Battery | 2x 12 V, 200 Ah |
| Starter | 8 hp (6 kw), 24 V |
Swing Mechanism
| Swing Speed | 7.7 rpm |
| Swing Torque | 129876 lb ft (176088 Nm) |
Hydraulic
| Pump Flow Capacity | 190.2 gal/min (720 L/min) |
| Relief Valve Pressure | 5511 psi (37997 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 158.6 gal (600 L) |
| DEF Tank Capacity | 18.5 gal (70 L) |
| Cooling System Fluid Capacity | 14.2 gal (53.7 L) |
| Engine Oil Capacity | 9.6 gal (36 L) |
| Swing Drive Fluid Capacity | 2.2 gal (8 L) |
| Hydraulic System Fluid Capacity | 118.9 gal (450 L) |
