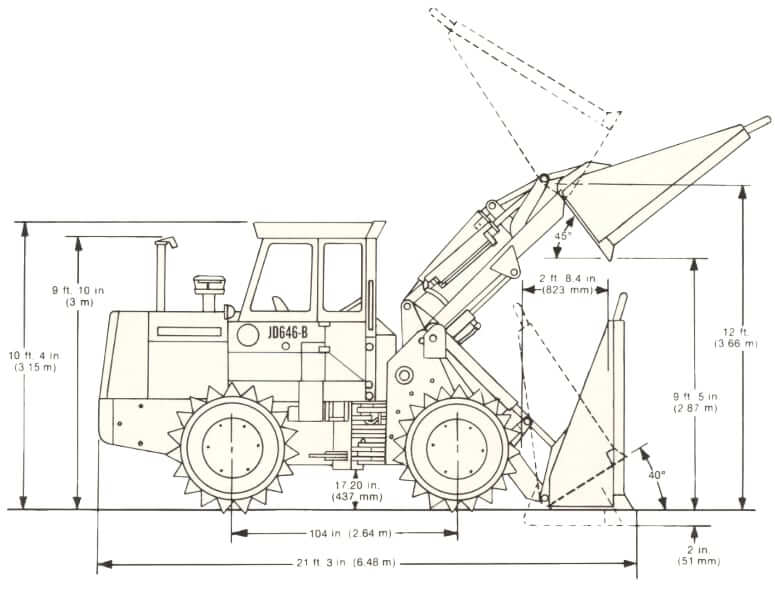

Dimensions
| Length With Blade On Ground | 21.25 ft in (6477 mm) |
| Ground Clearance | 1.44 ft in (437 mm) |
| Width Over Drums | 8.72 ft in (2655 mm) |
| Height To Top Of Cab | 10.33 ft in (3149 mm) |
| Wheelbase | 8.67 ft in (2640 mm) |
Drums
| Front Wheels Drum Width | 23 in (584 mm) |
| Front Wheels Drum Diameter | 55 in (1397 mm) |
| Rear Wheels Drum Width | 23 in (584 mm) |
| Rear Wheels Drum Diameter | 55 in (1397 mm) |
Blade
| Blade Capacity | 4.5 yd3 (3.5 m3) |
| Width | 9.3 ft in (2813.4 mm) |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | John Deere |
| Engine Model | John Deere 646B 8.8L |
| Displacement | 531 cu in (8.8 L) |
| Net Power | 145 hp (108.2 kw) |
| Gross Power | 160 hp (119.4 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 432 lb ft (585.8 Nm) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbocharged |
Operational Specs
| Operating Weight | 31450 lb (14266 kg) |
| Max Operating Weight (w/ multipurpose bucket) | 32230 lb (14620 kg) |
| Operating Voltage | 12 V |
| Battery | 2x 12 V (310 minutes reserve capacity) |
Transmission
| Transmission Type | Power Shift Planetary |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 4.5 mph (7.2 km/h) |
Service Refill Capacities
| Fuel Tank Capacity | 56 gal (212 L) |
| Engine Oil Capacity (w/ Oil Filter) | 5.5 gal (20.8 L) |
| Cooling System Fluid Capacity | 12.3 gal (46.4 L) |
| Hydraulic System Fluid Capacity | 17.5 gal (66.2 L) |
| Transmission Oil Capacity | 9.8 gal (36.9 L) |
| Front Differential Capacity (No Spin) | 6 gal (22.7 L) |
| Rear Differential Capacity | 6.3 gal (23.7 L) |
