Boom
| Boom Model | 180S |
| Harvesting Head | 745 or H754 |
| Max Cutting Diameter | 24.4 in (620 mm) |
| Max Reach with Head | 393.7 in (10000 mm) |
| Max Reach with Head (Optional) | 338.6 in (8600 mm) |
| Gross Lifiting Torque | 105471 lb ft (143 kNm) |
| Gross Swing Torque | 28027 lb ft (38 kNm) |
| Tilt Boom Base | -13° / +18° |
| Swing Angle | 220° |
| Rotator | AV 12S |
| Rotator (Optional) | BBR 15 HD, H172 |
| Link | Double dampened |
| Link (Optional) | Dual dampened MPB2-1, MPB2-2 |

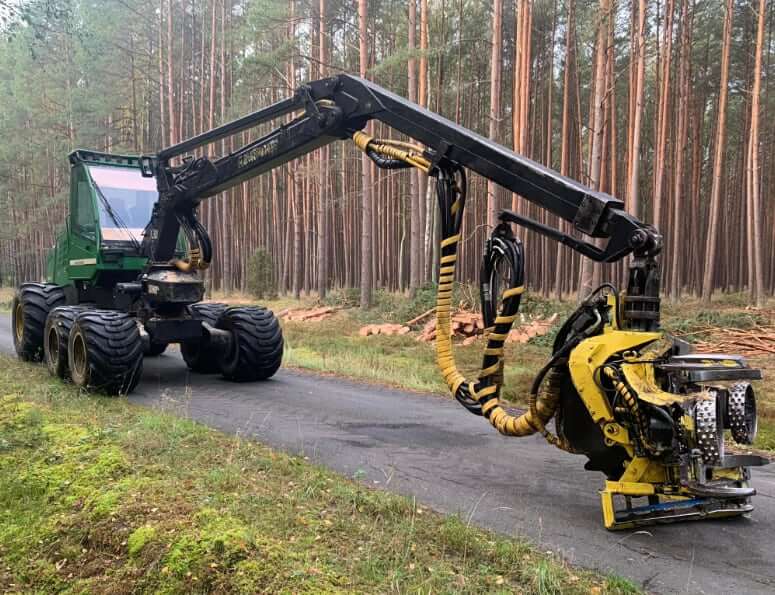

Dimensions
| Overall Length | 266 in (6756 mm) |
| Width, Front (w/ 600 x 26.5 tires) | 100 in (2540 mm) |
| Width, Front (w/ 710 x 26.5 tires) | 105 in (2667 mm) |
| Width, Rear (w/ 650 x 26.5 tires) | 103 in (2616 mm) |
| Width, Rear (w/ 750 x 26.5 tires) | 106 in (2692 mm) |
| Transport Height (w/ fixed cab) | 142 in (3607 mm) |
| Transport Height (w/ optional side-leveling cab) | 145 in (3683 mm) |
| Wheelbase | 138 in (3505 mm) |
| Ground Clearance | 22.6 in (574 mm) |
| Rear Section | 149 in (3785 mm) |
Tires
| Front Tire Size | 600 x 22.5, 16 PR ELS NK |
| Front Tire Size (Optional) | 710 x 22.5, 16 PR Forest King F NK |
| Standard Front Tire Ground Pressure | 9.7 psi 67 kPa |
| Rear Tire Size | 750 X 26.5, 20 PR TRS NK |
| Rear Tire Size (Optional | 650 x 26.5, 12 PR TRS NK |
| Standard Rear Tire Ground Pressure | 6.1 psi 42 kPa |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | John Deere |
| Engine Model | PowerTech Plus John Deere 6068HTJ |
| Displacement | 414 cu in (6.8 L) |
| Displacement | 4.17 in (106 mm) |
| Displacement | 5.00 in (127 mm) |
| Gross Power | 182 hp (136 kw) |
| Power Measured @ | 1900 rpm |
| Peak Torque | 575.3 lb ft (780 Nm) |
| Torque Measured @ | 1400 rpm |
| Cooling System | Heavy-duty radiator, oil-to-water engine cooler |
| Air Cleaner | Two stage with safety element and dust unloader valve |
| Aspiration | Turbocharged, air-to-air charge air cooler |
| Emission Standards | US EPA Tier 3 |
Operational Specs
| Operating Weight | 31085 lb (14100 kg) |
| Operating Voltage | 24 V |
| Alternator | 140 amps |
| Battery | 2x 12 V (F058325; F072780; F736664) |
| Front Axle | Balanced gear bogie |
| Rear Axle | Rigid |
Operator Environment
| Operator Station | Cab with air conditioning, sound insulation and fully adjustable seat |
| Cab Type (Standard) | Fixed |
| Cab Type (Optional) | Rotating and leveling |
| Cab Sideways Tilt | ±10° |
| Forward/Backward Tilt | None |
| Turning angle | None |
| Control System | PC/Windows-based Timbermatic 300 |
| Work Lights | 14 twin power and 4 single lamps on the boom; 30 lux in the working area of the boom; Xenon lights also available |

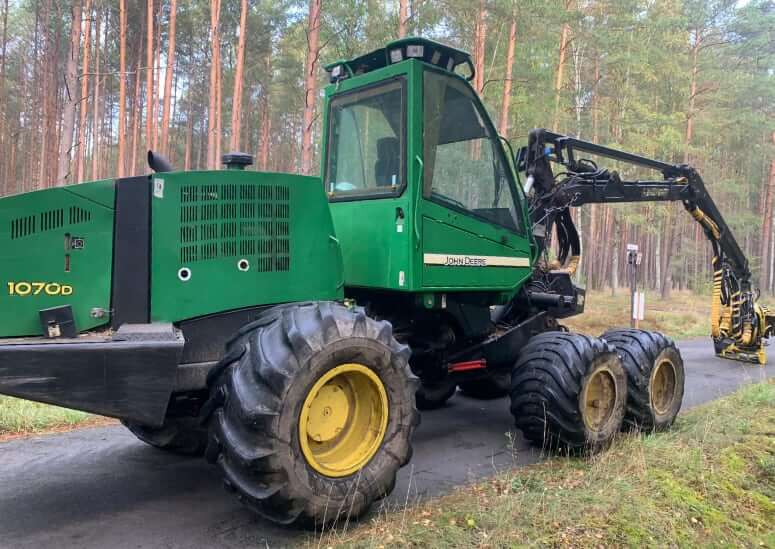

Transmission
| Type | Hydrostatic-mechanical, 2-speed gearbox |
| Max Travel Speed, Low | 4.3 mph (7 km/h) |
| Max Travel Speed, High | 14.9 mph (24 km/h) |
| Max Tractive Effort | 29225 lbf (130 kN) |
| Service Brakes | Hydraulically actuated, oil-immersed multi-disc brakes |
| Parking Brake | Spring-actuated brake |
| Emergency Brake | Spring-actuated brake |
Steering System
| Type | Articulated frame steering with two hydraulic cylinders |
| Steering Pump Type | Variable-displacement pump/motor |
| Steering Pump Flow Capacity | 42.3 gal/min (144 L/min) |
| Frame Articulation (stop to stop) | ±40° |
| Frame Articulation Brake | Automatic |
| Lever Steering | Proportional, electrical mini-joystick over hydraulics, armrest mounted |
Hydraulic System
| Type | Load-sensing, pressure compensated |
| Main Pump Type | Variable-displacement pump |
| Main Pump Flow Capacity | 61.3 gal/min (232 L/min) |
| Working Pressure | 3480 psi (24000 kPa) |
| Max Pressure | 4060 psi (28000 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 79.3 gal (300 L) |
| Engine Oil Capacity (w/ filter) | 6.3 gal (24 L) |
| Cooling System Capacity | 8.2 gal (31 L) |
| Hydraulic System Capacity (w/ tank) | 76.6 gal (290 L) |
| Transferbox Oil Capacity | 1.1 gal (4 L) |
| Swing Reduction Unit Capacity | 3.8 gal (14.5 L) |
| Bogie Casing Fluid Capacity | 13.7 gal (52 L) |
| Front Differential Fluid Capacity | 2.9 gal (11 L) |
| Rear Differential Fluid Capacity | 6.3 gal (24 L) |
| Hub Reduction Oil Capacity (each) | 1.1 gal (4 L) |
