Mast Performance
| Toyota | 40-8FGCU25 | 50-8FGCU25 |
|---|---|---|
| Load Capacity | 5000 lb (2250 kg) | 5000 lb (2250 kg) |
| Lifting Speed (Full Load) | 118 fpm (600 mm/sec) | 120 fpm (610 mm/sec) |
| Lifting Speed (No Load) | 124 fpm (630 mm/sec) | 126 fpm (640 mm/sec) |
| Lowering Spread (Full Load) | 98 fpm (500 mm/sec) | 98 fpm (500 mm/sec) |
| Lowering Spread (No Load) | 98 fpm (500 mm/sec) | 98 fpm (500 mm/sec) |
| Mast Type | Limited free-lift 2-stage mast (V) | |
Tires
| Toyota | 40-8FGCU25 | 50-8FGCU25 |
|---|---|---|
| Tire Type | Cushion | Cushion |
| Number of Wheels (Front / Rear) | 2 / 2 | 2 / 2 |
| Front Tire Size | 21 x 7 x 15 | 21 x 7 x 15 |
| Rear Tire Size | 16 x 5 x 10-1/2 | 16 x 5 x 10-1/2 |
| Wheelbase | 58.5 in (1485 mm) | 58.5 in (1485 mm) |
| Front Tread Width | 35.0 (890 mm) | 35.0 (890 mm) |
| Rear Tread Width | 36.0 in (915 mm) | 36.0 in (915 mm) |
| Underclearance (full load), Minimum | 2.8 in (70 mm) | 2.8 in (70 mm) |
| Underclearance (full load), Center of Wheelbase | 4.1 in (105 mm) | 4.1 in (105 mm) |
| Service Brakes | Hydraulic, self-adjusting brakes | Hydraulic, self-adjusting brakes |
| Parking Brake | Mechanical, foot | Mechanical, foot |

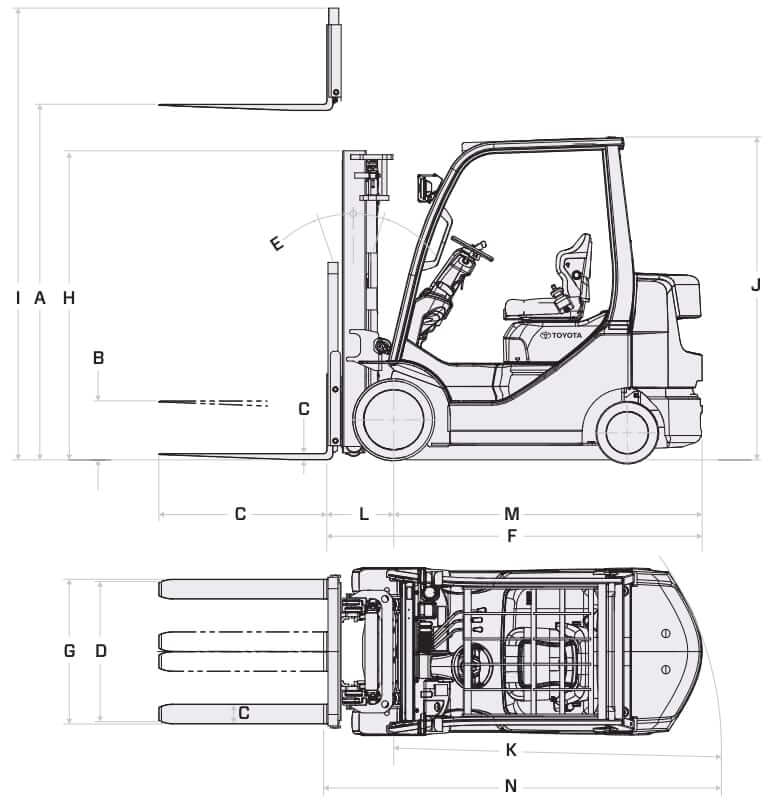

Dimensions
| A. Maximum Fork Height (top of forks) | 131.5 in (3340 mm) |
| B. Free-Lift (top of forks) | 5.9 in (150 mm) |
| C. Fork Size (T x W x L) | 1.6 x 5 x 42 in (40 x 125 x 1070 mm) |
| D. Fork Spread Max. / Min. (outer edge to edge) | 36 in (920 mm) / 10 in (250 mm) |
| E. Tilt Range (forward / backward) | 6° / 10° |
| F. Length to Fork Face | 93.7 in (2380 mm) |
| G. Overall Width | 41.9 in (1065 mm) |
| H. Mast Lowered Height | 83.3 in (2115 mm) |
| I. Mast Extended Height (top of load backrest) | 179.5 in (4560 mm) |
| J. Overhead Guard Height | 80.7 in (2050 mm) |
| K. Turning Radius | 77.6 in (1970 mm) |
| L. Load Distance | 16.7 in (425 mm) |
| M. Rear Overhang | 18.5 in (470 mm) |
| N. Basic Right-Angle Stacking Aisle Width | 94.3 in (2395 mm) |
| Wheelbase | 58.5 in (1485 mm) |
| Ground Clearance (full load) | 2.8 in (70 mm) |
Weight
| Toyota | 40-8FGCU25 | 50-8FGCU25 |
|---|---|---|
| Operating Weight | 8160 lb (3700 kg) | 8000 lb (3630 kg) |
| Front Axle Load (Full Load) | 11380 lb (5370 kg) | 11310 lb (5340 kg) |
| Rear Axle Load (Full Load) | 1780 lb (830 kg) | 1690 lb (790 kg) |
| Front Axle Load (No Load) | 2890 lb (1310 kg) | 2820 lb (1280 kg) |
| Rear Axle Load (No Load) | 5270 lb (2390 kg) | 5180 lb (2350 kg) |
Engine Details
| Toyota | 40-8FGCU25 | 50-8FGCU25 |
|---|---|---|
| Number of Cylinders | 4 | 4 |
| Fuel Type | Gasoline / LPG | LPG |
| Engine Model | Kubota WG2503 | Toyota 4Y US |
| Displacement | 152 cu in (2.5 L) | 136 cu in (2.2 L) |
| Bore | 3.5 in (88 mm) | 3.6 in (91 mm) |
| Stroke | 4.0 in (102.4 mm) | 3.4 in (86 mm) |
| Net Horsepower | 56 hp (42 kw), Gasoline / 58 hp (44 kw), LPG | 51 hp (38 kw) |
| Power Measured @ | 2600 rpm | 2570 rpm |
| Peak Torque | 122 lb ft (165 Nm), Gasoline / 129 lb ft (175 Nm), LPG | 112 lb ft (152 Nm) |
| Torque Measured @ | 1800 rpm, Gasoline / 1600 rpm, LP | 1800 rpm |
| Aspiration | Naturally aspirated | Naturally aspirated |
| Emission Standards | OHV EPA/CARB certified | OHV EPA/CARB certified |
Operational Specs
| Toyota | 40-8FGCU25 | 50-8FGCU25 |
|---|---|---|
| Operating Weight | 8160 lb (3700 kg) | 8000 lb (3630 kg) |
| Max Load Capacity | 5000 lb (2250 kg) | 5000 lb (2250 kg) |
| Operating Voltage | 12 V | 12 V |
| Alternator | 50 amps (70 amps) | 50 amps (70 amps) |
| Battery | 12 V, 35 Ah | 12 V, 35 Ah |
Transmission
| Toyota | 40-8FGCU25 | 50-8FGCU25 |
|---|---|---|
| Type | Powershift | Powershift |
| Number of Gears | 1F / 1R | 1F / 1R |
| Max Travel Speed | 10.6 mph (17.0 km/h) | 10.6 mph (17.0 km/h) |
| Drawbar Pull (Full Load) | 4200 lb (1905 kg) | 4200 lb (1905 kg) |
| Drawbar Pull (No Load) | 1750 lb (795 kg) | 1750 lb (795 kg) |
| Gradeability, Full Load, 1 mph (1.5 km/h) | 27% | 27% |
| Max Gradeability, Full Load | 31% | 31% |
| Max Gradeability, No Load | 17% | 17% |
Hydraulic System
| Pump Flow Capacity | 20 gal/min (75.8 L/min) |
| Max Operating Pressure | 2275 psi (15686 kPa) |
Values taken at Hydraulic Control Valve. Does not take in to consideration losses through mast plumbing (hosing, fittings, QDs, etc.).
Service Refill Capacities
| Toyota | 40-8FGCU25 (Toyota 4Y US) | 50-8FGCU25 (Kubota WG2503) |
|---|---|---|
| Fuel Tank Capacity | 11.9 gal (45 L) | 11.9 gal (45 L) |
| Engine Oil Capacity | 1.1 gal (4.2 L) | 2.5 gal (9.5 L) |
| Cooling System Capacity | 2.5 gal (9.6 L) | 2.5 gal (9.5 L) |
| Hydraulic System Capacity | 14.4 gal (54.5 L) | 14.4 gal (54.5 L) |
| Transmission Oil Capacity | 4.5 gal (17.0 L) | 4.5 gal (17.0 L) |
| Final Drive Oil Capacity (each side) | 0.13 gal (0.5 L) | 0.13 gal (0.5 L) |

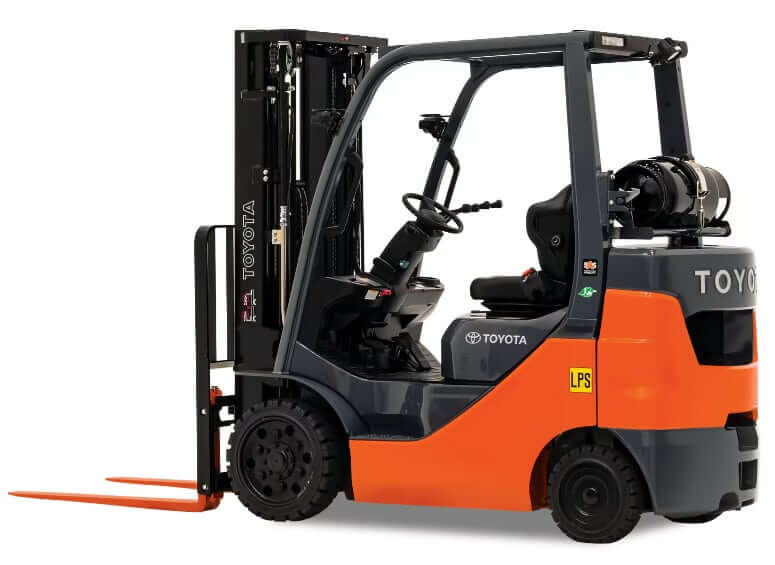

The Toyota 8FGCU25 are high-performance cushion tire forklift designed specifically for indoor material handling in warehouses, distribution centers, and manufacturing environments. These model combine Toyota’s legendary reliability with compact maneuverability and powerful internal combustion engines to handle demanding applications on smooth surfaces. The Toyota 40-8FGCU25 is powered by the Kubota WG2503 engine, a robust 2.5-liter gasoline/LPG engine known for fuel efficiency and consistent performance. It’s ideal for operations that require flexibility in fuel choice and low emissions within confined spaces. The Toyota 50-8FGCU25, equipped with the Toyota 4Y US LPG engine, delivers proven power, durability, and low-maintenance operation. This model is designed for heavier-duty cycles and offers enhanced lifting capability without sacrificing responsiveness or control.
Both forklifts feature Toyota’s System of Active Stability (SAS) for advanced safety, along with ergonomic controls and operator-focused design. Their cushion tires allow for tight turning radii, making them excellent choices for navigating narrow aisles and high-density storage facilities. Together, the 40-8FGCU25 and 50-8FGCU25 represent Toyota’s commitment to quality, performance, and safety in the indoor lift truck category.
