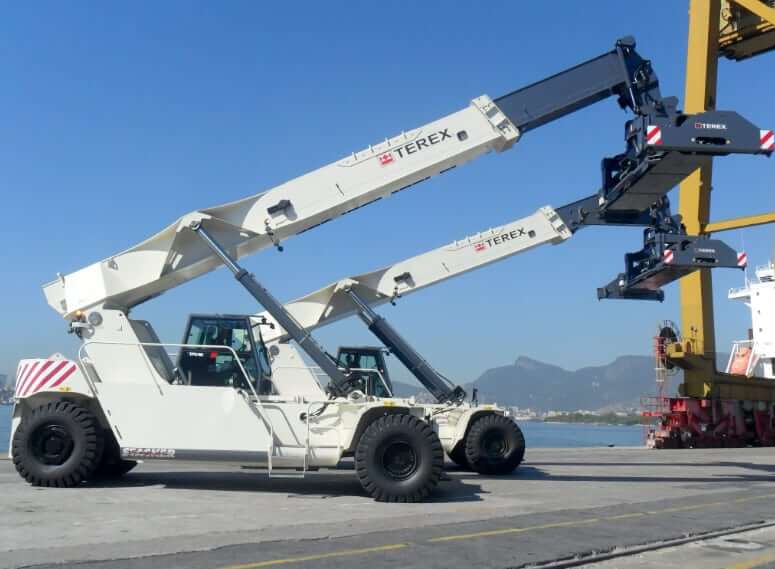

Telescopic Boom
| Telescoping-out – No load | 27 sec – 11.8 in/sec (0,30 m/s) |
| Telescoping-out – 30t Load | 28 sec – 11.4 in/sec (0,29 m/s) |
| Telescoping-in – No Load | 25 sec – 13 in/sec (0,33 m/s) |
| Telescoping-in – 30t Load | 26 sec – 12.6 in/sec (0,32 m/s) |
Time to Stack a Container
| Hoisting up 0° to 60° – No load | 24 sec |
| Hoisting up 0° to 60° – 30t Load | 26 sec |
| Time to stack a container from 1st to 6th height – No load |
45 sec – 18.1 in/sec (0,46 m/s) |
| Time to stack a container from 1st to 6th height – 30t Load |
60 sec – 11.0 in/sec (0,28 m/s) |
| Time to unstack a container from 6th to 1st height – No load |
32 sec – 19.7 in/sec (0,50 m/s) |
| Time to unstack a container from 6th to 1st height – 30t Load |
30 sec – 22.8 in/sec (0,58 m/s) |
Operating Specs
| Engine Model | Cummins QSM11 | Scania DC9 |
|---|---|---|
| Towing Ability | 63714 lb (28900 kg) | 67461 lb (30600 kg) |
| Speed FWD/REW (w/o load) | 15.5 mph (25 km/h) | 15.5 mph (25 km/h) |
| Speed FWD/REW (w/ 45t load) | 15.5 mph (25 km/h) | 15.5 mph (25 km/h) |
| Max Gradeability (w/o load) | 35% | 37% |
| Max Gradeability (w/ 45 metric ton load) | 22% | 24.2% |
Weight w/ Top-Pick Spreader
| TFC46 LX | No load (boom:25°) | 30t (boom:45°) | 45t (boom:45°) |
|---|---|---|---|
| Front Axle | 80248 lb (36400 kg) | 145064 lb (65800 kg) | 182102 lb (82600 kg) |
| Rear Axle | 99869 lb (45300 kg) | 101192 lb (45900 kg) | 97224 lb (44100 kg) |
| Total | 180117 lb (81700 kg) | 246256 lb (111700 kg) | 279326 lb (126700 kg) |

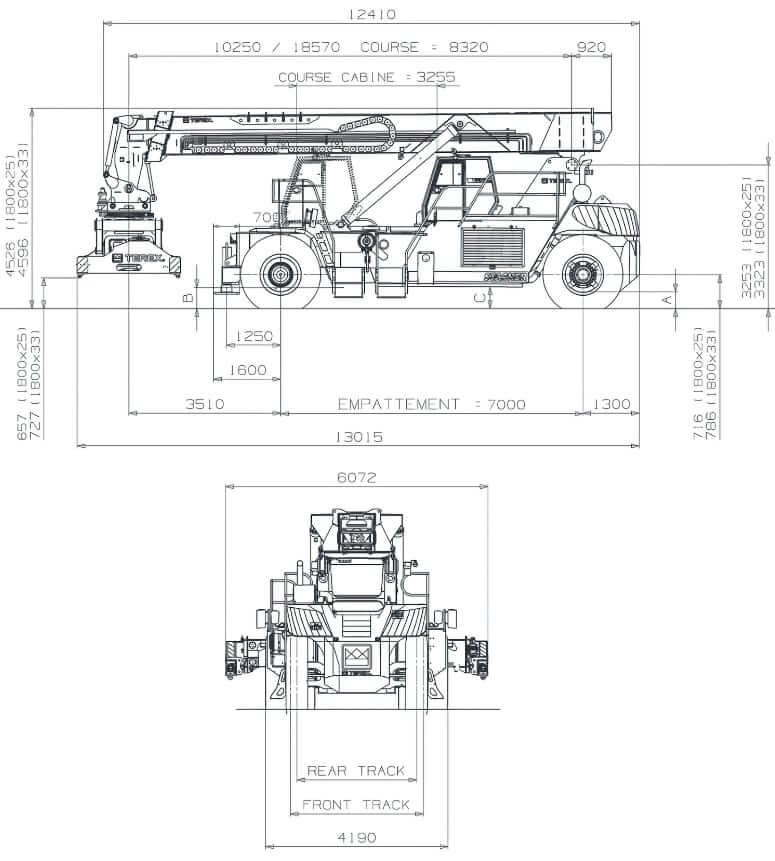

Dimensions
| Overall Length | 512.4 in (13015 mm) |
| Length w/o Spreader | 488.6 in (12410 mm) |
| Boom Length (Retracted w/o Spreader) | 439.8 in (11170 mm) |
| Boom Length (Telescoped w/o Spreader) | 767.3 in (19490 mm) |
| Chassis Length | 389.8 in (9900 mm) |
| Wheelbase | 275.6 in (7000 mm) |
| Front Overhang | 63 in (1600 mm) |
| Rear Overhang | 51.2 in (1300 mm) |
| Overall Width (w Spreader) | 239 in (6072 mm) |
| Overall Width (w/o Spreader) | 164.9 in (4190 mm) |
| Front Track Gauge 18.00×33 18.00×25 |
119.4 in (3033 mm) 119.4 in (3033 mm) |
| Rear Track Gauge 18.00×33 18.00×25 |
109 in (2770 mm) 109 in (2770 mm) |
| Overall Height 18.00×33 18.00×25 |
181 in (4596 mm) 178.2 in (4526 mm) |
Ground Clearance
| Tire Size | 18.00 x 25 | 18.00 x 33 |
|---|---|---|
| Front Axle | 16.5 in (420 mm) | 19.3 in (490 mm) |
| Rear Axle | 12.6 in (320 mm) | 15.4 in (390 mm) |
| Base / Cab | 19.7 in (500 mm) | 22.4 in (570 mm) |

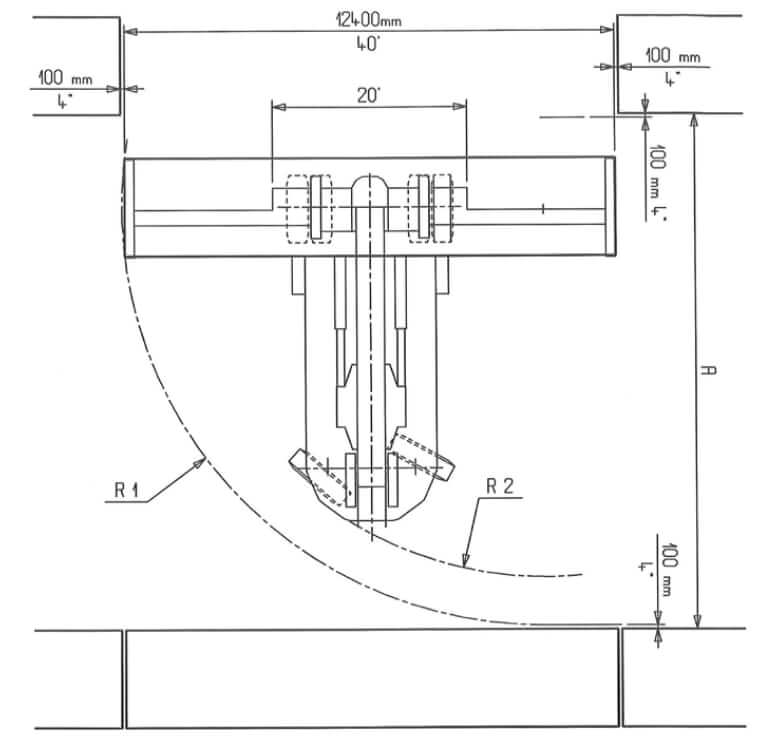

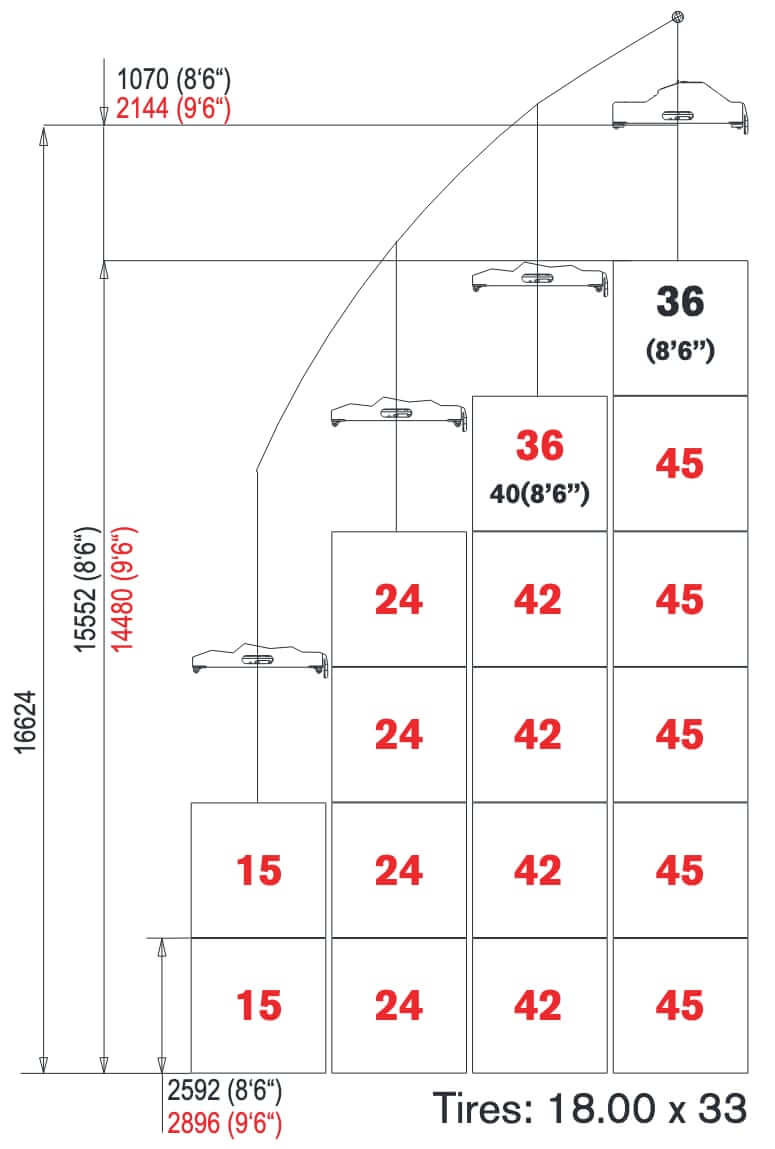

Working Radius
| TFC46 LX Radius | 40′ container | 20′ container |
|---|---|---|
| A | 505.1 in (12830 mm) | 433.8 in (11020 mm) |
| R1 | 414.2 in (10520 mm) | 378 in (9600 mm) |
| R2 | 378 in (9600 mm) | 295.3 in (7500 mm) |
Engine Details
| Engine Model | Cummins QSM11 | Scania DC9 |
|---|---|---|
| Number of Cylinders | 6 | 5 |
| Displ. | 661 cu in (10.8 L) | 567 cu in (9.3 L) |
| Bore | 4.9 in (125 mm) | 5.1 in (130 mm) |
| Stroke | 5.8 in (147 mm) | 5.5 in (140 mm) |
| Engine Power | 320 hp (239 kw) | 350 hp (257 kw) |
| Power Measured @ | 1800 rpm | 1500-2100 rpm |
| Peak Torque | 1090 lb ft (1478 Nm) | 1320 lb ft (1790 Nm) |
| Torque Measured @ | 1400 rpm | 1200 rpm |
| Aspiration | Turbocharged and aftercooled | Turbocharged and aftercooled |
| Emission Standards | EPA Tier 3, EU Stage IIIA | EPA Tier 4i, EU Stage IIIB |
Axles & Brakes
| Front Axle | Double reduction drive axle |
| Front Axle Reduction | 25,40 or 22,6 |
| Rear Axle | Heavy duty oscillationg axle |
| Service Brakes | Wet disc brakes on front axle by independant hydraulic circuit |
| Brake Control | Hydraulic |
| Parking Brake | Spring release disc on the front axle |
| Steering | Hydrostatic rear steering with double acting cylinder |
| Tire Sizes | Tubeless 18.00 x 25 or 18.00 x 33 or 21.00 x 25 |
| Tire Pressure | 10 bars (10 kg/cm2) / 7,5 bars (75 kg/cm2) for 21.00 x 25 |
Transmission
| Transmission Type | Powershift transmission Dana (Clark) TE 27 418 Control / APC 200 |
| Clutch Type | Torque converter (R = 2.292) |
| Number of Gears | 4F x 4R |
| Gears Ration (FWD and REV) | 5.07 / 2.42/ 1.38 / 0.78 |
| Max Speed FWD/REW | 15.5 mph (25 km/h) |
Hydraulic System
| Type | Power regulated Load Sensing hydraulic system |
| Main Pump | 2 section variable displacement – piston pump 8.85 cu in 145 (cc) + 4.58 cu in (75 cc) |
| Pump Flow | 121.5 gpm (460 L/min) |
| Maximum Pressure | 5076 psi (35000 kPa) |
| Controls | One hydraulic joystick. Boom hoist and telescoping. Spreader rotation – Side shift |
| Auxiliary: Engine / Transmission Coolel | Variable displacement pump 1.7 cu in (28 cc) – 15.3 gpm (58 L/min) |
| Auxiliary: Hydraulic cooler and filtration | Gear pump 2.4 cu in (40 cc) – 21.7 gpm (82 L/min) |
| Auxiliary: Braking axle oil cooler | Gear pump 0.73 cu in (12 cc) – 6.6 gpm (25 L/min) |
| Auxiliary: Joystick control | Gear pump 0.48 cu in (8 cc) – 4.2 gpm (16 L/min) |
Operator Environment
| Cab Type | Wide cab in standard |
| Cab Wide (inside dimensions) | 68.1 in (1730 mm) |
| Cab Deep (inside dimensions) | 53.9 in (1370 mm) |
| Cab Hight (inside dimensions) | 58.5 in (1485 mm) |
| Sound Level (inside cab, closed doors) | 70 dB(A) |
| Anti Tipping Device | Automatic cut-off system in case of overload |
| HVAC | Air conditionning |
Electrical System
| Operating Voltage | 24 V |
| Alternator | 70 amps |
| Starter | 24 V, 6 kW |
| Battery | 2x 12 V, 200 Ah |
Service Refill Capacities
| Fuel Tank Capacity | 184.9 gal (700 L) |
| DEF / AdBlue Tank (Scania DC9) | 10 gal (38 L) |
| Engine Oil Capacity | 9.2 gal (35 L) |
| Cooling System Capacity | 18.5 gal (70 L) |
| Hydraulic System Capacity | 198.1 gal (750 L) |
| Transmission Oil Capacity | 18.5 gal (70 L) |
| Drive Axle Capacity | 24.8 gal (94 L) |
