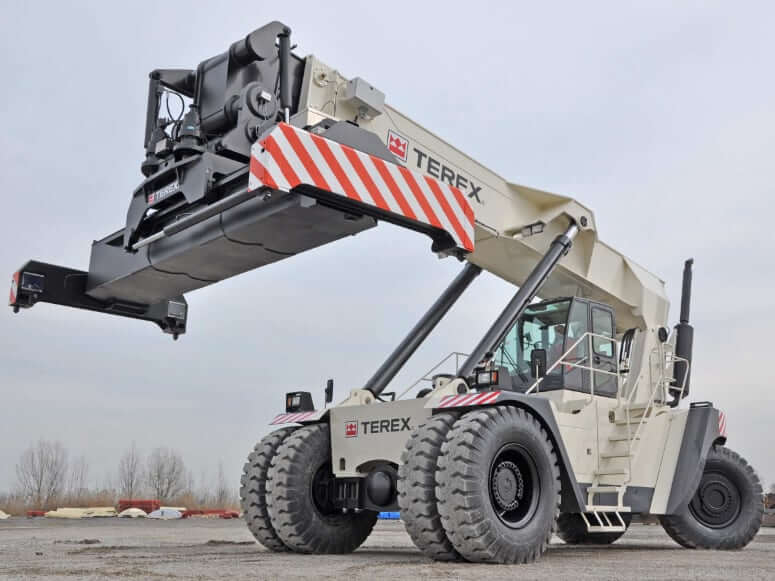

Operating Specs
| Terex CS 45 KS | No Load | Full Load |
|---|---|---|
| Towing Ability | 66139 lb (30000 kg) | 57320 lb (26000 kg) |
| Speed FWD/REW | 15.5 mph (25 km/h) | 14.3 mph (23 km/h) |
| Drive Safety Speed | 11.2 mph (18 km/h) | 9.3 mph (15 km/h) |
| Max Gradeability | – | 26% |
| Lifting Speed | 0.34 m/s | 0.30 m/s |
| Lowering Speed | 0.50 m/s | 0.28 m/s |

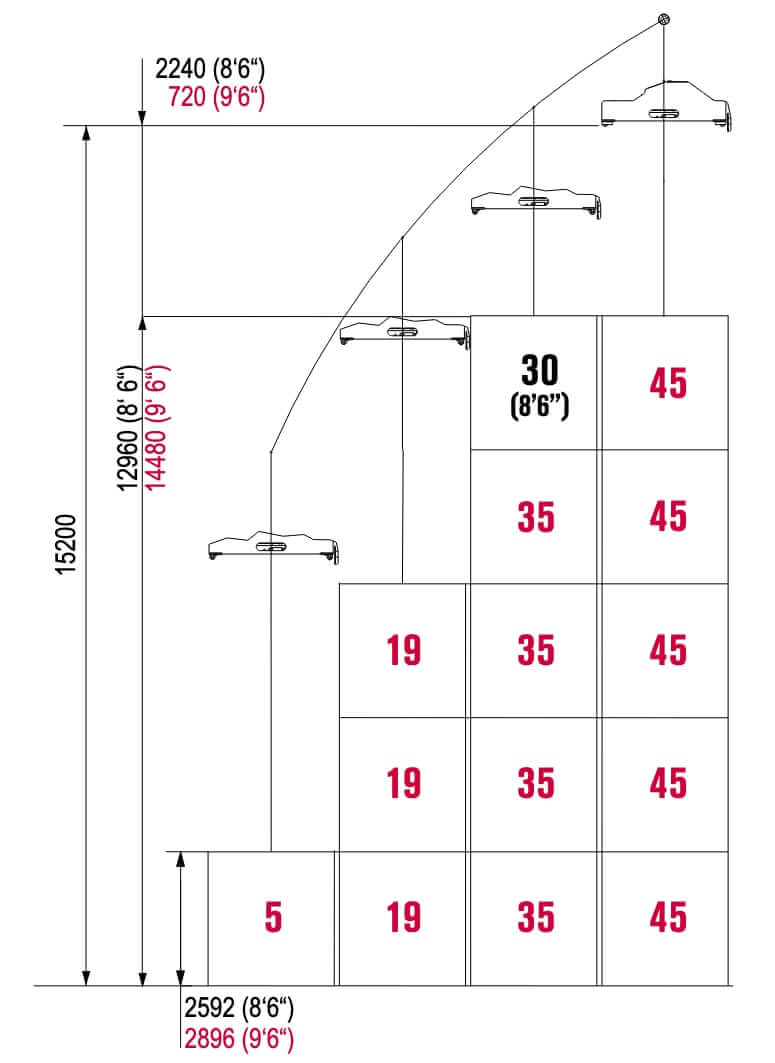

Rated Capacity
| Max Capacity 1st Row | 99208 lb (45000 kg) |
| Max Capacity 2nd Row | 77162 lb (35000 kg) |
| Max Capacity 3rd Row | 39683 lb (18000 kg) |
| Max Stacking Height 1st Row (9’6”/8’6”) | 5/5 |
| Max Stacking Height 2nd Row (9’6”/8’6”) | 4/5 |

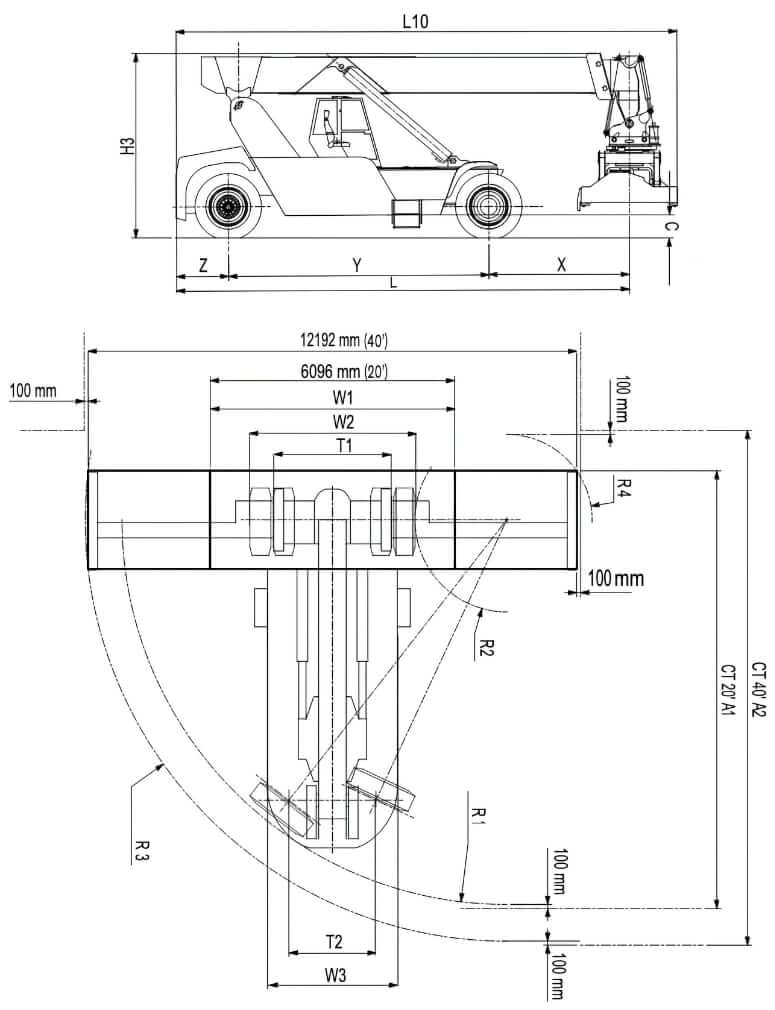

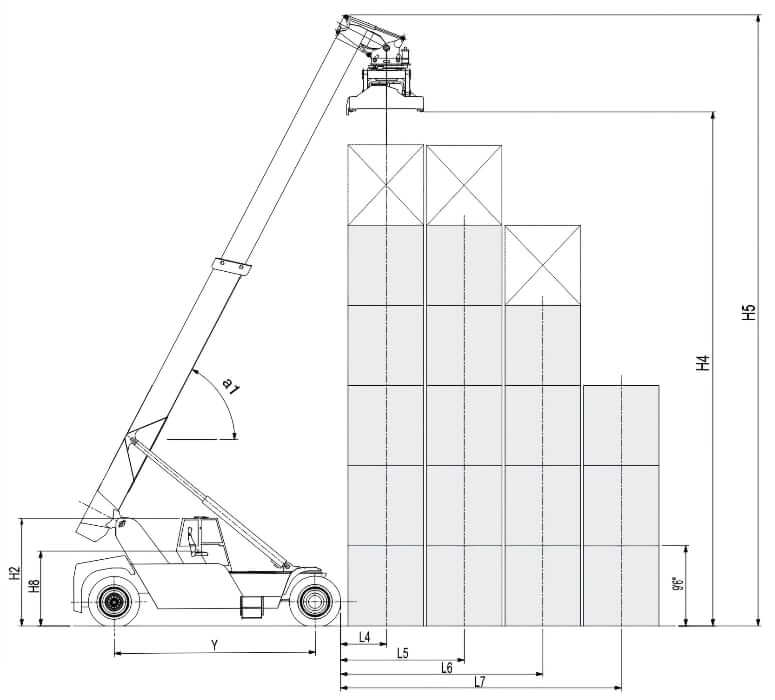

Dimensions
| L. Length w/o Spreader | 417.3 in (10600 mm) |
| L10. Overall Length | 468.5 in (11900 mm) |
| Y. Wheelbase | 255.9 in (6500 mm) |
| Z. Rear Overhang | 49.2 in (1250 mm) |
| W1. Overall Width (w Spreader) | 240 in (6096 mm) |
| W2. Overall Width (w/o Spreader) | 165.3 in (4200 mm) |
| T1. Front Track Gauge | 122 in (3100 mm) |
| T2. Rear Track Gauge | 108.3 in (2750 mm) |
| H2. Height to Top of Cab | 155.5 in (3950 mm) |
| H3. Overall Height | 200.8 in (5100 mm) |
| H4. Clearance to Spreader (Max Boom Raised) | 598.4 in (15200 mm) |
| H5. Max Height (Max Boom Raised) | 712.6 in (18100 mm) |
| H8. Height to Operator’s Seat | 110.2 in (2800 mm) |
| C. Ground Clearance | 21.6 in (550 mm) |
| a1. Boom Angle | 60° |
Operator Environment
| Cab Type | Fully closed cab with FOPS |
| Cab Sliding | Hydraulic sliding cab |
| Sound Level (inside cab) | 70 dB(A) |
| Sound Level (outside cab) | 85 dB(A) |
| HVAC | Air conditionning (Tropicalization system / Winter package) |
Engine Details
| Engine Model | Cummins QSM11 | Volvo TAD1251VE |
|---|---|---|
| Number of Cylinders | 6 | 6 |
| Displ. | 661 cu in (10.8 L) | 740 cu in (12.1 L) |
| Bore | 4.9 in (125 mm) | 5.16 in (131 mm) |
| Stroke | 5.8 in (147 mm) | 5.91 in (150 mm) |
| Engine Power | 320 hp (239 kw) | 393 hp (289 kw) |
| Power Measured @ | 1800 rpm | 1800 rpm |
| Peak Torque | 1090 lb ft (1478 Nm) | 1438 lb ft (1950 Nm) |
| Torque Measured @ | 1400 rpm | 1200 rpm |
| Aspiration | Turbocharged and aftercooled | Turbocharged and aftercooled |
| Emission Standards | EPA Tier 3, EU Stage IIIA | EPA CARB Tier 3 / EU stage III |
Electrical System
| Operating Voltage | 24 V |
| Alternator | 80 amps |
| Battery | 2x 12 V, 200 Ah |
Axles & Brakes
| Front Axle | Double reduction drive axle |
| Rear Axle | Heavy duty oscillationg axle |
| Service Brakes | Wet disc brakes on front axle by independant hydraulic circuit |
| Parking Brake | Spring release disc on the front axle |
| Nubmer of Wheels | 4F / 2R |
| Tire Sizes | 18.00 x 33 Tubeless |
Transmission
| Transmission Type | Powershift Transmission Dana |
| Number of Gears | 4F x 4R |
| Clutch Type | Hydraulic torque converter |
| Max Speed (No load) | 15.5 mph (25 km/h) |
| Max Speed (Load) | 14.3 mph (23 km/h) |
Hydraulic System
| Type | Power regulated Load Sensing hydraulic system |
| Main Pump | Variable displacement pump |
| Maximum Pressure | 3626 psi (25000 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 153.3 gal (580 L) |
| Hydraulic System Capacity | 224.5 gal (850 L) |
| Engine Oil Capacity | 9.2 gal (35 L) |
| Cooling System Capacity | 18.5 gal (70 L) |
