Mast
| 1.5. Load Capacity | 5000 lb (2268 kg) |
| 1.6. Load Center Distance | 24 in (610 mm) |
| 1.8. Load Center Distance (center of drive axle to fork face), STD | 15.4 in (391 mm) |
| 1.8. Load Center Distance (center of drive axle to fork face), TSU | 16.7 in (424 mm) |
| Number of Mast Sections | 3 |
| Lift Speed (loaded / unloaded) | STD 104/124 ft/min (0.53/0.63 m/min) / TSU 100/120 ft/min (0.51/0.61 m/min) |
| Lowering Speed (loaded / unloaded) | STD 89/89 ft/min (0.45/0.45 m/min) / TSU 85/85 ft/min (0.43/0.43 m/min) |

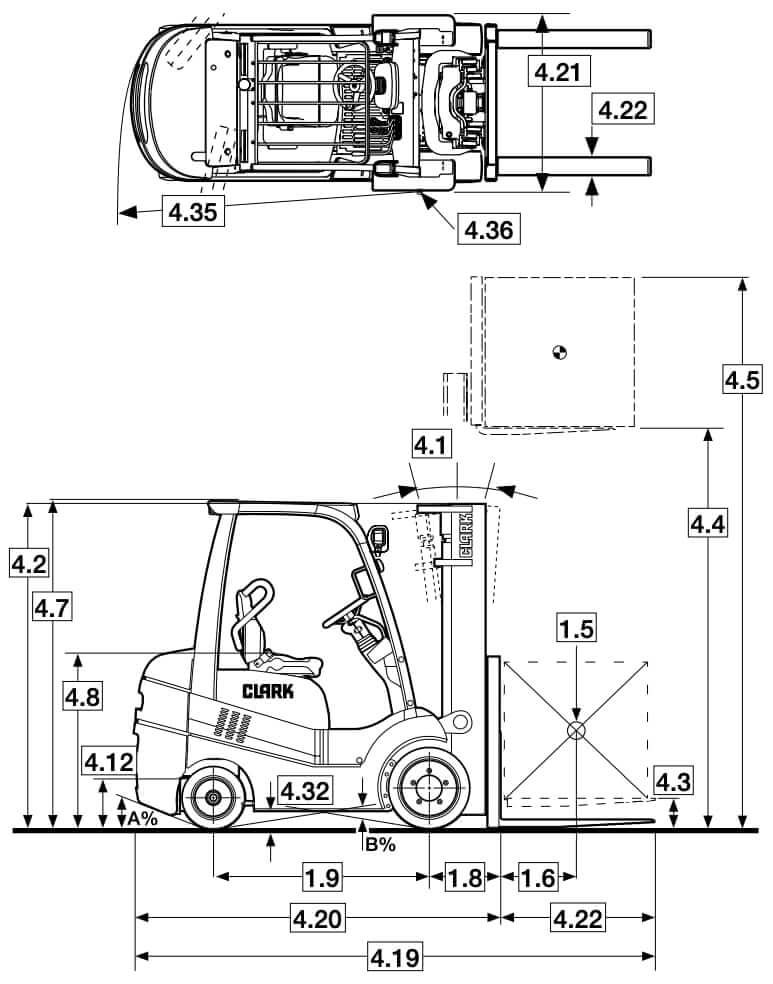

Dimensions
| 1.9. Wheelbase | 55.1 in (1400 mm) |
| 4.1. Tilt of Upright / Fork Carriage, A / B | 5° Back / 6° Forward |
| 4.2. Height, Upright Lowered | STD 83.3 in (2116 mm) / TSU 83.3 in (2116 mm) |
| 4.3. Freelift | STD 4.3 in (109 mm) / TSU 61.5 in (1562 mm) |
| 4.4. Lift Height | STD 130 in (3302 mm) / TSU 189 in (4800 mm) |
| 4.5. Height, Upright Extended | STD 178 in (4521 mm) / TSU 237 in (6020 mm) |
| 4.7. Height Overhead Guard | 82.8 in (2105 mm) |
| 4.8. Seat Height | 45.9 in (1165 mm) |
| 4.12. Coupling Height | 11.0 in (279 mm) |
| 4.19. Overall Length | STD 131.6 in (3343 mm) / TSU 132.9 in (3375 mm) |
| 4.20. Length to Face of Forks | STD 89.6 in (2276 mm) / TSU 90.9 in (2310 mm) |
| 4.21. Width | 42.5 in (1080 mm) |
| 4.22. Fork Dimensions | 1.75 x 4 x 42 in (45 x 100 x 1070 mm) |
| 4.32. Ground Clearance | 4.3 in (110 mm) |
| 4.35. Outside Turning Radius | 80.1 in (2035 mm) |
| 4.36. Inside Turning Radius | 3.53 in (89.6 mm) |
Engine Details
| Number of Cylinders | 4 |
| Fuel Type | LGP |
| Engine Make | Mitsubishi |
| Engine Model | Mitsubishi 4G64 |
| Displacement | 143 cu in (2.35 L) |
| Bore | 3.41 in (86.5 mm) |
| Stroke | 3.94 in (100 mm) |
| Power | 47.5 hp (35.4 kw) |
| Power Measured @ | 2250 rpm |
| Torque | 120 lb ft (162.7 Nm) |
| Torque Measured @ | 1400 rpm |
| Lubrication System | Pressure feed, full-flow filtration with involute gear type oil pump |
| Cooling System | Water-cooled forced circulation with centrifugal impeller type water pump |
| Combustion System | Pentroof type combustion chamber |
Operational Specs
| Operating Weight | 8955 lb (4062 kg) |
| Rated Load Capacity | 5000 lb (2500 kg) |
| Axle Load Capacity, Loaded (front / rear) | 12712 lb (5766 kg) / 1755 lb (796 kg) |
| Axle Load Capacity, Unloaded (front / rear) | 3554 lb (1612 kg) / 5401 lb (2450 kg) |
| Operating Voltage | 12 V |
| Alternator | 50 amps |
| Battery | 12 V, CCA 550 |
| Noise Level | 78 dB(A) |
Tires
| Tire Type | Cushion |
| Number of Wheels (front / rear) | 2x / 2 |
| Front Tire Size | 21x7x15 |
| Rear Tire Size | 16x5x10.5 |
| Front Tread | 34.7 in (882 mm) |
| Rear Tread | 35.2 in (895 mm) |
Transmission
| Type | Powershift transaxle with high stall ratio industrial torque converter |
| Number of Gears | 1F / 1R |
| Max Travel Speed (loaded) | 10.4 mph (16.8 km/h) |
| Max Travel Speed (unloaded) | 10.4 mph (16.8 km/h) |
| Max Drawbar Pull (loaded) | 4850 lbf (21.57 kN) |
| Max Gradeability (loaded / unloaded) | 33.2% / 21.7% |
| Axles | Full-floating drive axles, and drum/shoe brake assemblies with dirt shields |
| Parking Brake | Left foot actuated parking brake |
| Sevice Brakes | Self-energizing, hydraulically-actuated drum and shoe type service brakes |

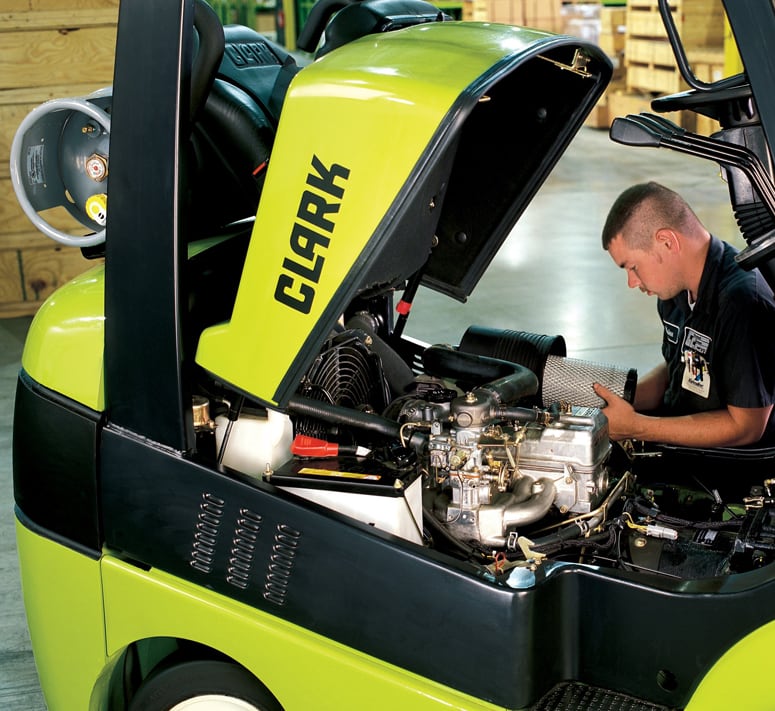

Service Refill Capacities
| LPG Fuel Tank Capacity | 33 lb (15 kg) |
| Engine Oil Capacity | 1.3 gal (4.8 L) |
| Cooling System Capacity | 2.8 gal (10.5 L) |
| Transmission Oil Capacity | 4.9 gal (18.5 L) |
| Hydraulic System Capacity | 9.8 gal (37 L) |
