Dimensions
| Length To Fork Face | 8.93 ft in (2720 mm) |
| Overall Width | 4.19 ft in (1275 mm) |
| Overall Height – Mast Lowered | 7.12 ft in (2170 mm) |
| Wheelbase | 5.58 ft in (1700 mm) |
| Ground Clearance | 5.36 in (136 mm) |
| Height To Top Of Overhead Guard | 6.98 ft in (2125 mm) |
| Max Fork Height | 10.86 ft in (3310 mm) |
| Turning Radius | 7.81 ft in (2380 mm) |
Mast
| Load Capacity | 6614 lb (3000 kg) |
| Mast Tip Forward | 6° |
| Mast Tip Rear | 10° |
| Max Fork Spread | 39.4 in (1000 mm) |
| Load Center | 19.7 in (500 mm) |
| Lower Speed | 98 ft/min (30 m/min) |
| Lift Speed | 100 ft/min (30.5 m/min) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Nissan |
| Fuel Type | Gasoline / LPG |
| Engine Model | Nissan K25 |
| Displacement | 152 cu in (2.5 L) |
| Bore | 3.5 in (89 mm) |
| Stroke | 3.9 in (100 mm) |
| Power | 63 hp (47 kw) |
| Power Measured @ | 2700 rpm |
| Peak Torque | 139 lb ft (188.5 Nm) |
| Torque Measured @ | 1600 rpm |
Operational Specs
| Operating Weight | 9300 lb (4250 kg) |
| Load Capacity | 6614 lb (3000 kg) |
| Operating Voltage | 12 V |
| Noise Level | 76.5 dB(A) |
| Front Axle Load (with rated load) | 7900 lb (3575 kg) |
| Front Axle Load (without load) | 2430 lb (1110 kg) |
| Rear Axle Load (with rated load) | 960 lb (440 kg) |
| Rear Axle Load (without load) | 3075 lb (1400 kg) |

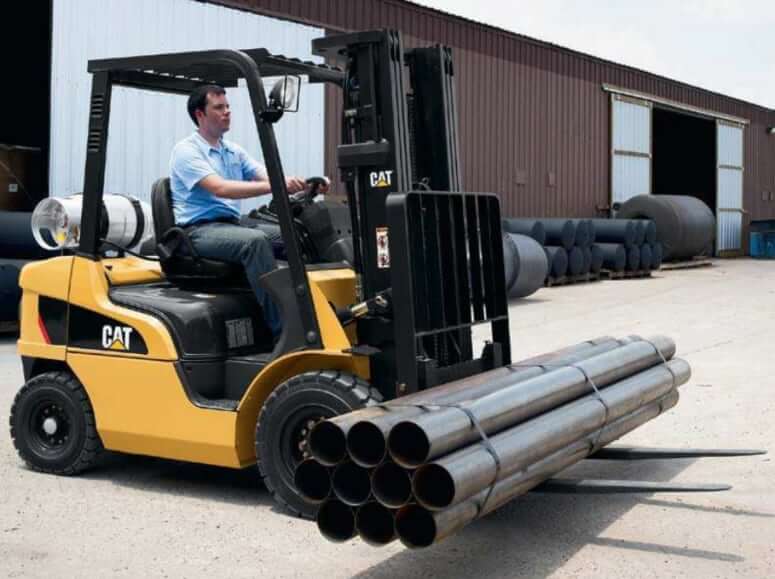

Transmission
| Type | Powershift transmission |
| Number of Gears | 1F / 1R |
| Max Travel Speed (empty) | 11 mph (18 km/h) |
| Max Travel Speed (loaded) | 10.5 mph (17.0 km/h) |
| Drawbar Pull (max loaded) | 4725 lbf (21 kN) |
| Gradeability (max loaded / empty) | 30.9% / 17.3% |
| Number of Front Wheels | 2 |
| Number of Rear Wheels | 2 |
| Type of Wheels | Pneumatic tires |
| Front Tire Size | 28 x 9-15-12PR |
| Front Tire Size (optional duals) | 28 x 9-15-12PR |
| Rear Tire Size | 6.50 x 10-10PR |
| Service Brakes | Foot-operated, hydraulic brakes |
| Parking Brake | Hand-operated, mechanical brake |
