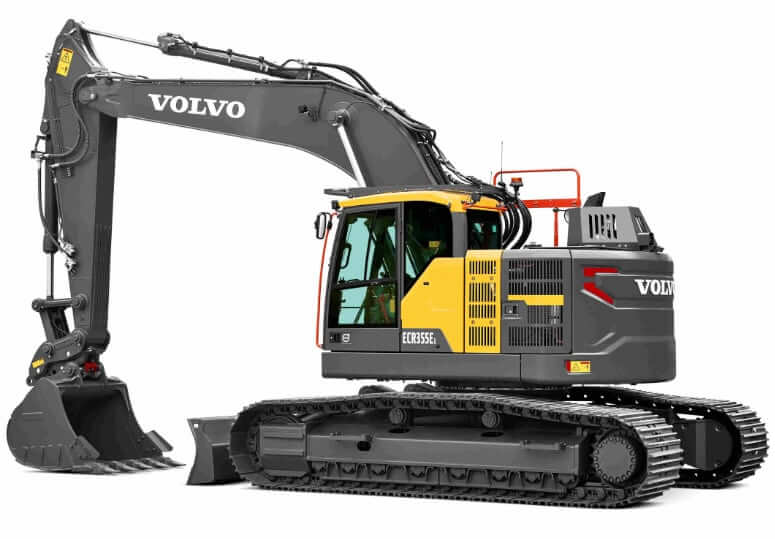

Dimensions
| Overall Length | 32.65 ft in (9950 mm) |
| Overall Width | 137.8 in (3500 mm) |
| Overall Width (Upper Structure) | 9.81 ft in (2990 mm) |
| Shoe Width | 2.79 ft in (850 mm) |
| Overall Height (To Top of Boom) | 11.01 ft in (3355 mm) |
| Overall Height (To Top of Cab) | 10.5 ft in (3200 mm) |
| Tail Swing Radius | 6.24 ft in (1900 mm) |
| Counterweight Clearance | 3.81 ft in (1160 mm) |
| Ground Clearance (Minimum) | 1.65 ft in (500 mm) |
| Track Length | 194.73 in (4946 mm) |
Working Range
| Max Cutting Height | 34.31 ft in (10455 mm) |
| Max Vertical Wall Digging Depth | 18.38 ft in (5600 mm) |
| Max Digging Depth | 21.2 ft in (6460 mm) |
| Max.Dumping Height | 24.4 ft in (7435 mm) |
| Max Digging Reach | 33.17 ft in (10110 mm) |
| Min.Front Swing Radius | 10.78 ft in (3285 mm) |
| Max Digging Reach On Ground | 32.5 ft in (9905 mm) |
| Boom Length | 20.4 ft in (6.2 m) mono boom |
| Arm Length | 8.4 ft in (2.55 m) |
Working Range (Boom/Arm Option 2)
| Max Cutting Height | 35.82 ft in (10915 mm) |
| Max Vertical Wall Digging Depth | 20.12 ft in (6130 mm) |
| Max Digging Depth | 22.84 ft in (6960 mm) |
| Max Digging Reach On Ground | 34.27 ft in (10445 mm) |
| Min.Front Swing Radius | 11.04 ft in (3365 mm) |
| Max.Dumping Height | 25.78 ft in (7855 mm) |
| Max Digging Reach | 34.9 ft in (10635 mm) |
| Boom/Arm Length | 20.4 ft in (6.2 m) mono boom |
| Boom/Arm Length | 10.0 ft in (3.05 m) |
Working Range (Boom/Arm Option 3)
| Max Cutting Height | 37.03 ft in (11285 mm) |
| Max Vertical Wall Digging Depth | 22.17 ft in (6755 mm) |
| Max Digging Depth | 24.97 ft in (7610 mm) |
| Min.Front Swing Radius | 10.96 ft in (3340 mm) |
| Max Digging Reach On Ground | 36.31 ft in (11065 mm) |
| Max.Dumping Height | 27.01 ft in (8230 mm) |
| Max Digging Reach | 36.88 ft in (11240 mm) |
| Boom/Arm Length | 20.4 ft in (6.2 m) mono boom |
| Boom/Arm Length | 12.2 ft in (3.7 m) |
Working Range (Boom/Arm Option 4)
| Max Cutting Height | 36.97 ft in (11268 mm) |
| Max Digging Depth | 20.65 ft in (6293 mm) |
| Max.Dumping Height | 26.58 ft in (8101 mm) |
| Min.Front Swing Radius | 9.81 ft in (2988 mm) |
| Max Digging Reach | 33.51 ft in (10211 mm) |
| Max Vertical Wall Dig Depth | 15.74 ft in (4796 mm) |
| Max Digging Reach On Ground | 32.84 ft in (10009 mm) |
| Boom/Arm Length | 20.4 ft in (6.2 m), 2-piece boom |
| Boom/Arm Length | 8.4 ft in (2.55 m) |
Working Range (Boom/Arm Option 5)
| Max Cutting Height | 38.63 ft in (11773 mm) |
| Max Digging Depth | 22.37 ft in (6818 mm) |
| Max – Dumping Height | 28.14 ft in (8577 mm) |
| Max – Digging Reach | 35.24 ft in (10741 mm) |
| Max – Digging Reach On Ground | 34.62 ft in (10550 mm) |
| Max Vertical Wall Dig Depth | 17.67 ft in (5384 mm) |
| Min – Front Swing Radius | 9.02 ft in (2747 mm) |
| Boom/Arm Length | 20.4 ft in (6.2 m), 2-piece boom |
| Boom/Arm Length | 10.0 ft in (3.05 m) |
Working Range (Boom/Arm Option 6)
| Max Cutting Height | 40.16 ft in (12240 mm) |
| Max Digging Depth | 24.48 ft in (7460 mm) |
| Max – Digging Reach On Ground | 36.67 ft in (11175 mm) |
| Max – Digging Reach | 37.26 ft in (11356 mm) |
| Min – Front Swing Radius | 9.56 ft in (2913 mm) |
| Max Vertical Wall Dig Depth | 19.6 ft in (5974 mm) |
| Max – Dumping Height | 29.68 ft in (9046 mm) |
| Boom/Arm Length | 20.4 ft in (6.2 m), 2-piece boom |
| Boom/Arm Length | 12.2 ft in (3.7 m) |
Undercarriage
| Shoe Width (Standard) | 24 in (600 mm) |
| Shoe Width (Optional) | 28 / 32 / 34 in (700 / 800 / 850 mm) |
| Link Pitch | 8.5 in (216 mm) |
| Number of Carrier Rollers Per Side | 2 |
| Number of Track Rollers Per Side | 8 |
| Number of Shoes Per Side | 48 |
Swing System
| Max – Slew Speed | 10.2 rpm |
| Max – Slew Torque | 86740 lb ft (117603.7 Nm) |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | Volvo |
| Engine Model | Volvo D8J |
| Displacement | 476 cu in (7.8 L) |
| Bore | 4.4 in (110 mm) |
| Stroke | 5.4 in (136 mm) |
| Gross Power | 245 hp (180 kw) |
| Net Power | 243 hp (179 kw) |
| Power Measured @ | 1800 rpm |
| Peak Torque | 913.2 lb ft (1238 Nm) |
| Torque Measured @ | 1350 rpm |
| Fuel System | High pressure fuel injectors |
| Air Cleaner | 3-stage air filter with precleaner |
| Aspiration | Turbocharged and air-to-air intercooled |
| Emission Standards | US EPA Tier 4 Final + EU Stage IV |
Operational Specs
| Operating Weight | 75292 – 78850 lb (34152 – 35766 kg) |
| Counterweight | 18629 lb (8450 kg) |
| Operating Voltage | 24 V |
| Alternator | 120 amps |
| Battery | 2x 12 V, 170 Ah |
| Starter | 24 V, 7.4 hp (5.5 kw) |
| Noise Level (interior) | 72 dB(A) |
| Noise Level (exterior) | 104 dB(A) |
Power Train
| Type | Automatic two-speed shift travel motor |
| Travel Speed Low | 1.9 mph (3 km/h) |
| Travel Speed – High | 2.8 mph (4.5 km/h) |
| Drawbar Pull Force | 61822 lb (275 kN) |
| Gradeability | 35 % |
| Service Brakes | Multi-disc, spring-applied and hydraulic released |
Hydraulic System
| Type | Automatic sensing hydraulic system |
| Main Pump Type | 2x Variable displacement axial piston pumps |
| Main Pump Flow | 2x 69.5 gal/min (2x 263 L/min) |
| Pilot Pump Type | Gear pump |
| Pilot Pump Flow | 4.8 gal/min (18 L/min) |
| Relief Valve Setting (Implement) | 5120 psi (35301 kPa) |
| Relief Valve Setting (Travel Circuit) | 5260 psi (36266 kPa) |
| Relief Valve Setting (Slew Circuit) | 3980 psi (27441 kPa) |
| Relief Valve Setting (Pilot Circuit) | 570 psi (3930 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 92 gal (348 L) |
| DEF Tank Capacity | 8.2 gal (31 L) |
| Engine Oil Capacity (w/ filter) | 8.5 gal (32 L) |
| Cooling System Capacity | 9.6 gal (36 L) |
| Hydraulic System Capacity (w/ tank) | 97.8 gal (370 L) |
| Hydraulic Tank Capacity | 64.2 gal (243 L) |
| Travel Reduction Capacity | 3.6 gal (13.6 L) |
| Slew Reduction Capacity | 1.7 gal (6.1 L) |
