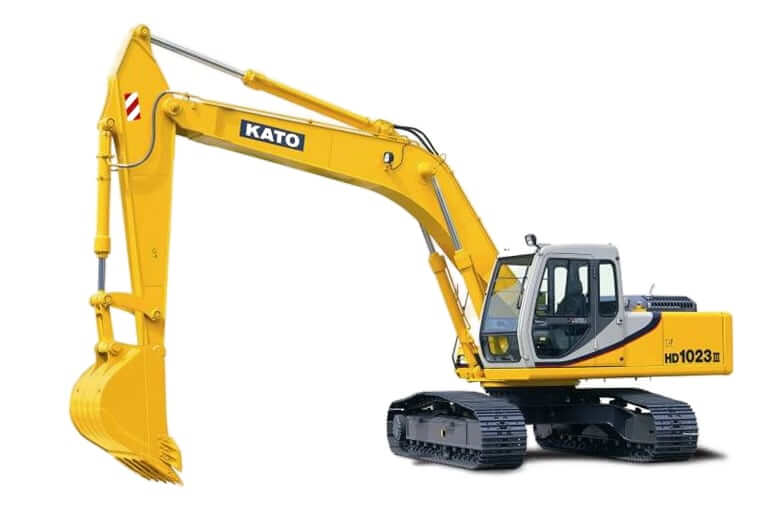

Dimensions
| Height to Top of Cab | 9.65 ft in (2940 mm) |
| Width to Outside of Tracks | 9.81 ft in (2990 mm) |
| Ground Clearance | 1.58 ft in (480 mm) |
| Length of Track on Ground | 11.36 ft in (3460 mm) |
| Tail Swing Radius | 9.65 ft in (2940 mm) |
| Removal Counterweight Clearance | 3.61 ft in (1100 mm) |
Working Range
| Max Cutting Height | 31.5 ft in (9600 mm) |
| Max Loading Height | 21.49 ft in (6550 mm) |
| Max Vertical Wall Digging Depth | 16.74 ft in (5100 mm) |
| Max Digging Depth | 19.53 ft in (5950 mm) |
| Boom/Arm Length | Boom 5870 mm / Stick 1900 mm |
Working Range (Boom/Arm Option 2)
| Max Cutting Height | 32.42 ft in (9880 mm) |
| Max Loading Height | 22.35 ft in (6810 mm) |
| Max Vertical Wall Digging Depth | 18.87 ft in (5750 mm) |
| Max Digging Depth | 21.4 ft in (6520 mm) |
| Boom/Arm Length | Boom 5870 mm / Stick 2470 mm |
Working Range (Boom/Arm Option 3)
| Max Cutting Height | 33.01 ft in (10060 mm) |
| Max Loading Height | 22.94 ft in (6990 mm) |
| Max Vertical Wall Digging Depth | 20.51 ft in (6250 mm) |
| Max Digging Depth | 23 ft in (7010 mm) |
| Boom/Arm Length | Boom 5870 mm / Stick 2960 mm |
Working Range (Boom/Arm Option 4)
| Max Cutting Height | 34.45 ft in (10500 mm) |
| Max Loading Height | 24.41 ft in (7440 mm) |
| Max Digging Depth | 26.28 ft in (8010 mm) |
| Max Vertical Wall Dig Depth | 23.59 ft in (7190 mm) |
| Boom/Arm Length | Boom 5870 mm / Stick 3950 mm |
Buckets
| Reference Bucket Capacity | 1.31 yd3 (1.0 m3) |
| Minimum Bucket Capacity | 0.72 yd3 (0.55 m3) |
| Maximum Bucket Capacity | 1.96 yd3 (1.5 m3) |

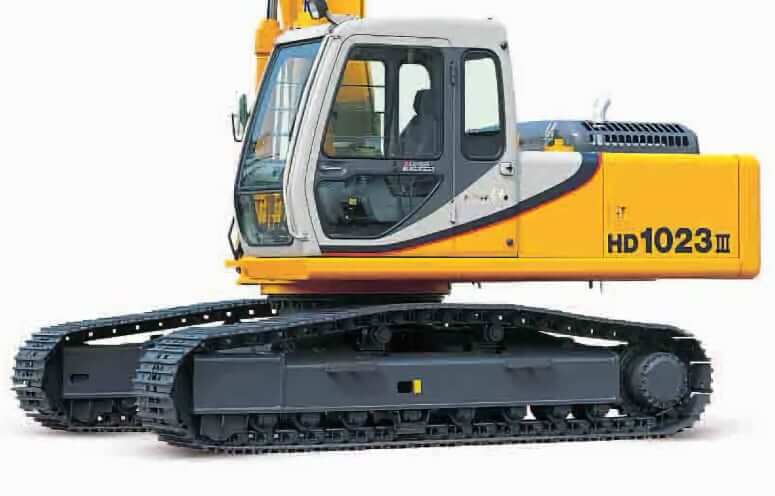

Undercarriage
| Number of Shoes Per Side | 47 |
| Shoe Size | 23.63 in (600 mm) |
| Track Gauge | 7.85 ft in (2390 mm) |
| Length of Track on Ground | 11.36 ft in (3460 mm) |
| Ground Pressure | 7.26 psi (50 kPa) |
| Track Adjustment | Grease cylinders with recoil springs |
| Lubrication | Sealed-for-life rollers and front idlers with floating seals |
Swing Mechanism
| Swing Speed | 11.0 rpm |
| Tail Swing Radius | 9.65 ft in (2940 mm) |
| Removal Counterweight Clearance | 3.61 ft in (1100 mm) |
| Swing Drive | Axial piston motor with shockless valve and reduction gear |
| Swing Brake | A hydraulic brake that locks automatically when the swing control lever is in the neutral position and a mechanical parking brake which is applied when the safety lock lever is pulled backwards, the engine is turned off or the swing control lever is in the neutral position |
| Swing Lubrication | Completely housed and grease bathed |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | Mitsubishi |
| Engine Model | Mitsubishi 6D34 TLE2A |
| Displacement | 357.6 cu in (5.9 L) |
| Bore | 4.09 in (104 mm) |
| Stroke | 4.53 in (115 mm) |
| Gross Power | 167.7 hp (125 kw) |
| Power Measured @ | 2150 rpm |
| Max Torque | 457.3 lb ft (620 Nm) |
| Torque Measured @ | 1600 rpm |
| Compression Ratio | 18.2:1 |
| Combustion System | Direct injection |
| Specific Fuel Consumption | 225g/kW-hour (165g/PS-hour) |
| Cooling System | Pressurized water circulated by a centrifugal pump with thermostat |
| Lubrication System | Pressurized oil fed by a gear pump through full-flow and bypass cartridge filter |
| Governor | Mechanical |
| Air cleaner | Dry type filter |
| Aspiration | Turbocharged |
Operational Specs

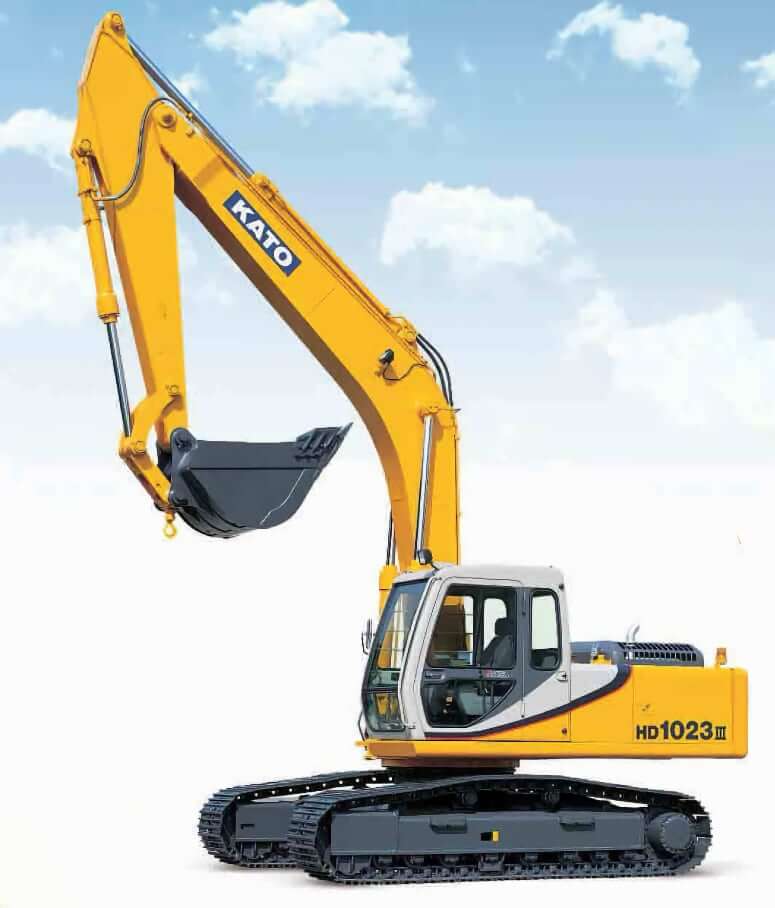

| Operating Weight | 50706 lb (23000 kg) |
| Operating Voltage | 24 V |
| Alternator | 35 amps |
| Battery | 2x 12 V |
| Starter | 24 V, 6.7 hp (5 kw) |
| Operator Station | Cab with air conditioner |
| Operator Seat | Multi position operator’s seat. Adjustable seat suspension |
Transmission
| Drive | Independent axial piston motor with reduction for each side |
| Max Travel Speed | 3.42 mph (5.5 km/h) |
| Gradeability | 70% (35°) |
| Max Drawbar Pull | 41882 lbf (186.3 kN) |
| Service Brakes | Independent disk brake for each side |
| Parking Brake | Independent disk parking brake for each side, applied automatically when the travel levers are in the neutral position |
Hydraulic System
| Hydraulic Pump Type | Double variable piston pump and gear pump |
| Pump Flow Capacity | 2x 65.3 gal/min (2x 247 L/min) |
| Relief Valve Pressure, Boom/Arm Circuit | 4554 psi (31400 kPa) |
| Relief Valve Pressure, Travel Circuit | 4772 psi (32900 kPa) |
| Control Valves | 5＋4 section multiple control valve (with one free service circuit) |
| Pilot Pump | Gear type |
| Hydraulic Oil Filtration | Full-flow filter with replaceable element, a drain cartridge filter, a pilot line filter and a suction strainer |
Service Refill Capacities
| Fuel Tank Capacity | 100.4 gal (380 L) |
| Engine Oil Capacity | 5.9 gal (22 L) |
| Cooling System Capacity | 6.1 gal (23 L) |
| Hydraulic System Capacity (w/ tank) | 76.7 gal (290 L) |
| Hydraulic Tank Capacity | 43.6 gal (165 L) |
| Track Drive Fluid Capacity (each) | 0.87 gal (3.3 L) |
| Swing Drive Fluid Capacity | 3 gal (11.3 L) |
