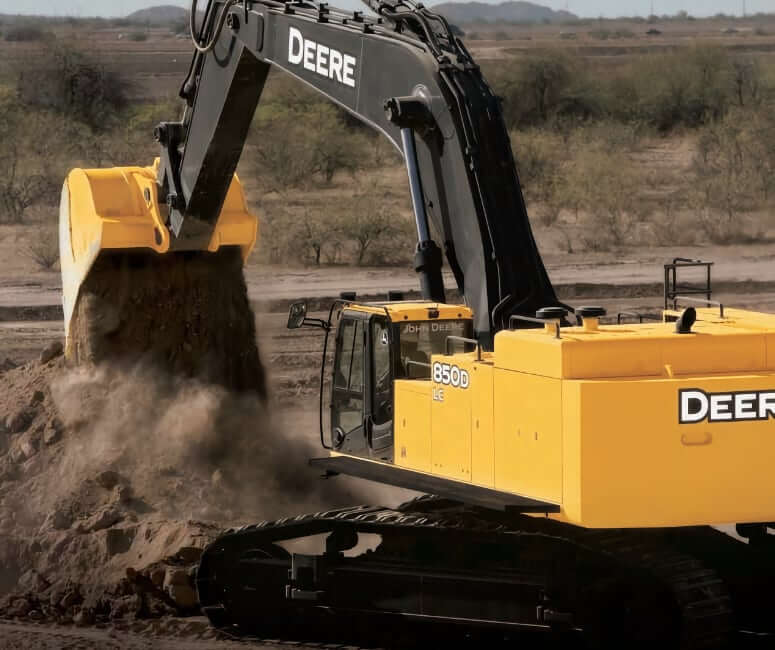

Dimensions
| Height To Top Of Cab | 11.92 ft in (3630 mm) |
| Width To Outside Of Tracks | 14.25 ft in (4340 mm) |
| Length Of Track On Ground | 16.75 ft in (5110 mm) |
| Tail Swing Radius | 14.83 ft in (4520 mm) |
| Removal Counterweight Clearance | 5.5 ft in (1680 mm) |
| Ground Clearance | 2.92 ft in (890 mm) |
Working Range
| Shipping Length Of Unit | 48.5 ft in (14780 mm) |
| Shipping Height Of Unit | 15 ft in (4570 mm) |
| Max Cutting Height | 42.75 ft in (13030 mm) |
| Max Loading Height | 29.75 ft in (9080 mm) |
| Max Reach Along Ground | 45.33 ft in (13820 mm) |
| Max Vertical Wall Digging Depth | 23.5 ft in (7170 mm) |
| Max Digging Depth | 29.08 ft in (8870 mm) |
| Boom/Arm Length | Boom 27′ 7″ (8.4 m) / Stick – 12′ 2″ (3.7 m ) |
Working Range (Boom/Arm Option 2)
| Shipping Length Of Unit | 48.67 ft in (14830 mm) |
| Max Cutting Height | 45.33 ft in (13820 mm) |
| Shipping Height Of Unit | 15.75 ft in (4810 mm) |
| Max Loading Height | 31.92 ft in (9730 mm) |
| Max Reach Along Ground | 48 ft in (14640 mm) |
| Max Vertical Wall Digging Depth | 27.83 ft in (8480 mm) |
| Max Digging Depth | 31.42 ft in (9570 mm) |
| Boom/Arm Length | Boom – 27′ 7″ (8.4 m) / Stick – 14′ 5″ (4.4 m) |
Working Range (Boom/Arm Option 3)
| Shipping Length Of Unit | 47.92 ft in (14610 mm) |
| Max Cutting Height | 47.67 ft in (14530 mm) |
| Max Loading Height | 34.17 ft in (10410 mm) |
| Shipping Height Of Unit | 18.5 ft in (5640 mm) |
| Max Reach Along Ground | 51.42 ft in (15670 mm) |
| Max Vertical Wall Digging Depth | 32 ft in (9750 mm) |
| Max Digging Depth | 34.67 ft in (10570 mm) |
| Boom/Arm Length | Boom – 27′ 7″ (8.4 m) / Stick – 17′ 9″ (5.4 m) |
Working Range (Boom/Arm Option 4)
| Shipping Length Of Unit | 44.33 ft in (13510 mm) |
| Shipping Height Of Unit | 17.08 ft in (5210 mm) |
| Max Cutting Height | 39.42 ft in (12010 mm) |
| Max Loading Height | 26.67 ft in (8130 mm) |
| Max Reach Along Ground | 39.42 ft in (12020 mm) |
| Max Digging Depth | 23.42 ft in (7140 mm) |
| Max Vertical Wall Dig Depth | 13.42 ft in (4100 mm) |
| Boom/Arm Length | Mass Boom – 23′ 4″ (7.1 m) / Mass Stick – 9′ 8″ (2.95 m) |
Working Range (Boom/Arm Option 5)
| Max Cutting Height | 48.1 ft in (14660 mm) |
| Max Loading Height | 35.47 ft in (10810 mm) |
| Max Reach Along Ground | 53.55 ft in (16320 mm) |
| Max Digging Depth | 36.62 ft in (11160 mm) |
| Max Vertical Wall Dig Depth | 32.39 ft in (9870 mm) |
| Boom/Arm Length | Mass Boom – 23′ 4″ (7.1 m) / Mass Stick – 14′ 5″ (4.4 m) |
Working Range (Boom/Arm Option 6)
| Max Cutting Height | 50.33 ft in (15340 mm) |
| Max Loading Height | 36.95 ft in (11260 mm) |
| Max Reach Along Ground | 56.89 ft in (17340 mm) |
| Max Digging Depth | 39.9 ft in (12160 mm) |
| Max Vertical Wall Dig Depth | 37.21 ft in (11340 mm) |
| Boom/Arm Length | Mass Boom – 23′ 4″ (7.1 m) / Mass Stick – 17′ 9″ (5.4 m) |
Undercarriage
| Shoe Size (Standard) | 36 in (900 mm) |
| Shoe Size (Optional) | 32 in (800 mm) |
| Shoe Size (Optional) | 28 in (700 mm) |
| Number of Shoes per Side | 51 |
| Number of Track Rollers per Side | 9 |
| Number of Carrier Rollers per Side | 3 |
| Track Gauge | 135.8 in (3450 mm) |
| Distance Between Idler / Sprocket Centerline | 201.2 in (5110 mm) |
| Ground Pressure, 28 in (700 mm) Double-Bar Grouser Shoes | 16.1 psi (111.0 kPa) |
| Ground Pressure, 28 in (800 mm) Double-Bar Grouser Shoes | 14.0 psi (96.5 kPa) |
| Ground Pressure, 28 in (900 mm) Double-Bar Grouser Shoes | 11.8 psi (81.41 kPa) |
Buckets
| Standard Bucket Width | 54 in (1370 mm) |
| Standard Bucket Weight | 7845 lb (3558 kg) |
| Standard Bucket Capacity | 4.57 yd3 (3.49 m3) |
| Min Bucket Capacity | 2.0 yd3 (1.51 m3) |
| Max Bucket Capacity | 7.6 yd3 (5.81 m3) |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | Isuzu |
| Engine Model | Isuzu AH-6WG1XYSA-03 |
| Displacement | 957 cu in (15.681 L) |
| Bore | 5.79 in (147 mm) |
| Stroke | 6.06 in (154 mm) |
| Net Power | 532 hp (397 kw) |
| Power Measured @ | 1800 rpm |
| Peak Torque | 1709 lb ft (2317 Nm) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbocharged, air-to-air charge air cooler |
| Emission Standards | US EPA Tier 3 + EU Stage IIIA |
Operational Specs
| Operating Weight | 185876 lb (84312 kg) |
| Counterweight | 29321 lb (13300 kg) |
| Operating Voltage | 24 V |
| Alternator | 50 amps |
| Battery | 2x 12 V, RC: 280 min |
| Working Lights | 4 (one mounted on frame, one mounted on boom, 2 mounted on top of cab) |
| Operator Seat | Deluxe air-suspension heated cloth seat with 4 in (100 mm) adjustable armrests |
| HVAC | Auto climate control/air conditioner, 20000 BTU/h (5.9 kw) with heater and pressurizer |
| Display | Multifunction, color LCD monitor with: Diagnostic capability / Multiple-language capabilities / Maintenance tracking / Clock / Theft-deterrent system / System monitoring with alarm features: Auto-idle, engine air cleaner restriction indicator light, engine check, engine coolant temperature indicator light with audible alarm, engine oil pressure indicator light with audible alarm, low-alternator-charge indicator light, low-fuel indicator light, fault code alert indicator, fuel-rate display, wiper-mode indi- cator, work-lights-on indicator, and work-mode indicator |
Transmission
| Type | Two-speed propel |
| Max Travel Speed, Low | 1.9 mph (3.1 km/h) |
| Max Travel Speed, High | 2.5 mph (4.1 km/h) |
| Drawbar Pull | 126193 lbf (561.3 kN) |
| Drive | Planetary drive with axial piston motors |
| Service Brakes | Spring-applied, hydraulically released automatic propel brak |
Swing Mechanism
| Swing Torque | 182362 lb ft (247250 Nm) |
| Swing Speed | 7.3 rpm |
| Swing Brake | Spring-applied, hydraulically released automatic swing brak |
Hydraulic System
| Type | Open center, load sensing hydraulics |
| Mode Selectors | In-cab mode selectors, illuminated: 3 power modes; 2 travel modes; 2 work modes |
| Main Pump Type | Two variable-displacement pumps |
| Main Pump Flow | 139 gal/min (528 L/min) |
| Pilot Pump Type | One gear pump |
| Pilot Pump Flow | 7.9 gal/min (30 L/min) |
| Operating Pressure, Implement Circuits | 4627 psi (31900 kPa) |
| Operating Pressure, Power Boost | 4975 psi (34300 kPa) |
| Operating Pressure, Travel Circuits | 4975 psi (34300 kPa) |
| Operating Pressure, Swing Circuits | 4264 psi (29400 kPa) |
| Controls | Pilot levers, short stroke, low effort; hydraulic pilot controls with shutoff lever |
| Cylinders | Heat-treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins |

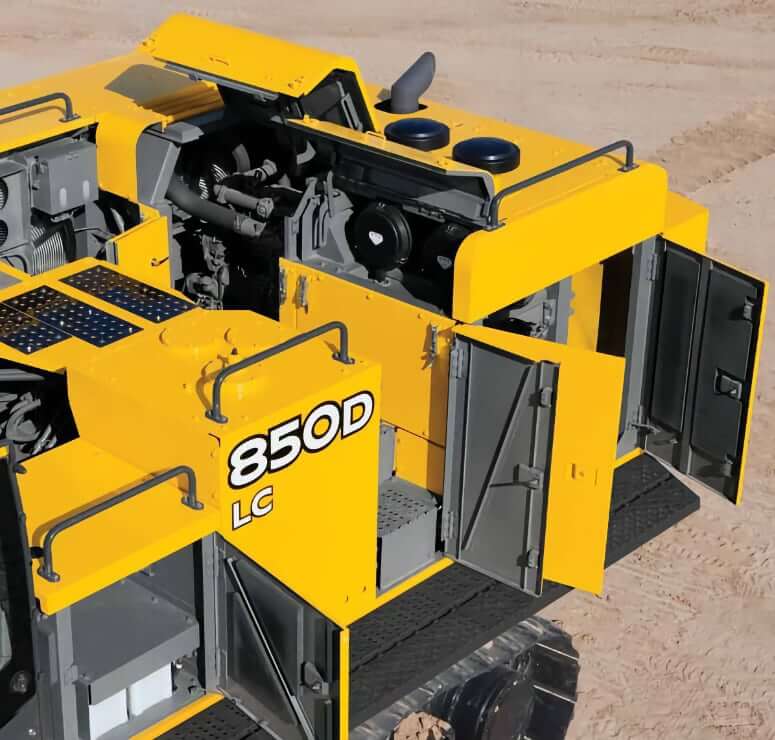

Service Refill Capacities
| Fuel Tank Capacity | 296 gal (1120 L) |
| Engine Oil Capacity (w/ filter) | 13.9 gal (52.6 L) |
| Cooling System Capacity | 21.5 gal (81.4 L) |
| Hydraulic System Capacity (w/ tank) | 208.7 gal (790 L) |
| Hydraulic Tank Capacity | 137.5 gal (520.5 L) |
| Pump Drive Gearbox Capacity | 1 gal (3.8 L) |
| Swing Bearing Gear Capacity | 5.8 gal (22 L) |
| Swing Drive Capacity | 3.3 gal (12.3 L) |
| Propel Gearbox Capacity (each) | 4 gal (15.1 L) |
